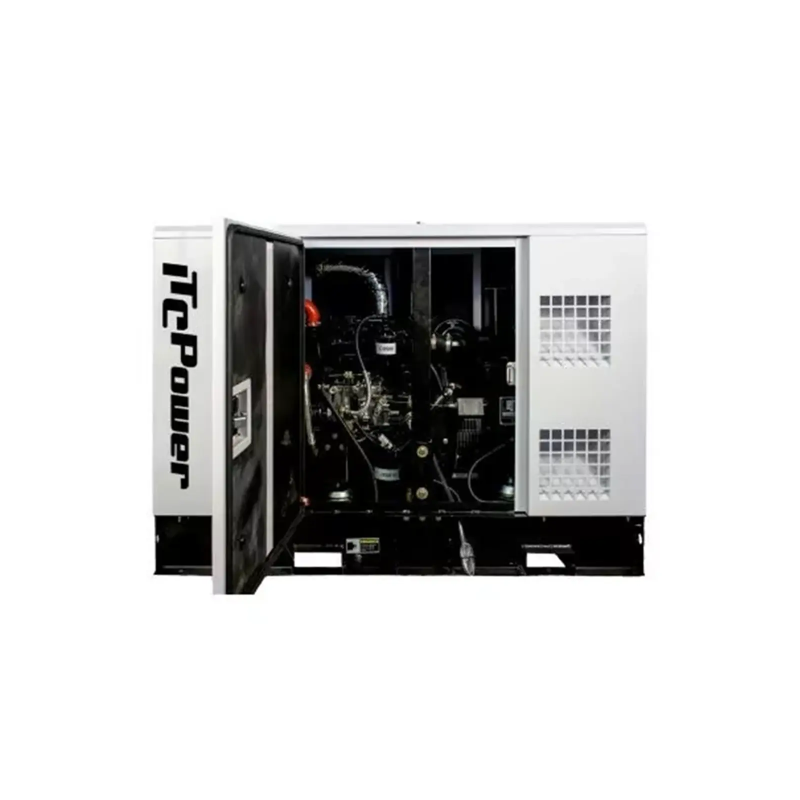

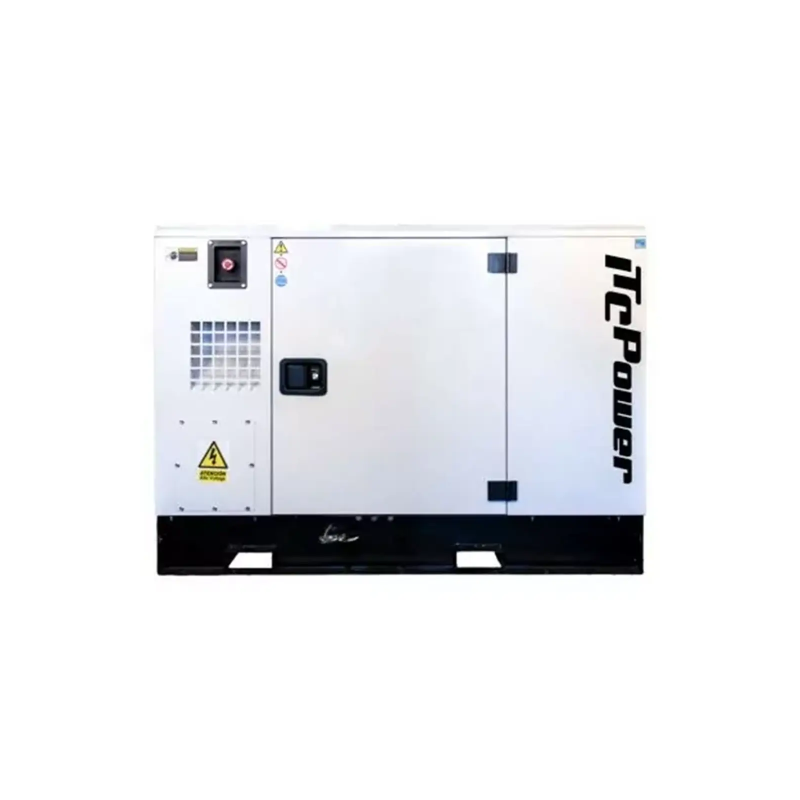

ITC Power 14kVa Diesel Generator Full Power 230V/400V Soundproof DG14KSE

ITC Power 14kVa Full Power 230V/400V Soundproof Diesel Generator DG14KSE

The ITC POWER DG14KSE diesel generator is a reliable, compact solution for single-phase or three-phase power supply. Designed to deliver the power required for domestic, worksite, small workshop or emergency needs, it offers a stable power supply thanks to its copper alternator with AVR regulation, a robust water-cooled diesel engine and a soundproof chassis ready for use on delivery.

Technical specifications

Key features

• Dual voltage: 230 V single-phase or 400 V three-phase - versatility for various uses
• Copper alternator + AVR: stable current, compatible with sensitive equipment (computers, household appliances, tools, etc.)
• Quiet 1360 cc 3-cylinder diesel engine: liquid-cooled, 1500 rpm, suitable for extended use
• Good range: 46 L of fuel for several hours of operation, consumption ≈ 4.5 L/h at full load
• Electric start + ATS pre-equipped: ready to use, automation compatible
• Moderate noise level: ≈ 64 dB(A) at 7 m - quiet for a generator of this power rating
• Robust chassis and enclosed casing: protection from the elements and easy transport

Applications

The ITC POWER DG14KSE diesel generator set is ideal for :

• Domestic or emergency use: household appliances, lighting, freezers, auxiliary heating, etc.
• Construction sites and small workshops: tools, pumps, compressors, lighting or welding equipment, etc.
• Isolated sites, huts, temporary events: provide a reliable power supply in the absence of a network
• Sensitive equipment: computers, electronic equipment, appliances requiring stable voltage thanks to AVR

The ITC POWER DG14KSE diesel generator combines robustness, versatility and ease of use. With its dual voltage, reliable diesel engine, copper alternator with AVR regulation, diesel fuel and balanced technical characteristics (power, consumption, noise level), it is an effective solution for any stand-alone electricity requirement - whether for emergency, worksite, isolated housing or temporary power supply.

FAQ - ITC POWER DG14KSE generator set

Q1 : What is the maximum and rated power?
A: Maximum power 14 kVA (400 V) ≈ 11.2 kW (230 V). Rated power 12.5 kVA (400 V) / 10 kW (230 V).

Q2: Can it power sensitive equipment such as computers or medical equipment?
A: Yes. The 100% copper alternator combined with AVR regulation stabilises the voltage and limits variations, protecting sensitive electronic equipment.

Q3: What is the range on a full tank of fuel?
A: With a 46-litre fuel tank and fuel consumption of around 4.5 litres per hour at full load, the range is around 10 hours at 100% load. At partial load, range increases proportionally.

Q4: Is the genset easy to move?
A: The DG14KSE weighs around 655 kg empty. It is not designed to be moved manually, but the chassis has lifting points and/or supports for forklift trucks; some versions have wheels to make it easier to move locally.

Q5: How does it start?
A: Electric start via the battery supplied. The genset is also pre-equipped for ATS (Automatic Transfer Switch) integration for automatic starting in the event of a mains power cut.

Q6: What protection is included?
A: Protection against low oil level, overheating, thermal circuit breaker, battery protection and generator safety. These protections switch off or slow down the appliance to prevent damage.

Q7: What is the noise level?
A: Approximately 64 dB(A) measured at 7 m, thanks to the soundproof casing - relatively unobtrusive for a generator of this power.

Q8: Is it compatible with an automatic system (ATS) or a photovoltaic installation?
A: Yes - the DG14KSE is ATS-compatible for automatic switching between grid and genset. It can also be used to complement a photovoltaic installation, but the technical integration must be designed by a qualified installer (synchronisation controls, inverters, control interface, etc.).
