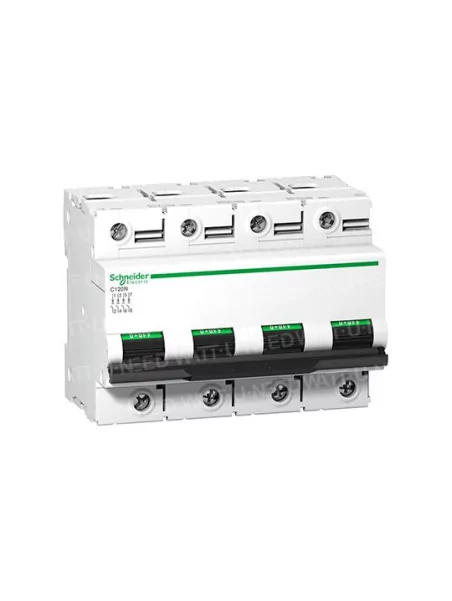

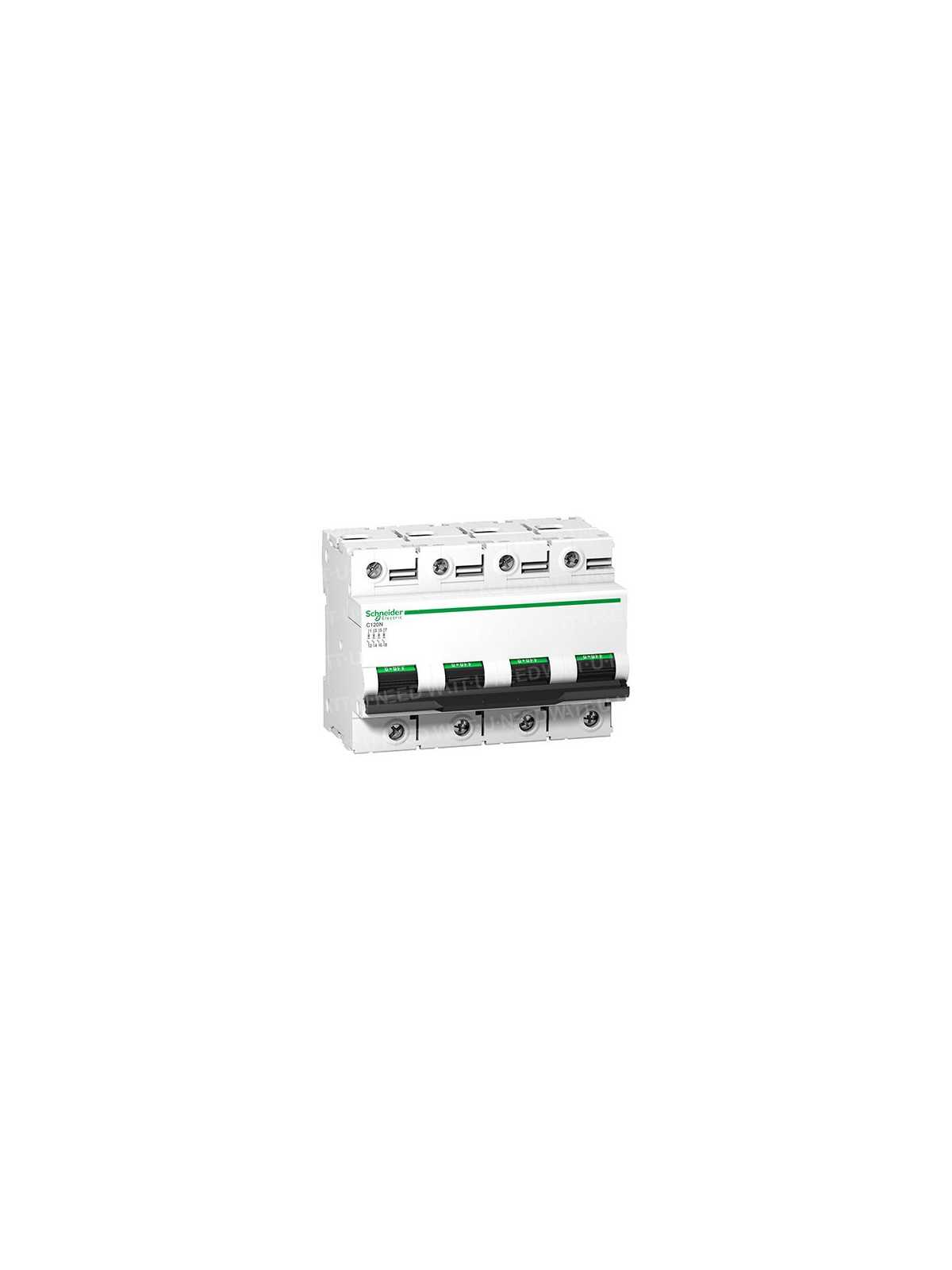

Schneider 100A tetra circuit breaker View full size

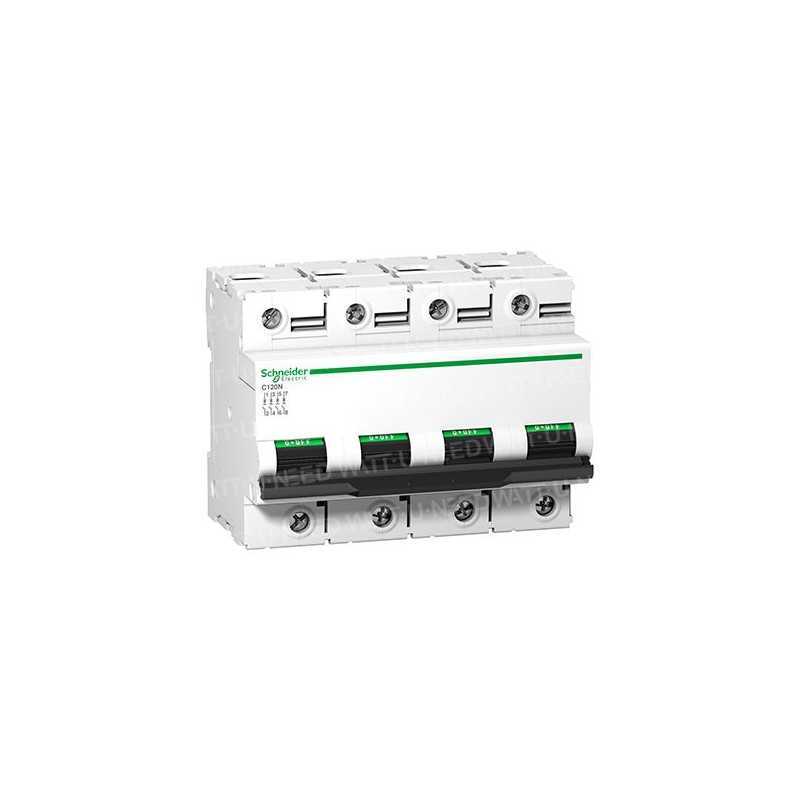

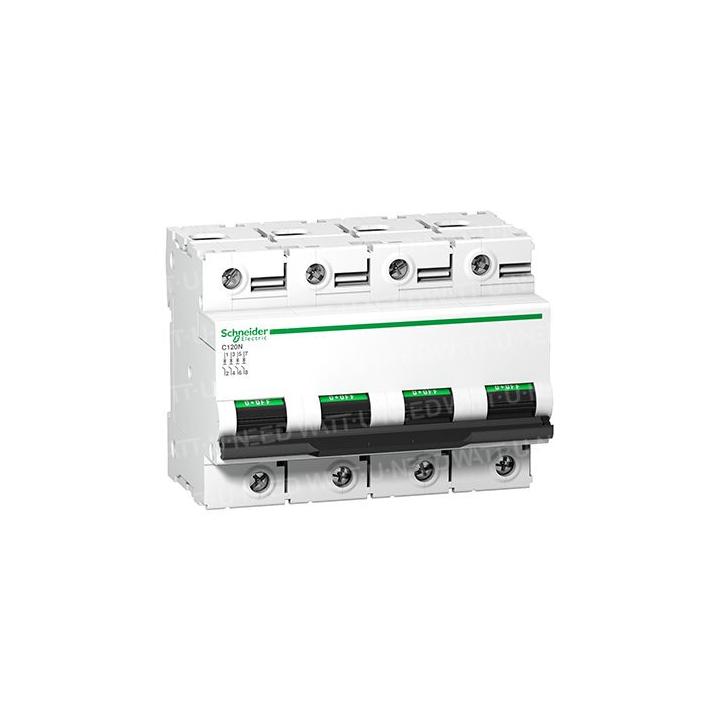

Schneider 100A tetra circuit breaker

Schneider Electric

518,90 € tax incl.

Schneider 100A Circuit Breaker

Acti 9

4 poles

More details

More info

Schneider 100A tetra circuit breaker



Features

Main
rangeActi 9
Product nameC120
Product or component typeMiniature circuit breaker
Short device nameC120N
Application of the devicedistribution
Description of the poles4P
Number of poles protected4
[In] assigned current job100 A to 30 degrees Celsius
Type of networkAc.
Trigger technologyThermal-magnetic
Trigger curvec
Cutting power10000 A Icn to 230...400 V c.a. 50/60 Hz compliant with EN/IEC 60898-1
6 kA Icu to 440 V c.a. 50/60 Hz compliant with EN/IEC 60947-2
20 kA Icu to 220...240 V c.a. 50/60 Hz compliant with EN/IEC 60947-2
10 kA Icu to 380...415 V c.a. 50/60 Hz compliant with EN/IEC 60947-2
10 kA Icu at < 500 V c.c. compliant with EN/IEC 60947-2
Ability to cutYes compliant with IEC 60947-2
Complementary
Frequency of network50/60 Hz
[Ue] assigned job tension380...415 V c.a. 50/60 Hz
< 500 V .c.
220...240 V c.a. 50/60 Hz
440 V c.a. 50/60 Hz
230...400 V c.a. 50/60 Hz
Magnetic trigger limit5...10 x In
[Ics] assigned power to short-circuit service outage7500 A 75% EN/IEC 60898-1 - 230...400 V c.a. 50/60 Hz
4.5 kA 75% EN/IEC 60947-2 - 440 V c.a. 50/60 Hz
7.5 kA 75% EN/IEC 60947-2 - 380...415 V c.a. 50/60 Hz
15 kA 75% EN/IEC 60947-2 - 220...240 V c.a. 50/60 Hz
10 kA 100% EN/IEC 60947-2 - < 500 V c.c.
Limitation class3 ensci compliant with EN/IEC 60947-2
[Ui] assigned isolated tension500 V c.a. 50/60 Hz compliant with EN/IEC 60947-2
[Uimp] assigned tension of holding to shocks6 kV en/IEC 60947-2
Fully apparent cutYes
Type of commandRocking key
Local signageIndicationACTIVE/DEACTIVE
How to installIn clips
Mounting supportRail DIN symmetrical 35 mm
Distribution block and comb compatibilityNo
No 9 mm12
height81 mm
width108 mm
depth73 mm
Product weight0.82 kg
colourWhite
Mechanical lifespan20,000 cycle
Electric lifespan5000 IEC 60947-2-compliant cycle
Connection modeTunnel1 type terminals... 50 mm2 rigid
Tunnel-type terminals1,5... 35 mm2 flexible
Length of stripping of wires15 mm
Tightening torqueN.m 3.5
Protection leak to the groundSeparate block
environment
StandardsEN/IEC 60947-2
EN/IEC 60898-1
Product certificationsEAC
Degree of IP protectionIP20 compliant with IEC 60529
Pollution level3 compliant with IEC 60947-2
Surge categoryIv
tropicalization2 compliant with IEC 60068-1
Operating altitude2000m
Operating temperature-25 to 70 degrees Celsius
Room temperature for storage-40 to 85 degrees Celsius

Specifications

Type de matériel électriqueDisjoncteur
