    DC Cut-out and protection box

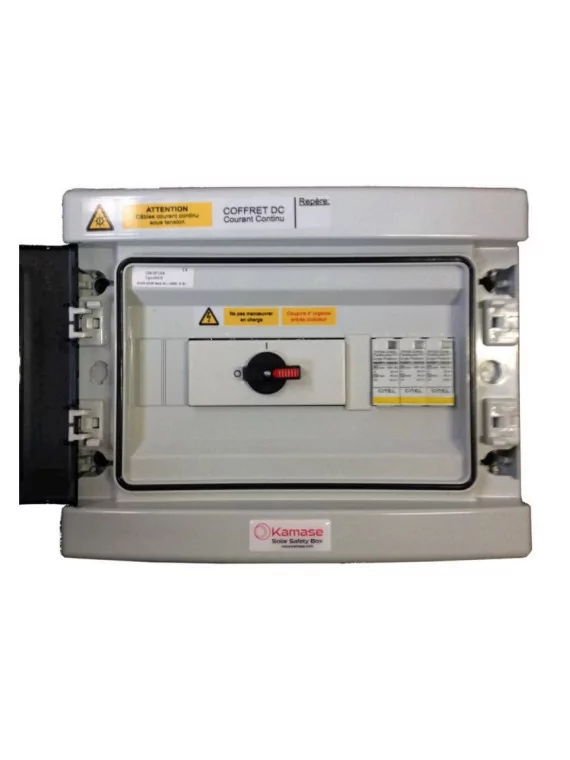

    DC Cut-out and protection box 40A

    $424.8
    09938
    0712971131224

    Cut-out and protection box 40A specifically designed for residential photovoltaic systems.

    DC Cut-out and protection...

    $424.8

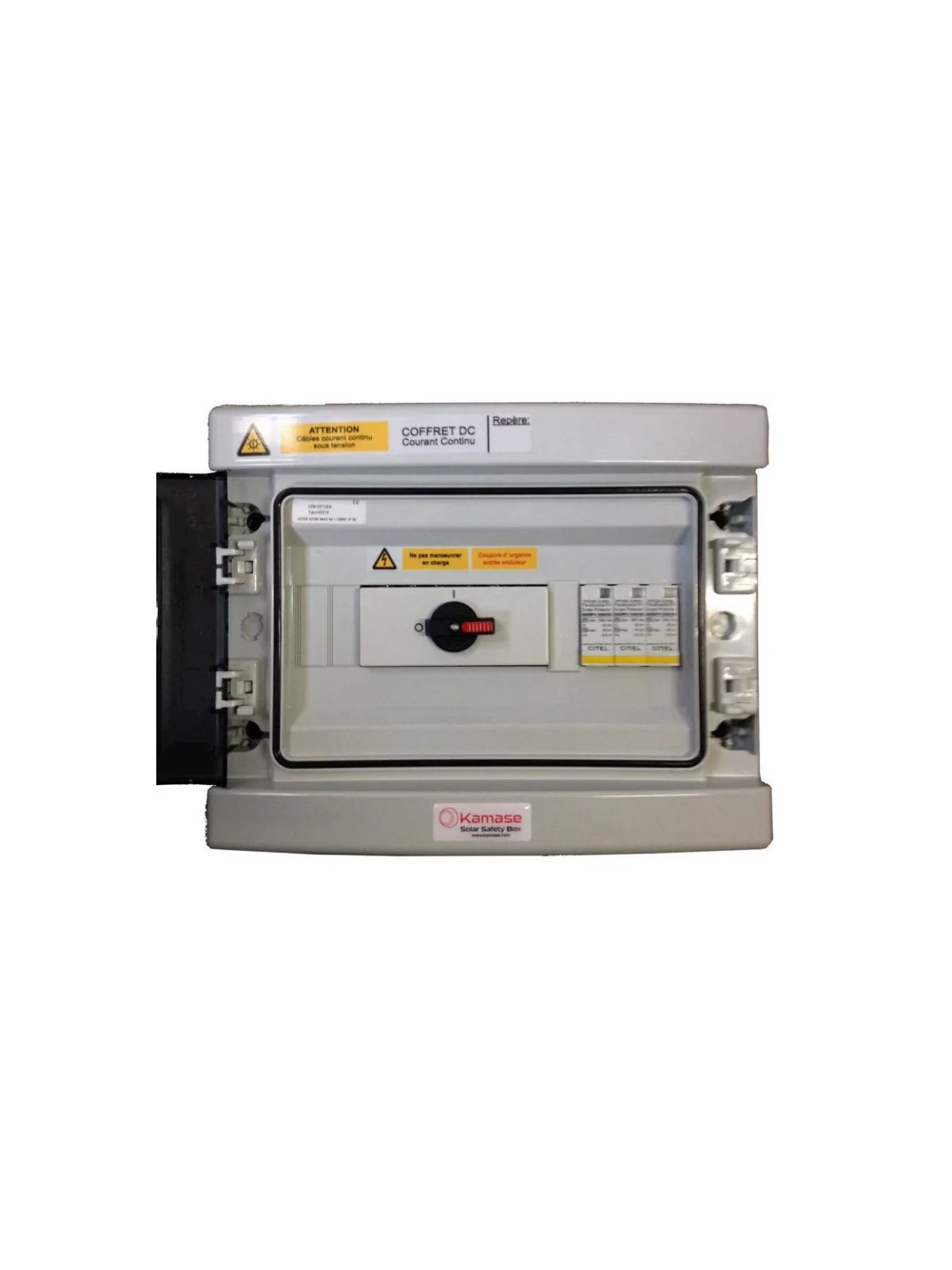

    DC Cut-out and protection box 40A



    Simple Cut-out and protection box specifically designed for residential photovoltaic systems :

    • DC box equipped with 1 switch disconnector of the brand Kraus & Naimer. It is quick and convenient to install because it is equipped with Wago spring terminals that facilitate connection to the inverter. A DC surge arrester protect the system.



    DC Cut-out and protection box 40A



    Components

    Features

    Functions

    Switch Disconnector6-pole 20A-1000V DCSectioning
    Surge Arrester

    Type 2 photovoltaic 1000V DC In 15kA Imax 40A

    Protects against surges

    4 pre-wired  MC4 sockets

    Allows the connection of 1 or 2 strings (1 string : connected directly to the switch)

    Connection strings DC



    Complies with C15-712-1



    Dimensions


    12 modules L230xl310xP148mm




    Protection sign


    IP 65 Outdoor Installation.





    Include


    • Spring terminals 16 to 25mm2 for easy connection.
    • Cable gland assembly.
    • Single-line diagram
    • Labeling according to UTE standards
    • Individual cardboard packaging

    09938

    Specific References

    New

    Download

    Datasheet DC Simple 40 FR

    Download (289.23KB)
