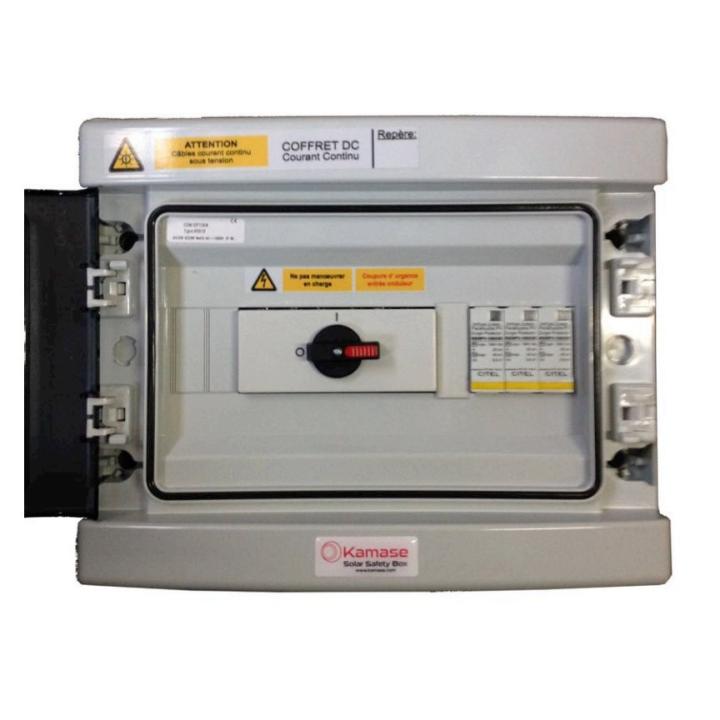

DC Cut-out and protection box 40A

€ 470,74
Belasting inbegrepen
09938
0712971131224

Cut-out and protection box 40A specifically designed for residential photovoltaic systems.

Commentaar (0)

Geen klantenbeoordelingen op het moment.

DC Cut-out and protection box 40A



Simple Cut-out and protection box specifically designed for residential photovoltaic systems :

• DC box equipped with 1 switch disconnector of the brand Kraus & Naimer. It is quick and convenient to install because it is equipped with Wago spring terminals that facilitate connection to the inverter. A DC surge arrester protect the system.



DC Cut-out and protection box 40A



Components

Features

Functions
Switch Disconnector 6-pole 20A-1000V DC Sectioning
Surge Arrester

Type 2 photovoltaic 1000V DC In 15kA Imax 40A

Protects against surges
4 pre-wired  MC4 sockets

Allows the connection of 1 or 2 strings (1 string : connected directly to the switch)

Connection strings DC



Complies with C15-712-1



Dimensions


12 modules L230xl310xP148mm




Protection sign


IP 65 Outdoor Installation.





Include


• Spring terminals 16 to 25mm2 for easy connection.
• Cable gland assembly.
• Single-line diagram
• Labeling according to UTE standards
• Individual cardboard packaging
