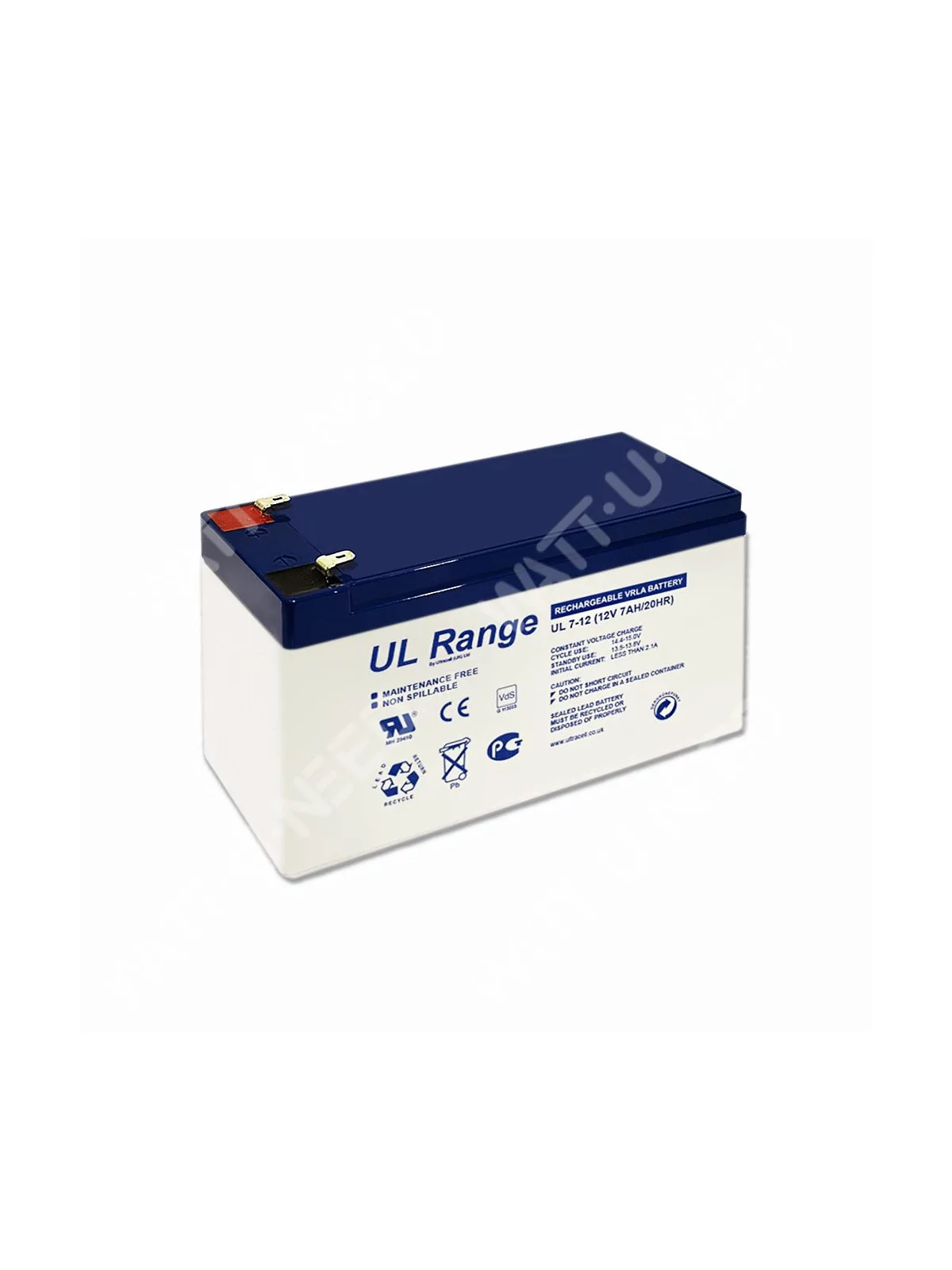

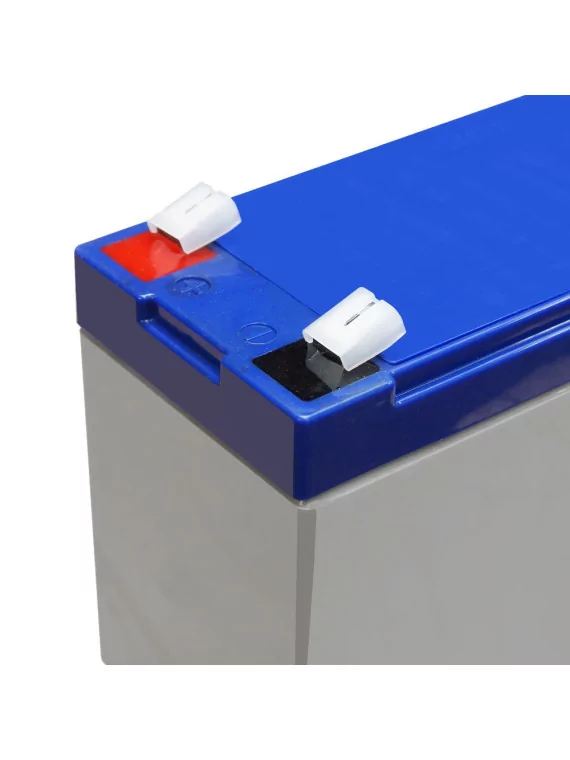

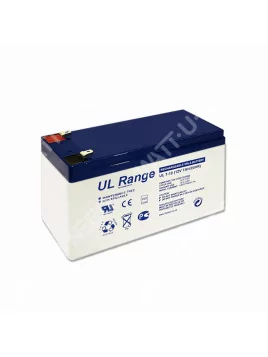

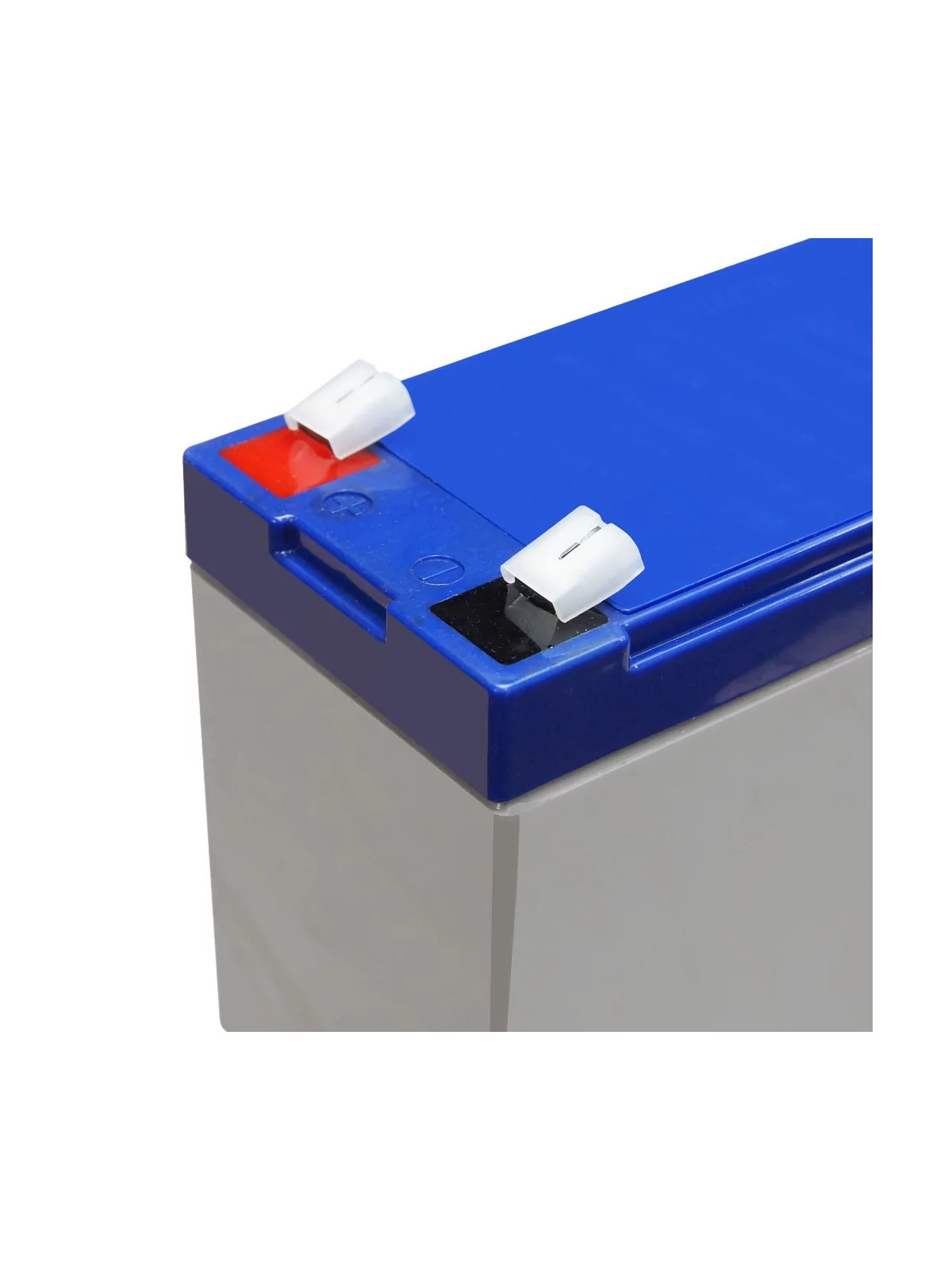

Ultracell UL 7-12 AGM batteries - 7Ah 12V AGM
€15.08
Tax included
UL 7-12
0712971127685
The Ultracell 01201 AGM battery is a 12 V, 7 Ah battery designed for small-scale energy storage, particularly for solar power systems and emergency power supplies. Its AGM (Absorbed Glass Mat) technology is described as sealed and maintenance-free, with a self-discharge rate of 1 to 3% per month. It measures 151 × 65 × 93.5 mm and has a maximum discharge current of 105 A (5 s).
- Specifications: 12 V, 7 Ah, 151 × 65 × 93.5 mm, maximum discharge current 105 A (5 s), internal resistance approx. 23 mΩ.
- Cells: AGM (Absorbed Glass Mat) technology with electrolyte immobilised in a fibre, and sealed battery.
- BMS + communication: Not applicable, as this is an AGM battery (no BMS or communication indicated).
- Compatibility + scalability: Suitable for small solar systems and standby use. Nominal life span 5 years at 20°C, with 500 cycles at 50% discharge and 1,200 cycles at 30% discharge.
No items in stock
⚡
Combien allez-vous économiser ?
Simulez vos économies
avec ce kit de 6 kWc
✅
Compatibilités vérifiées
▼
Compatible avec :
Controller Victron SmartSolar 150/35 - 150/45
€238.37
Voir le produit →
Converter SRNE IC Series 12V - 1000W
€313.60
Voir le produit →
Converter SRNE IC Series 12V - 2000W
€454.70
Voir le produit →
Converter SRNE IC Series 24V - 3000W
€505.10
Voir le produit →
Converter Victron Phoenix C 12/24V - 1200 to...
€505.78
Voir le produit →
Converter Victron Phoenix Smart 12V / 24V / 48V...
€694.54
Voir le produit →
Affichage de 6 sur 35 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.
AGM 7Ah Solar Battery: Maintenance-free, high performance
This new type of sealed battery uses "absorbed glass mat batteries" technology. This technology uses a thin sheet of boron-silicate fiber between the battery's lead plates. This thin sheet is soaked in electrolyte (70% water and 30% acid).
Advantages
AGM batteries have many advantages over conventional lead-acid and gel batteries:
- Maintenance-free, leak-proof.
- No off-gassing, shock-resistant.
- Low self-discharge rate of 1 to 3% per month (unlike a normal lead-acid battery, which discharges very quickly if not used for some time).
- Longer life means a return on investment over time, not to mention improved performance.
- As the electrolyte is soaked in the fiber, it cannot leak out, even if the battery casing breaks, so transport is much easier and safer. As they have no liquid, AGMs are highly insensitive to the damaging effects of frost.
- For solar applications, AGMs are ideal: no maintenance (which means they can be placed in inaccessible locations), no off-gassing (no danger of explosion or health hazards for users), use of conventional charging rates, which means they can be used with any standard charging system, and minimum maintenance during winter storage.
Life cycle versus depth of discharge
Comparative table of price per useful kWh over battery life at a glance!
There are many different storage technologies: Gel or AGM batteries, lithium batteries, OPzS and OPsV. It's not easy to choose the right technology for your needs. Each technology has its own characteristics (size, power, cost, number of cycles and service life, etc.). With this table, you can quickly compare the price per useful kWh over the lifetime of the batteries.
C10 = 10-hour charge/discharge test.
C24 = examination of a charge or discharge in 24 hours.
Click here to see our comparison table.
UL 7-12
Data sheet
- Length
- 151 mm
- Voltage
- 12V
- Technology
- Agm
- Battery capacity
- 7Ah
- Width
- 65 mm
- Thickness
- 93.5 mm
- Maximum discharge current
- 105A (5s)
- Internal resistance
- Approx 23mΩ
- Standby use
- No limit to initial charge current Voltage 13.5V ~ 13.8V at 25°C (77°F) Temperature coefficient Coefficient -20mV/°C
- Nominal service life at 20°C
- 5 years
- Self-discharge
- Ultracell batteries can be stored for up to 6 months at 25°C (°77F), after which a new charge is required. For higher temperatures, the time interval will be shorter.
- Operating temperature range
- Charge : 0 ~ 40°C (5 ~ 104°F)
Discharge: -15 ~ 50°C (5 ~ 122°F)
Stockage : -15 ~ 40°C (5 ~ 104°F) - Weight
- 2,05 kg
- Nominal operating temperature range
- 25 ± 3°C (77 ± 5°F)
- Cycle Use
- Initial charging current less than 2.1A. Voltage 14.4V~15.0V at 25°C (77°F) Temperature coefficient -30 mV/°C
- Capacity affected by temperature
- 0°C (32°F) 86%
25°C (77°F) 100%
40°C (104°F) 103%
Specific References
- UPC
- 712971127685
- EAN13
- 0712971127685
New
Ultracell UL 7-12 AGM batteries - 7Ah 12V AGM — AGM / GEL battery
Ultracell UL 7-12 AGM batteries - 7Ah 12V AGM is available in our AGM / GEL battery catalog. Technical specifications: length: 151 mm, voltage: 12V, technology: Agm, battery capacity: 7Ah, width: 65 mm, thickness: 93.5 mm, maximum discharge current: 105A (5s), internal resistance: Approx 23mΩ, standby use: No limit to initial charge current Voltage 13.5V ~ 13.8V at 25°C (77°F) Temperature coefficient Coefficient -20mV/°C, nominal service life at 20°c: 5 years, self-discharge: Ultracell batteries can be stored for up to 6 months at 25°C (°77F), after which a new charge is required. For higher temperatures, the time interval will be shorter., operating temperature range: Charge : 0 ~ 40°C (5 ~ 104°F) Discharge: -15 ~ 50°C (5 ~ 122°F) Stockage : -15 ~ 40°C (5 ~ 104°F), weight: 2,05 kg, nominal operating temperature range: 25 ± 3°C (77 ± 5°F), cycle use: Initial charging current less than 2.1A. Voltage 14.4V~15.0V at 25°C (77°F) Temperature coefficient -30 mV/°C, capacity affected by temperature: 0°C (32°F) 86% 25°C (77°F) 100% 40°C (104°F) 103%. Product weight: 2.0 kg. Reference: UL 7-12.
