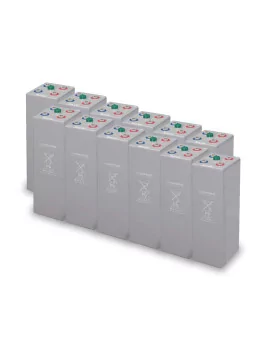

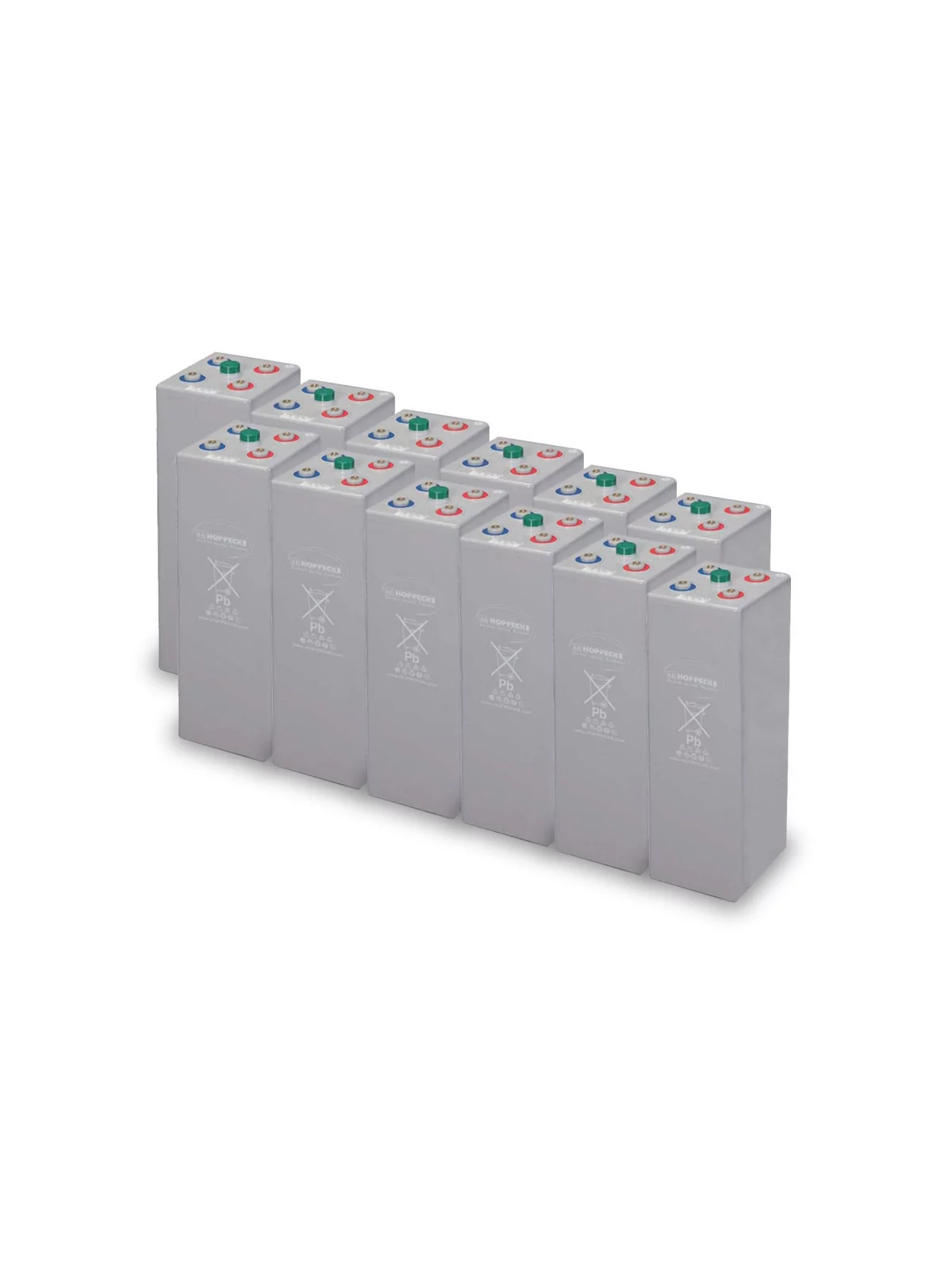

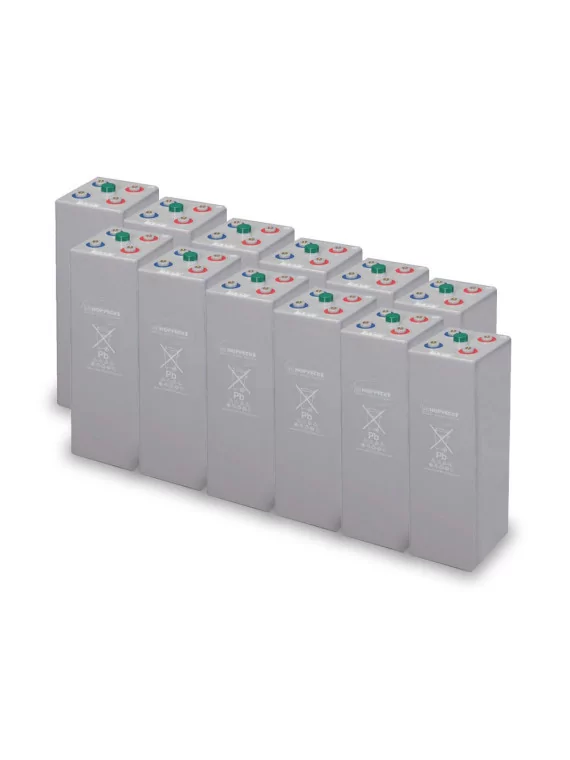

    Park of 12 Hoppecke OPzV 520 batteries

    Park of 12 kWh battery OPzV 24V

    $4,291.4
    0541
    0712971127487

    Store your solar energy with peace of mind using our OPzV 24V battery pack!

    This high-performance, ready-to-use storage system offers you increased energy independence. By storing the excess production from your photovoltaic panels, you consume your own green energy and reduce your electricity bill. Moreover, in the event of a network outage, you have a reliable backup power source.

    Why choose them?

    Comprising 12 OPzV 520Ah batteries, this 12kWh pack is designed for demanding applications. Thanks to their GEL technology and tubular plates, these batteries offer exceptional longevity and deep charge/discharge cycle resistance, making them ideal for solar storage. Their sealed design makes them maintenance-free, simplifying your installation.

    Key advantages:

    • Energy autonomy: Consume your own energy and reduce your electricity bill.
    • Exceptional longevity: Up to 1500 cycles at 80% depth of discharge.
    • Robustness: Designed to withstand the most demanding conditions.
    • Easy installation: Ready to use, with connections included.
    • Flexibility: Can be installed horizontally or vertically.
    • Safety: HOPPECKE connectors for optimal safety.

    Specifications (per battery):

    • Capacity C100: 520 Ah
    • Technology: GEL
    • Plates: Tubular

    Contact our experts for a personalized assessment and quote.

    30 weeks delay



    Park of 12 kWh battery OPzV...

    $4,291.4

    Hoppecke OPzS & OPzV

    OPzV 12kWh Battery Pack - Deep Cycle - Hoppecke - Ready to use

    hoppecke opzv

    > Park of 12 batteries Hoppecke opzv 520

    > Batteries are delivered charged and filled.

    > The junctions necessary to connect your battery park are provided.

    Opzv batteries are based on tubular plate technology with gel electrolyte fixation. These batteries are maintenance-free thanks to their sealed construction. Tubular plates offer a very great hope of life to these batteries.

    The opzv product range is optimal for application in sectors with a high number of discharges such as solar systems as well as for long discharge operations for example in IT / telecom or security lighting applications.


    benefits



    • Optimal space utilization - by horizontal and vertical adjustment
    • Maintenance-free when it comes to water filling - by innovative gel technology
    • Very good cycle stability during use in PSoC1 - by the tubular design of the plates allows an efficient charging current
    • Maximum compatibility - measures that comply with DIN 40742
    • Enhanced short-circuit safety from the moment of assembly - by the use of HOPPECKE system connectors

    Applications



    • On-grid and off-grid energy use
    • Drinking water treatment system
    • Medical treatment equipment
    • Signage, lighting
    • Mobile radio stations
    • Stations BTS
    • Off-grid/grid energy treatment systems

    Cycling



    Life expectancy up to 1500 cycles at 80% depth of discharge.


    Cycle retention life depending on the capacity taken

    Cycle retention life depending on the capacity taken


    Technical specifications

    Click here to see the technical table

    0541

    Data sheet

    Voltage
    24V
    Technology
    OPzV
    Battery capacity
    12000 Wh
