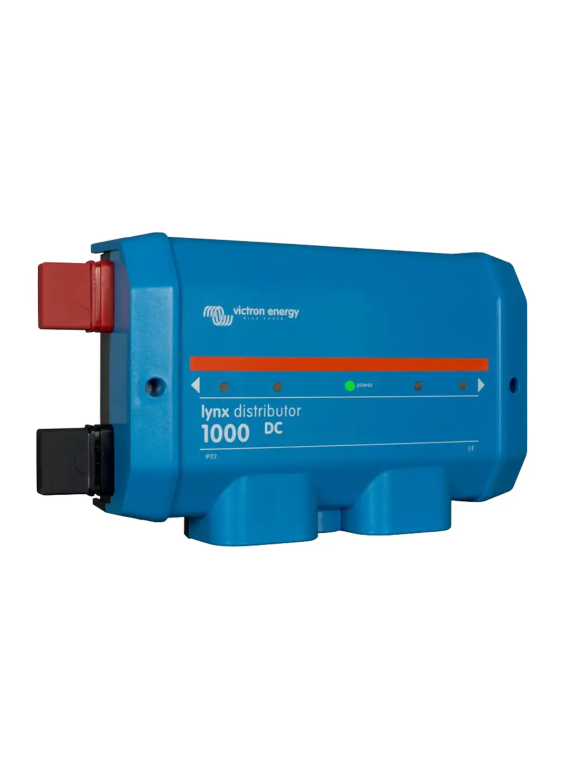

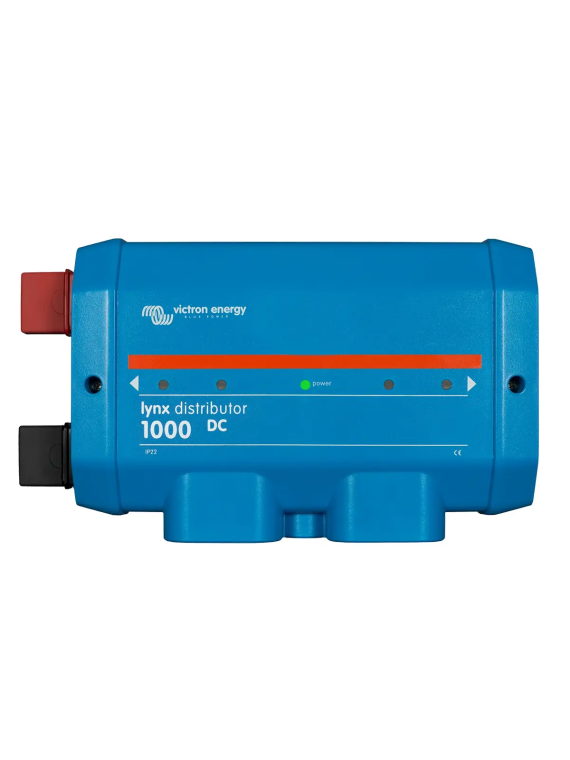

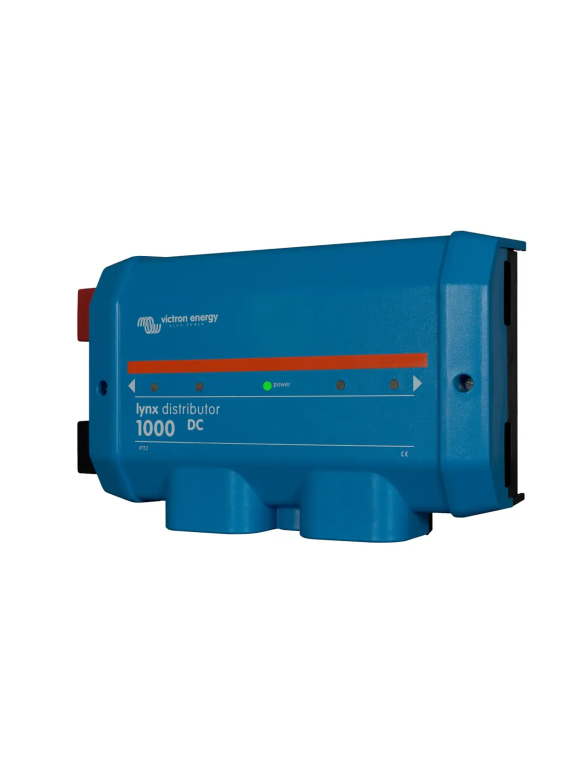

Victron Lynx Distributor - Modular DC Omnibus Busbar for Solar Self-Consumption

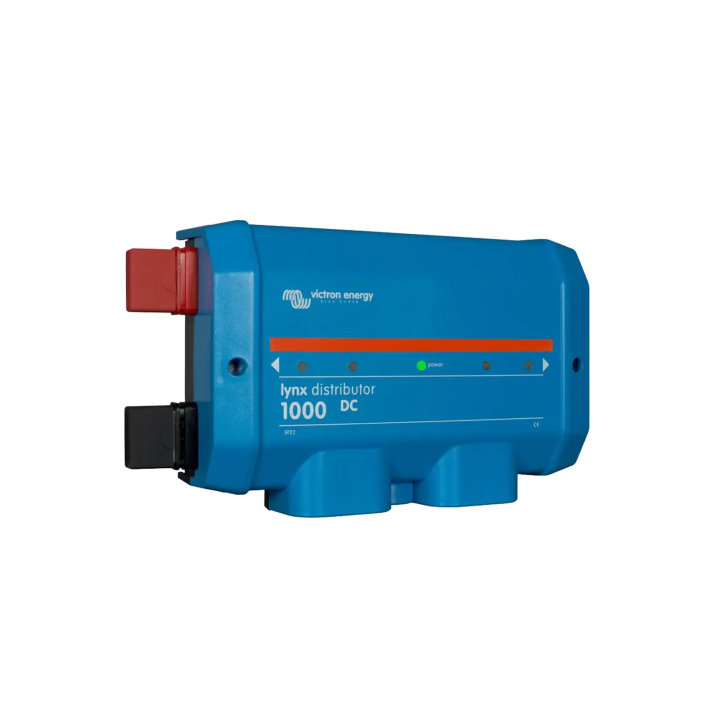

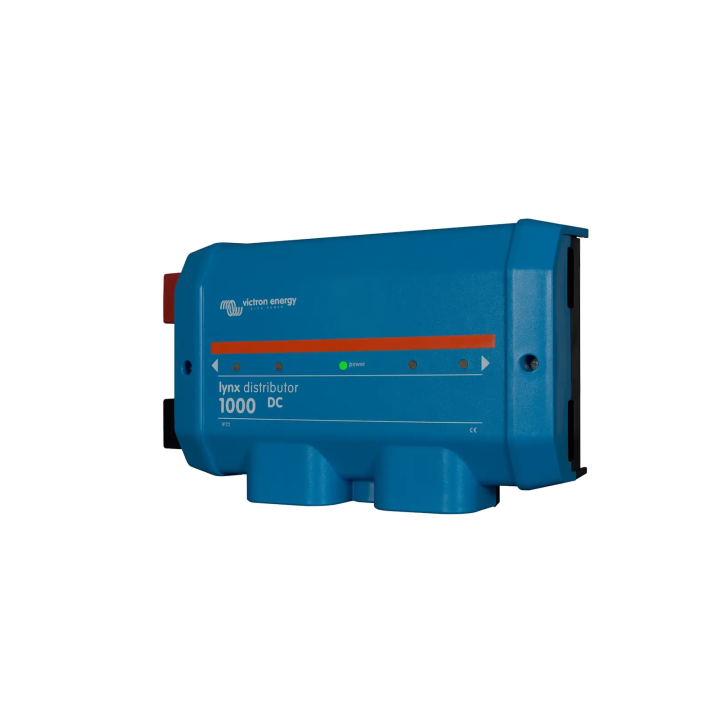

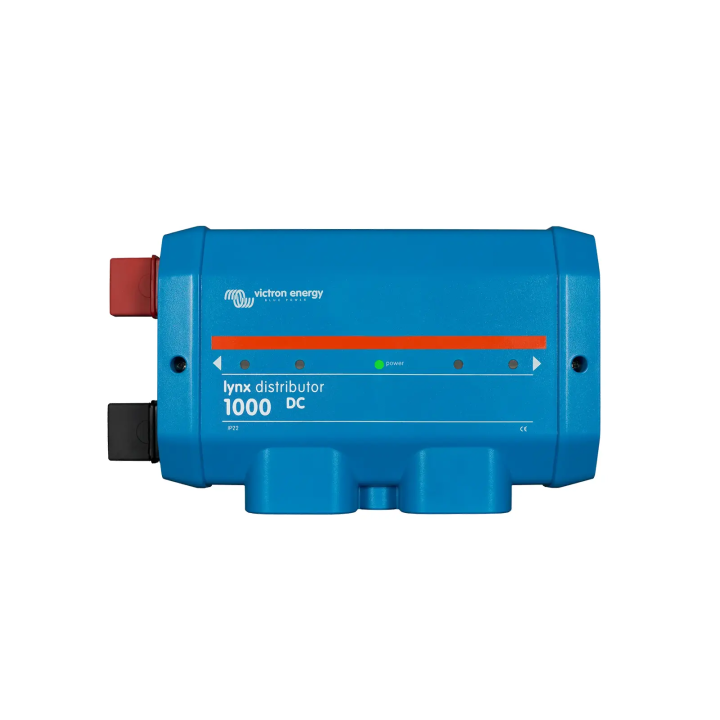

Lynx Distributor - Control your DC power distribution

The Lynx Distributor is a modular DC busbar designed to optimise the electrical distribution in your solar installation. With space for four DC fuses, it offers precise and reliable control of each circuit, guaranteeing safety and performance in your self-consumption systems.

Intelligent fuse management

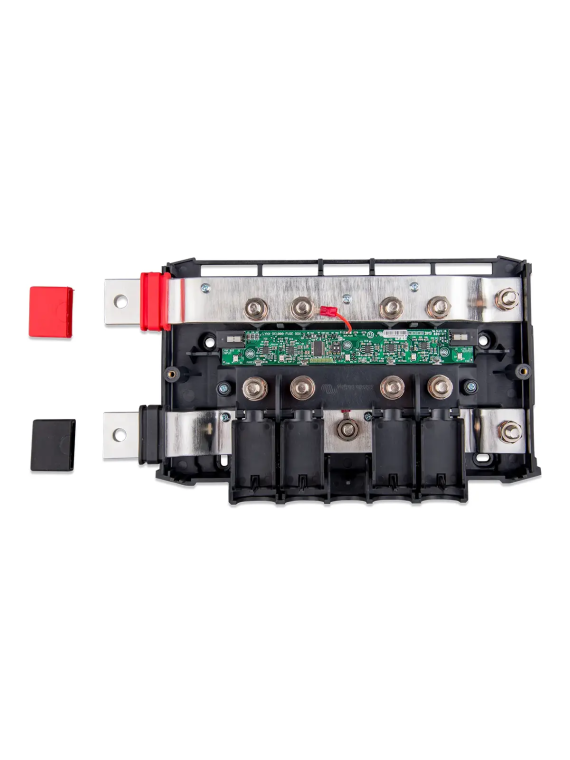

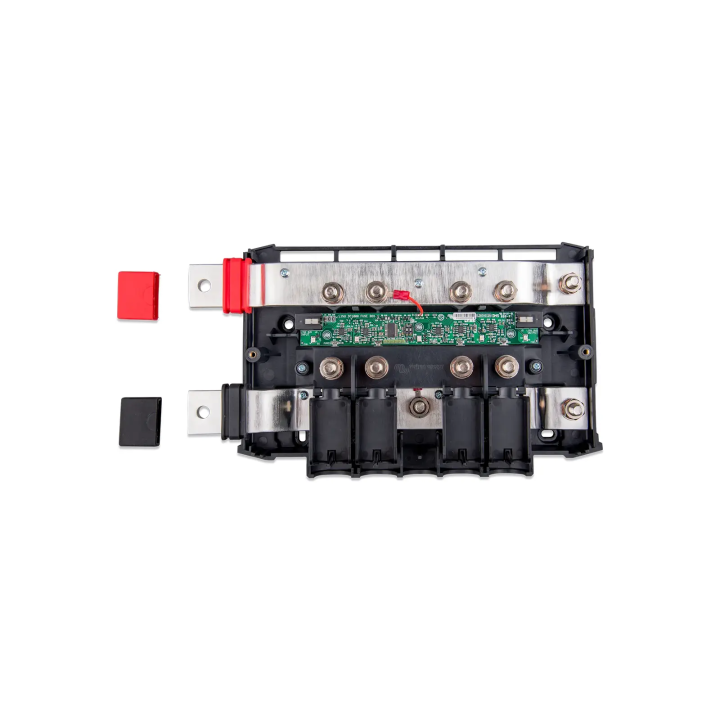

Each fuse is individually monitored and its status is indicated by an LED on the front panel. This feature enables rapid detection of anomalies and facilitates maintenance, minimising interruptions to your photovoltaic installation.

Compatibility and modularity

The Lynx Distributor fits seamlessly into the Lynx modular system and is available in M8 and M10 models. This modularity means you can adapt your system to the size of your installation and add additional components easily, for optimised energy management.

Safety and reliability

Designed to withstand demanding environments, the Lynx Distributor ensures stable and secure DC distribution. Its robust design and LED indicators contribute to a reliable and durable installation, essential for the energy autonomy and efficiency of your solar panels.

Detailed technical specifications

• Type : Modular DC busbar
• Number of fuses: 4 DC slots
• Status indication: LED for each fuse
• Available models: M8 and M10
• Integration: Compatible with Lynx modular system
• Applications : Self-consumption, photovoltaic installations, off-grid systems
• Warranty: 5 years

Comparison of Lynx solutions: Power In, Distributor and Class-T

• Lynx Power In: this is the entry-level version. It's simply a busbar (positive and negative) for connecting up to four batteries or inverters. As it has no built-in fuses, protection must be installed upstream. This is the simplest and most economical option.
• Lynx Distributor: an evolution of the Power In. It can also connect up to four devices, but with integrated protection. Each connection has a slot for a MEGA fuse. Its main advantage is monitoring: it detects the state of each fuse and indicates whether it is blown, either via an LED or by transmitting the information to a Cerbo GX.

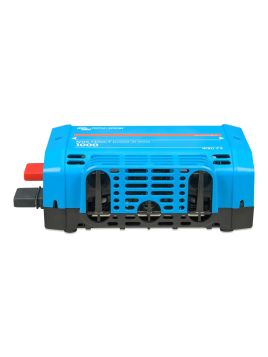

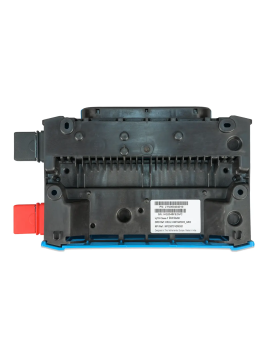

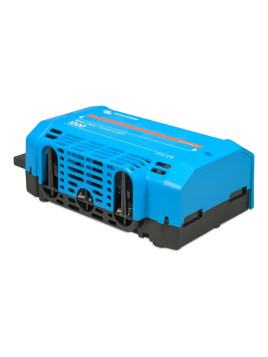

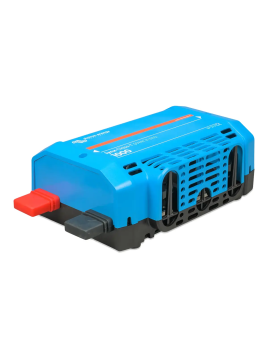

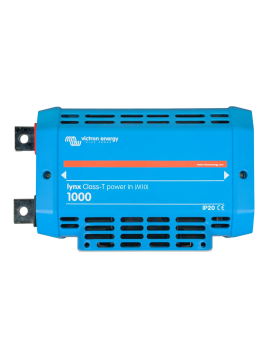

• Lynx Class-T Power In: a specific version of the Power In, adapted to systems fitted with modern lithium batteries capable of delivering very high short-circuit currents. It uses Class-T fuses, which are faster and have a much higher interrupting capacity than MEGA fuses. This makes it a safer solution for high-power installations based on lithium batteries.

Conclusion

The Lynx Distributor is the ideal tool for any solar installation that wants to combine safety, modularity and efficiency. It simplifies the management of your DC circuits while enhancing the reliability of your system, allowing you to maximise your self-consumption and secure your energy production.

FAQ

1. What type of installation is compatible with the Lynx Distributor?
All photovoltaic installations, self-consumption or off-grid, requiring secure DC distribution.

2. How many fuses can be installed?
Up to 4 DC fuses per module.

3. How can I tell if a fuse is faulty?
Each fuse has an LED indicating its status, allowing immediate detection.

4. Can the Lynx Distributor be integrated into an existing system?
Yes, it is compatible with all Lynx modular system components.

5. What is the product's lifespan?
The Lynx Distributor comes with a 5-year guarantee, ensuring long-term reliability.
