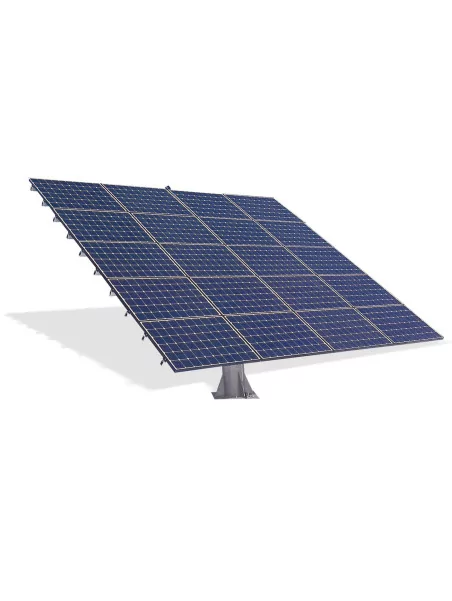

Follower photovoltaic 2 axes: 36 panels

Wattuneed

13 176,90 € tax incl.

This solar tracker can stand between 36 and 44 panels (depending on the size of the Panel) up to 25% extra performance against a South full installation

Manufactured on demand. Contact us for more information.

More details

More info

The STS solar Trackers optimize the performance of a photovoltaic installation.





Instantaneous production more and more great period of production with the tracker.



A solar Tracker allows you to maintain an optimal orientation of the panels compared to the rays of the Sun. This optimal orientation allows to maximize electricity from photovoltaic panels. This type of structure allows to increase electricity generation compared to the fixed panels:



  • 25% increase compared with a plant in the South

  • 40% increase compared with a plant in the East or West





suiveur photovoltaïque

    • Automated two-axis Tracker System

    • Hourly positioning and via brightness calculator

    • Hot galvanized steel structure

    • Suitable for all brands of photovoltaic panels

    • Robustessse

    • Performance







Benefits

  • Increase in the production of 25% compared to a fixed system oriented to the South.
  • Possible installation in the absence of roof or misguided roofing.
  • Compact thanks to student performance.



The installation includes

  • The structure
  • The system of detection and orientation (electronic + engine)



Installation for professionals

  • You communicate the image of a caring society of ecology and the environment.
  • You talk about your company.
  • You invest in the future with a guaranteed return.







description tracker









Characteristics of the Foundation





fondation tracker suiveur solaire



 STS 36
Width3 m
Length3 m
Depth1.25 m
Volume11.3 m³
Weight25875 kg









suiveur photovoltaïque

Features of the structure



The structure has two degrees of freedom: a horizontal rotation to set azimuth and vertical rotation for tilt. The horizontal rotation allows to track the movement of the Sun throughout the day. The vertical rotation helps guide the structure according to the seasonal variation of the Sun.









MaterialsSteel/Alu
Surface59,4 m²
The number of columns9
Number of lines4
Height of mast3 m
Height panels6.64 m
Total width6.64
Total height9 m
Power
(panels 260Wc)
 9360Wc
Annual production 10764 Kwh
Weight1720 kg
Wind speed
maximum eligible
170 km/h
Manufacturing100% Belgian





Engine features



suiveur photovoltaïque





Our solar Tracker has an automatic orientation of the panels according to the daily declination of the Sun (from East to West) throughout the day. This orientation takes place every 10 minutes through an electric motor. The orientation of the structure according to the seasonal variation of sunlight (orientation at 73 ° at the winter solstice to 27 ° at the summer solciste) is also automatic. The installed power is adjusted according to demand. A standard installation is of the order of 10kwp. The surface installed of PV panels is then 64 m².









Horizontal axis  270 °
Vertical axis60 °
Operating voltage24 volt
Engine power2 X 60W
Consumption of
operation
200Wh/j
Tracking systemSchedule +.
brightness sensor
