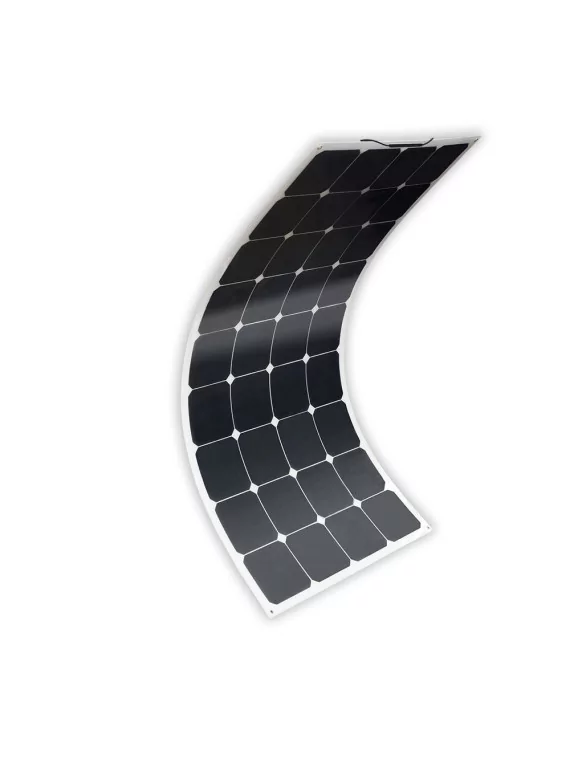

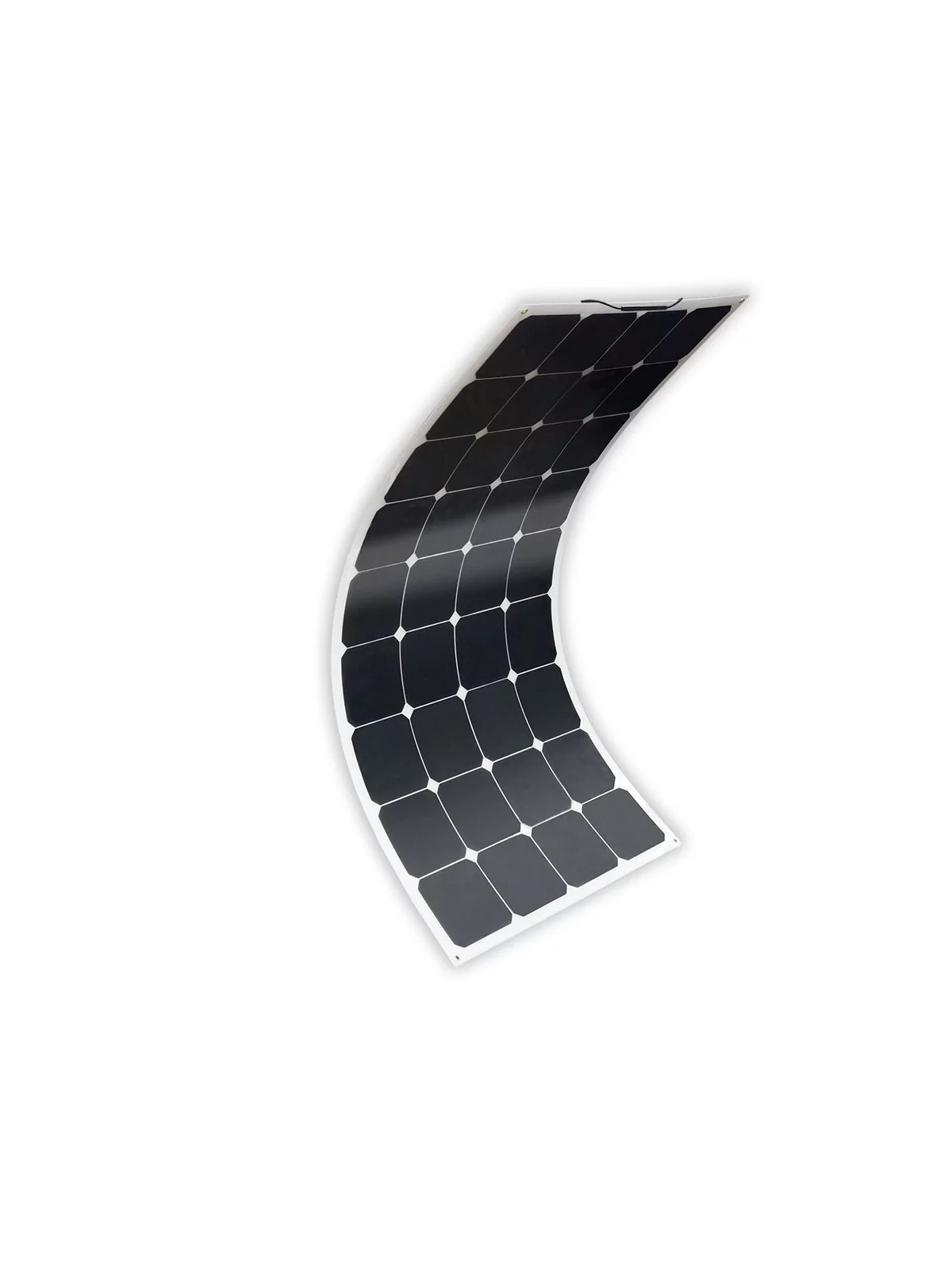

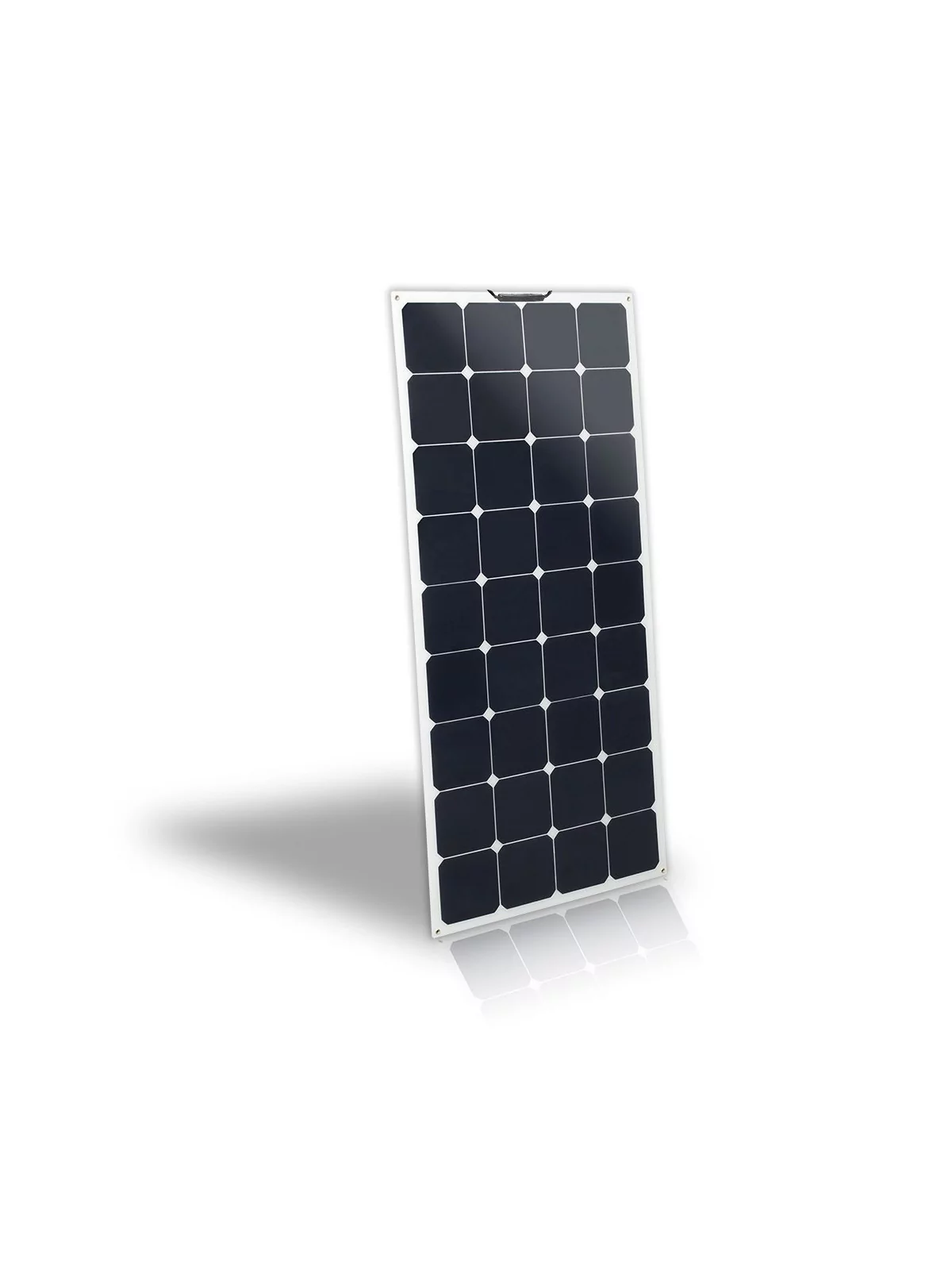

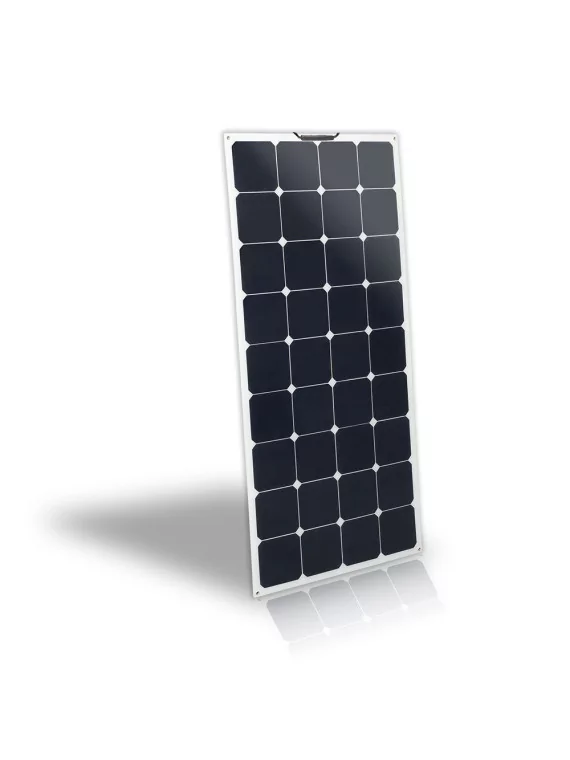

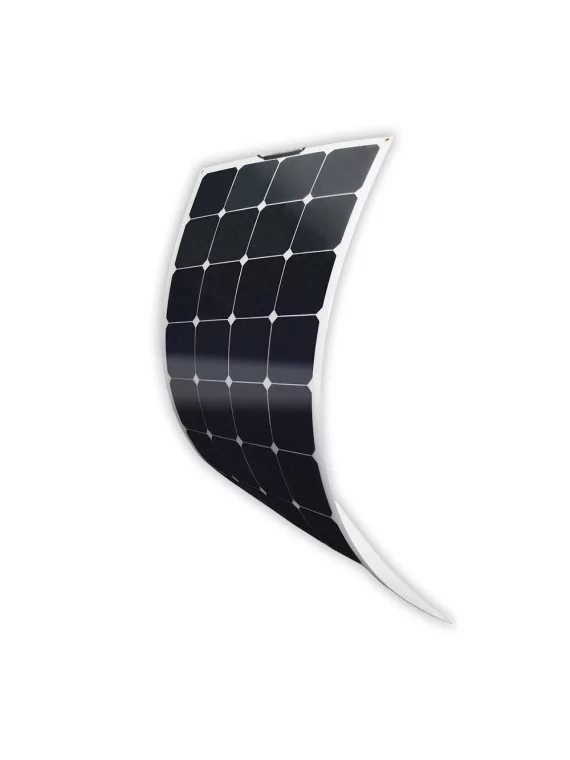

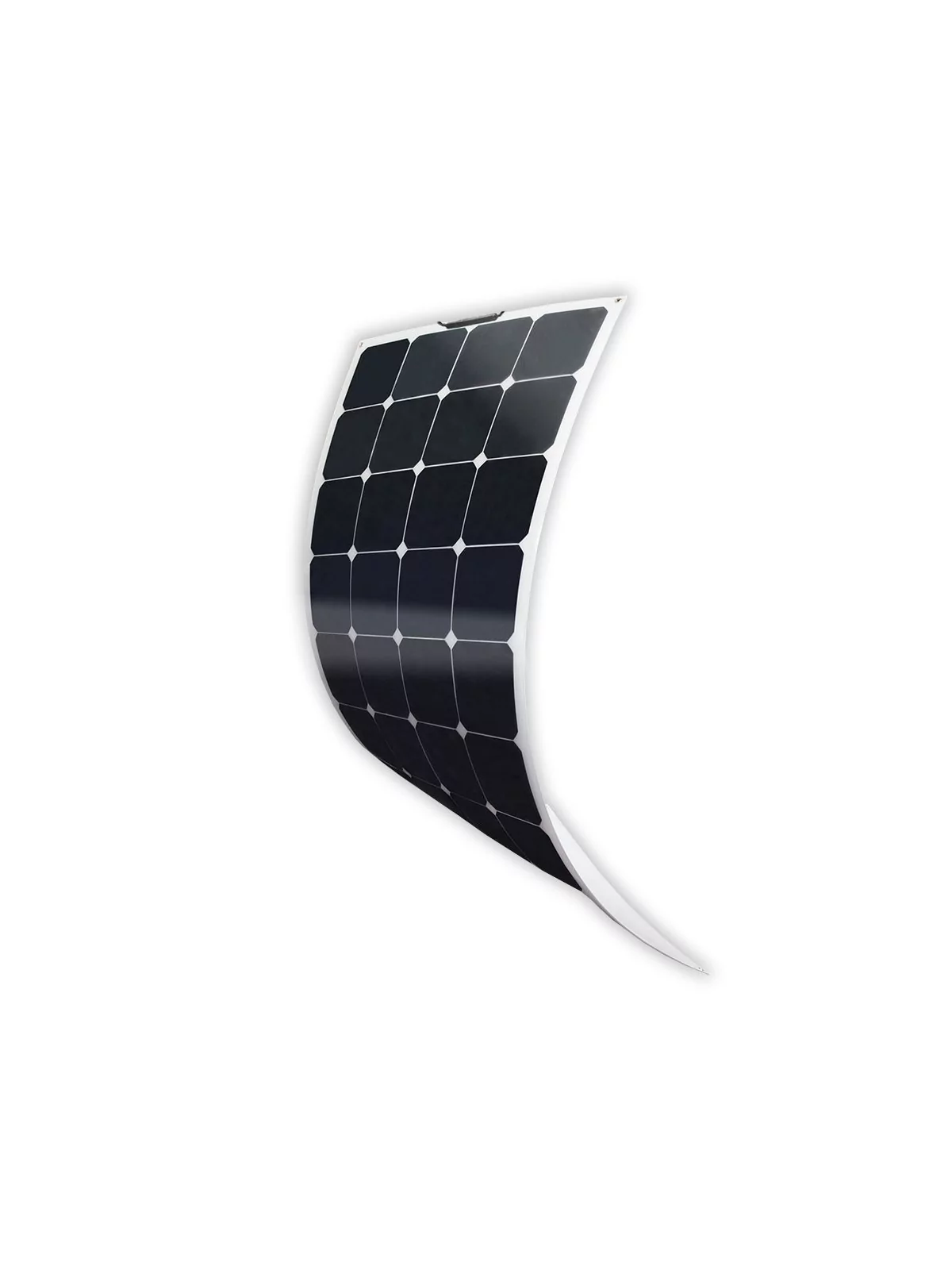

MX FLEX Protect Solar Panel 80Wp Back Contact

MX FLEX PROTECT

217,80 € tax incl.

Perfect for nomadic uses (camping, boat), MX Flex solar panels are also useful for isolated sites.
Back Contact Cell technology is the top of monocrystalline cells, yielding up to 22% efficiency.
Easy to install, the panel adapts to the support thanks to its flexibility and extremely light weight. Its ETFE coating gives it watertightness and increased resistance to saline, wet or weathered environments.

Logo mx flexExclusivity wattuneed

On request only

More details

Thickness

More info

" Ultra flexible, ultra powerful "



panneau solaire sunpower flexible

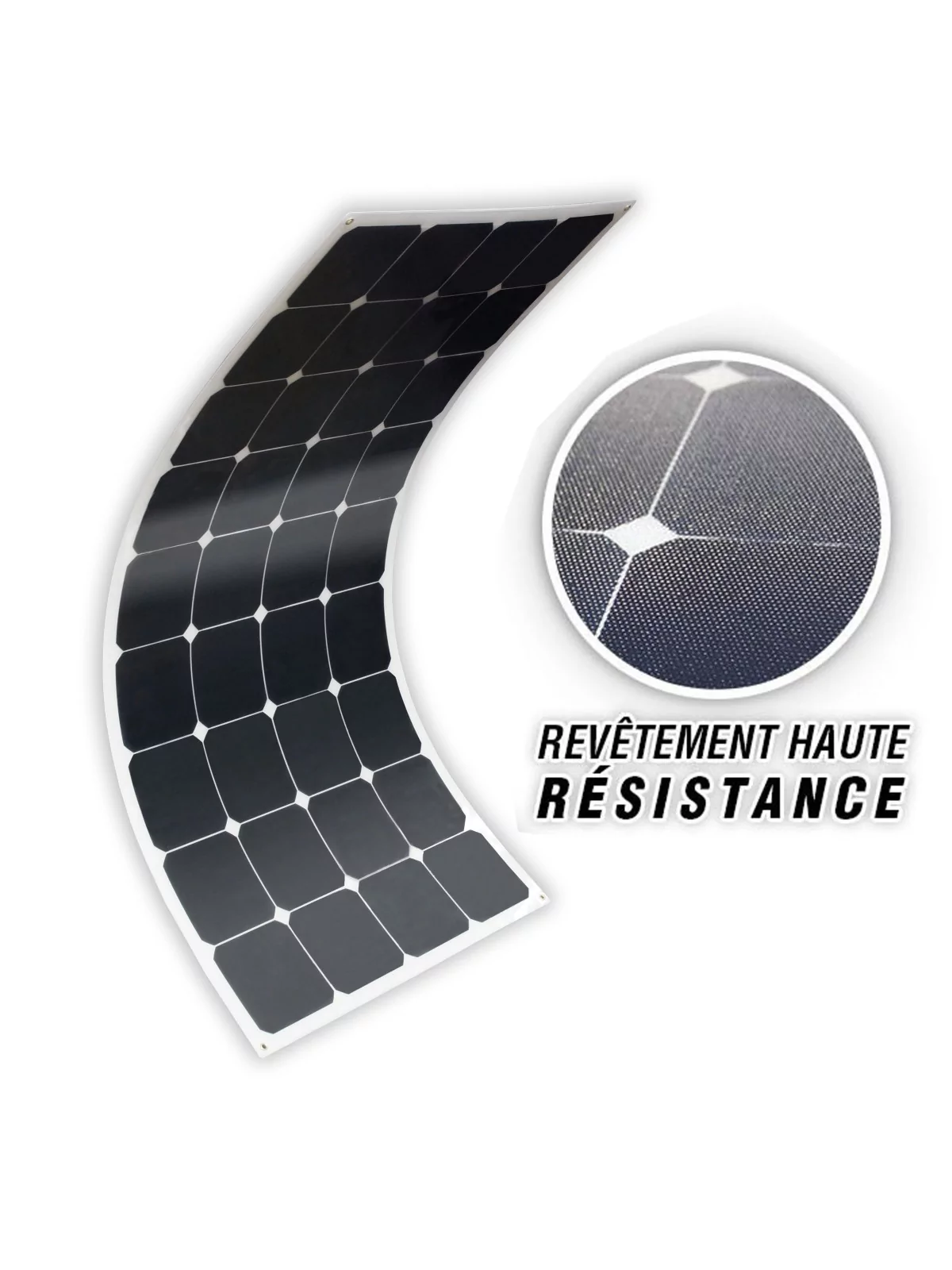

New generation of MX-FLEX Protect panel
ETFE coating makes it even stronger

Wattuneed's new MF-FLEX PROTECT is twice as durable and twice as durable thanks to its ETFE coating! UV, saline environment, dust, a novelty that will accompany you everywhere.



Material Properties

• Excellent resistance to impact
• Excellent chemical resistance
• Excellent resistance to stress cracking
• Operating temperature from -200 ° C to + 150 ° C

Sunpower MX FLEX 110Wc




Flexible MX FLEX 80Wp solar panels are suitable for marine camping or mobile use.

You can also use them in other circumstances such as on remote sites.

Perfect for charging the batteries of your boat, campervan or to feed an autonomous system.

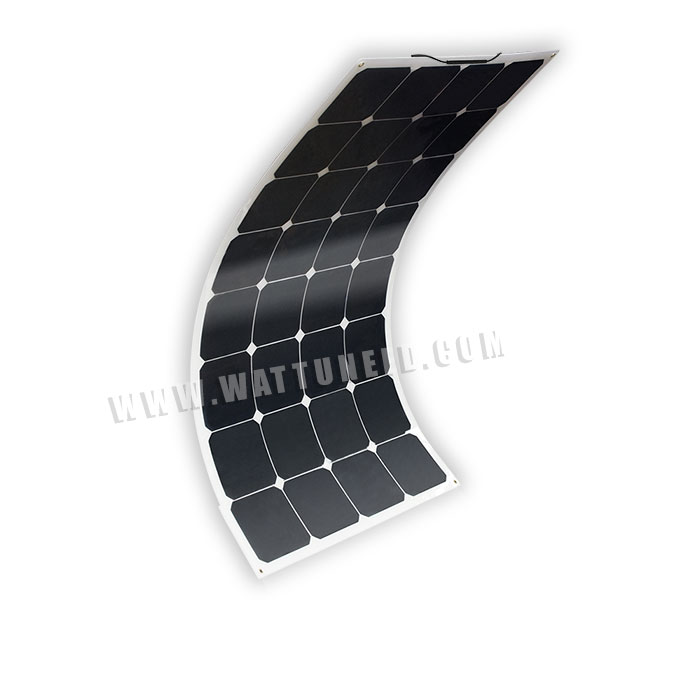

Sunpower MX FLEX 80Wc







Ultra flexible and really light, they are highly resistant to saline environments and wet weather !

The MXFLEX panel adapt perfectly and easily to wherever you want to place them.



























sunpower 110Wc mx flex





Through its flexible and extremely lightweight weight (1.7 Kg), you can easily fix the roof of a boat, the roof of an RV or even the hood of a car ... its limits are those of your imagination.

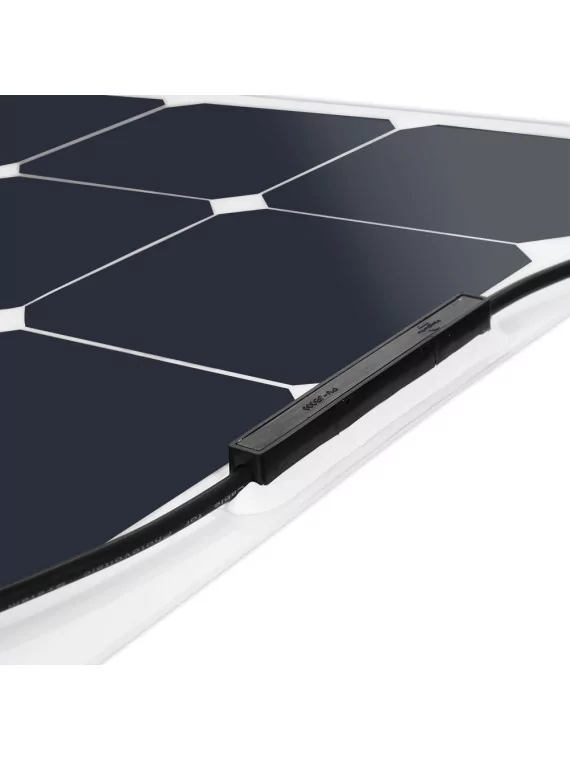

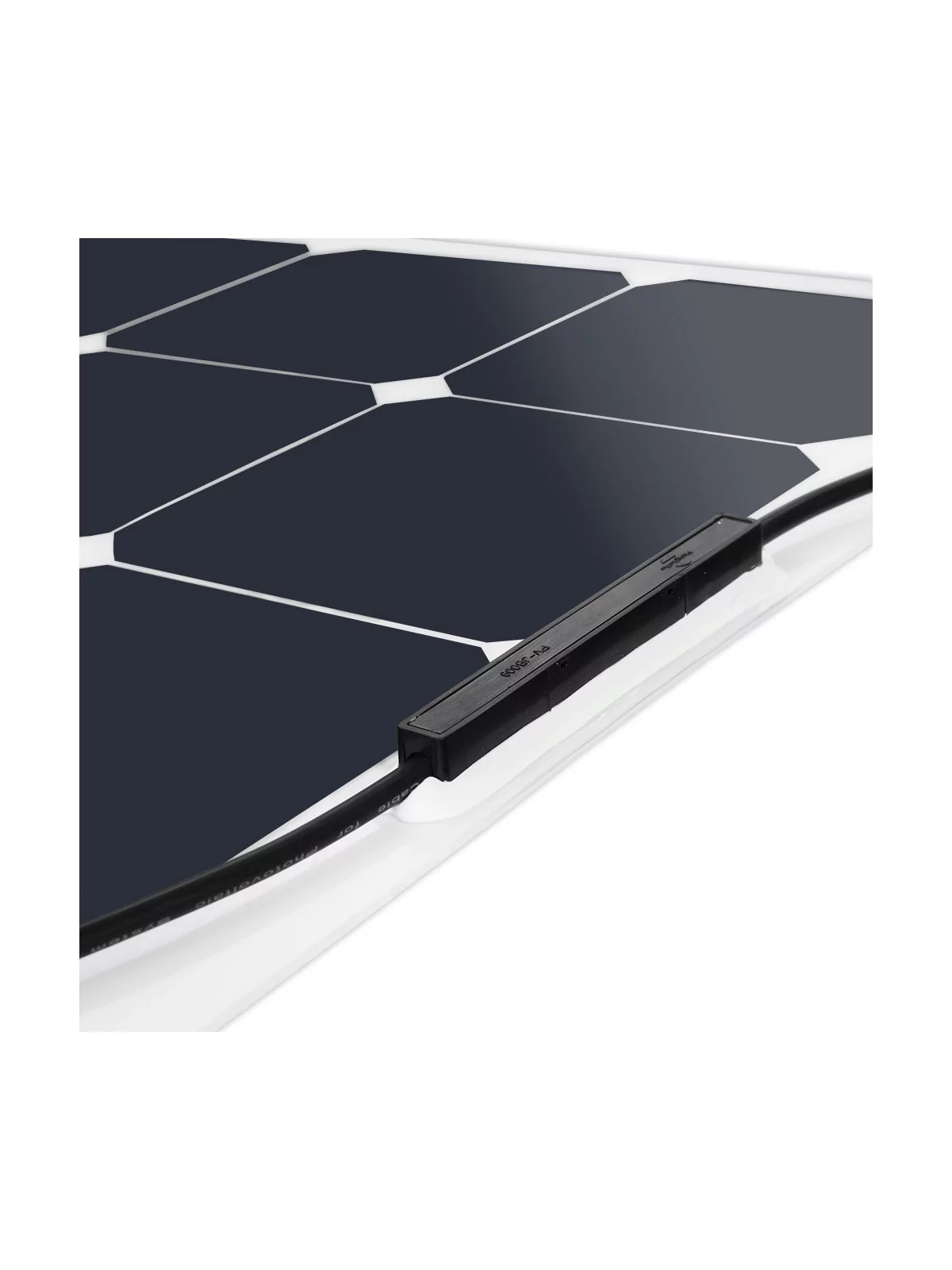

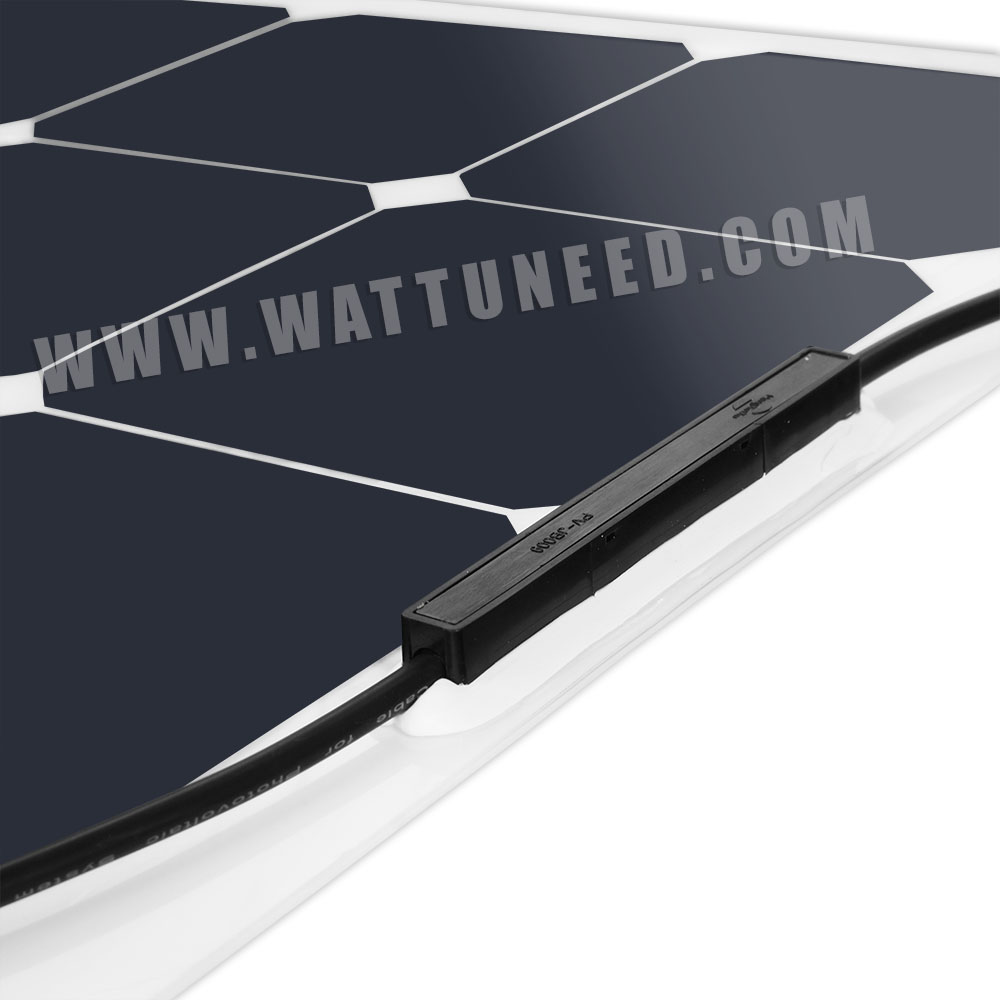

The waterproof junction box at the front of the panel and MC4 connectors allow you to connect quickly and easily.



















"Back Contact" Cells



With its back contact monocrystalline cells with high efficiency (21%), the FLEX MX panels integrate the best in terms of photovoltaic technology!

The cells optimize the performance of the panel when it is in low light conditions, maximizing the performance of the panel by bad weather.





















 Cablage panneau MX FLEX

MX Flex panels are supplied with 80cm cable with MC4 connectors grimped







































 Features :



Peak power (Pmax)80W
Voltage (vmp)15.4V
Open circuit voltage(Voc)18.5V
Short circuit current (Isc)5,58A
Currant (Imp)5,19A
Cell efficiency21%
Module efficiency19%
Dimensions930x540x3mm
Weight1,6Kg



Examples :





Data sheets and documentation

Product Reviews
  • Number of Reviews : 4
  • Average Grade : 4.8 /5
  • R. Alain
  •  the 20/08/2021
  • 4/5
Dommage que les pôles positifs et négatifs soient inversés par rapport au panneau que j'avais acheté en 2016. Sinon très bien.
  • A. Anonymous
  •  the 19/06/2018
  • 5/5
conforme au descriptif. Tres bien
  • A. Anonymous
  •  the 24/01/2018
  • 5/5
produit conforme
  • A. Anonymous
  •  the 06/04/2016
  • 5/5
3 mm plus long que la longueur donnée sur le site cela peut avoir son importance.Dans ce cas ci le support fait 92.5 à 93 cm (roof de voilier). Dans mon cas j'ai du couper les MC4 pour ne pas avoir à faire des percements trop grand. Je le savais en achetant.

Specifications

Voltage12V
Weight1,6 kg
CouleurClassical
Panel typeSouples
CellsMonocrystalline
Max. Power - Wp80 Wp
Open circuit voltage (Voc)18,5 V
Short circuit current (Isc)5,58 A
Max. power current (Imp)5,19 A
Max. power voltage15,4 V
Max. power voltage15,4 V
Pannel efficiency19 %
Pannel efficiency19 %
Width540 mm
Width540 mm
Height930 mm
Height930 mm
Thickness3 mm
Thickness3 mm
