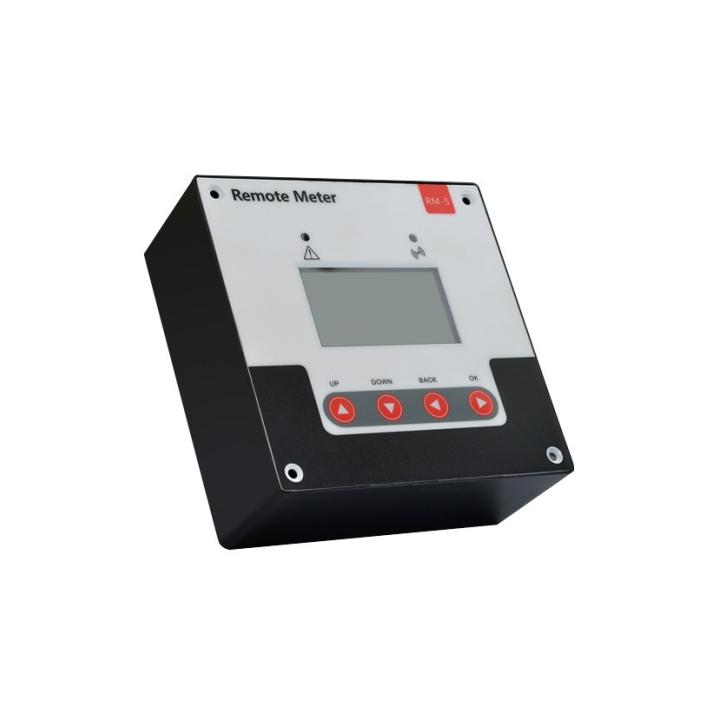

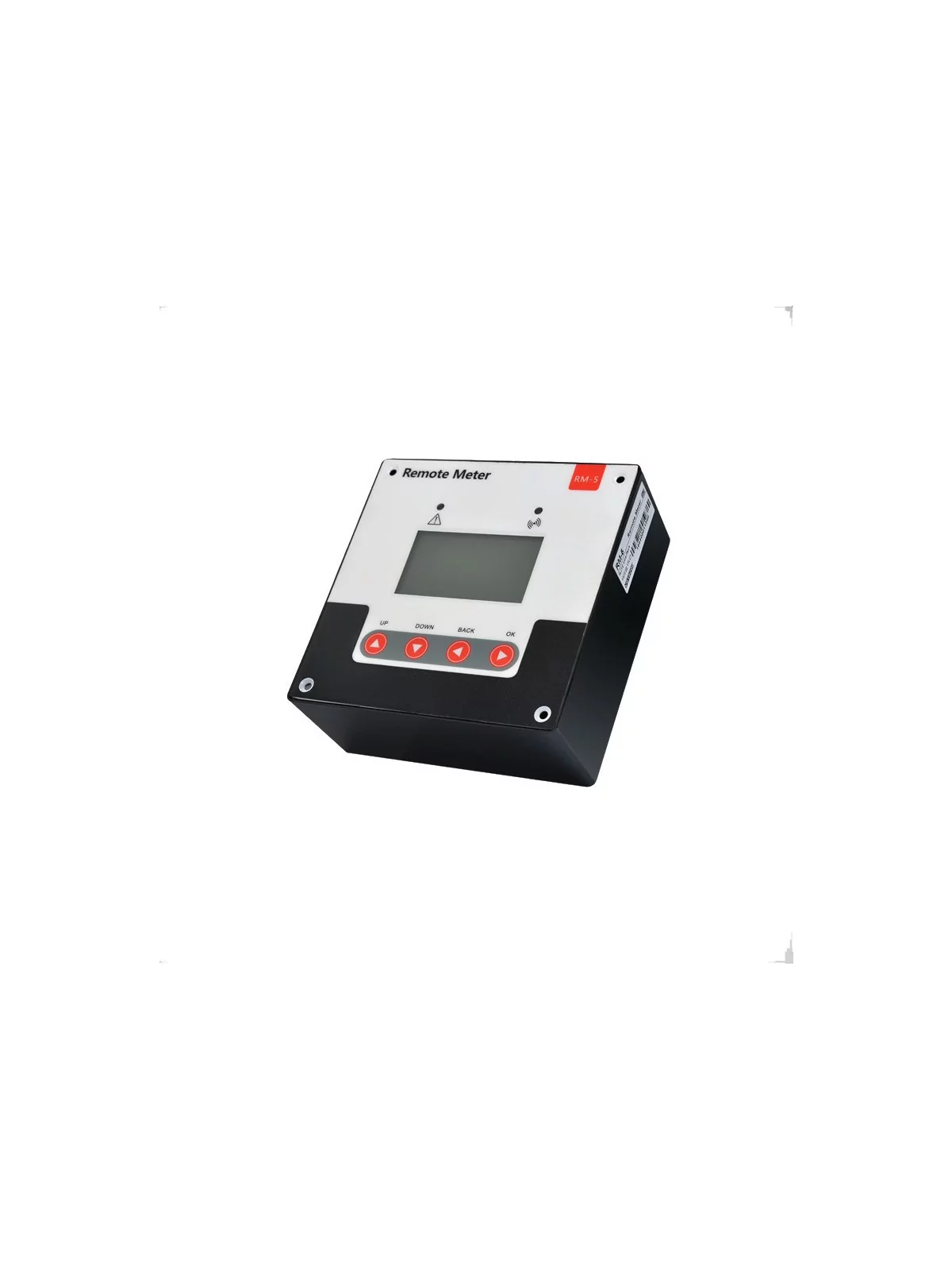

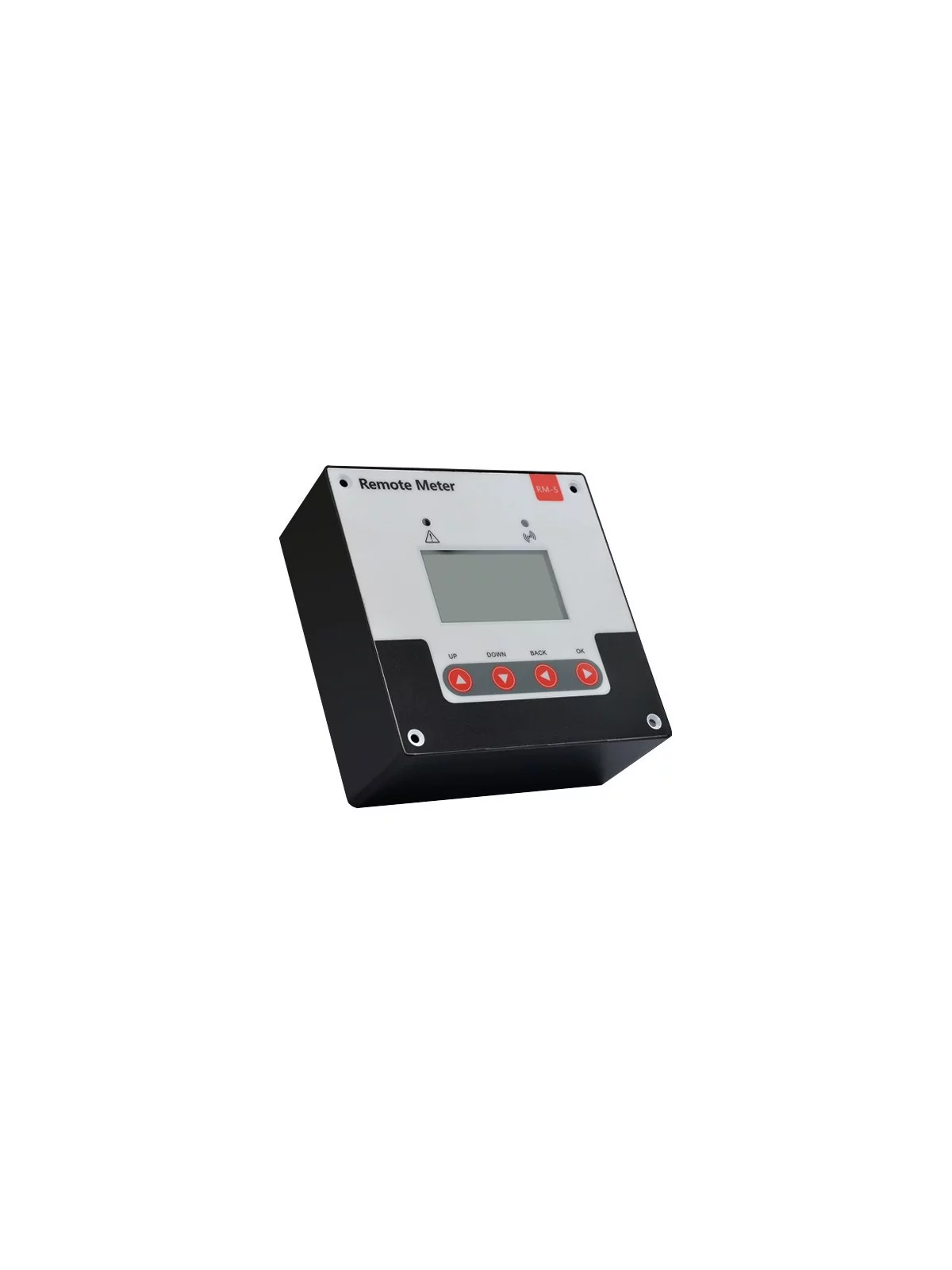

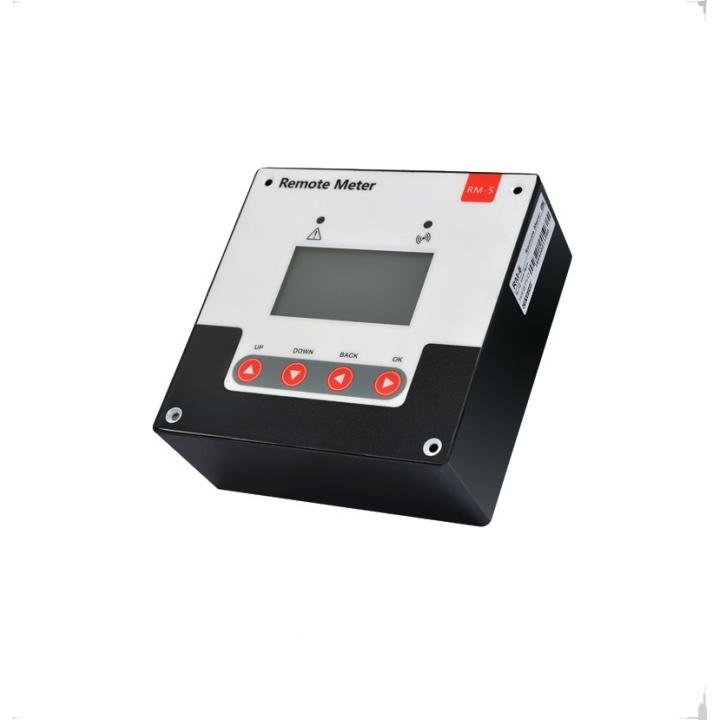

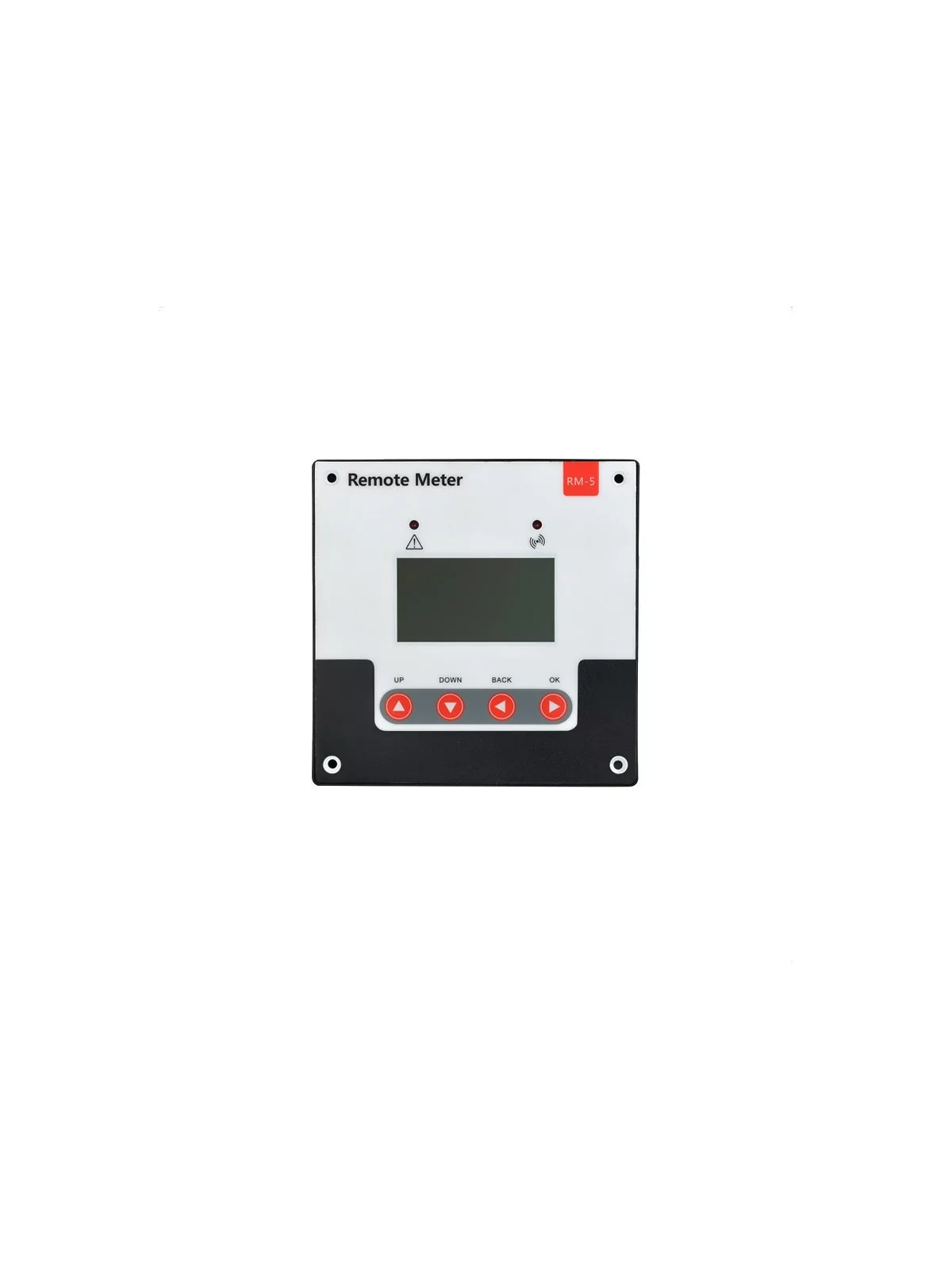

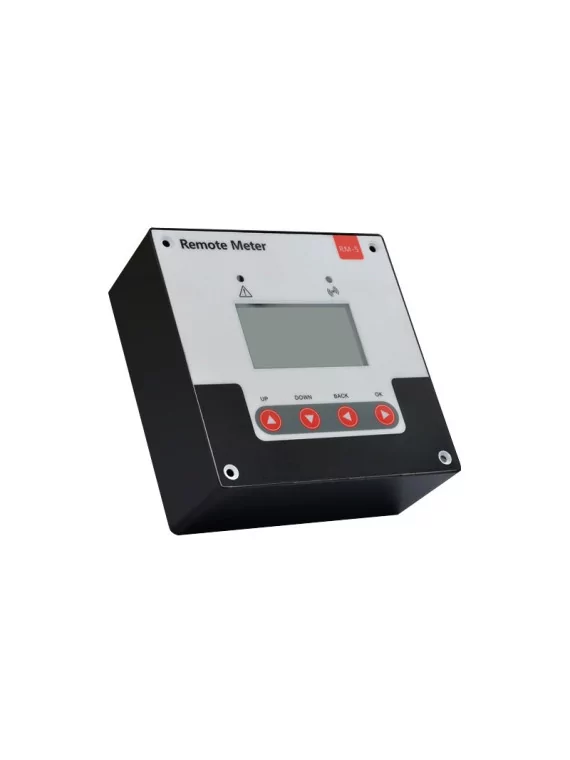

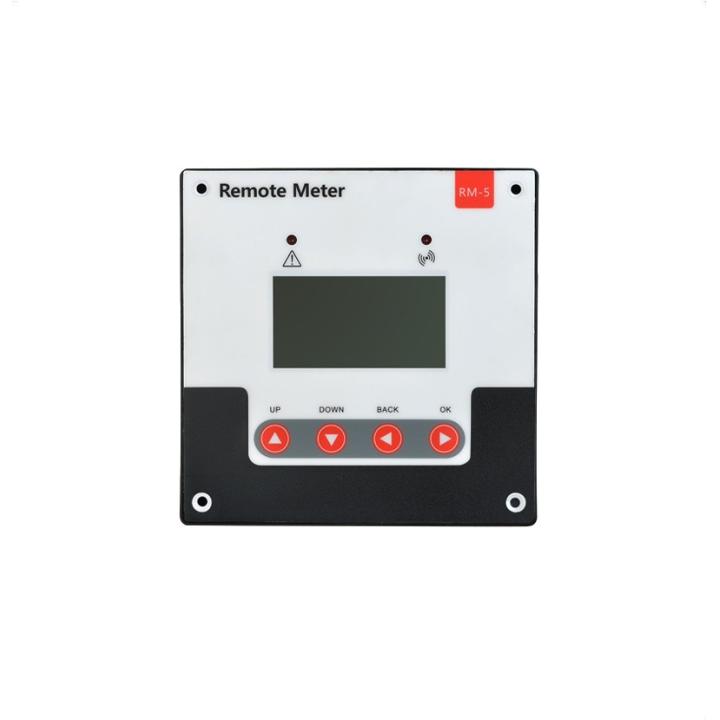

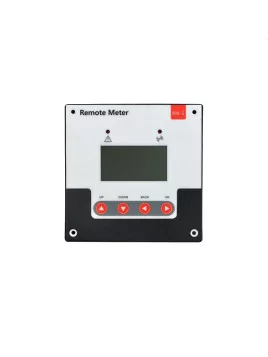

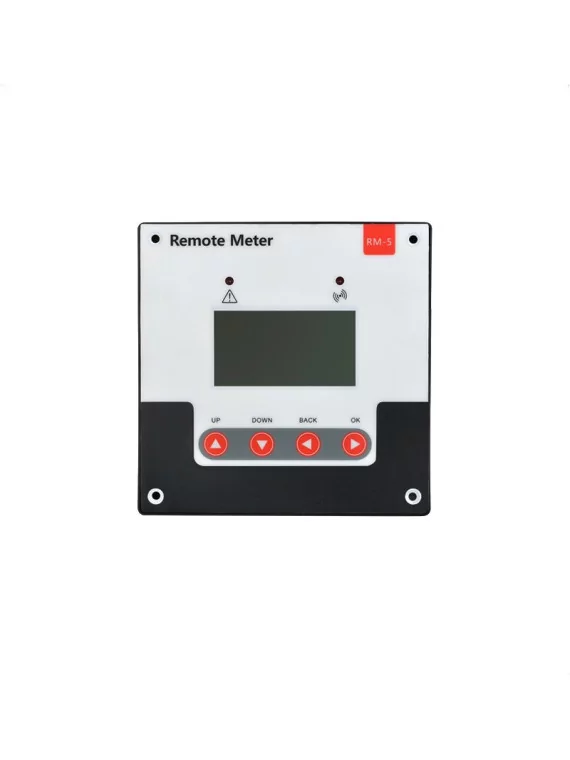

    SRNE RM5 display for controller

    $46.9
    ML 2420-30-40
    0712971139145

    The SRNE remote meter lets you display up to 10 parameters and statuses for your plant, and record production data.

    Compatible with SRNE "ML" model controllers

    - ML 2420

    - ML 2430

    - ML2440

    7 item(s) left in Stock!

    SRNE RM5 display for...

    $46.9

    SRNE RM5 display for controller



    Features

    • Adopts a 128 * 64 LCD display, with menus designed with numerical and graphic forms.
    • With a graphic design, the main menu is both artistic and informative: it can display up to 10 parameters and states.
    • Able to read historical data of a certain day.
    • A low-energy BLE4.0 function enables more powerful functions when pairing with a mobile application (optional).
    • Uses two LEDs to indicate controller anomalies and communication errors respectively.
    • Features a controller anomaly voice alarm function that can be switched on/off.
    • A backlight time setting function is available.
    • Capable of monitoring live data and controller operating states.
    • On/off switching, deletion of historical data and restoration to factory settings can all be performed with this device.
    • Adoption of standard Modbus communication protocol.
    • Standard RJ12 features as communication interface.
    • With no need for an external power source, connection to a controller via a data cable will be sufficient to allow the unit to be powered.
    • Featuring an industrial-grade design and excellent anti-interference capability, the product can operate well in a variety of harsh conditions.

    Standby power consumptionLCD with backlight <35mA/12V
    LCD without backlight <
    2
    5mA/12V
    Communication interfaceRJ12 (6-PIN)
    Baud rate9600BPS
    Communication portRS232
    Operating temperature
    / +65°C
    Weight
    .5kg
    Dimensions115.82 * 115.82 (mm)
    ML 2420-30-40

    Data sheet

    Type of tools and accessories
    Affichage
    Type of electrical equipment
    Compteur d'énergie
    Video Youtube 1 - ID
    GXvxzPA7aBI

    Specific References

    New

    Download

    Datasheet SRNE RS En

    Download (604.19KB)
