168 kWh OPzV 48V batteries

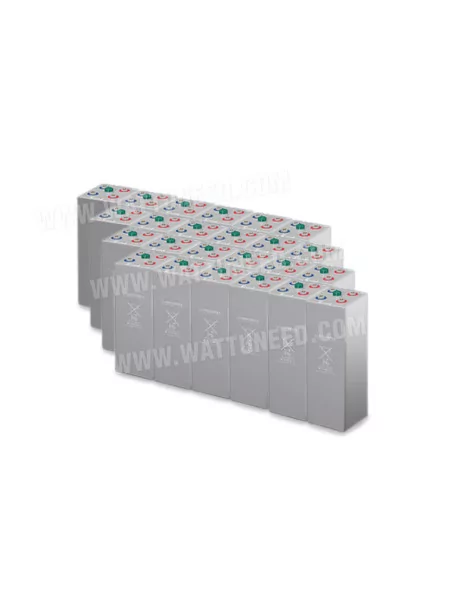

> Park of 24 Hoppecke opzv 3500 batteries

> Battery capacity 48 kWh

> Batteries are delivered fully charged.

> Connectors for connecting your battery pack are supplied.

Opzv batteries are based on tube-plate technology with gel electrolyte fixation. These batteries are maintenance-free thanks to their sealed construction. Tubular plates give these batteries a very long life expectancy.

The opzv product range is ideal for use in high-discharge sectors such as solar systems, as well as for long-discharge operations in IT/telecom or emergency lighting applications.

---

Benefits

• Optimum use of space - thanks to horizontal and vertical adjustment
• Maintenance-free water filling - thanks to innovative gel technology

• Excellent cycle stability during use in PSoC1 -
thanks to tubular plate design
• tubular plate design for efficient charging
• Maximum compatibility - measurements in compliance with DIN 40742
• Enhanced short-circuit safety during installation - through the use of HOPPECKE system connectors

---

Applications

• On-grid and off-grid energy use
• Drinking water treatment systems
• Medical treatment equipment
• Signalling, lighting
• Mobile radio stations
• BTS stations
• Off-grid/on-grid energy processing systems

---

Cycling

Life expectancy up to 1500 cycles at 80% depth of discharge.

---

Cycle life depending on capacity drawn

---

Technical data

C100/1

Battery type

.85V Ah

C50/1

.85V Ah

C24/1 C10/1 C5/1

.83V Ah
.80V Ah
.77V Ah	Weight max* Kg	Length L max.* mm	Width l max.*mm	Height H max.* mm	Fig.

4O A

PzV solar.power 250

286.9

263.5

243.0

204.1

188.7

18.3

105

208

420

5 A

OPzV solar.power 310

358.6

329.3

303.8

255.1

235.8

22.3

126

208

420

6 395 535

OPzV solar.power 370	430.3
.2	364.6	306	.1
xml-ph-0030@deepl.internapower 420	478.2	452.9	427.8	391.4	346.1	29.9	126	208

A6 513 535

OPzV solar.power 520	573.9	543.4
.4	469.7	415.3	35.1	147	208

A7 634 599 535

OPzV solar.power 620	669.5
.0
.0	548.0	484.5	42.1	168	208

A6 847 762 595 710

OPzV solar.power 750
.3	802.2
.1	682.0
.0	48.7	147	208

A8 710

OPzV solar.power 1000

1129.8

1069.6

1016.2

909.3

793.3

65.9

215

193

B 710

10 OPzV solar.power 1250

1412.2

1337.0

1270.2

1136.7

991.7

80.5

215

235

B 710

12 OPzV solar.power 1500

1694.7

1604.4

1524.2

1364.0

1190.0

94.6

215

277

B 855

10 OPzV solar.power 1700

1955.0

1870.0

1784.9

1544.6

1371.9

110.0

215

277

B 815

16 OPzV solar.power 2300

2606.7

2493.3

2379.8

2059.5

1829.2

152.9

215

400

C 815

20 OPzV solar.power 2900

3258,3

3116,7

2974,8

2574,3

2286,5

186,5

215

490

580

24 OPzV solar.power 3500

3910,0

3740,0

3569,8

3089,2

2743,8

222,3

215

815D

C100, C50, C24, C10 and C5 = charging capacity in 100, 50, 24, 10 and 5 hours

* In accordance with DIN 40742, these data are to be understood as maximum values.

---
