    Grundfos pump Unilift KP

    $380.1
    10031
    0712971136007

    Unilift KP pumps are submersible pumps designed for the pumping of clean, non-aggressive water and lightly loaded (gray) wastewater such as domestic effluents from septic tanks and sludge treatment plants.

    Logo Grundfos

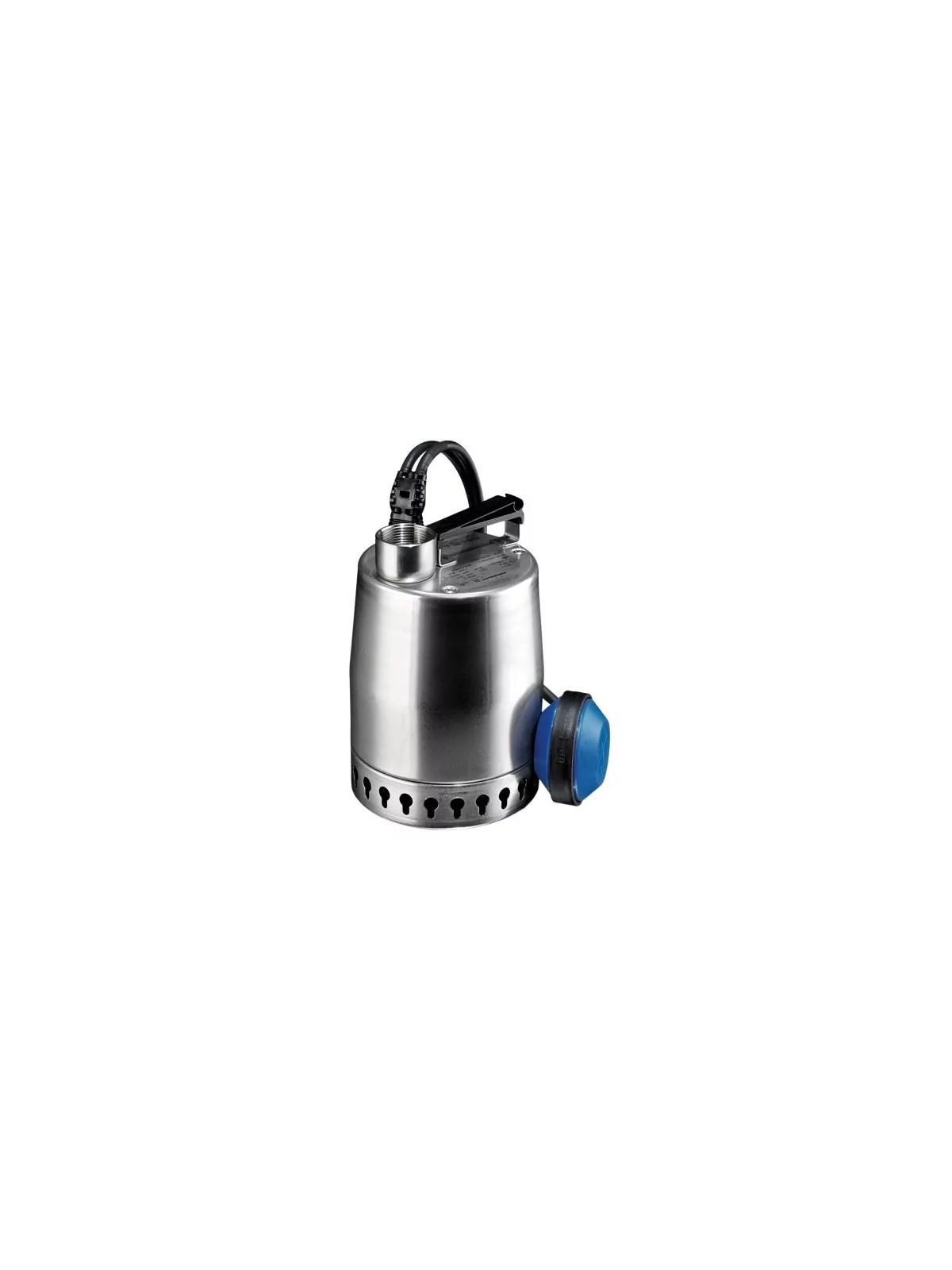

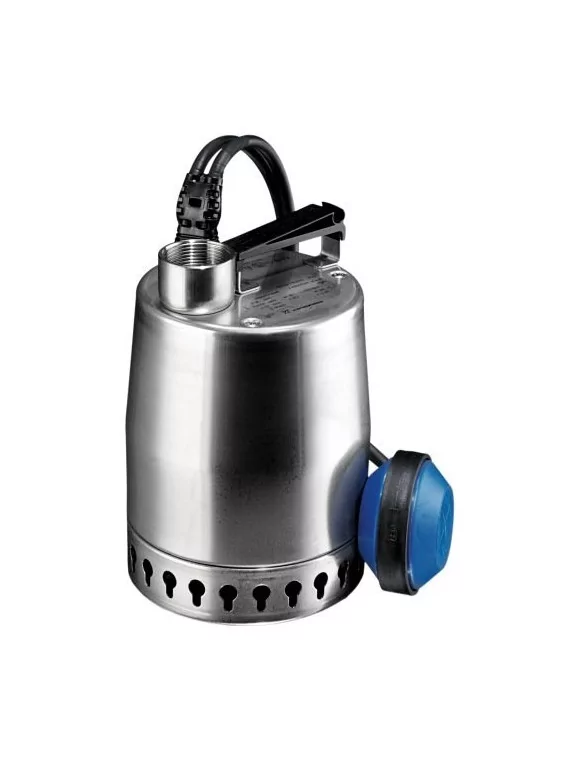

    Pump type Unilift: KP 150 A1 - 5m

    Grundfos pump Unilift KP

    $380.1

    Grundfos KP



    " Lift pump Grundfos KP "



    Unilift KP pumps are submersible pumps designed for the pumping of clean, non-aggressive water and lightly loaded (gray) wastewater such as domestic effluents from septic tanks and sludge treatment plants.



    Unilift KP pumps are submersible drainage pumps for pumping drain water or grey wastewater. The KP is suitable for both temporary and permanent free-standing installation or installation in collecting tanks.

    All Unilift KP pumps can be supplied with or without a level switch for automatic or manual operation. The strainer is clipped onto the pump housing and can easily be removed for cleaning and maintenance.

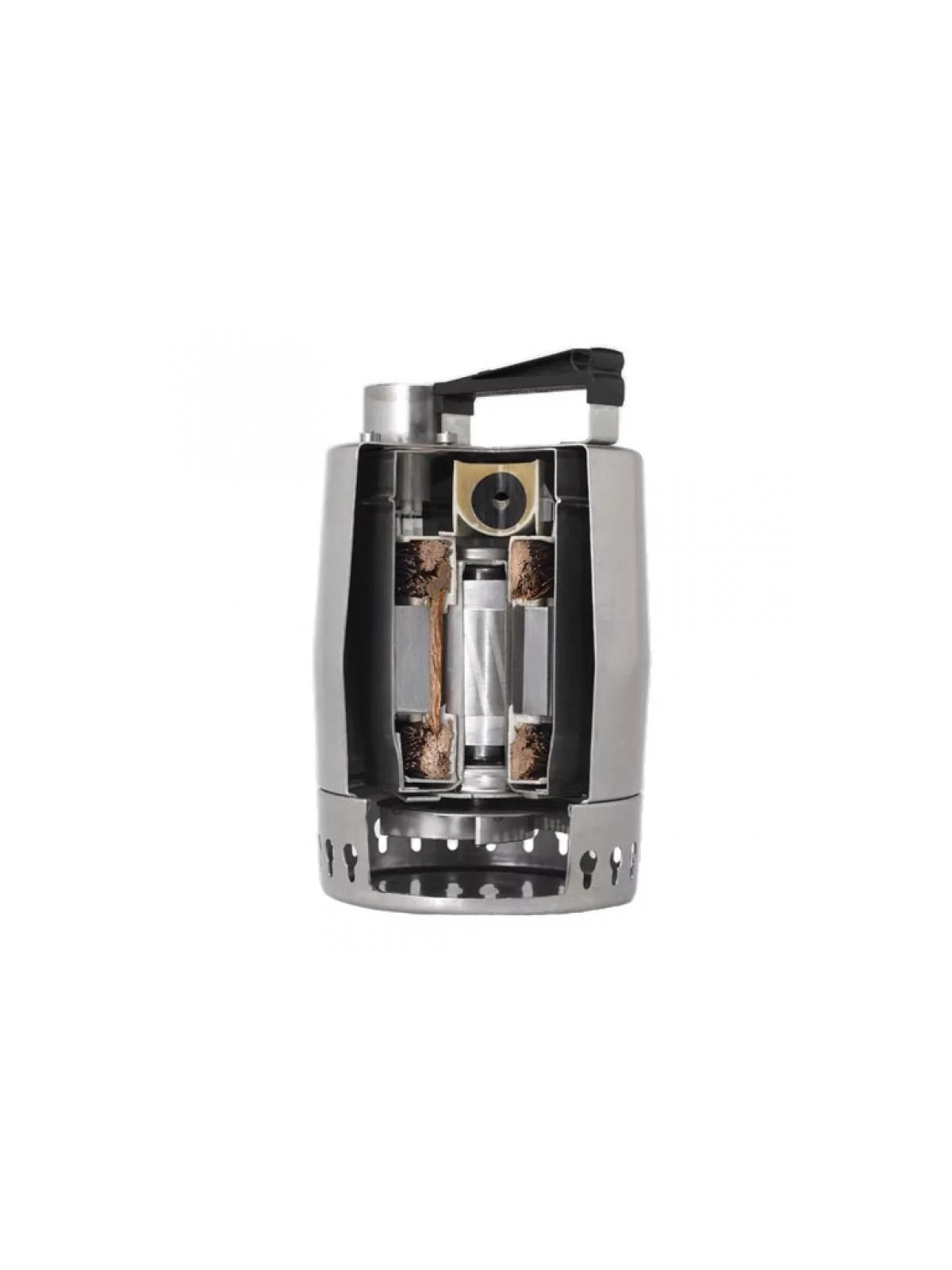

    The robust design – all metal parts in contact with the pumped liquid are made of stainless steel - makes it ideal for rough environments. The outer casing is made in one piece. The motor is a canned motor with liquid-filled rotor chamber and water-lubricated bearings.

    The motor incorporates automatic overload protection which cuts out the motor in the event of overload. When it has cooled to normal temperature the motor restarts automatically.


     KP 150 A1KP 250 A1KP 350 A1KP 150 MKP 250 MKP 350 MKP 150 AV1KP 250 AV1KP 350 AV1
    Liquid temperature0 °C => +50 °C
    Protection classIP 68
    Insulation classF
    Wheel TypeSemi-open
    Maximum cross section10 mm
    Cablewith Schuko plug
    Cable (m)5 ou 105 ou 105 ou 101010105 ou 105 ou 105 ou 10
    Delivered with non-return valveNoNoNoNoNoNoOuiOuiOui
    OutputRp1 ¼
    Inom [A]1,32,33,21,32,33,21,32,33,2

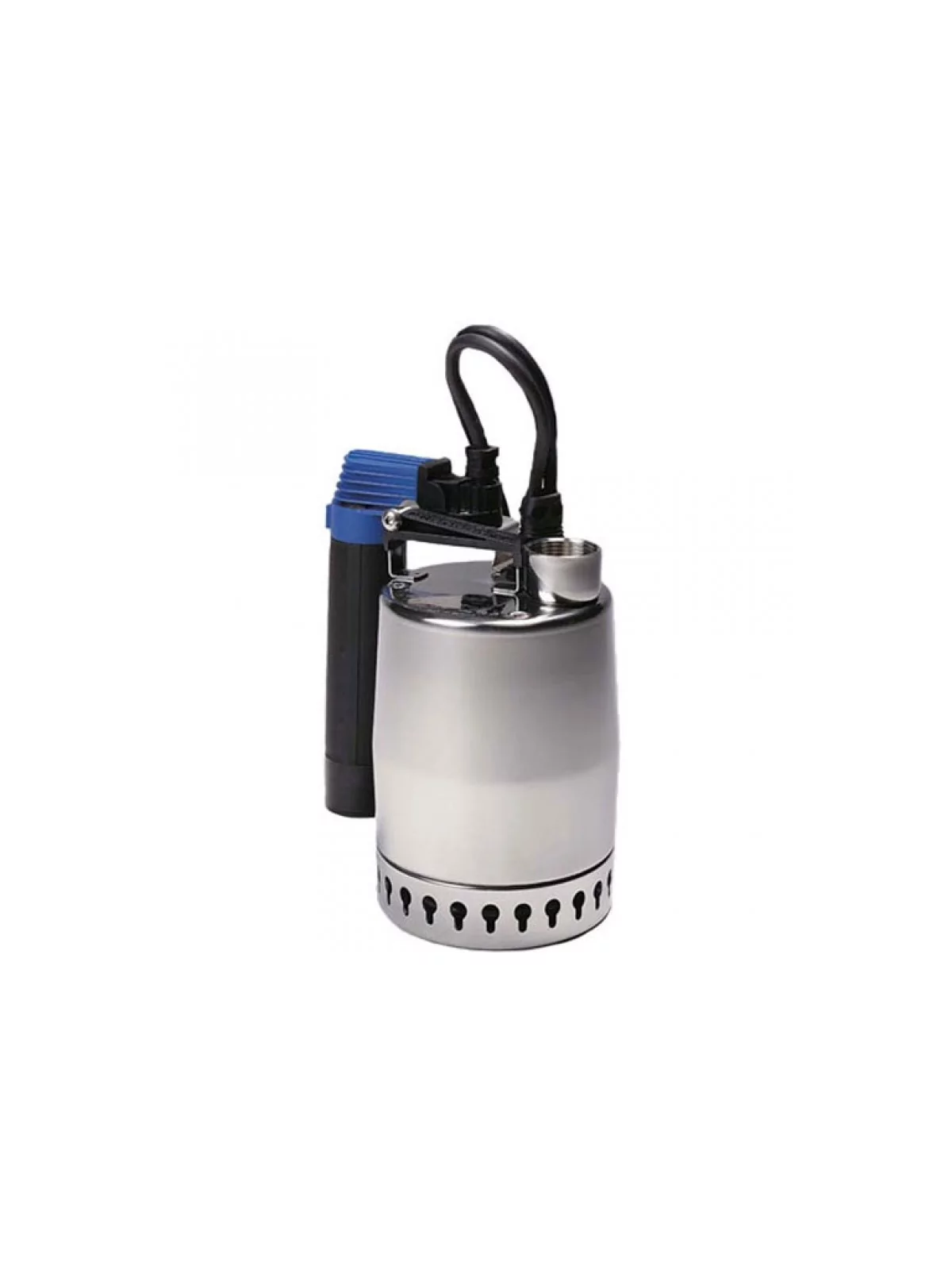

    Float switchYesYesYesNoNoNoYes, verticalYes, verticalYes, vertical
    Voltage1x220-230V
    MaterialStainless steel

    Applications



    The Unilift KP pumps are designed for the pumping of :

    • Water from rivers and lakes
    • Rainwater, drainage water and water from flooding
    • Water for filling/emptying containers, ponds, tanks, etc.
    • Effluents from showers, washing machines and sinks below sewer level
    • Pool water
    • Ditch drainage water
    • Lowering groundwater
    • Domestic effluents from septic and sludge-treating systems
    • Effluents from viaducts, underpasses, etc.

    Grundfos Unilift CC


    Height and lifting length


    Example



    With a KP pump 250, for a lifting height of 4m, the drawn length would be 80m with a flow rate of 7,3m³/h.



    The heights and lengths given in this diagram are given for information only. The liability of Wattuneed and Grundfos can not be incurred.
