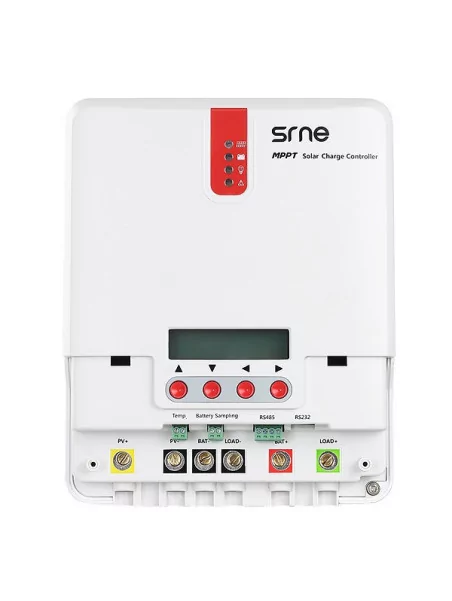

Régulator MPPT SRNE 48V 30A

SRNE

262,20 € tax incl.

The SRNE range of solar controllers offers an optimal MPPT tracking efficiency of 99.9% with a 15-20% higher load efficiency than a PWM

stock quantity : 3

More details

More info

SRNE MPPT 48V 30A

Advanced double-peak or multiple-peak tracking technology. When the panel has a shadow block or a part of the panel is damaged, I-V curve shows multiple peaks. The solar charge controller can still accurately track the maximum power point.

Built-in algorithm for maximum power tracking. This significantly raises energy utilization efficiency of photovoltaic systems, with charging efficiency 15% ~ 20% higher than traditional PWM solar charge controllers.

Combination of multiple tracking algorithms that can track the optimum working point of I-V curve accurately in a very short period of time.

MPPT tracking efficiency can be as high as 99.9%.

Advanced digital power technology, with circuit energy conversion efficiency as high as 98%.

Supporting charging procedures of gel batteries, sealed batteries, open batteries, lithium batteries and other types of batteries.

SRNE 48V 30A

Current-limiting charging mode. When the power of a solar panel is too large, and the charging current is greater than rated current, the solar charge controller automatically reduces charging power, thereby making the solar panel work at rated charging current.

Supporting the start of capacitive load instantaneous large current.

Supporting automatic identification of battery voltage.

LED indicator of malfunction, buzzer alarm, and liquid crystal display of abnormal information. This helps users identify system failures.

Supporting historical data storage for up to 5 years.

LCD screen display function. The display enables users to view equipment operation data and status, and modify controller parameters at the same time.

Supporting standard Modbus protocol that meets communication needs on different occasions.

Built-in mechanism of over-temperature protection. When the temperature exceeds the preset value, the charging current falls linearly with temperature, therefore slowing down the rise of controller temperature and avoiding controller damage from high temperature.

External battery voltage sampling function. This function prevents line loss from affecting external battery voltage sampling and ensures greater preciseness of, control parameters.

Temperature compensation functions. Charging and discharging parameters are automatically adjusted, thereby extending battery service life.

TVS lightning protection.

Model4830
System Voltage12V/24V/36V/48V Auto
No-Load Loss0.7 W ~ 1.2W
Battery Voltage9 ~ 70
Max Solar Energy Input Voltage<150V
Max Power Point Voltage ScopeBattery Voltage +2V ~ 120V
Rated Charging Current30A
Rated Load Current20A
Max capacitive load capacity10000uF
PV System Max Input Power400W/12V
800W/24V
1200W/36V
1600W/48V
Conversion Efficiency≤98%
MPPT Tracking Efficiency>99%
Temperature compensation coefficient-3mv/℃/2V(Default)
Working Temperature-35℃ ~ +45°C
Protection LevelIP32
Weight2.3Kg
Max Wiring Size25 mm²
Communication ModeRS485, RS232
Altitude≤ 3000m
Product Size226*182*81mm

Specifications

Voltage48V
MPPT/PWMMPPT
