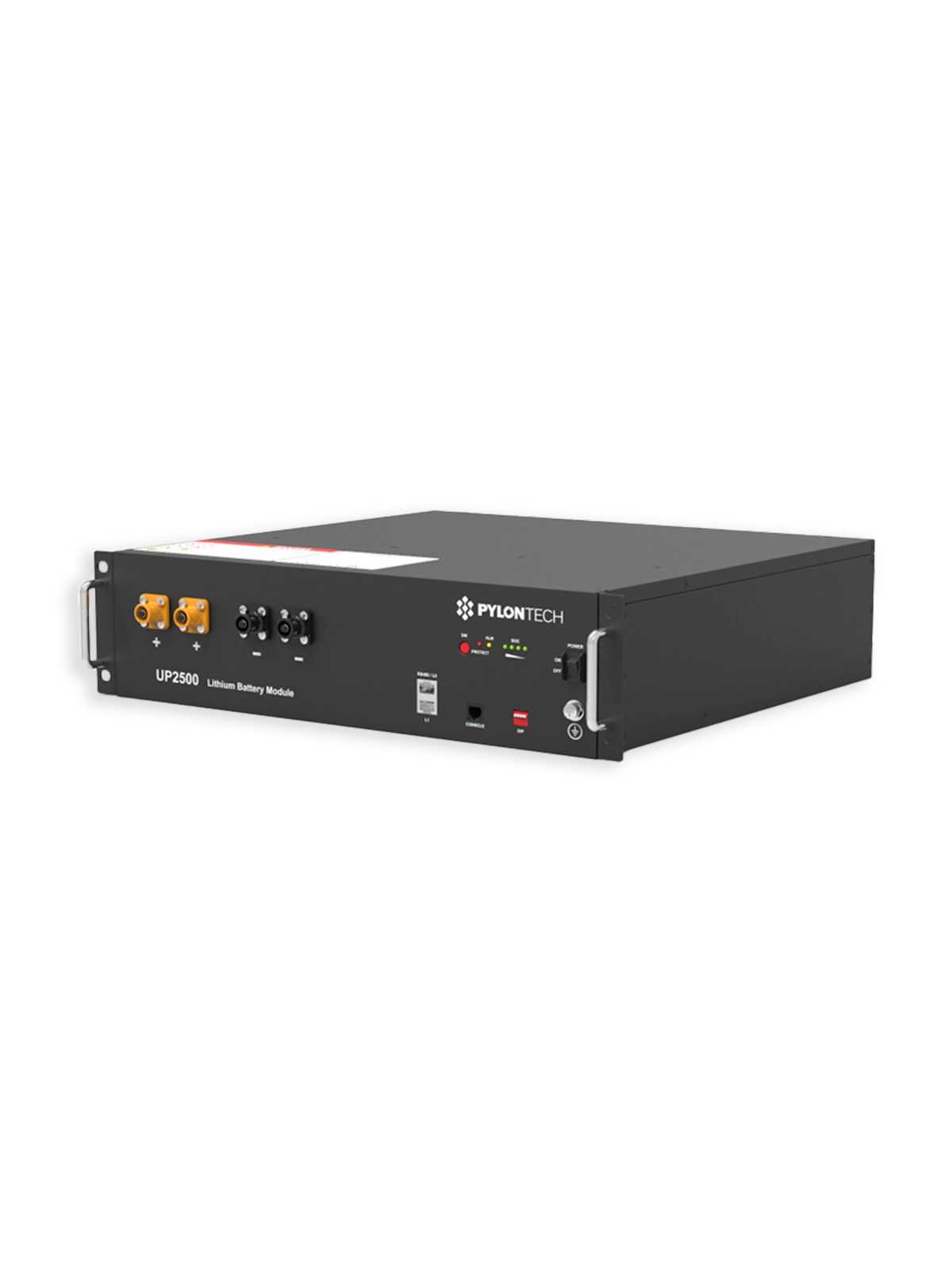

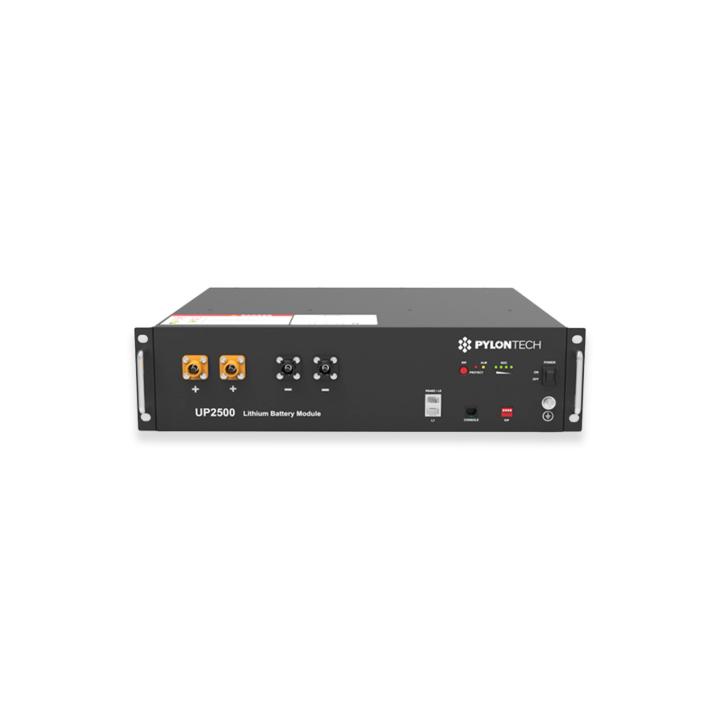

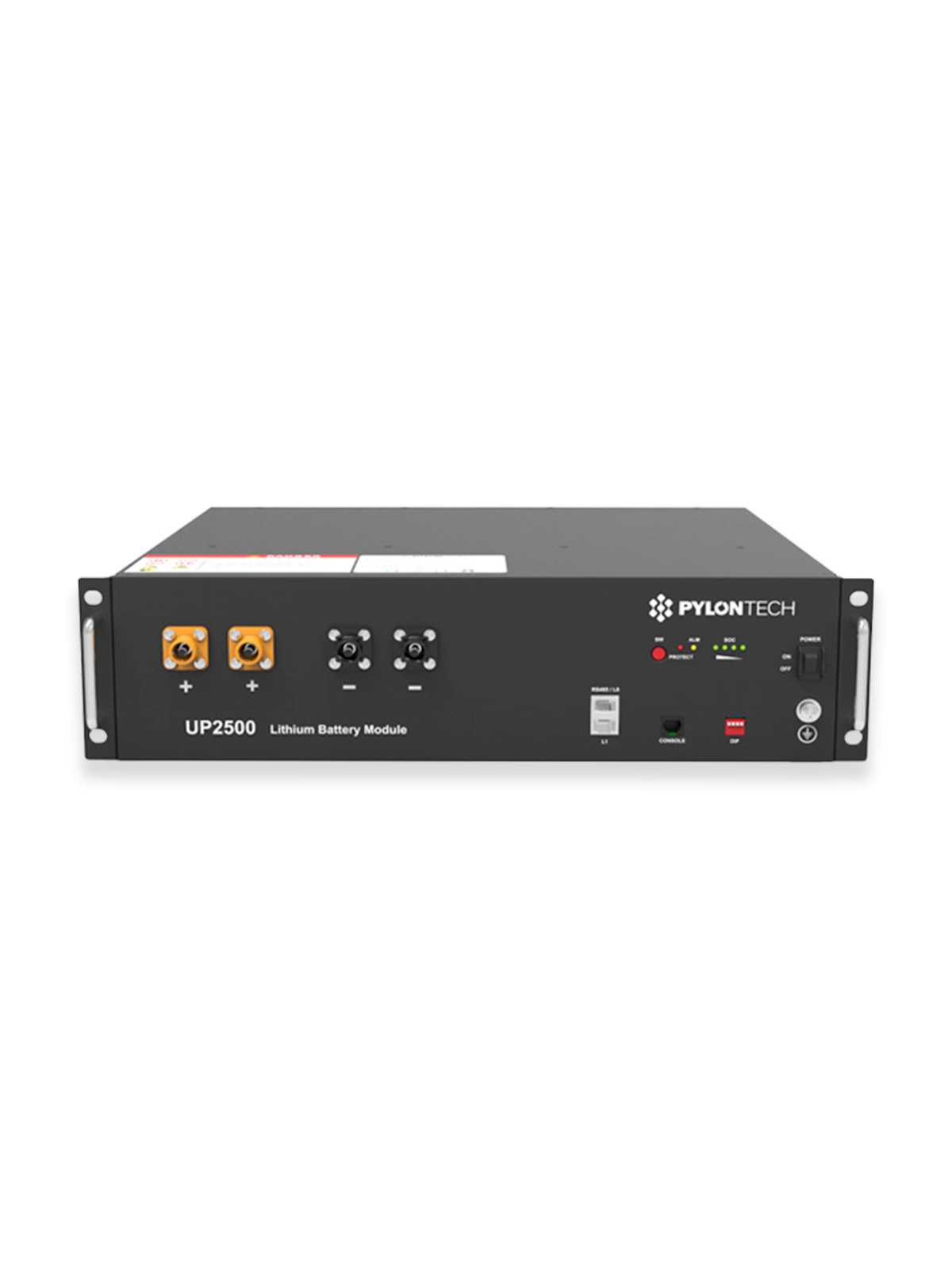

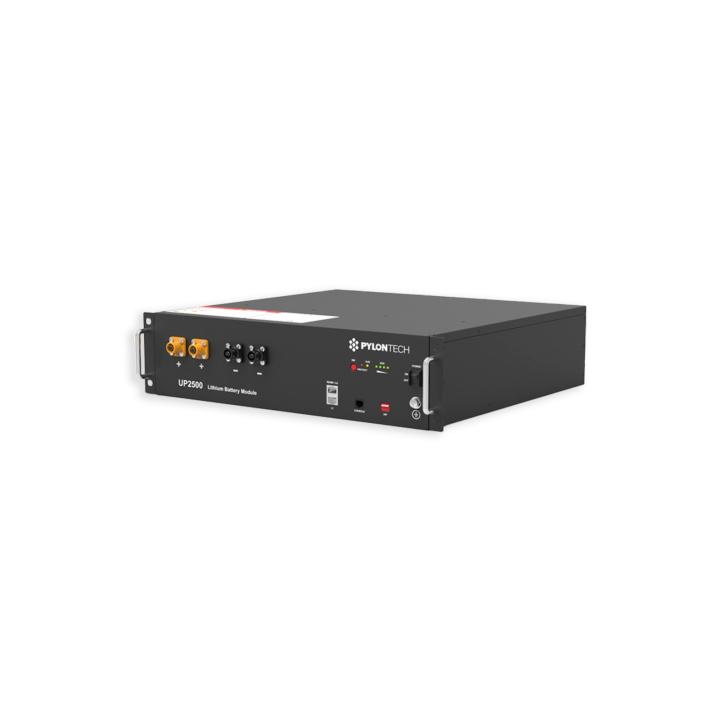

Batterie lithium Pylontech UP2500 - 118 Ah 24 V lithium-ion phosphate 2,84 kWh – communication CAN/RS485
€1,125.30
Tax included
UP2500
0768563820731
The Pylontech UP2500 lithium battery is a compact energy storage solution for 24 V installations and solar batteries for self-consumption. It provides a usable capacity of 2.84 kWh at 24 V and communicates via CAN/RS485 for system integration. The integrated BMS adds electrical and thermal protection to ensure safe charging and discharging.
- Specifications: It delivers 2.84 kWh at 24 V, accepts 56 A continuously and 100 A peak (15 s), and weighs 27.5 kg with dimensions of 442 x 410 x 120 mm.
- Cells: It is based on lithium-ion phosphate technology, which promotes good stability for cyclical energy storage use.
- BMS + communication: The BMS includes protection against overcharging, over-discharging, overcurrent, short circuits and temperature, and CAN/RS485 communication is provided for control.
- Compatibility + scalability: It integrates with an energy storage system controlled by CAN/RS485 communication, making it easy to add batteries in a modular architecture.
Registering it onthe Pylontech websiteallowsyouto extend the warranty to 10 years.
* Battery connection cables to the inverter are sold separately.
4
items in stock!
🔋
Cette batterie est-elle faite pour vous ?
Vérifiez que
2.84 kWh
correspond à vos besoins
✅
Compatibilités vérifiées
▼
Compatible avec :
Deye 3.6 kVA 48V mono hybrid inverter –...
€1,188.40
Voir le produit →
Deye 5 kW 48V hybrid inverter – SUN-5K-SG03LP1-EU
€1,247.20
Voir le produit →
Deye Mono 5 kW Hybrid Inverter –...
€1,084.00
Voir le produit →
DEYE three-phase hybrid inverter 10 kW 48V...
€2,529.81
Voir le produit →
Deye Tri 10 kW Hybrid Inverter –...
€2,810.90
Voir le produit →
Hybrid Inverter Deye Single-Phase 10 kW –...
€2,494.50
Voir le produit →
Affichage de 6 sur 23 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.
Redefine your energy with a high-performance, reliable 24V storage solution!
The UP2500 energy storage solution, featuring lithium-ion phosphate technology, stands out for its reliability and exceptional performance, meeting the varied needs of the domestic, commercial and industrial sectors. It offers a usable capacity of 2.84 kWh, a high depth of discharge, and a longevity of over 6,000 cycles, ensuring durability in excess of 10 years of use.
 |
Important notice for our customers in Belgium: An environmental contribution of € 79,48 excluding VAT will be applied to the purchase of each Pylontech UP2500 lithium battery. More information at the bottom of the page. |
Features
- Super-controllability
- Vertical production chain
- Reliable supply
- Reliable safety and quality
- Outstanding performance
- Traffic balance function
- Voltage protection
- Overload protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
Why a battery storage system?
Energy demand is high in the morning and evening, but solar production is more adequate in the middle of the day.
The battery storage system balances supply and demand.
High efficiency for your electricity distribution
Reduce and save on your electricity bills
Comparative table of price per useful kWh over battery life at a glance!
There are many different storage technologies: Gel or AGM batteries, lithium batteries, OPzS and OPsV. It's not easy to choose the right technology for your needs. Each technology has its own characteristics (size, power, cost, number of cycles and service life, etc.). With this table, you can quickly compare the price per useful kWh over the lifetime of the batteries.
C10 = 10-hour charge/discharge test.
C24 = examination of a charge or discharge in 24 hours.
Click here to see our comparison table.
|
Important notice for our customers in Belgium:
|
UP2500
Data sheet
- Cycles
- 6000
over 6000, 25°C - Operating temperature
- 0~50°C
- Voltage
- 24V
- Technology
- Lithium
- Width
- 442 mm
- Height
- 120 mm
- Thickness
- 410 mm
- Nominal capacity
- 2840 Wh
- Operating temperature range
- -20°C ~ +60°C
- Weight
- 27.5 kg
- Communication
- RS485/CAN
- Peak charge/discharge current (A)
- 56(continuous)/ 100 (peak@15s)
- Charging voltage
- 28.2~28.8 V
- Discharge voltage
- 23~28.8 V
Specific References
- UPC
- 768563820731
- EAN13
- 0768563820731
