Pylontech Lithium Battery US3000C +962 - 46.8 kWh

US3000C+962 - 46.8 kWh

• More than 6000 cycles at 95% discharge;
• Compact modular design to increase capacity easily;
• Compatible with most available hybrid inverters;
• Cert. Safety TüV CE UN38.3

Registering it on the Pylontech website allows you to extend the warranty period to 10 years.
* The battery to inverter connection cables are sold separately.

Check the current stock on the Pylontech +74 by clicking here.

100% secure payments

Pylontech Lithium Battery...


Présentation de la batterie Pylontech US3000C

Caractéristiques Pylontech US3000C

Vertical integration

Vertical integration of the entire lithium battery industry chain FOCUS only on energy storage with more 4.5 GWh at the service of more than 500,000 users. Globally


Intégration verticale

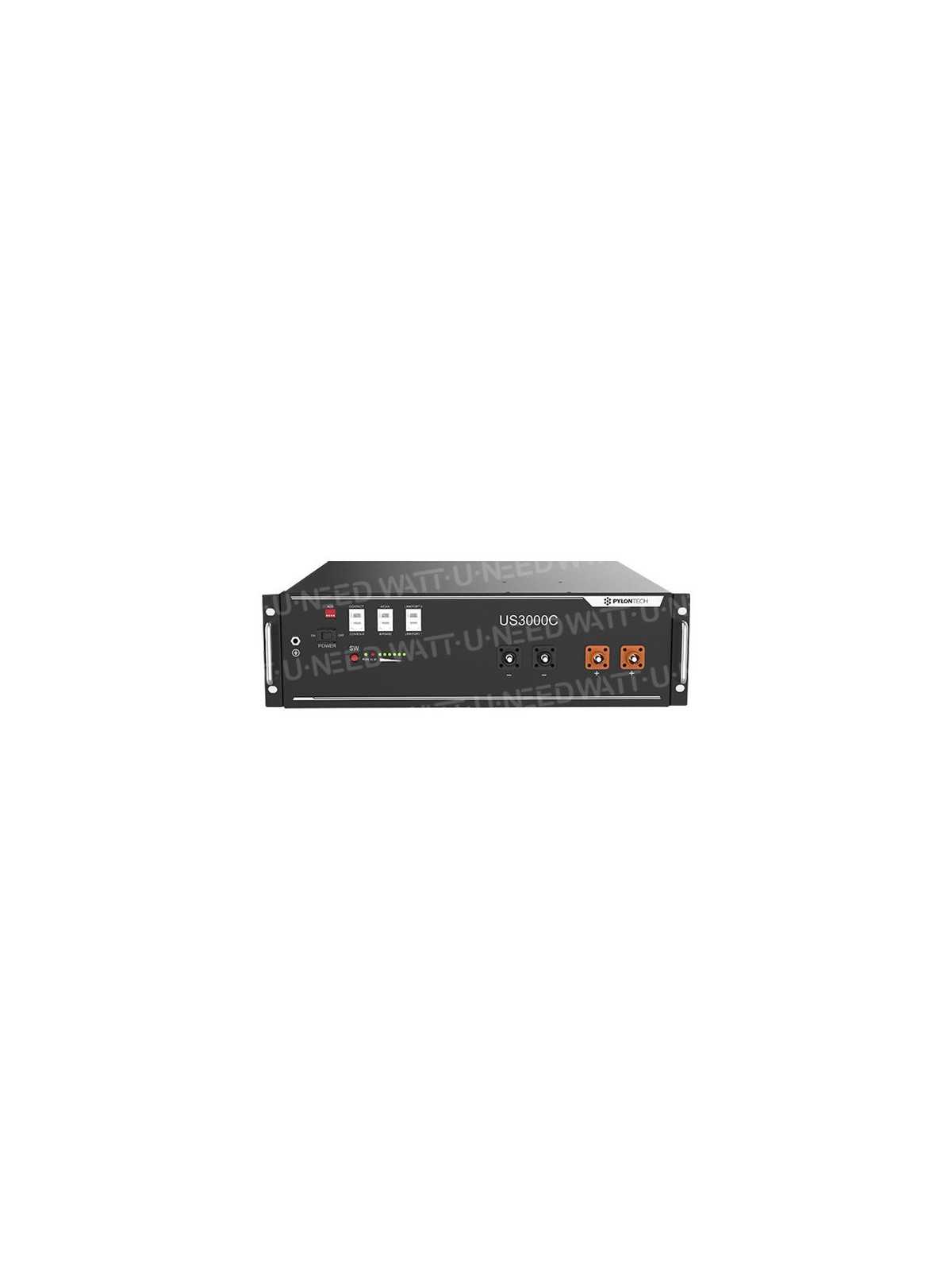

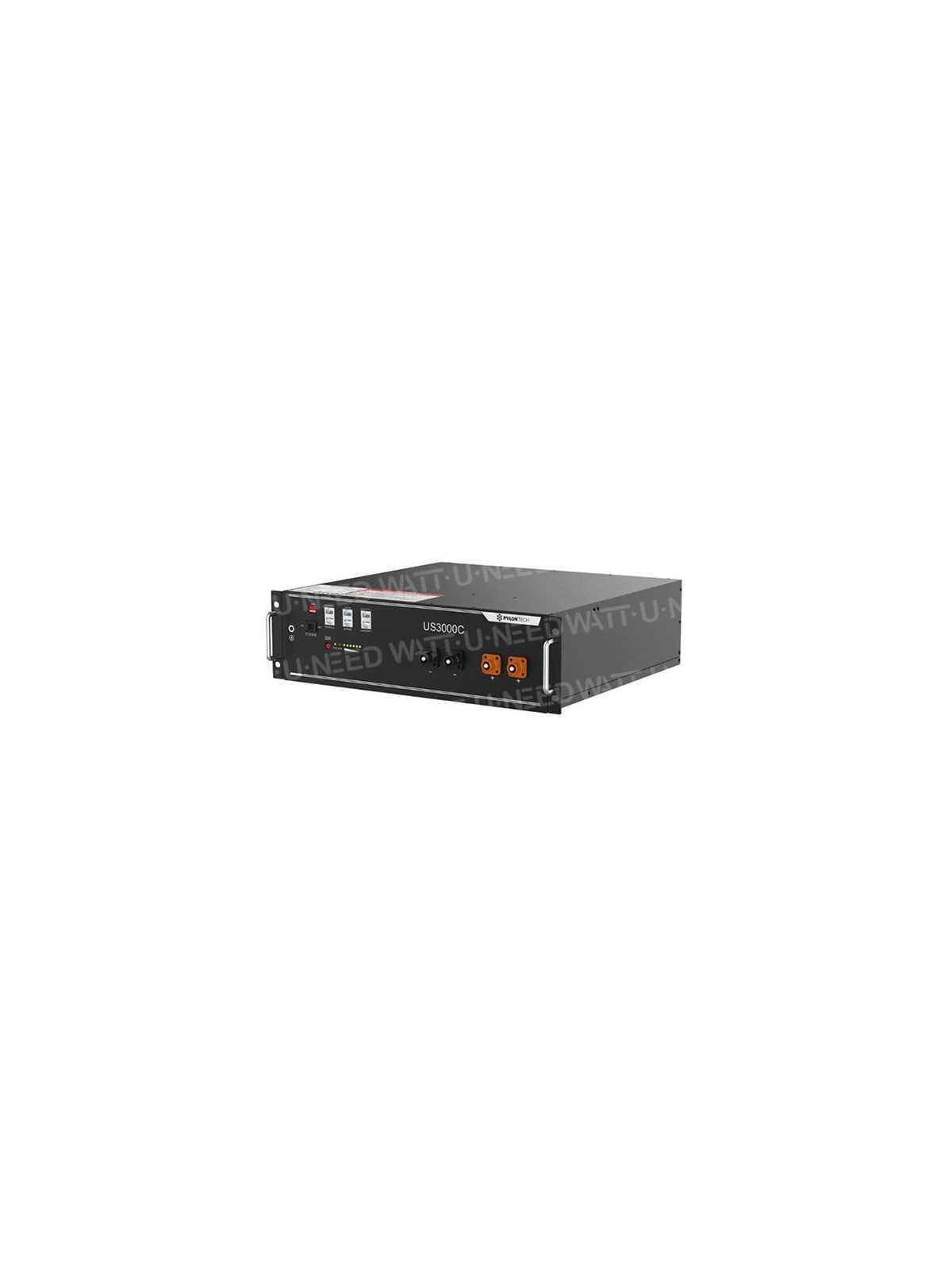

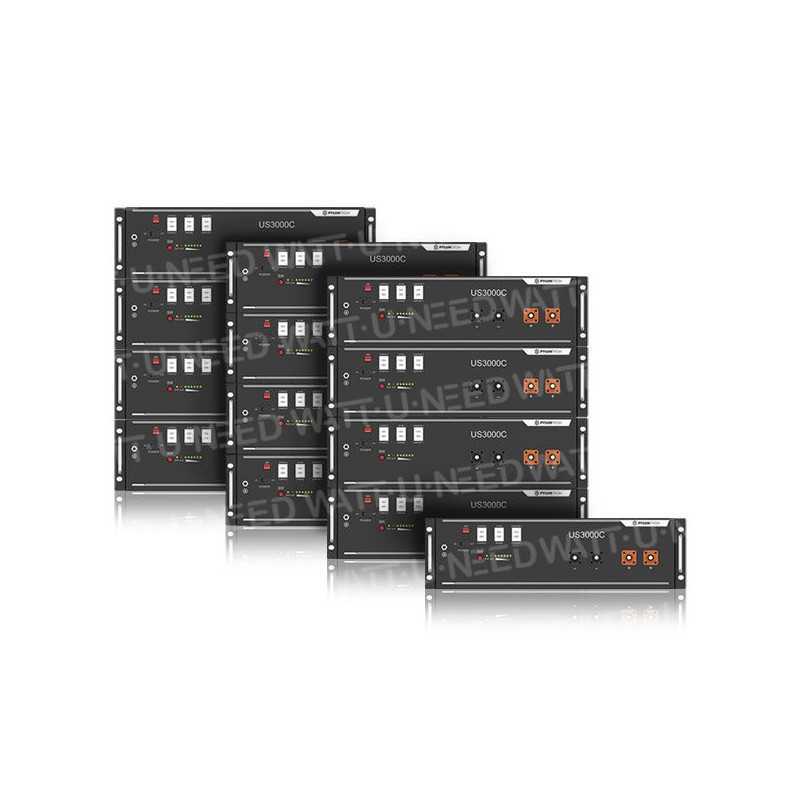

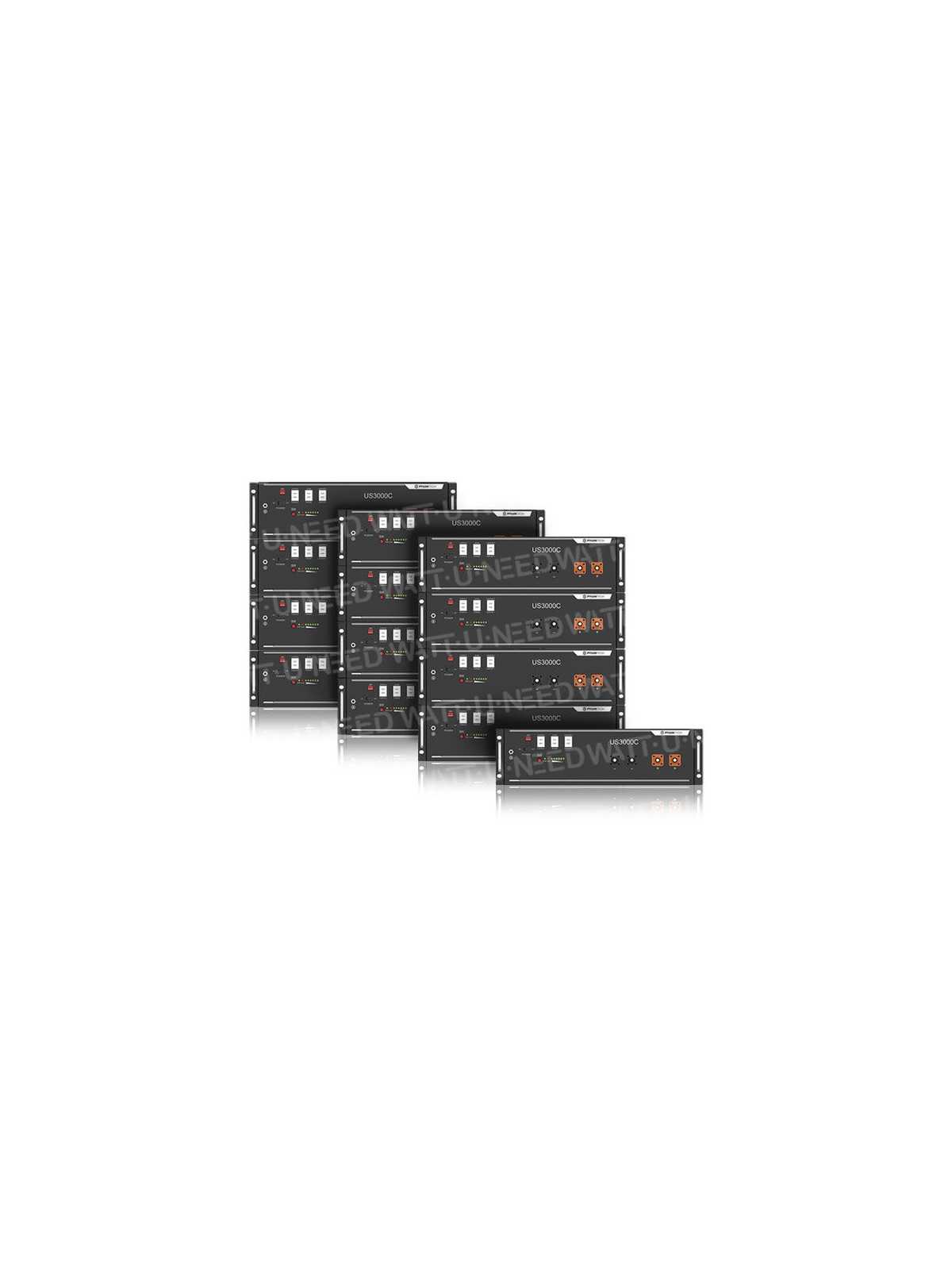

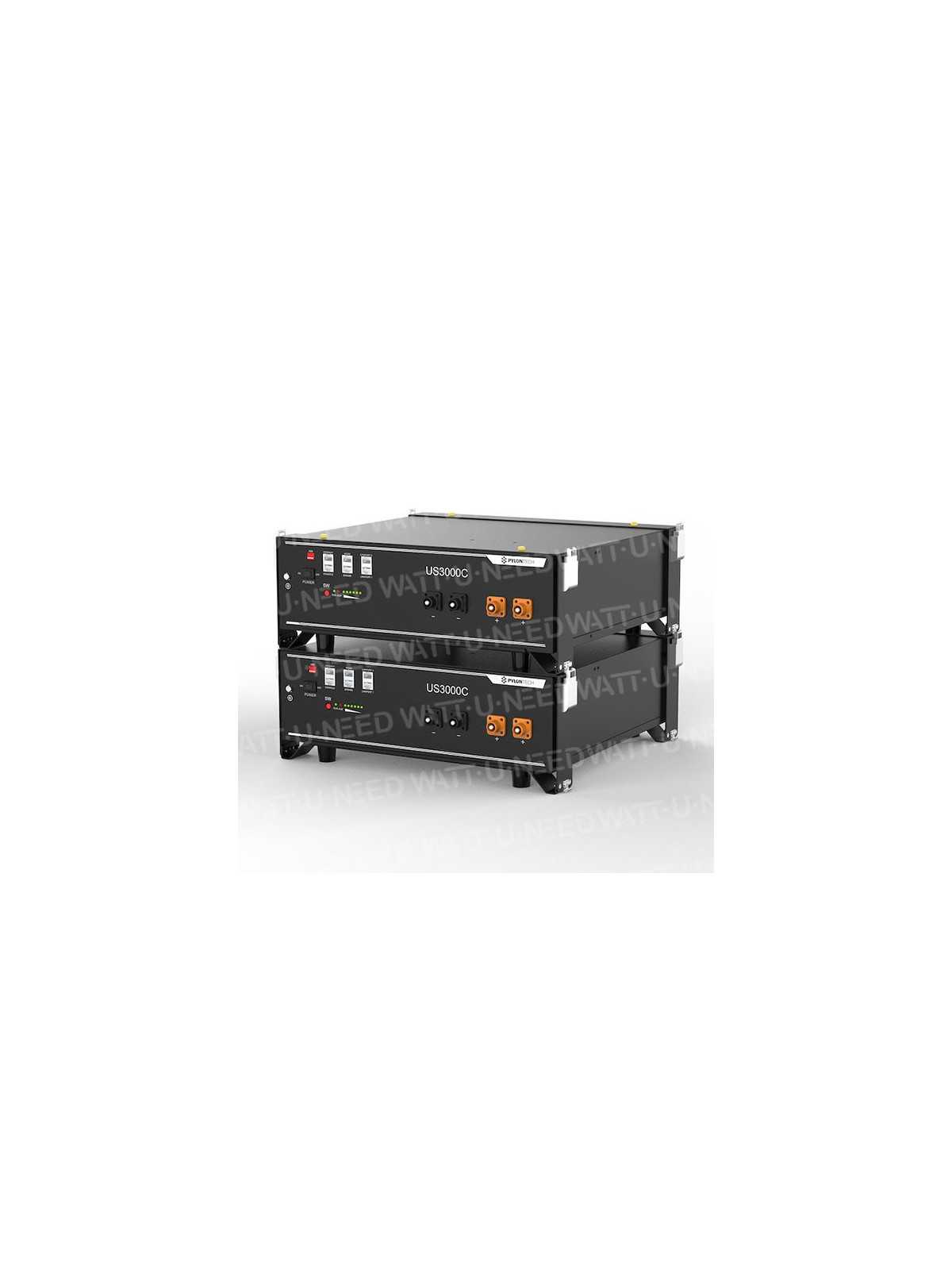

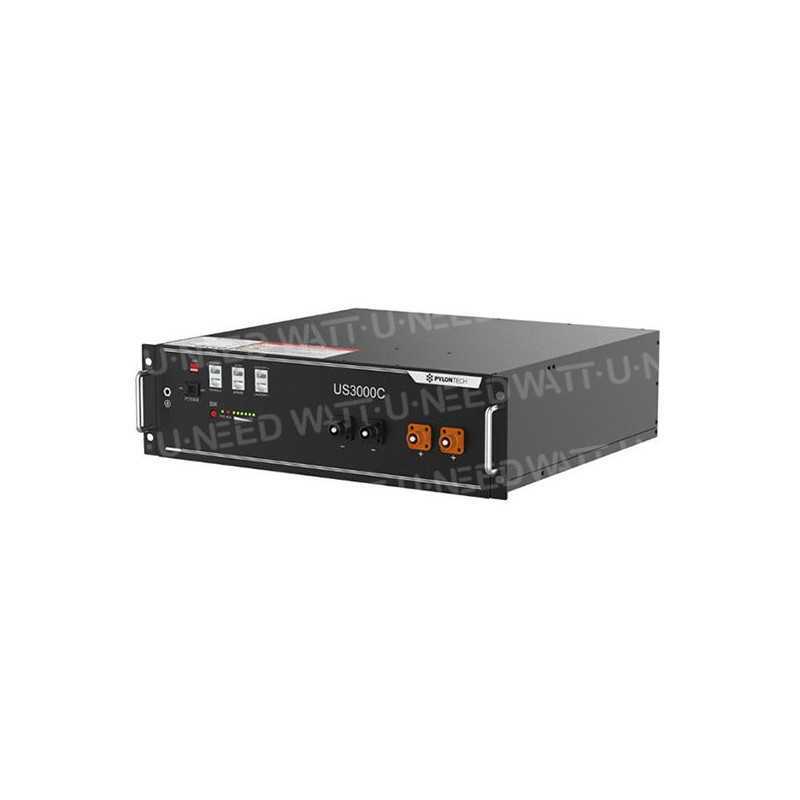

Battery Pylontech US3000C

NEW: Built-in soft start function to reduce the current when the inverter needs to start from the battery.
NEW: Double active protection at the BMS.
NEW: Automatic adjustment of the address in case of multi-group connection.
NEW: Support wake-up by a 5~12V signal from the RJ45 port.
NEW: Support for updating the battery module from the top controller via CAN or RS485 communication.
NEW: Allows a depth of discharge of 95%, available for the inverter that completely follows the latest Pylontech protocol to operate.
• The module is non-toxic, non-polluting and environmentally friendly.
• The cathode material is made of LiFePO4 with safety performance and long service life.
• The Battery Management System (BMS) has protection functions including overcharging, overcharging, overcurrent and high/low temperature.
• The system can automatically manage the state of charge and discharge and balance the voltage of each cell.
• Flexible configuration, multiple battery modules can be paralleled to increase capacity and power.
• The adopted self-cooling mode allows to quickly reduce the noise of the entire system.
• The module has less self-discharge, up to 6 months without charging it on the shelf, no memory effect, excellent performance of shallow charging and self-discharge.


Rated voltage 48Vdc
Rated capacity 962 Ah
Battery capacity 46176 Wh
Dod 95%
Dimensions (LxWxH)
442x410x1716 mm
Weight 416 kg
37 Ah (Recommended)
37 Ah@ (Max.Continuous)
Current (A)
74~89Ah@60sec (peak1)
90~200Ah@15sec (peak2)
Communication port RS485, CAN
SIngle string quantity 16pcs
Operating temperature 0~50°C
Shelf temperature -20~60°C
Cycle life >6000, 25°C
Authentication level


Operating diagram


Schéma de fonctionnement


US3000C+962 - 46.8 kWh
200 Items

Data sheet

Battery capacity
962 Ah
442 mm
132 mm
420 mm
Nominal capacity
46176 Wh
416 kg
Video Youtube 1 - ID

Specific References



Manual Pylontech US3000-EN

Download (1.66MB)

Manuel Pylontech US3000 - FR

Download (1.69MB)

Aide formulaire garantie Pylo-FR

Download (165.58KB)

Notice pylontech warranty form

Download (698.6KB)

DataSh US3000C-EN

Download (1.05MB)

FicheT US3000C-FR

Download (1.11MB)

MSDS Pylontech US 3000

Download (1.1MB)
