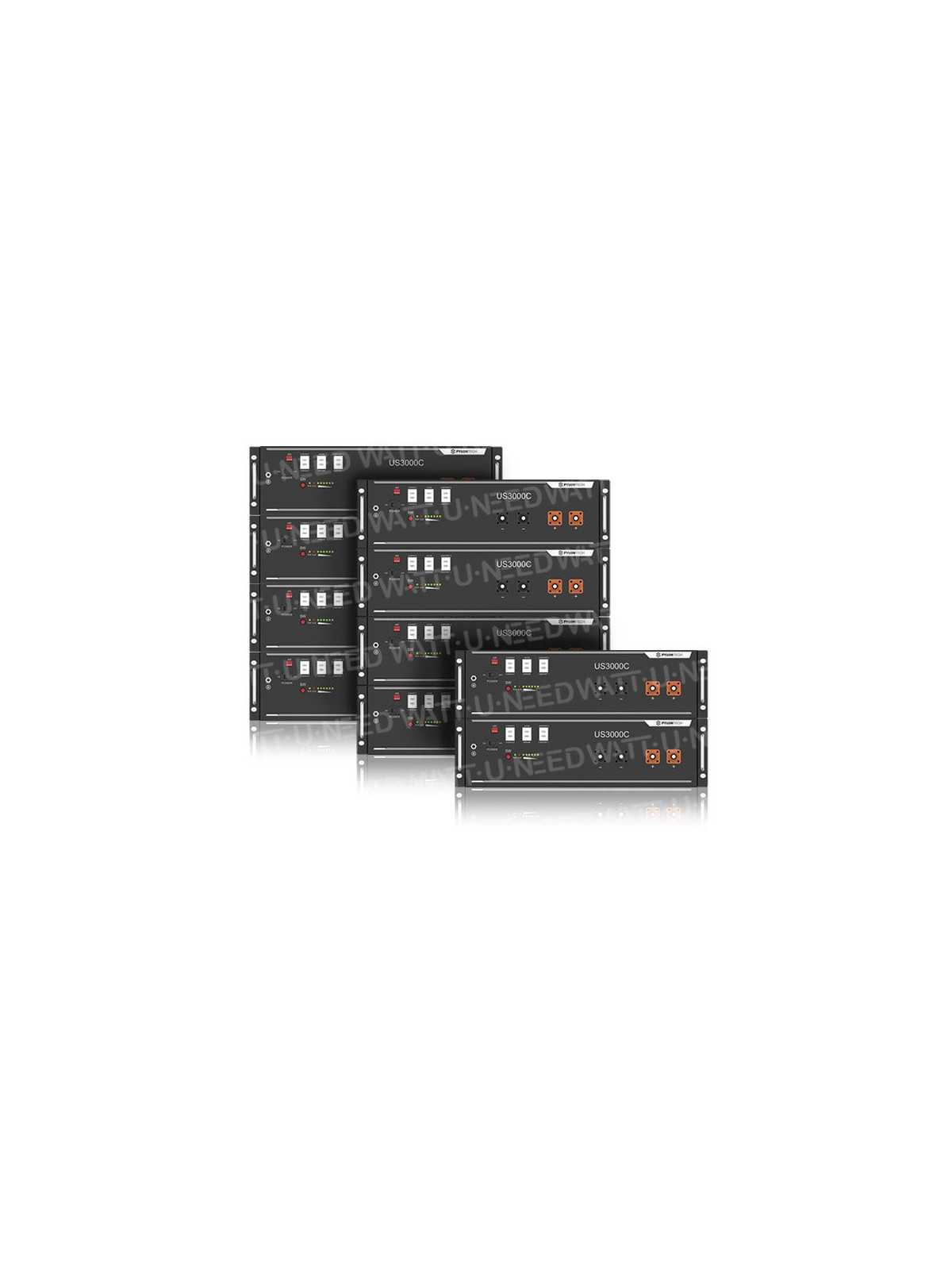

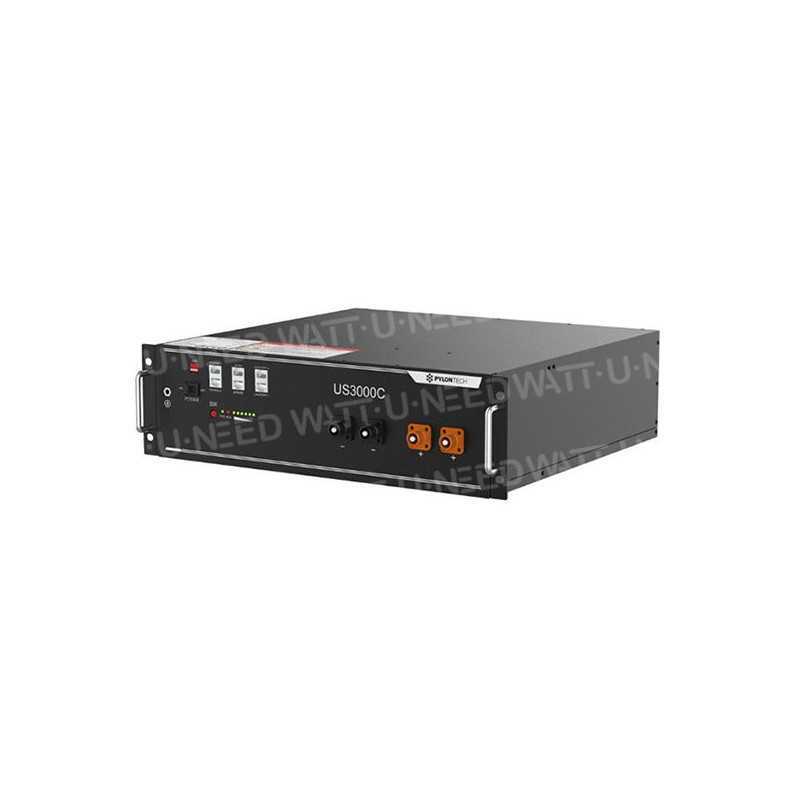

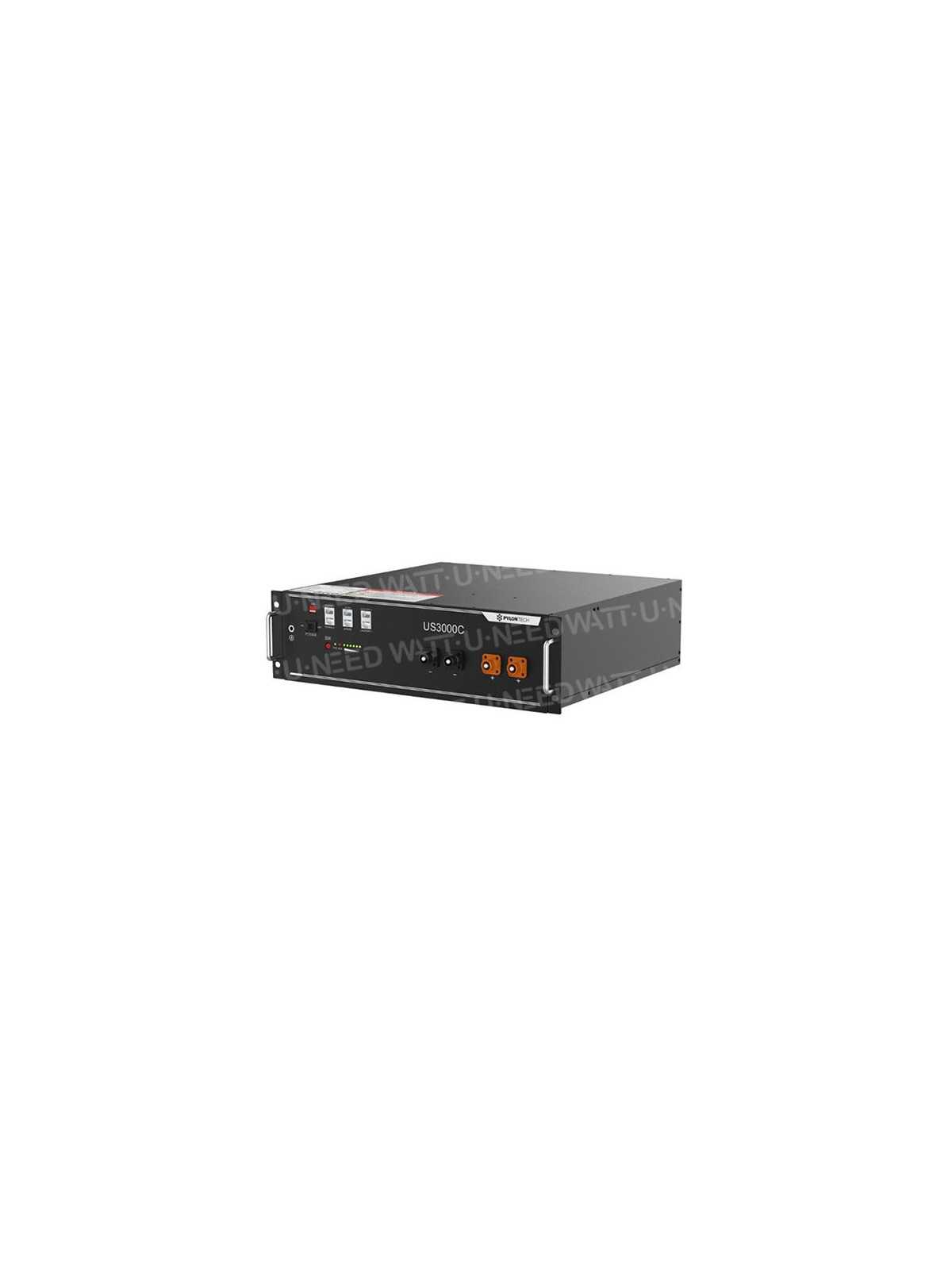

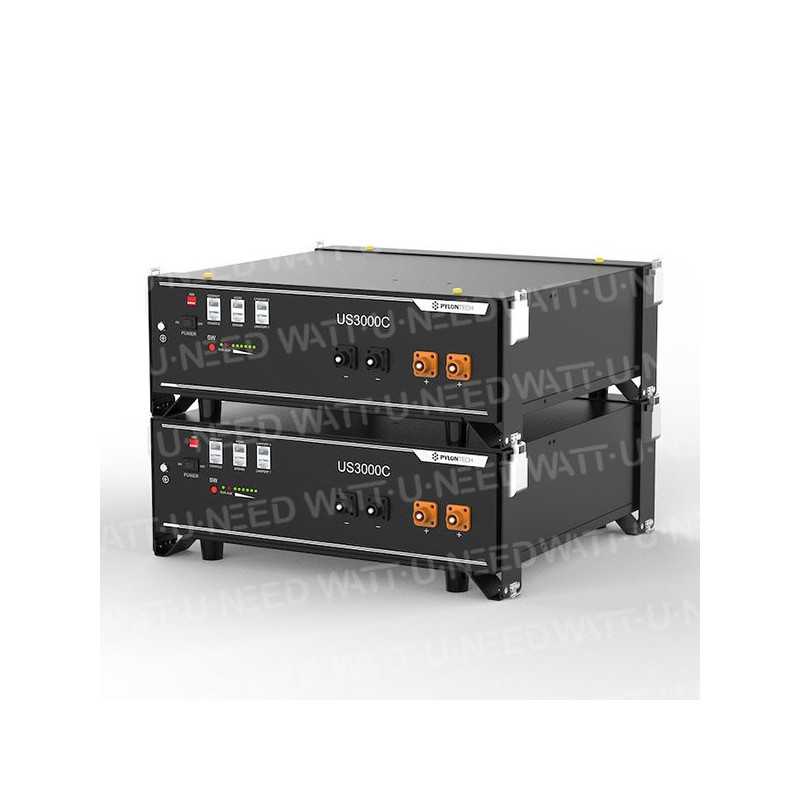

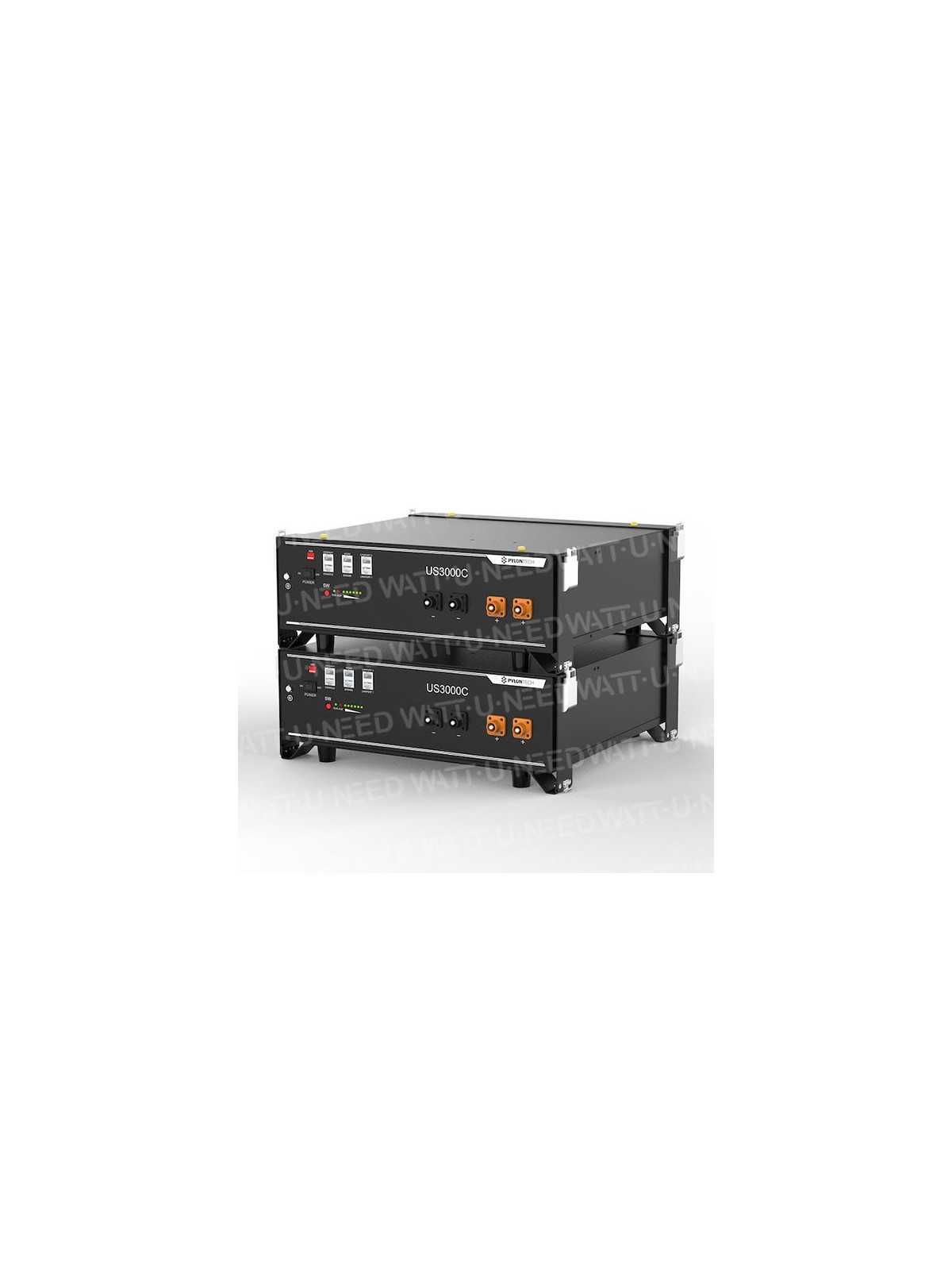

Pylontech Lithium Battery US3000C +740 - 36 kWh
• More than 6000 cycles at 95% discharge;
• Compact modular design to increase capacity easily;
• Compatible with most available hybrid inverters;
• Cert. Safety TüV CE UN38.3
Registering it on the Pylontech website allows you to extend the warranty period to 10 years.
* The battery to inverter connection cables are sold separately.
Vertical integration of the entire lithium battery industry chain FOCUS only on energy storage with more 4.5 GWh at the service of more than 500,000 users. Globally
• NEW: Built-in soft start function to reduce the current when the inverter needs to start from the battery.
• NEW: Double active protection at the BMS.
• NEW: Automatic adjustment of the address in case of multi-group connection.
• NEW: Support wake-up by a 5~12V signal from the RJ45 port.
• NEW: Support for updating the battery module from the top controller via CAN or RS485 communication.
• NEW: Allows a depth of discharge of 95%, available for the inverter that completely follows the latest Pylontech protocol to operate.
• The module is non-toxic, non-polluting and environmentally friendly.
• The cathode material is made of LiFePO4 with safety performance and long service life.
• The Battery Management System (BMS) has protection functions including overcharging, overcharging, overcurrent and high/low temperature.
• The system can automatically manage the state of charge and discharge and balance the voltage of each cell.
• Flexible configuration, multiple battery modules can be paralleled to increase capacity and power.
• The adopted self-cooling mode allows to quickly reduce the noise of the entire system.
• The module has less self-discharge, up to 6 months without charging it on the shelf, no memory effect, excellent performance of shallow charging and self-discharge.
|Rated capacity||740 Ah|
|Battery capacity||35520 Wh|
37 Ah (Recommended)
37 Ah@ (Max.Continuous)
|Communication port||RS485, CAN|
|SIngle string quantity||16pcs|
|Cycle life||>6000, 25°C|
- Battery capacity
- 666 Ah
- 442 mm
- 132 mm
- 420 mm
- Rated capacity
- 31.968 Wh
- 288 kg
