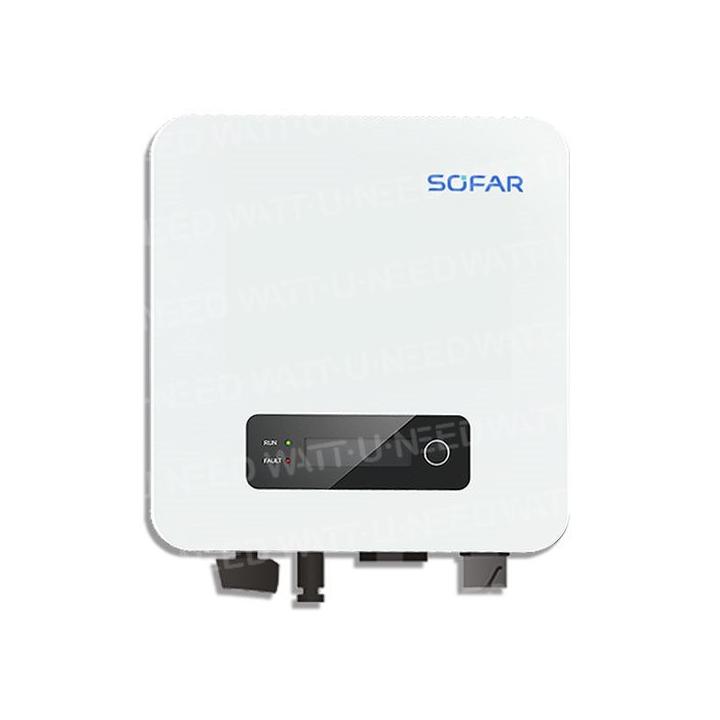

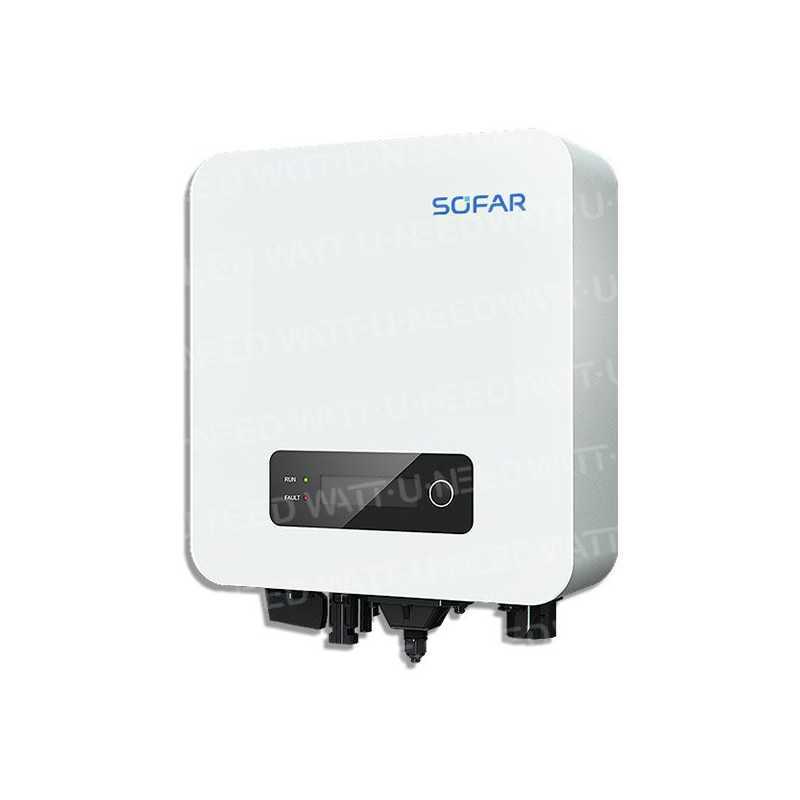

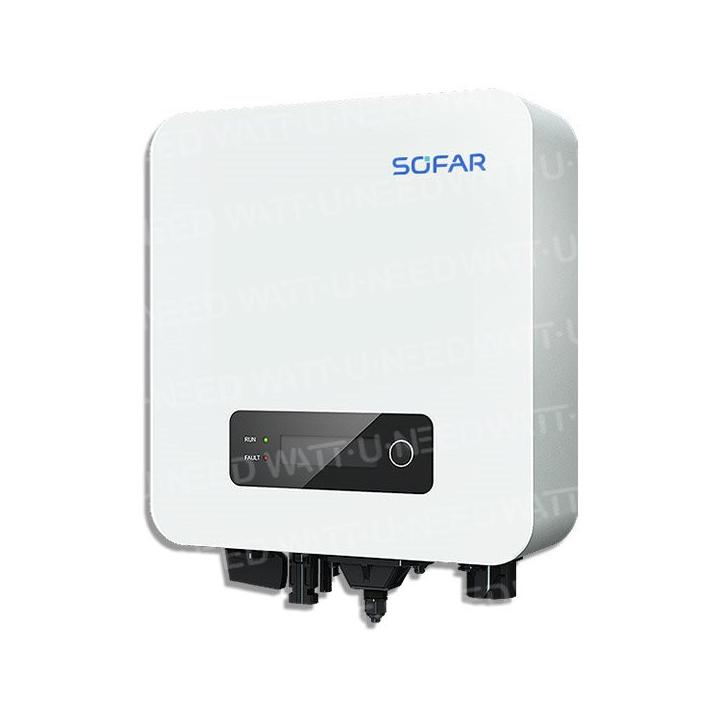

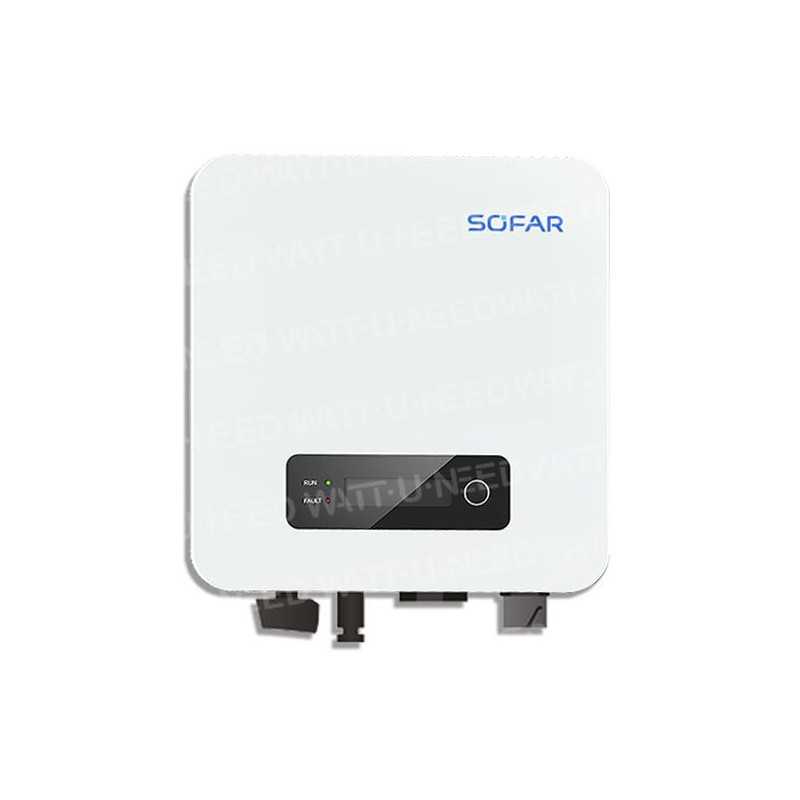

Single-phase inverter Sofar Solar 3300TL-G3
Single-phase inverter Sofar Solar 3300TL-G3
Single-phase inverter Sofar Solar 3300TL-G3
Single-phase inverter Sofar Solar 3300TL-G3

Single-phase inverter Sofar Solar 3300TL-G3

€370.40
Tax included
Sofar-3300TL-G3
0768563817380

Single-Phase Inverter Sofar Solar 3300TL-G3: Optimize Your Solar Energy Production

The Sofar Solar 3300TL-G3 inverter is the ideal solution for small residential photovoltaic installations. Compact and efficient, it guarantees maximum solar power production while simplifying your installation.

Why choose the Sofar Solar 3300TL-G3?

  • Exceptional Performance: Enjoy a maximum efficiency of 97.7% to optimize your energy production.
  • Simplified Installation: Easy and quick installation thanks to its Plug & Play design and IP65 protection rating.
  • Connected Monitoring: Track your production in real-time with Wi-Fi, RS485, or GPRS communication.
  • Flexibility: Adapt the inverter to your needs with its multiple operating modes and wide input voltage range.

Key Advantages:

  • Self-Consumption Optimization: Maximize the use of your solar energy.
  • Reliability: Robust and durable design.
  • Advanced Features: Intelligent grid management, power limitation.

Ideal for:

  • Small residential photovoltaic installations.
  • Individuals looking to optimize their energy consumption.

Simplify your solar installation with the Sofar Solar 3300TL-G3 inverter.

Request your personalized quote today and choose a high-performance, durable solar energy solution.

Sorry, there are no more items in stock.

Comments (0)

No customer reviews for the moment.

Sofar 3300TL-G3 solar inverter: Maximise your energy production

Compact single-phase inverters for small grid-connected PV systems

SofarSolar 1.1K...3.3KTL-G3 is a polished, compact and lightweight solar inverter for smaller single-phase PV systems.

With an efficiency of up to 97.7%, it maximizes the energy yield of your PV system. The integrated zero export function allows the user to limit the power supplied to the grid by simply adding a current transformer to the system.

The inverter also comes with a WiFi key for easy connection to the SofarSolar monitoring portal.

High efficiency

- Maximum efficiency of 97.5%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range

All in one. Flexible, cost-effective system solution

- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function (optional)

Low maintenance costs

- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution

Intelligent grid management

- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit

Features

DC INPUT
PV input power max.
Recommended 4500 Wp
Max. input voltage 550
V
Starting voltage 70 V
Nominal input voltage 360 V
MPPT operating voltage range 50 - 550 V
Full MPPT power in voltage range 300 - 500 V
Max. MPPT input current 12
A
Max. DC input short-circuit current.

P

er MPPT 15 A
Number of MPPT / string per MPPT
/ I
Type of input terminal Type MC4
AC output
Rated power 3300 W
Max. power.
In AC 3300 W
Max. output current 16
A
Nominal mains voltage
/ N / PE,
230 Vac
Mains voltage range 180 - 276 Vac (according to local standards)
Nominal mains frequency 50 Hz / 60 Hz
Mains frequency range 45 - 55 Hz / 54 - 66 Hz (according to local standards)
THDi <
3%
Power factor
default (adjustable +/-0.8)
PERFORMANCE
Max. efficiency 97,7%
Weighted European efficiency 97,20%
PROTECTION
Anti-islanding protectionislanding
Yes
DC reverse polarity protection Yes
DC switch Optional
protection
Yes
Leakage current protection Yes
Earth fault protection Yes
Surge arrester Varistor :
Type III standard
COMMUNICATION
Standard communication mode RS485 / Wi-fi / Bluetooth, optional :

E

thernet
GENERAL
Topology
Transformerless
Ambient temperature range
30°C to 60°C
Night-time power consumption <1 W
Permissible relative humidity range
- 100%
< 25 dB
Cooling Natural
Max. altitude.
Operating 2000 m
Dimensions 321 x 260, 131.5 mm
Bracket Wall mounting
Weight
,3 kg
Display LCD + LED
Degree of protection IP65
Warranty 10 years
Standards
(electro-magnetic compatibility) EN 61000-6-1, EN 61000-6-3,
EN 61000-3-2, EN 61000-3-3
Safety standards IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30), IEC 62109-1/2
Mains standards
V 0124-100, VDE V 0126-1-1, VDE-AR-N 4105, G83/2, C10/11, RD1699
Sofar-3300TL-G3

Data sheet

Inverter power
3300VA
MPPT/PWM
MPPT
Phase
Monophasé

Specific References

UPC
768563817380
EAN13
0768563817380
