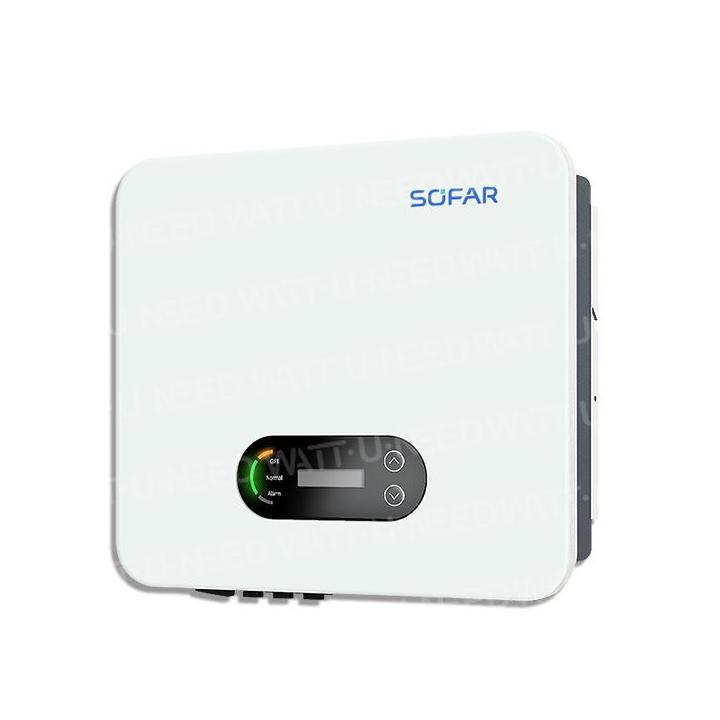

Three-phase inverter Sofar Solar 5.5KTLX-G3
Three-phase inverter Sofar Solar 5.5KTLX-G3

Three-phase inverter Sofar Solar 5.5KTLX-G3

€830.20
Tax included
Sofar-5.5KTLX-G3
0768563819902

Sofar Solar 5.5 kVA Three-Phase Inverter: Maximize the Performance of Your Photovoltaic System

The Sofar Solar 5.5 kVA 5.5KTLX-G3 inverter is the ideal solution to maximize the performance of your photovoltaic system. With its exceptional efficiency of 98.6% and advanced features, it optimally converts the solar energy produced by your panels into usable electricity.

Why choose the Sofar Solar 5.5 kVA inverter?

  • Maximum Efficiency: Thanks to a high-performance MPPT algorithm, this inverter captures the maximum amount of solar energy, optimizing your production.
  • Reliability and Durability: Designed to last, it offers stable performance over time.
  • Easy Installation: Installation is simplified with an intuitive design and "Plug & Play" connection.
  • Remote Monitoring: Track the performance of your system in real time with the dedicated app.

Key Advantages:

  • Optimized Self-Consumption: Maximize your solar energy consumption to reduce your electricity bill.
  • Flexible Installation: Adapts to different solar panel configurations with its two MPPT trackers.
  • Enhanced Protection: Integrated surge protectors safeguard your system against overvoltages.

Sofar Solar 5.5 kVA: A Reliable Investment for High-Performance Solar Energy.

2 item(s) left in Stock!

Sofar Solar 5.5 kVA inverter: Easy installation, maximum performance

The new G3 three-phase inverter for residential PV systems

The SOFAR 3.3K-12KTLX-G3 inverter series is the upgraded version of SOFARSOLAR's three-phase residential inverter series. The 3rd generation version is equipped with two MPP trackers and features eight different power classes to meet the demands of PV installations of different sizes.

The inverter features 4 digital input ports and one CT input port for power control, enabling easy configuration to meet grid codes in many countries.

A WiFi stick is supplied with the inverter, for easy connection to the SOFAR View monitoring portal.

High efficiency

- Maximum efficiency of 98.4%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range

All in one. Flexible, cost-effective system solution

- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function (optional)

Low maintenance costs

- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution

Intelligent grid management

- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit

Specifications

DC INPUT
PV input power max.
Recommended 7500 Wp
Max. power.
DC power per MPPT 6000 W
Number of MPP trackers
Number of DC inputs
/ 1
Max. input voltage 1100
V
Starting voltage 160 V
Nominal input voltage 650 V
MPPT operating voltage range 140 - 1000 V
Full MPPT power in voltage range 240 - 850 V
Max. MPPT input current 15
/ 15 A
Max. input short-circuit current
Per MPPT 22.5 / 22.5 A
AC output
Rated power 5000 W
Max. power.
In AC 5500 VA
Max. output current
.3

N

ominal mains voltage / N / PE,
230 / 400
Mains voltage range 310 - 480 Vac (according to local standards)
Nominal mains frequency 50 Hz / 60 Hz
Mains frequency range 45 - 55 Hz / 55 - 65 Hz (according to local standards)
Adjustable active power range
- 100 %
THDi <
3%
Power factor
default (adjustable +/-0.8)
PERFORMANCE
Max. efficiency. 98,40
Weighted European efficiency 97.50%
PROTECTION
Protection against polarity reversal in direct current Yes
DC switch Optional
Safety protection Anti-islanding,
leakage currents, ground fault monitoring, monitoring of individual strings, anti-reverse function
Lightning arrester input/output PV:
Type II standard, AC: Type II standard
COMMUNICATION
Standard communication mode RS485 / Wi-fi / Bluetooth, optional :
Ethernet
GENERAL
Ambient temperature range
30°C to 60°C
Night-time power consumption <1 W
Topology Transformerless
Degree of protection IP65
Permissible relative humidity range
-
Max. altitude.
Operating
4000 m
<

4

0 dB
Weight 17 kg
Cooling Natural
Dimensions 430 x 375 x 179 mm
Display LCD,
App via Bluetooth
Warranty 10 years
Standards
(electromagnetic compatibility) EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11,
EN 61000-3-12
Safety standards IEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30)
Network standards
4105, VDE V 0126-1-1, V 0124-100, CEI 0-21/CEI 0-16, UNE206 007-1, G98 / G99, EN 50549, EN 50530
Sofar-5.5KTLX-G3

Data sheet

Inverter power
5500 VA
MPPT/PWM
MPPT
Phase
Triphasé
Number of MPPT
2 MPPT

Specific References

UPC
768563819902
EAN13
0768563819902
New
