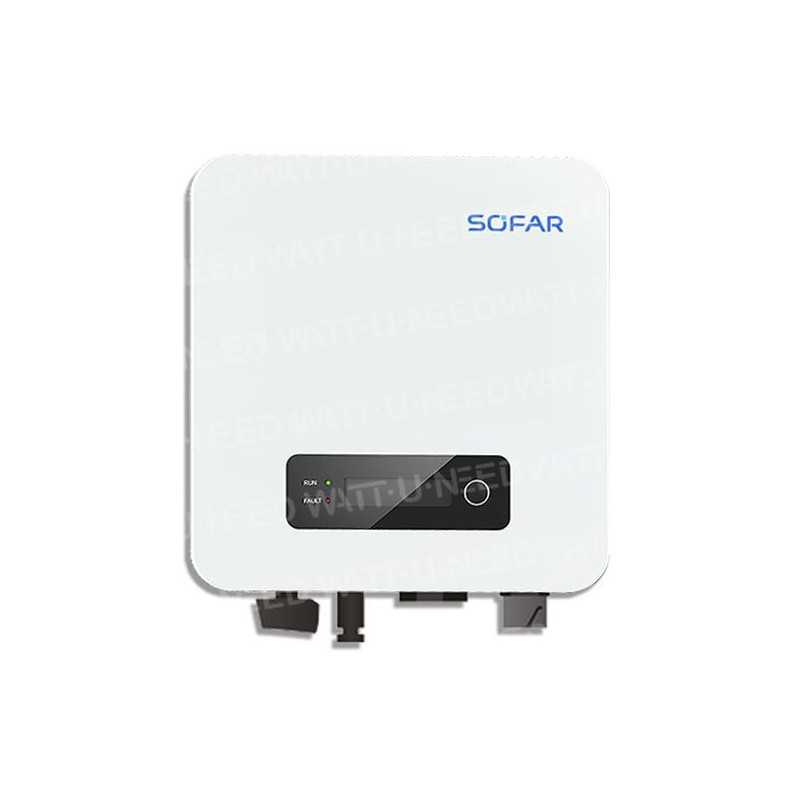

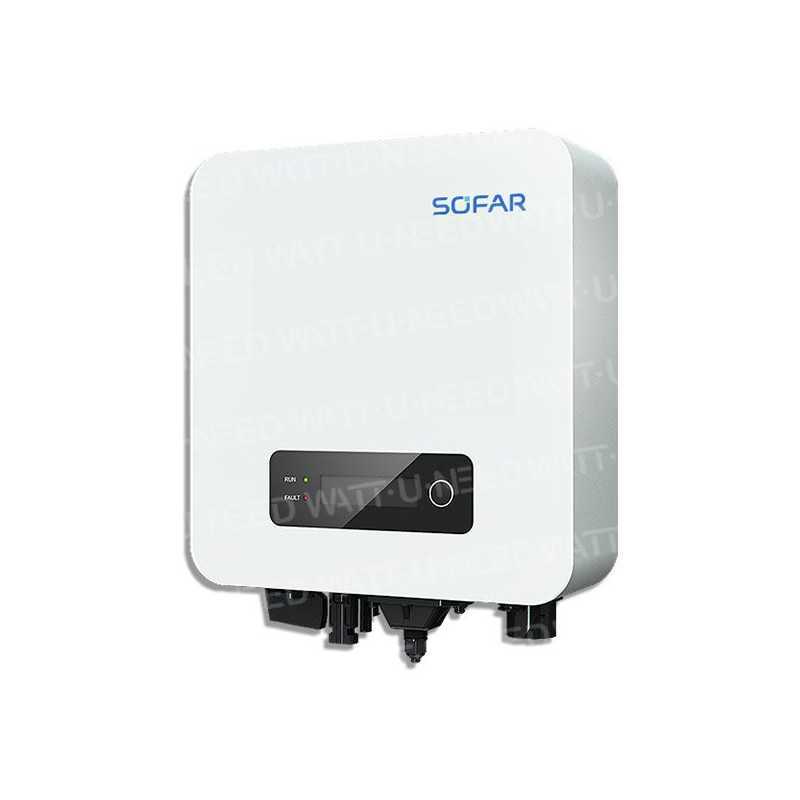

Grid Inverter Sofar Solar Single-Phase 1.6 kVA – 1600TL-G3
€281.10
Tax included
Sofar-1600TL-G3
0768563817380
The SOFAR SOLAR SOFAR-1600TL-G3 grid-connected inverter is designed for small single-phase photovoltaic installations to maximise daily production and monitoring. Its compact size and IP65 protection make it easy to install indoors or outdoors, with supervision possible via communication interfaces.
- Technical specifications: power 1600 VA (1600 W), 1 MPPT, max. efficiency 97.5%, max. PV voltage 500 V, max. recommended PV power 2200 Wp, IP65 protection.
- Compatibility: single-phase 230 Vac network, RS485/Wi-Fi communication (Ethernet optional depending on configuration), LCD + LED display, anti-islanding function.
- Benefits: It optimises production on small roofs thanks to MPPT, while simplifying monitoring and tracking (Wi-Fi/RS485) according to your needs.
1
items in stock!
Maximum energy efficiency: Sofar 1100TL-G3 inverter
Compact single-phase inverters for small grid-connected PV systems
SofarSolar 1.1K...3.3KTL-G3 is a polished, compact and lightweight solar inverter for smaller single-phase PV systems.
With an efficiency of up to 97.7%, it maximizes the energy yield of your PV system. The integrated zero export function allows the user to limit the power supplied to the grid by simply adding a current transformer to the system.
The inverter also comes with a WiFi key for easy connection to the SofarSolar monitoring portal.
High efficiency
- Maximum efficiency of 97.5%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range
All in one. Flexible, cost-effective system solution
- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function (optional)
Low maintenance costs
- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution
Intelligent grid management
- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit
Operating modes
A. Energy management unit
This control can be used to switch the inverter on/off via an external (remote) control.
B. Network reactive power supply
The inverter is capable of producing reactive power and can therefore inject it into the grid by adjusting the phase shift factor. Injection management can be controlled directly by the grid operator via a dedicated RS485 serial interface.
C. Limiting the active power injected into the grid
If enabled, the inverter can limit the amount of active power injected into the grid by the inverter to the desired value (expressed as a percentage).
D. Auto-reduction of power when the grid is overfrequent
When the grid frequency is higher than the limited value, the inverter reduces the output power, which is necessary for grid stability.
E. Data transmission
The inverter or a group of inverters can be remotely monitored using an advanced communication system based on the RS-485 serial interface, or remotely via WIFI/GPRS.
F. Software update
Support for local software updates via USB stick and remote updates via WIFI/GPRS.
Wiring and connection
1. DC switch
2. PV input terminals
3. WiFi/GPRS/Ethernet
4. Network connection port
5. Purge valve
6. USB/DRMs/RS485/CT
Sofar-1600TL-G3
Data sheet
- Inverter power in VA
- 1600 VA
- Operating temperature
- -30℃ – 60℃
- Phase
- Monophasé
- Number of MPPT
- 1 MPPT
- IP protection
- IP65
- Inverter type
- Grid
- Max. recommended PV input power
- 2200 Wc
- Max. input current
- 12 A
- Starting voltage
- 70 V
- Nominal mains voltage
- L / N / PE, 230 Vac
- Rated mains frequency
- 50/60 Hz
- EMC
- EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3
- Type of cooling
- Natural convection
- Standard warranty (years)
- 10 years
- Humidity
- 0 à 100 %
- THDi (Nominal power)
- inférieur à 3 %
- Weight
- 5,5 kg
- Dimensions (L x W x D)
- 303 x 260,5 x 118 mm
- Maximum input voltage
- 500 V
- Communication
- RS485 / WiFi, optional: Ethernet
- Power factor
- 1 par défaut (+/- 0,8 réglable)
- Max. output current
- 7,7 A
- Anti-islanding protection
- Oui
- Assembly
- Montage mural
- Noise
- inférieur 25 dBA
- Display
- LCD + LED display
- Nominal input voltage
- 360 V
- Maximum efficiency
- 97,5 %
- Rated AC power
- 1600 W
- Protection against reversed DC polarity
- Oui
- Maximum DC short-circuit current
- 15 A
- MPPT operating voltage range
- 50 - 500 V
- Safety standards
- IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30), IEC 62109-1 / 2
- Network standards
- VDE V 0124-100, VDE V 0126-1-1, VDE-AR-N 4105, G83 / 2, C10 / 11, RD 1699
