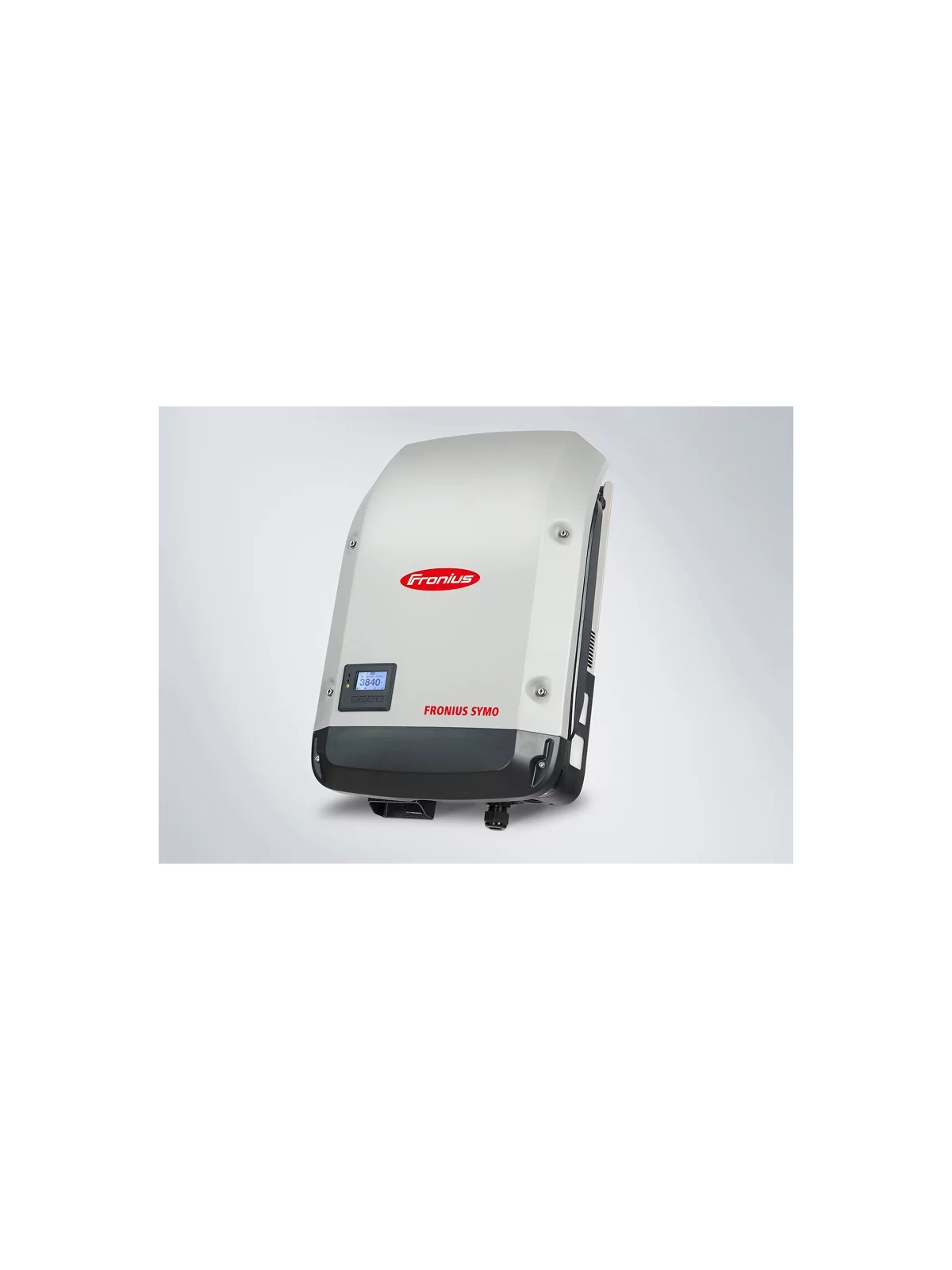

    Fronius Symo 3.0-3-M (2MPPT) Tri

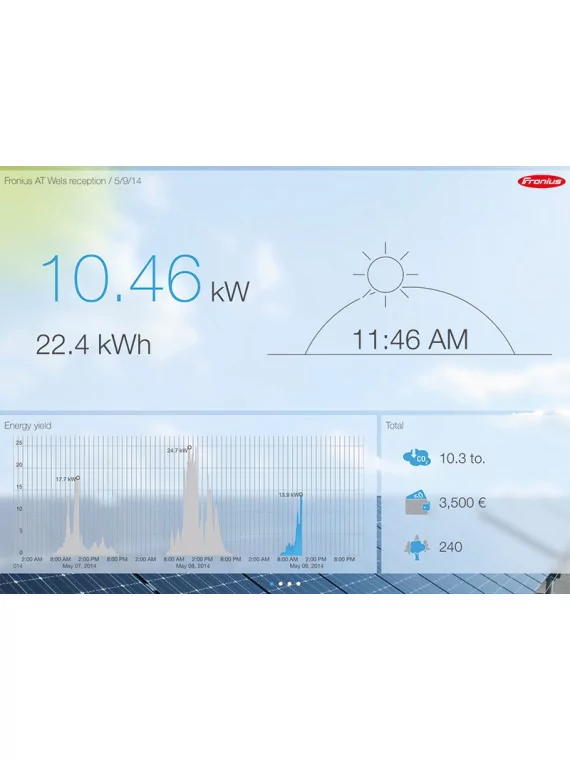

    Solar.web Fronius interface
    Solar.web Fronius application

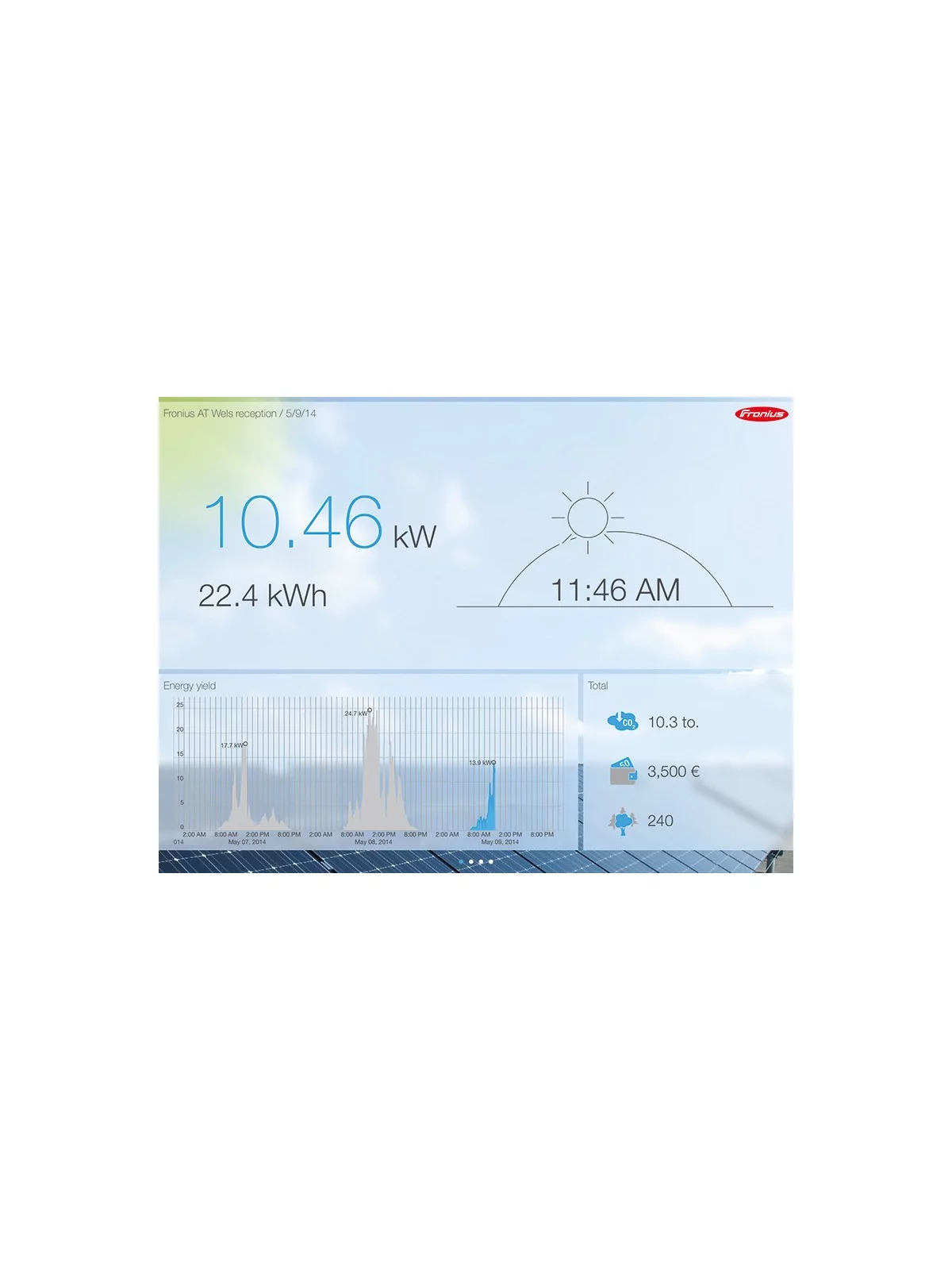

    Solar.web Fronius interface
    Solar.web Fronius application

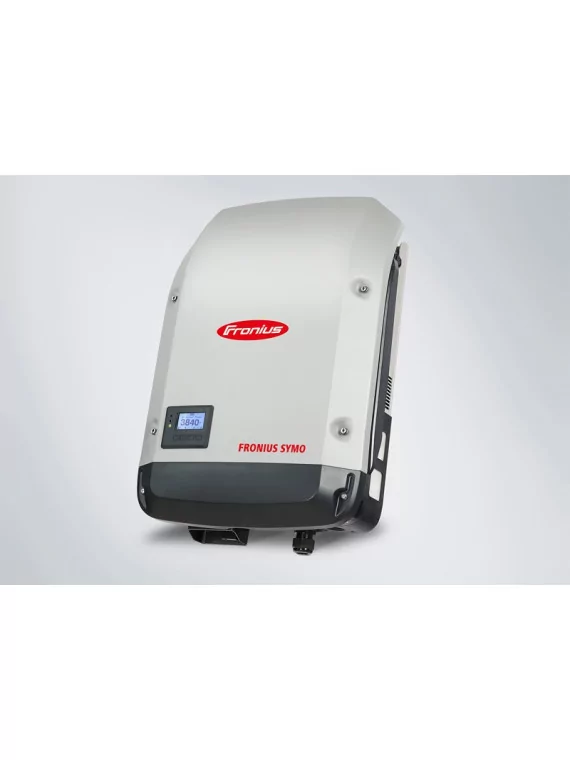

    Fronius Symo 3.0-3-M (2MPPT) Tri

    $1,310.8
    Fronius Symo 3.0-3-M
    0712971130005

    Fronius Symo 3.0-3-M: Intelligence at the Service of Your Solar Energy

    The Fronius Symo 3.0-3-M inverter is the ideal solution for optimizing your solar energy production. Thanks to its innovative technology and intuitive interface, it offers you intelligent and efficient management of your photovoltaic installation.

    Why Choose the Fronius Symo 3.0-3-M?

    • Easy Installation: The revolutionary SnapINverter system greatly simplifies installation and maintenance.
    • Optimal Performance: Advanced MPP tracking technology for maximizing energy production.
    • Connectivity: Built-in Wi-Fi for easy online monitoring and integration with other systems.
    • Flexibility: Adaptable to various solar panel configurations.
    • Reliability: Robust and durable design for long-lasting performance.

    Key Advantages:

    • Time-Saving: Quick and simple installation thanks to the SnapINverter system.
    • High Efficiency: Maximizes solar energy production.
    • Online Monitoring: Track your system’s performance in real-time.
    • Compatibility: Easy integration with other systems thanks to open protocols.

    Choose performance and intelligence with Fronius Symo.

    Product warranty: 5 years

    Fronius Symo 3.0-3-M...

    $1,310.8
    Fronius Primo 8.2-1

    Fronius Symo 3.0-3-M: Quick installation and easy monitoring for optimised solar production



    High system voltage, a wide input voltage range and two MPP trackers ensure maximum flexibility in system design. The standard interface for Internet connection via Wi-Fi or Ethernet and easy integration of third-party components make the Fronius Symo one of the most intelligent inverters on the market.

    Brand: Fronius

    Model: Symo 3.0-3-M

    Power rating: 3 kW

    Dimensions WxHxD: 645 x 431 x 204 mm

    Weight: 19.9 kg

    Warranty: 5 years

    Technology

    Simple fastening system

    What's special about the design of these units is that the "connection" compartment is separate from the "power" compartment, and are installed separately. The connection area and cables are first mounted on the wall, and then the power compartment is installed. This revolutionary mounting system makes for easy installation and maintenance. The inverter is simply placed in the wall bracket and secured. There's no need to remove the entire inverter for maintenance, just the power stage. All cables, settings and configurations remain in place.


    Integrated Wifi interface

    A simple, easy-to-use monitoring system. With the Fronius Datamanager, Fronius is the first inverter manufacturer to offer a Wifi interface integrated into the inverter itself. The inverter is wirelessly connected to the Internet, providing a perfect overview of the photovoltaic system's operation.


    Open protocol data transmission

    It's easy to connect third-party components to Fronius inverters. The open standard SunSpec Modbus TCP protocol is a simple way of establishing a data connection to other systems. The protocol is used via the existing Ethernet interface, guaranteeing reliable communication.


    Smart Grid Ready

    Fronius inverters are ready for tomorrow's Smart Grid. The inverters are optimally equipped to meet future technical requirements. A series of intelligent functions, known as "Advanced Grid Features", are integrated into the devices. These include a number of control functions for optimum injection of reactive and active power. These functions are designed to ensure a stable grid even at very high PV system densities, and prevent unwanted outages with associated yield losses. Fronius inverters therefore help to guarantee the efficiency of PV systems.





    Quick, easy and efficient installation




    Manage your production with {linkpopup id='SolarWeb'}




    Shade management with DynamicPeakManager

    Chimney shading: 1-2% additional annual gain for 1 hour of morning and evening shading

    Frame shading: 2-4% additional gain per year for 1 hour of morning and evening shading

    DynamicPeakManager" energy consumption: ~ 0.05% of annual gain




    WiFi monitoring system installation




    General commissioning of Fronius inverters




    SnapINverter technology




    Technical data


    INPUT DATAFronius Symo 3.0-3-SFronius Symo 3.0-3-M
    Max. input current
    (Idc max 1 / Idc max 2 1))
    16.0 A / 16.0 A

    Max. current.

    short-circuit current (MPP1/MPP2 1))

    24.0 A / 24.0 A
    Min. input voltage
    (Udc min)
    150 V
    Injection start voltage(Udc start)200 V
    Nominal input voltage (Udc,r)
    V
    Max. input voltage.
    (Udc max)
    .000 V
    MPP voltage range (Umpp min - Umpp max)200 - 800 V150 - 800 V
    Number of MPP trackers
    Number of DC connectors
    + 2
    OUTPUT
    TA
    Rated powe
    r C (Pac,r)
    .000 W
    .000 W
    Max. output
    p
    ower
    .
    000 VA
    3.000 VA
    Max. out
    p
    ut current

    (Iac max)
    9.0 A
    13.5 A
    Mains coupling (Uac,r)
    3~NPE 400 V / 230 V oder 3~NPE 380 V / 220 V
    Min. output voltage
    (Uac min)
    150 V
    Max. output voltage (Uac m
    t voltage (Uac min)

    (Uac max)
    280 V
    Frequency (en)50 Hz / 60 Hz
    Frequency ranges
    (fmin - fmax)
    45 - 65 Hz45 - 65 Hz
    Harmonic distortion rate< 3%
    Power factor (cos φac,r)
    ,70 - ind. / cap.
    ,85 - ind. / cap.

    G

    ENERAL DATA
    Dimensions
    (height x width x depth)
    x 431 x 204 mm
    Weight16.0 kg19,9 kg
    Protection classIP 65
    Protection class
    Overvoltage category (DC / AC)
    / 3
    Night-time power consumption<
    1 W
    Inverter conceptTransformerless
    CoolingRegulated air cooling
    MountingIndoor and outdoor
    Ambient temperature range
    25 - +60 °C
    Permissible air humidity
    - 100 %
    DC connection technology
    DC+ and 3x DC- Screw terminal connections 2,5 - 16 mm²4x DC+ and 4x DC- Screw terminal connections 2,5 - 16mm² 2)
    AC connection technology
    AC Screw terminal connections 2,5 - 16 mm²5-pole AC Screw terminal connections 2,5 - 16 mm² 2)
    Certificates and standardsDIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 47771)
    IEC 0-211)
    Max. performance98.0
    %
    European yield (ηEU)96.2 %96.5 %
    to 5 % Pac,r3)80.3 / 83.6 / 79.1 %79.8 / 85.1 / 80.8 %
    to 10 % Pac,r3)87.8 / 91.0 / 86,2 %86.5 / 91.6 / 87.7 %
    to 20 % Pac,r3)92.6 / 95.0 / 92.6 %90.8 / 95.3 / 93.0 %
    to 25 % Pac,r3)93.4 / 95.6 / 93.8 %91.9 / 96,0 / 94.2 %
    to 30 % Pac,r3)94.0 / 96.3 / 94.5 %92.8 / 96.5 / 95.1 %
    to 50 % Pac,r3)95.2 / 97.3 / 96.3 %94.3 / 97.5 / 96,5 %
    to 75 % Pac,r3)95,6 / 97,7 / 97,0 %94,9 / 97,8 / 97,2 %
    to 100 % Pac,r3)95,6 / 97,9 / 97,3 %95,0 / 98,0 / 97,4 %
    MPP efficiency>
    9.9 %
    PROTECTION DEVICES
    DC insulation voltage measurementIncluded
    Overload capabilityDynamic operating point shift,
    power limitation
    DC isolating switchIncluded
    INTERFACES
    WiFi / EthernetFronius Solar.web / Fronius Solar.web, Modbus TCP, JSON
    digital inputs or 4 digital inputs/outputsInterface for control receiver
    USB (type A connector)4)For USB memory sticks
    2x RS422 (RJ45 connector)4)Fronius Solar Net,
    protocol Interface
    SO input / output signal 4)Energy management (potential-free relay output)
    Datalogger und Web serverIncluded

    1

    ) valid for Fronius Symo 3.0-3-M, 3.7-3-M und 4.5-3-M

    2

    ) 16 mm² without cable end

    3

    ) and at Umpp min / Udc,r / Umpp max

    4

    ) also available for the light version

    Subject to technical modifications

    .
    Fronius Symo 3.0-3-M

    Data sheet

    Inverter power
    3000VA
    Max. solar input voltage
    1000 V
    Power
    3000 VA
    Phase
    Triphasé
    Number of MPPT
    2 MPPT
