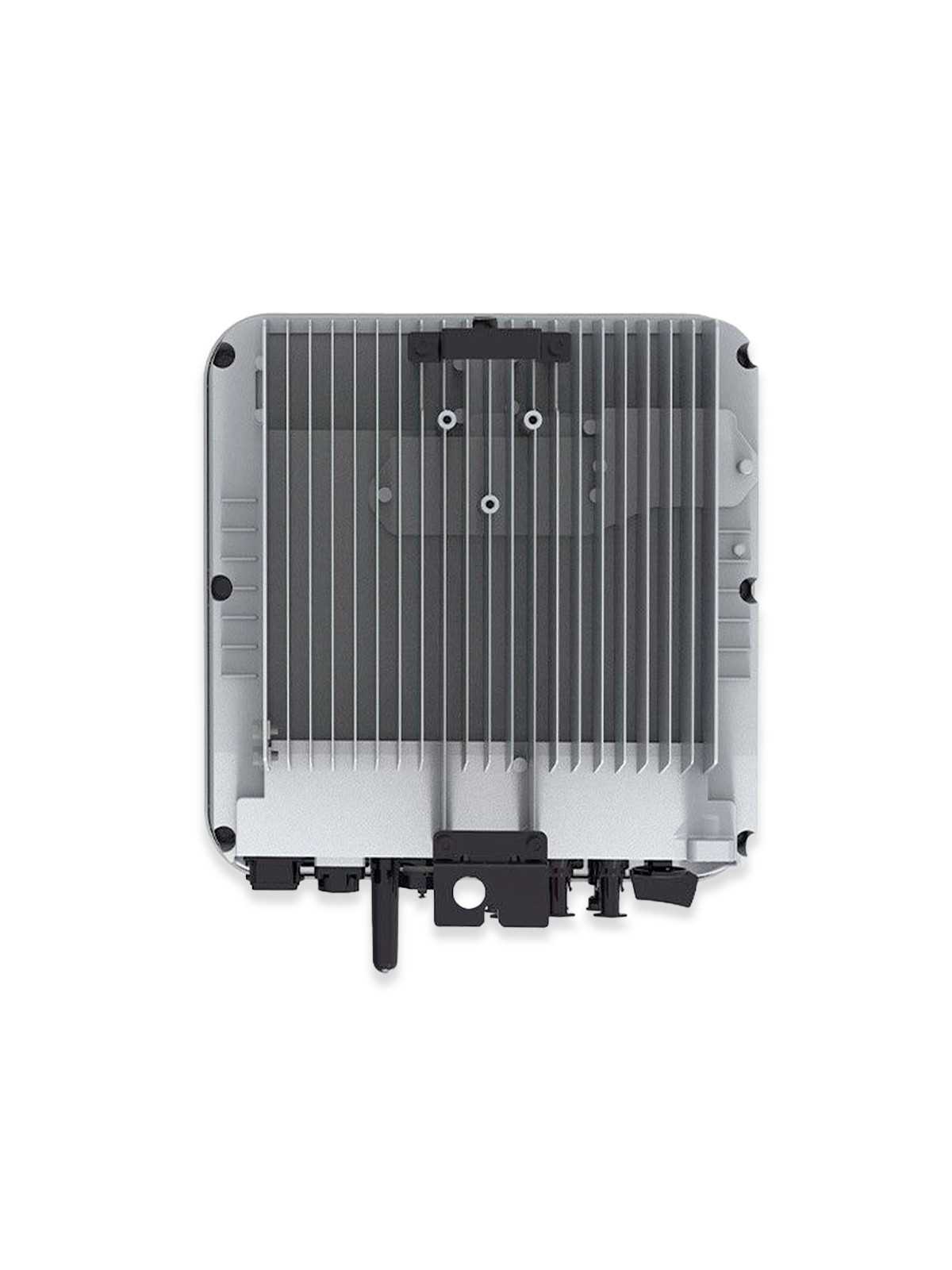

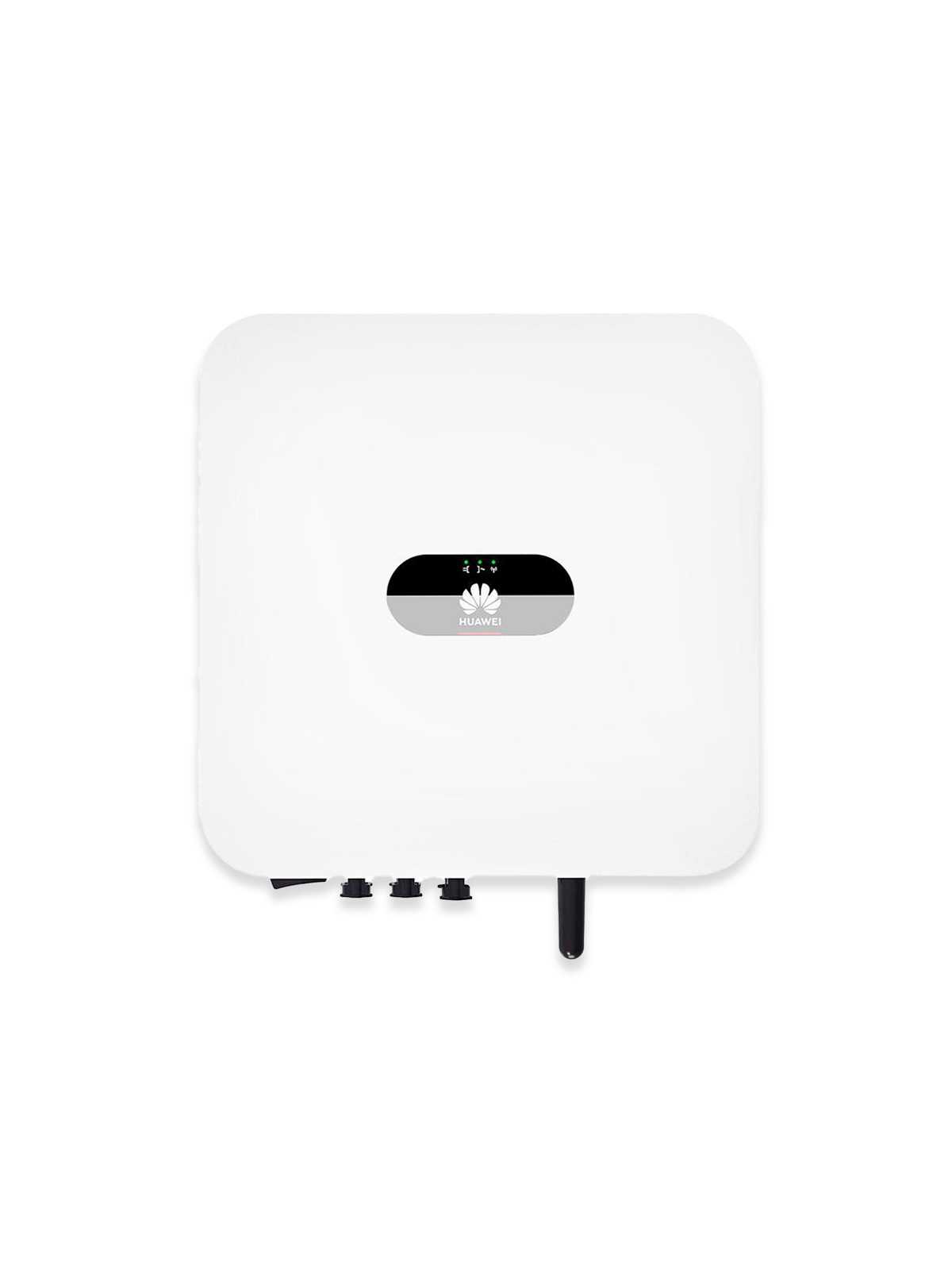

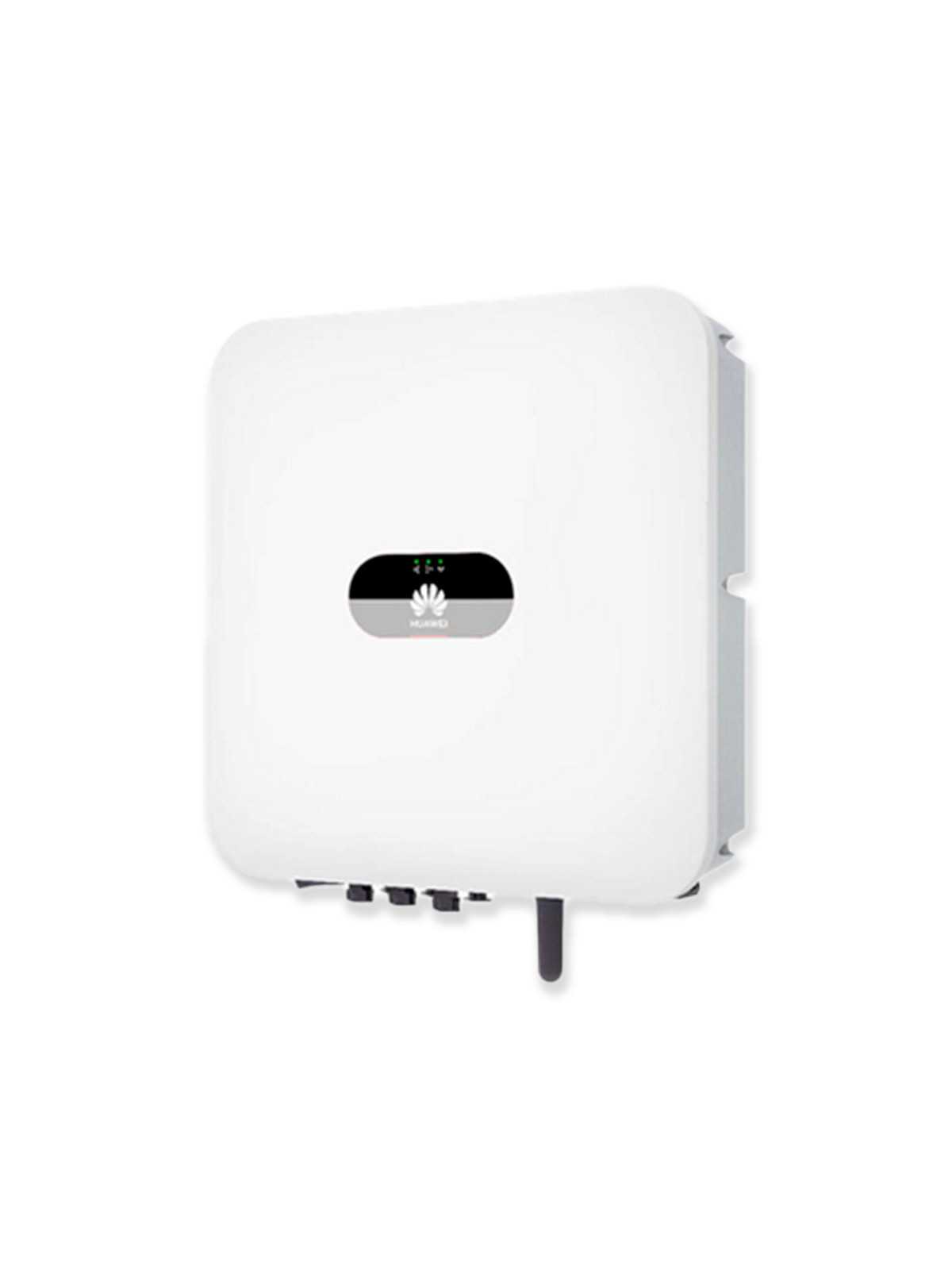

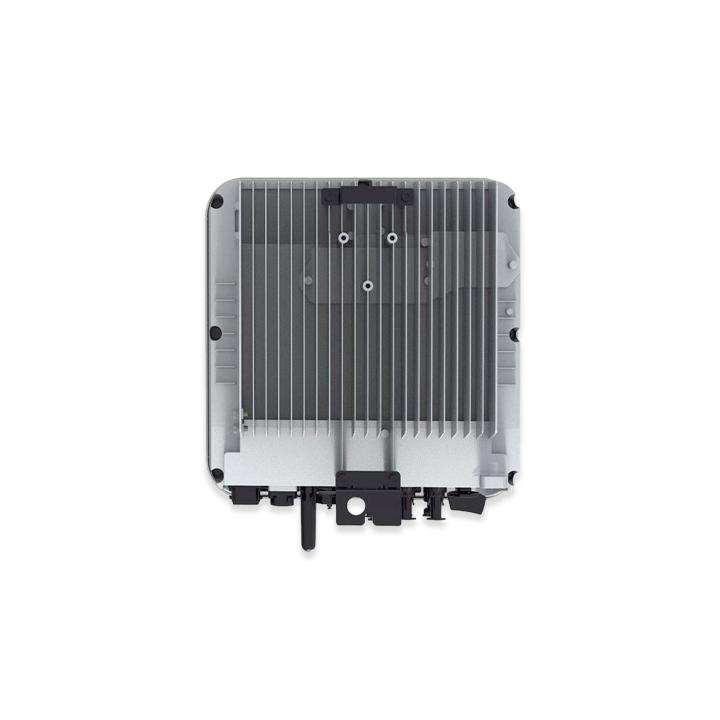

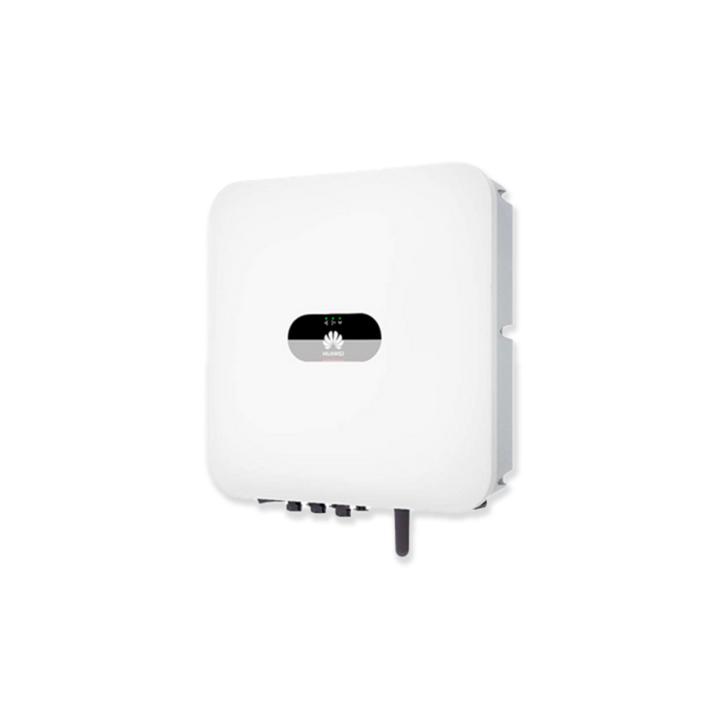

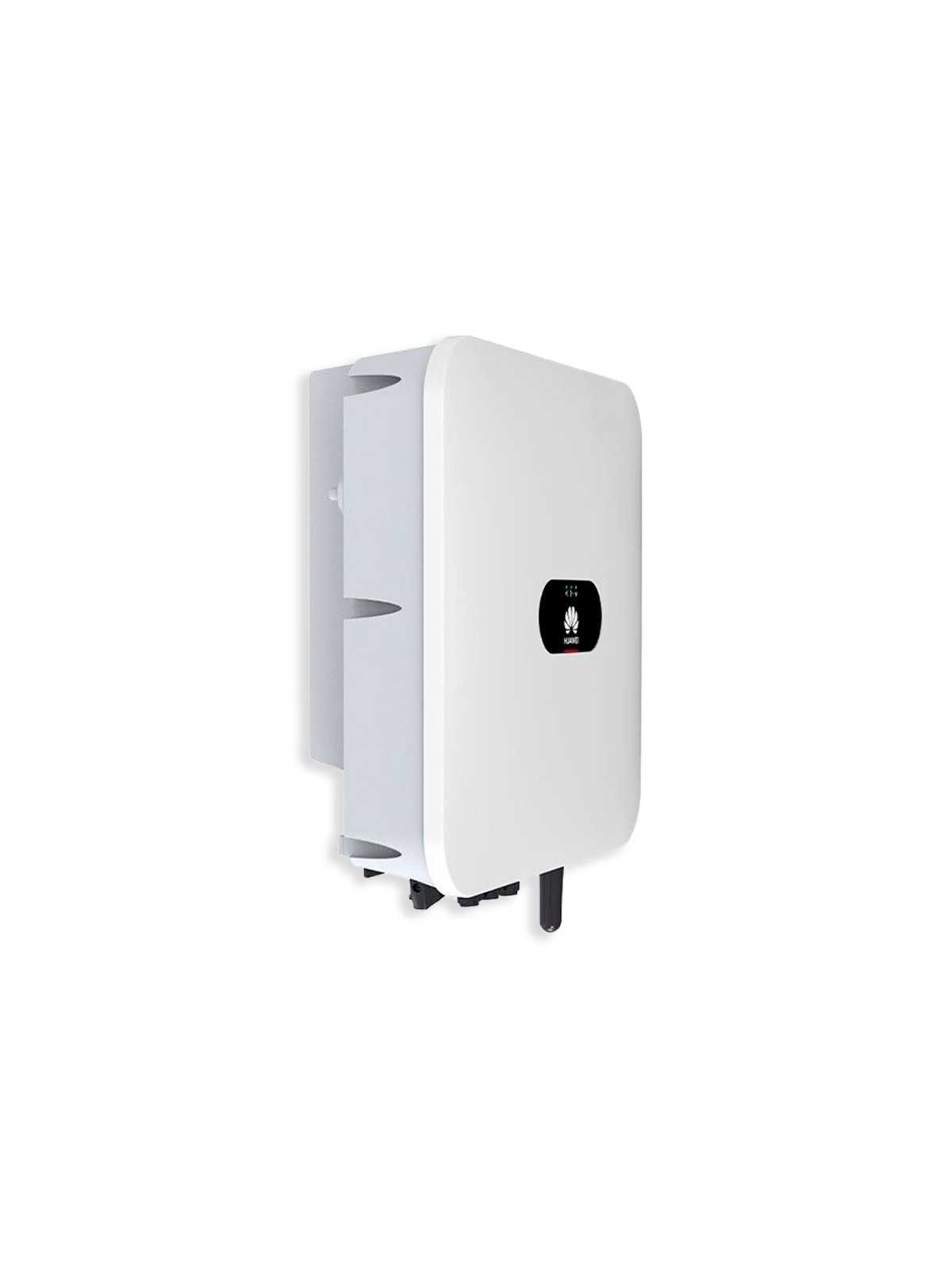

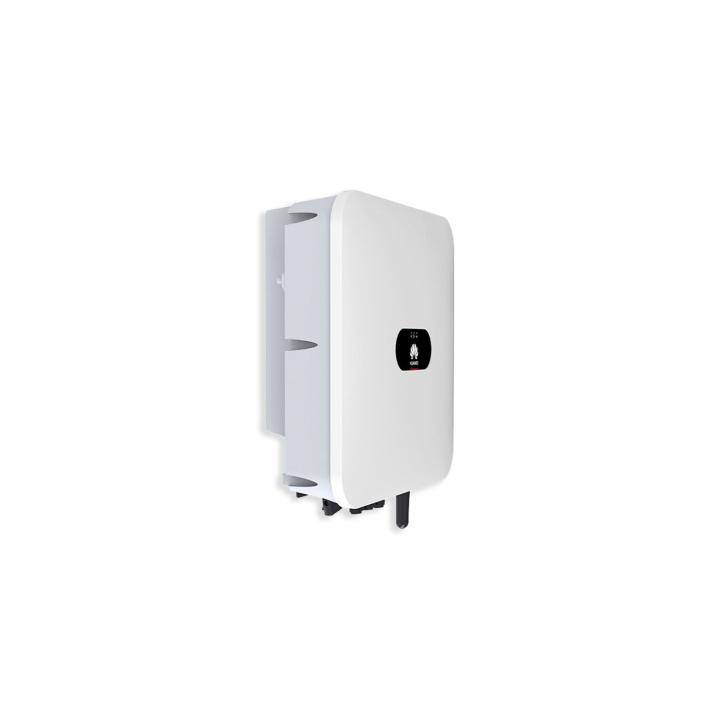

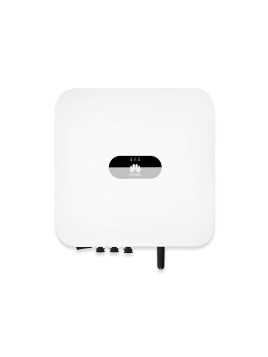

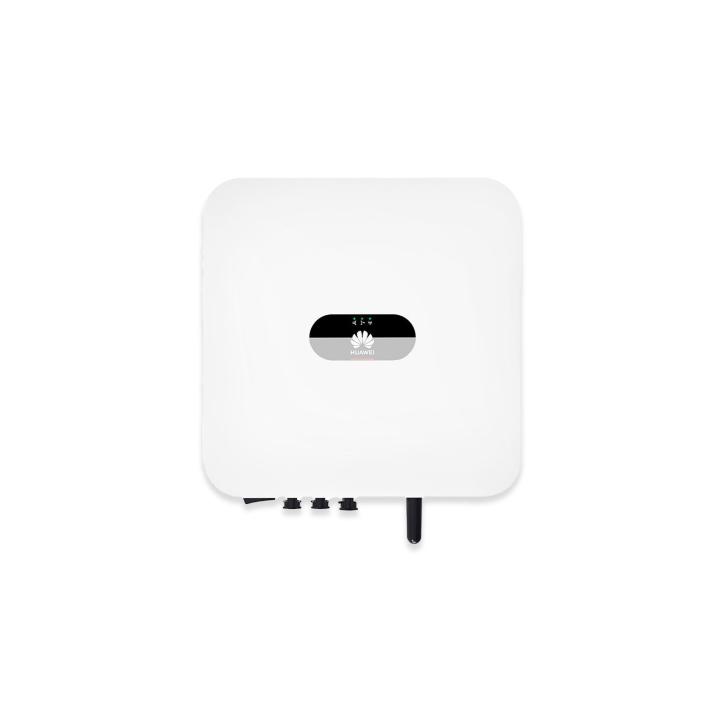

Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1
Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1
Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1
Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1
Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1
Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1
Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1

Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1

€1,053.18
€1,239.04
Tax included
SUN2000-4.6KTL-L1
0768563821325

Single-phasehybrid inverter for residential and small business self-consumption: it efficiently converts photovoltaic energy, optimises production thanks to its MPPT inputs and prepares your installation for the addition of storage. Its compact design and remote monitoring facilitate energy management, performance tracking and the gradual evolution of your solar system.

  • Technical specifications: 4.6 kVA (4600 W), efficiency up to 98.4%, 2 MPPT, MPPT range 90-560 V, max input voltage 600 V, recommended PV power up to 6900 Wp, IP65 rating, natural convection cooling (no fan).
  • Compatibility: single-phase 220/230/240 VAC, RS485 and WLAN communication (integrated Wi-Fi), compatible with Huawei Luna 2000 batteries, extensions possible via dongles (Ethernet or 4G depending on configuration).
  • Benefits: Maximises self-consumption, allows real-time production monitoring and enables the installation to be upgraded to a battery solution without replacing the inverter.
No items in stock
Combien allez-vous économiser ?
Simulez vos économies avec ce kit de 6 kWc

Huawei 4.6 kW solar inverter: Maximize your self-consumption

The SUN2000-4.6KTL-L1, produced by Huawei Technologies, is the epitome of excellence in solar inverters. With its 4.6 kVa power rating, it offers an ideal solution for residential and commercial homeowners looking to maximize their solar energy production.

Compact and easy to install, the SUN2000-4.6KTL-L1 combines elegant design with robust performance. Its high conversion efficiency ensures that every ray of sunlight is converted into usable electricity, saving you money on your electricity bill from day one.

With advanced features such as remote monitoring and intelligent power management, the SUN2000-4.6KTL-L1 offers total peace of mind. You can monitor and control your solar system wherever you are, ensuring optimum performance and proactive maintenance.

Choosing the SUN2000-4.6KTL-L1 means investing in the future of solar energy. Its high-end design, unrivalled reliability and outstanding performance make it a safe and cost-effective choice for your home or business.

Ready to accept Huawei Luna 2000 batteries, this UPS features an integrated energy storage interface. It's specially designed for Luna 2000 batteries, allowing you to store and use the solar energy generated according to your needs.

Don't let the sun shine in vain. With the SUN2000-4.6KTL-L1, turn every day into an opportunity to generate clean, renewable energy, while saving money in the long term. Choose solar excellence with Huawei's SUN2000-4.6KTL-L1.



Technical specifications:

  • Rated power: 4.6 kilowatts (kW)
  • Technology: Transformerless inverter with voltage converter topology
  • Efficiency: High, with minimal energy conversion losses
  • Maximum input voltage: 600 volts (V)
  • Operating voltage range: Wide, ensuring flexible adaptation to varying solar panel conditions
  • Overvoltage protection: Integrated to ensure system safety in the event of sudden voltage fluctuations
  • Monitoring: Advanced remote monitoring features for proactive system management
  • Compatible with Huawei Luna 2000 batteries



Benefits :

  1. Cost-efficiency: Thanks to its high conversion efficiency, the SUN2000-4.6KTL-L1 maximizes solar energy production, resulting in long-term savings on electricity bills.
  2. Reliability: Huawei is renowned for the quality and durability of its products.
  3. The SUN2000-4.6KTL-L1 is designed to deliver stable, reliable performance in a variety of environmental conditions.
  4. Flexibility: Compatible with a wide range of solar panels and system configurations, this inverter offers maximum flexibility when designing and installing your photovoltaic system.



Performance :

  • Energy efficiency: The SUN2000-4.6KTL-L1 ensures optimum conversion of solar energy into usable electricity, maximizing your system's overall yield.
  • Intelligent power management: Advanced algorithms ensure efficient power management, optimizing system performance in all conditions.
  • Simplified maintenance: Remote monitoring capabilities enable rapid diagnosis and resolution of any problems, reducing downtime and maintenance costs.



In short, the SUN2000-4.6KTL-L1 offers the perfect combination of performance, reliability and energy efficiency. When you choose this Huawei solar inverter, you're investing in a state-of-the-art solution, designed to meet the current and future energy needs of your home or business.






FAQ - Huawei SUN2000-4.6KTL-L1 4.6 kW single-phase hybrid inverter

1. What power does the Huawei SUN2000-4.6KTL-L1 deliver and what self-consumption use case is it designed for? +
The technical sheet lists 4600 VA and a nominal AC output power of 4600 W, single-phase 220/230/240 Vac. The page presents it as a hybrid inverter designed to optimize PV self-consumption (PV conversion, monitoring, and possible evolution toward storage). Product image: https://www.wattuneed.com/42045-large_default/onduleur-hybride-huawei-monophase-46-kw-sun2000-46ktl-l1.jpg [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26581-onduleur-hybride-huawei-monophase-46-kw-sun2000-46ktl-l1-0768563821325.html)
2. What efficiency is stated to improve photovoltaic conversion? +
The displayed peak efficiency is 98.4 (typically understood as 98.4%). This efficiency helps improve PV-to-AC conversion and supports higher self-consumption savings. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26581-onduleur-hybride-huawei-monophase-46-kw-sun2000-46ktl-l1-0768563821325.html)
3. How many MPPT trackers does it have and what MPPT voltage range is listed? +
It has 2 MPPT trackers. The listed MPPT voltage range is 90 V – 560 V, with a start voltage of 100 V, helping optimize PV production across different string designs. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26581-onduleur-hybride-huawei-monophase-46-kw-sun2000-46ktl-l1-0768563821325.html)
4. What recommended PV power (Wp) and input limits (voltage/current) are shown? +
The recommended maximum DC power is 6900 Wp. The maximum PV input voltage is 600 V. Maximum input current is listed as 12.5 A per MPPT, and maximum short-circuit current is 18 A; respecting these limits supports safety and performance. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26581-onduleur-hybride-huawei-monophase-46-kw-sun2000-46ktl-l1-0768563821325.html)
5. Is it suitable for outdoor installation (IP65 sealing) and what operating conditions are listed? +
Yes, the protection rating is IP65 (sealed). The operating temperature range is −35~+60 °C with derating above 45 °C, and maximum operating altitude is stated as below 4000 m. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26581-onduleur-hybride-huawei-monophase-46-kw-sun2000-46ktl-l1-0768563821325.html)
6. What cooling method is stated and what are the physical specs (size/weight)? +
Cooling is stated as natural convection (no fan), supporting silent operation. Listed dimensions are 365 mm (width) × 360 mm (height) × 156 mm (depth), with a weight of 12 kg. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26581-onduleur-hybride-huawei-monophase-46-kw-sun2000-46ktl-l1-0768563821325.html)
7. Monitoring & communication: what options are mentioned (Wi‑Fi, RS485, Ethernet, 4G) and what battery compatibility is stated? +
Communication includes RS485 and WLAN via the inverter’s integrated WLAN module (Wi‑Fi). Optional extensions are listed: Ethernet via Smart Dongle-WLAN-FE (optional) and 4G/3G/2G via Smart Dongle-4G (optional). For storage, the page states compatibility with Huawei Luna 2000 batteries, enabling future self-consumption upgrades. [Source](https://www.wattuneed.com/fr/onduleurs-hybrides/26581-onduleur-hybride-huawei-monophase-46-kw-sun2000-46ktl-l1-0768563821325.html)
SUN2000-4.6KTL-L1

Data sheet

Inverter power in VA
4600 VA
AC input voltage
360 V
Frequency range
50 / 60 Hz
Efficiency (peak)
98.4
AC output voltage
220 Vac / 230 Vac / 240 Vac
Phase
Monophasé
Number of MPPT
2 MPPT
Width
365 mm
Height
360 mm
Thickness
156 mm
Rated AC output power
4600 W
Inverter type
Hybrid
Max. DC power Recommended
6900 Wc
Max. input current
12.5 A par MPPT
Max. short-circuit current (A)
18 A
MPPT voltage range
90 V – 560 V
Starting voltage
100 V
Protection Degree
IP65
Operating temperature range
-35~+60 °C (derating above 45°C)
Weight
12 kg
Maximum output current
23 A
Power factor (adjustable)
0.8 capacitif ... 0.8 inductif
Cooling
Natural convection - Fanless
Communication
RS485, WLAN via le module WLAN intégré de l'onduleur Ethernet via Smart Dongle-WLAN-FE (en option); 4G / 3G / 2G via Smart Dongle-4G (en option)
Output overcurrent protection
Yes
Residual current detection
Oui
Anti-islanding protection
Oui
Overvoltage protection
Yes
Maximum operating altitude
below 4000 m
Reverse polarity protection
Oui

Specific References

UPC
768563821325
EAN13
0768563821325
New
