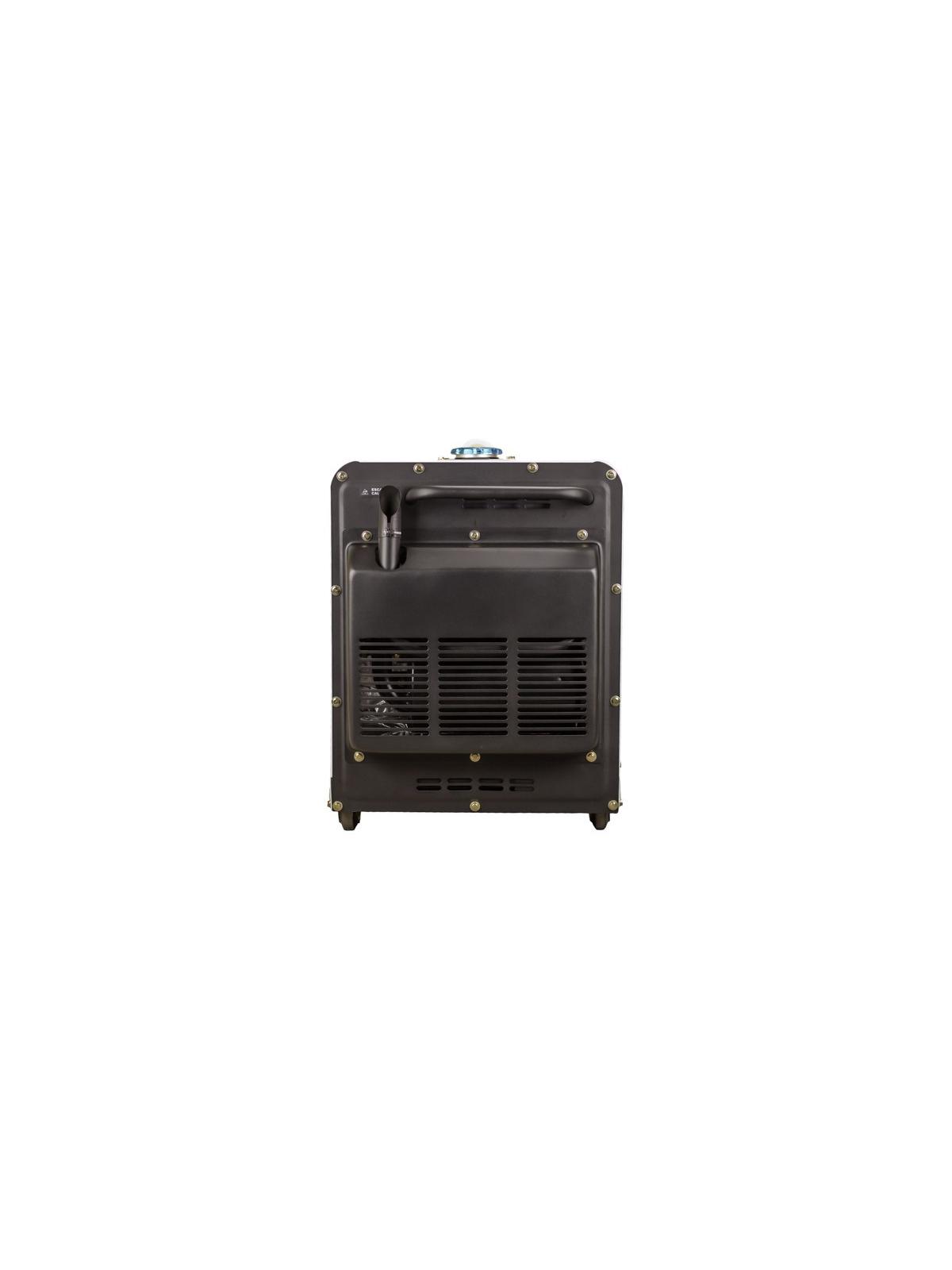

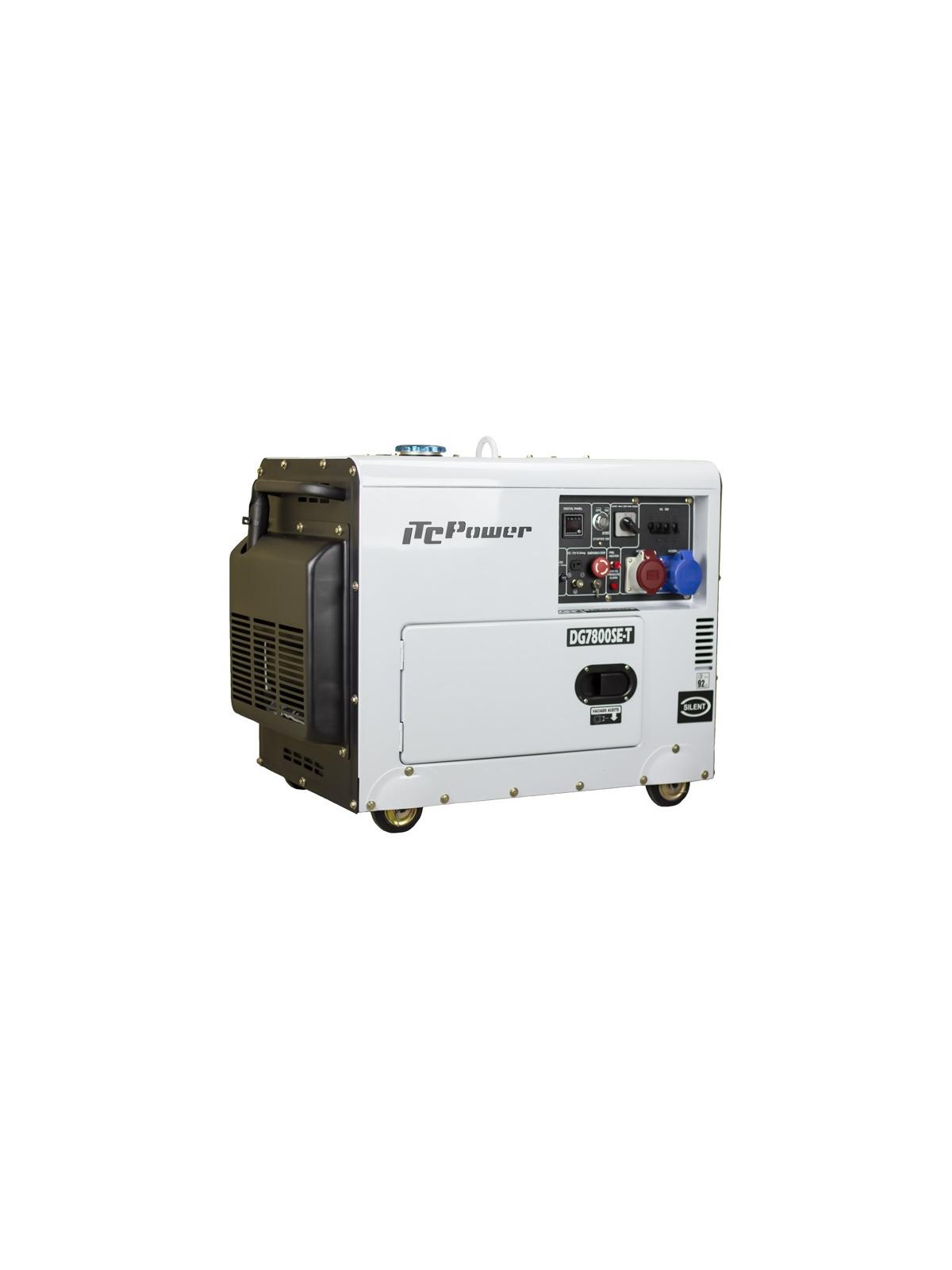

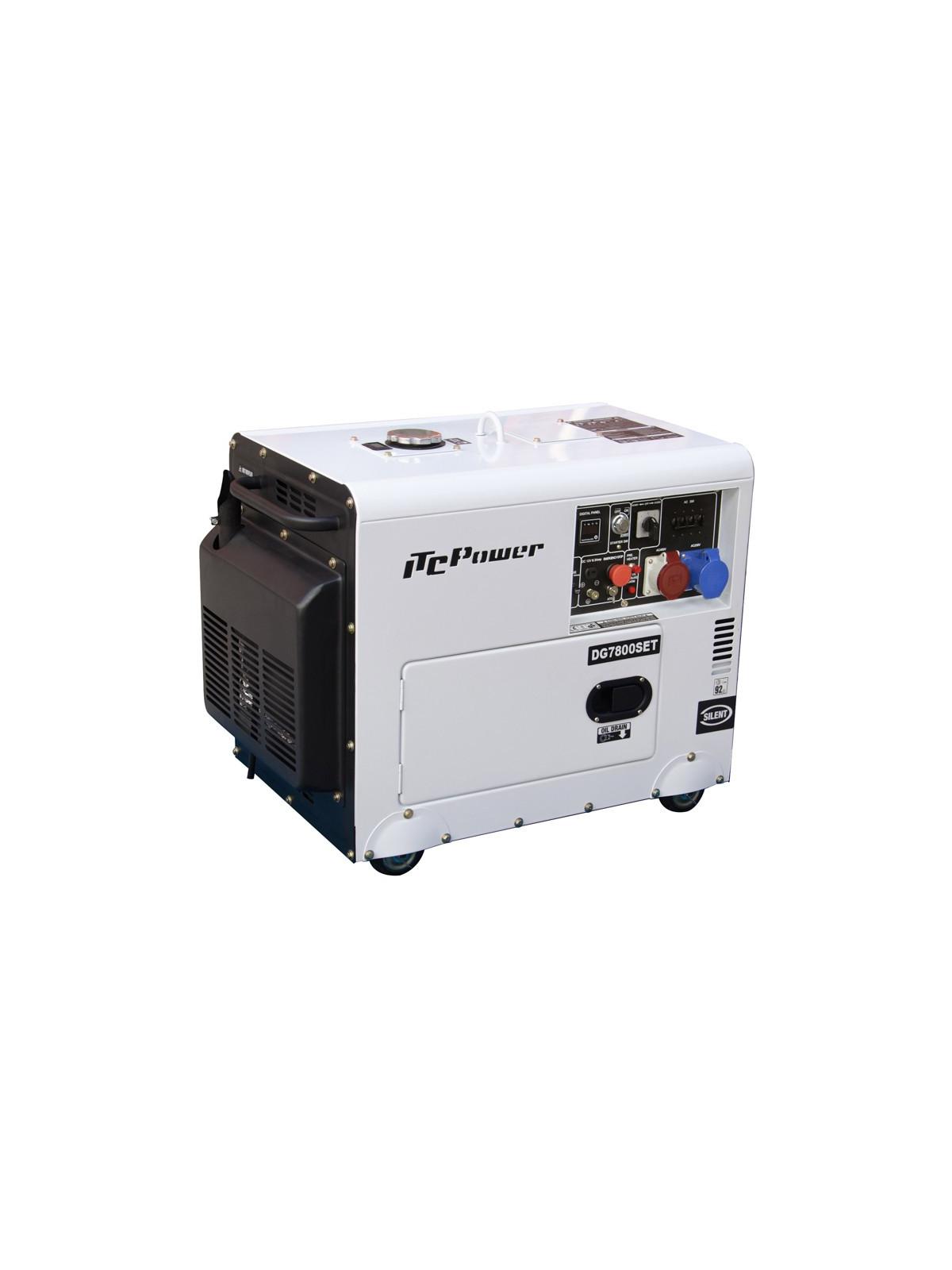

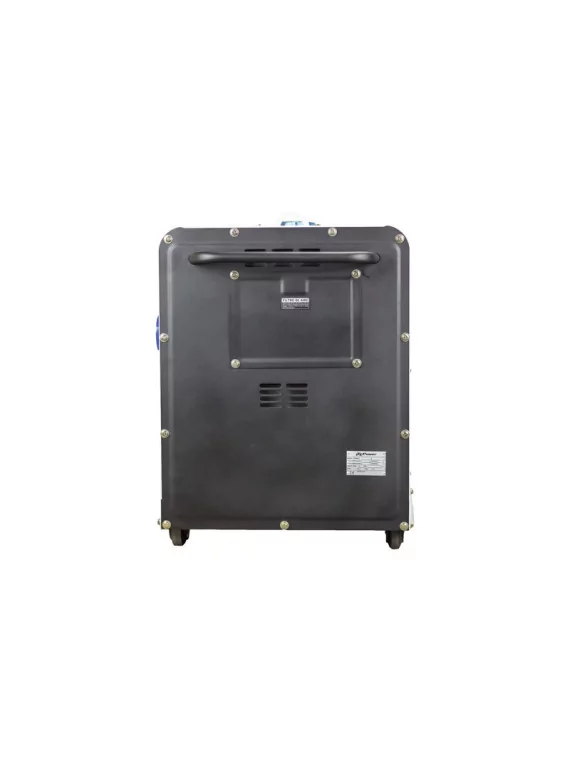

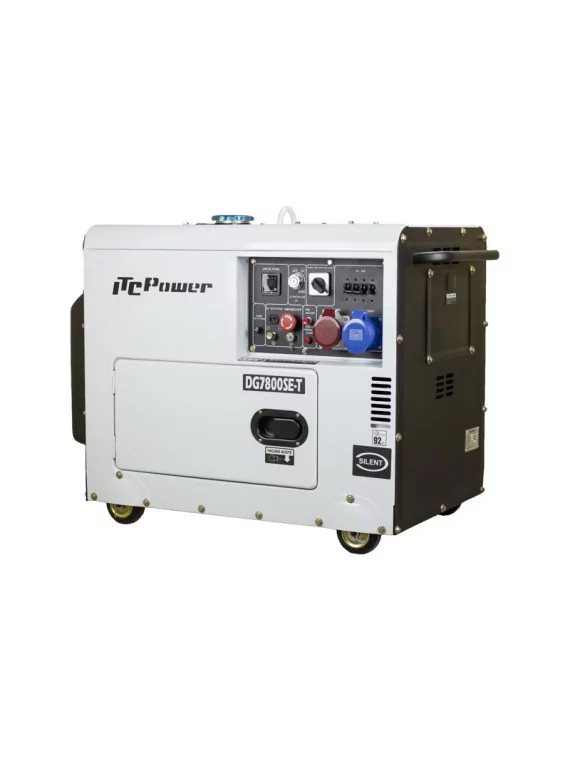

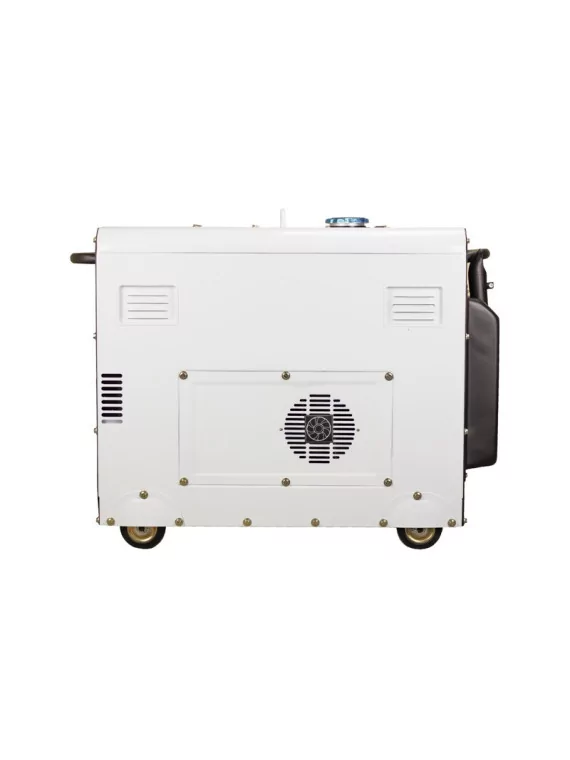

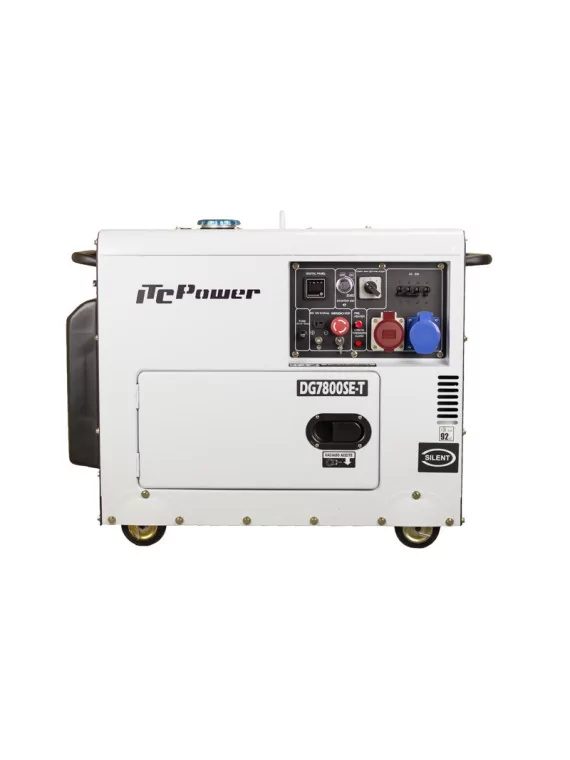

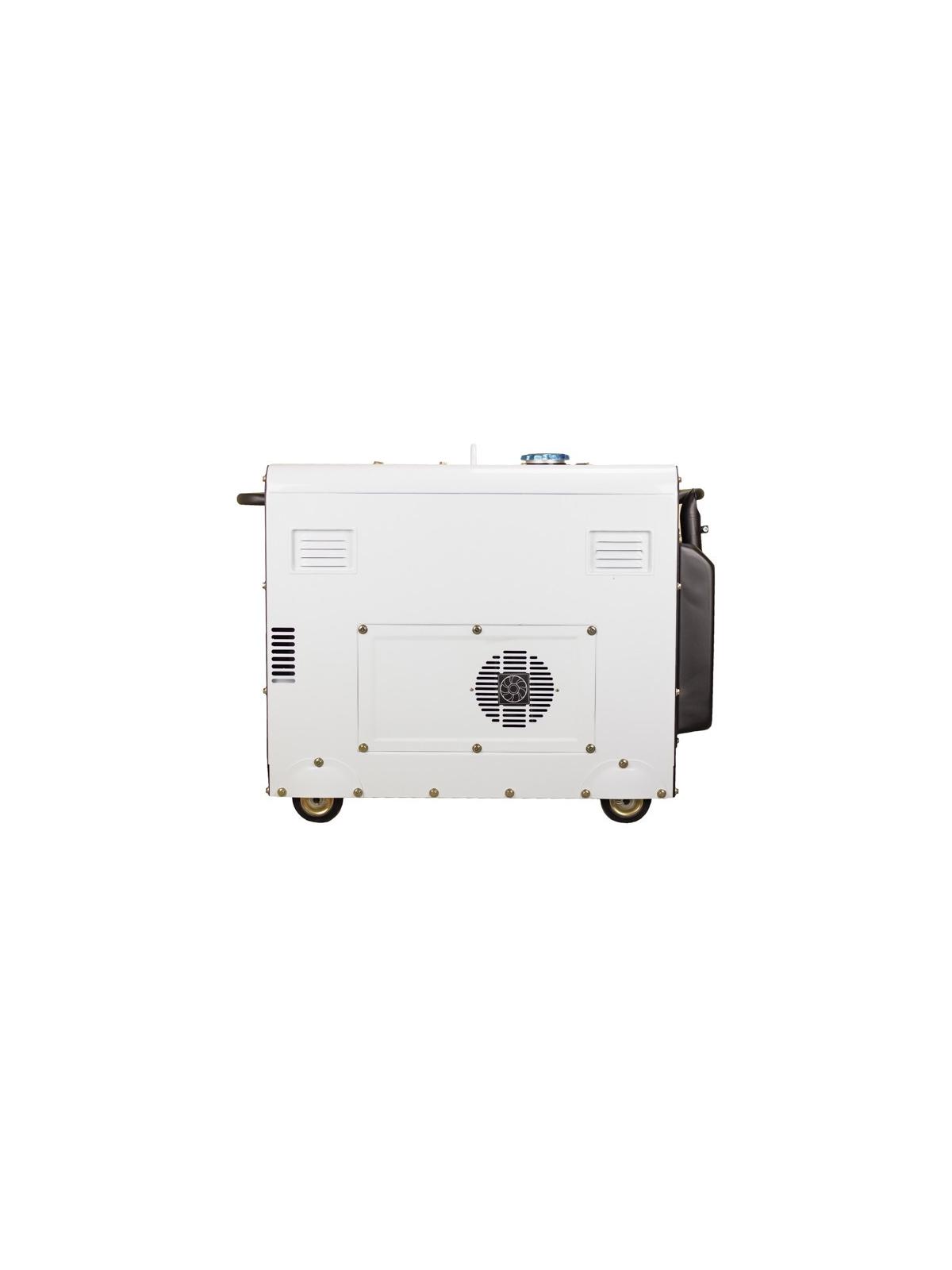

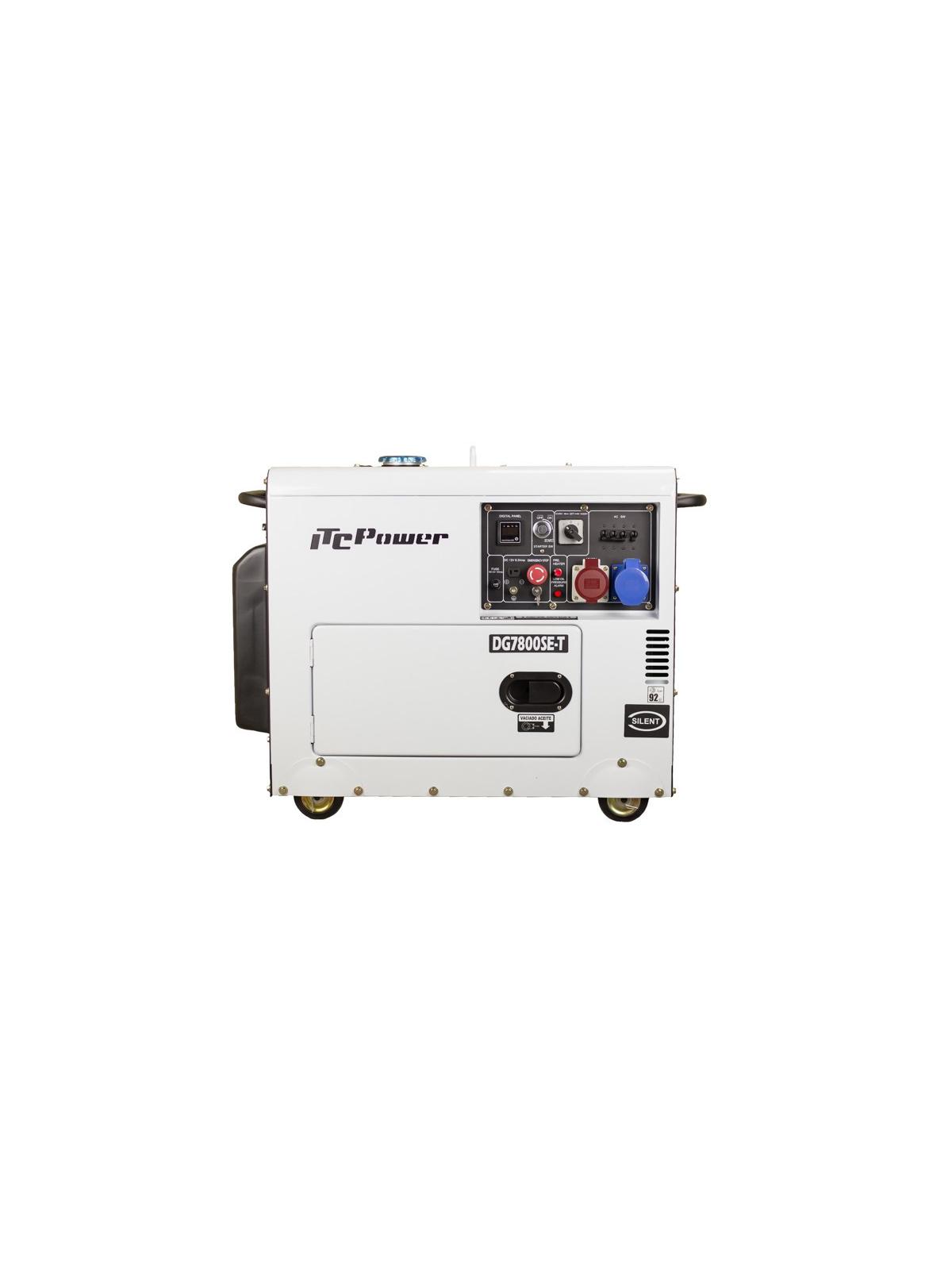

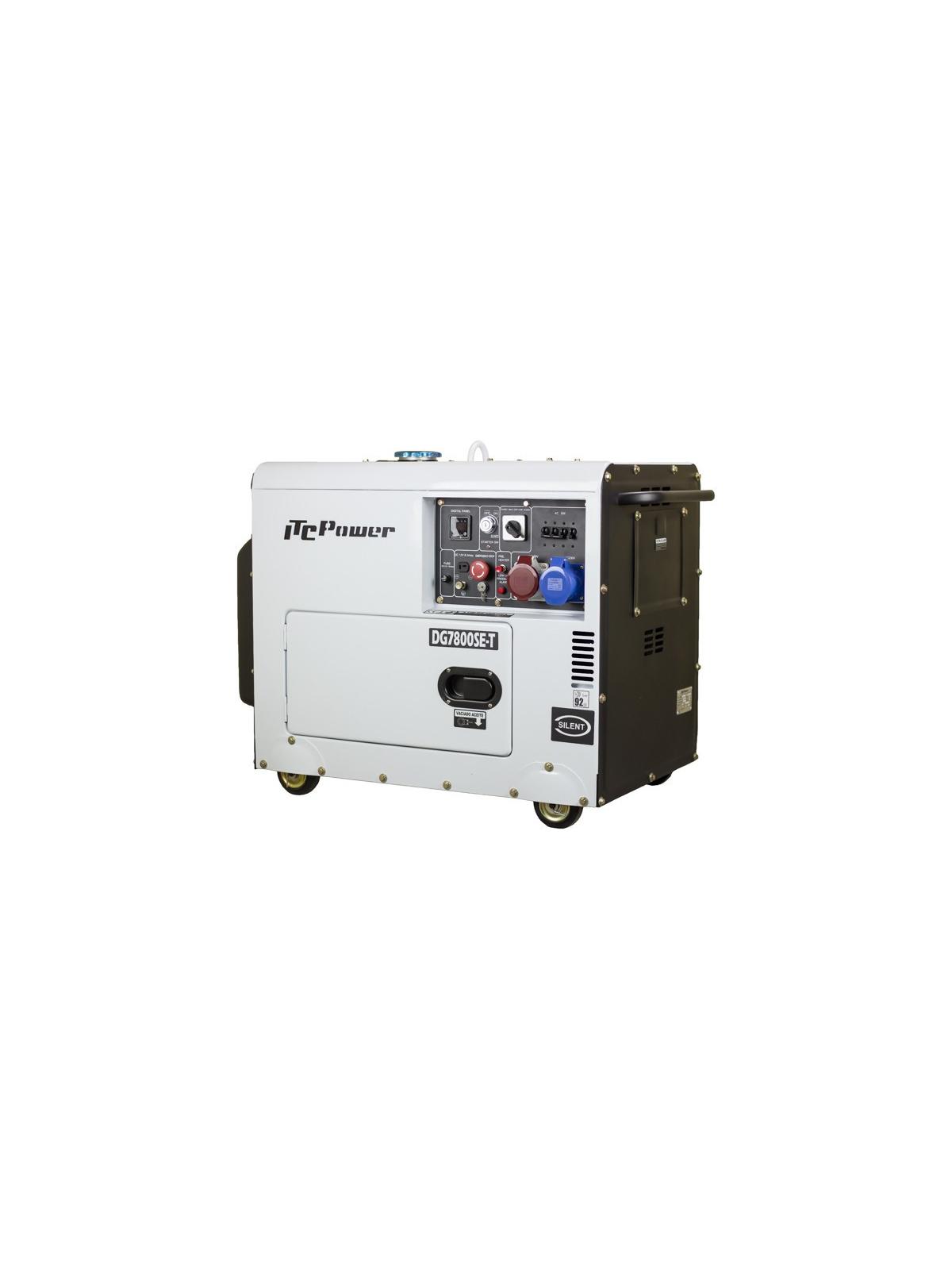

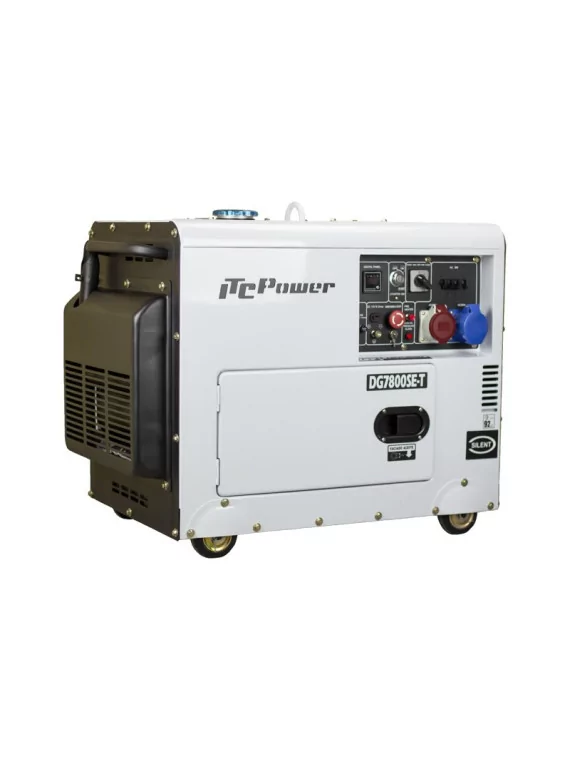

ITC Power 8kVa Full Power 230V/400V AVR DG7800SE-T Diesel Generator Set
€1,914.83
Tax included
DG-7800SE-T
0712971136830
The ITC Power DG7800SET (Full Power) diesel generator delivers up to 7.9 kVA (5.8 kW) of maximum power and 7.5 kVA (5.5 kW) of continuous power. Its innovative "Full Power" technology allows it to deliver 100% of its power at both 230 V and 400 V, adapting to all your single-phase or three-phase needs.
Equipped with a 4-stroke engine (≈ 498 cc, 12 hp) and a 100% copper alternator, it guarantees robust power production. Its AVR regulation system maintains a stable voltage to protect your electrical equipment, while its soundproof enclosure significantly reduces noise pollution (72-75 dB at 7m).
With a 14-litrefuel tank offering up to ≈ 12 to 13 hours of autonomy at moderate load, it is ideal for prolonged use — domestic backup, urban construction sites or installations requiring continuous and discreet power supply.
Practical and versatile: easy electric start, LED6 digital display (voltage, frequency, hour meter), low oil safety feature and overload protection. It is also compatible with an ATS box for automatic start-up in the event of a power cut.
Mounted on a compact chassis with multidirectional wheels, the DG7800SET combines power and mobility: a complete and secure solution for emergency power, professional workshops or demanding construction sites.
ITC POWER DG7800SET diesel generator set – 7.9 kVA (230 V / 400 V)
The ITC POWER DG7800SET diesel generator is the ultimate solution for those looking for power, versatility and discretion. Thanks to its Full Power technology, it delivers 100% of its power in both single-phase (230 V) and three-phase (400 V) modes. Its soundproof enclosure significantly reduces noise pollution, making it ideal for domestic backup, urban construction sites or outdoor events. Equipped with an AVR regulator and electric start, it provides stable and secure power for all your appliances.
Technical specifications
| Feature | |
|---|---|
| Operation | Thermal (diesel) - Soundproof |
| Voltage | 230 V and 400 V (full power) |
| Maximum power | 7.9 kVA (400 V) / 5.8 kW (230 V) |
| Nominal power | 7.5 kVA (400 V) / 5.5 kW (230 V) |
| Frequency | 50 Hz |
| Specific technology | Full Power (identical power 230V/400V) |
| Sockets | 1 x 400 V 16 A / 1 x 230 V 32 A / 1 x 12 V 8.3 A |
| Fuel | Diesel |
| Tank capacity | 14 L |
| Operating time | ≈ 12 hours at 50% load |
| Noise level | 72-75 dB(A) at 7 m (soundproofed) |
| Alternator / Voltage regulation | 100% copper + AVR (automatic regulation) |
| Start | Electric (battery included) |
| Engine | 4-stroke diesel, 498 cm³, 12 hp, 3000 rpm |
| Safety | Low oil, overload, LED6 (digital display) |
| ATS (automatic start) – compatible | Yes (integrated ATS socket) |
| Transport | Closed chassis on 4 wheels (including 2 swivel wheels) |
| Dimensions (L × W × H) | 92 × 52 × 76 cm |
| Weight | ~ 152 kg |
| Warranty | 2 years |
Key features
- Full Power technology: Allows you to use the maximum power of the unit in 230V or 400V, without any loss of performance.
- Silent and soundproof: Full enclosure for optimal noise comfort on inhabited construction sites or for home backup power.

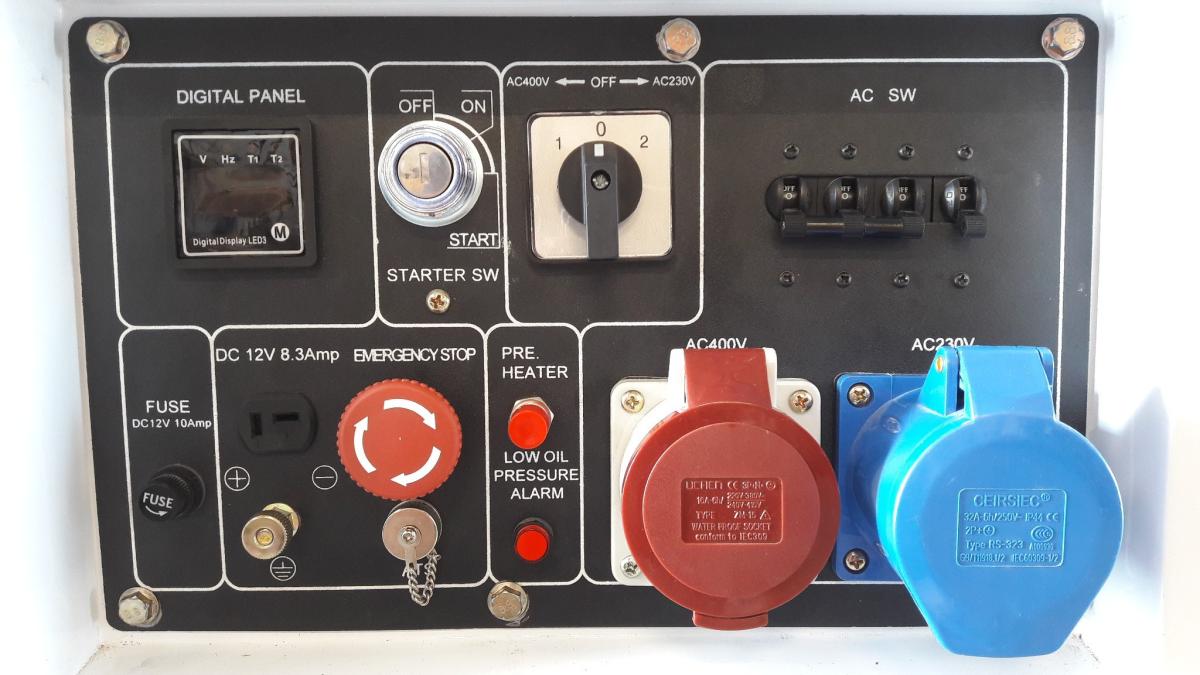

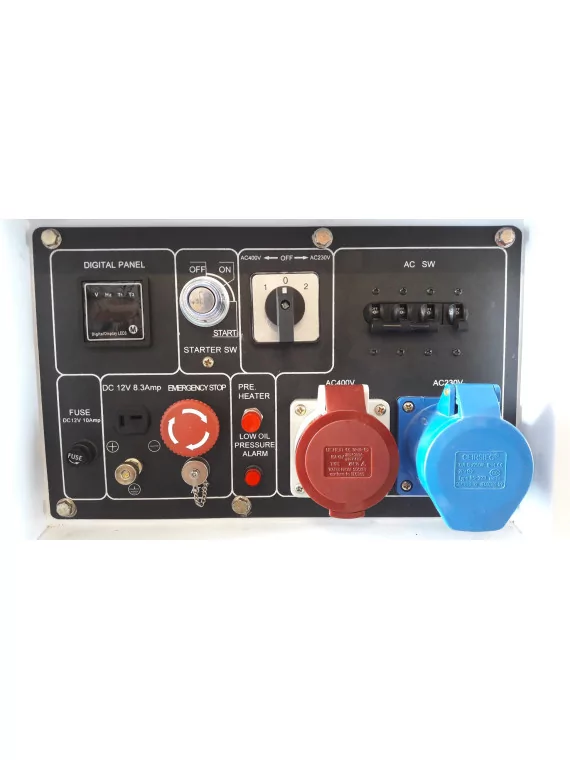

- LED6 digital display: Allows real-time monitoring of voltage, frequency and hour meter for maintenance purposes.
- Versatile connections: 32A sockets for high-power consumers and three-phase socket for industrial machinery.
- Ready for emergency use (ATS): Equipped with a socket for connecting an automatic transfer switch in the event of a power cut.
- Easy mobility: Integrated wheels for easy movement despite the weight of the soundproof enclosure.
Recommended applications
The DG7800SET is particularly suitable for:
- Automatic domestic emergency power supply: Ideal for maintaining the entire house (heating, refrigerators, pumps) with an ATS box.
- Professional construction sites and civil engineering: Power supply for three-phase machines or large single-phase tools.
- Events and leisure: High power with low noise levels.
- Farms: Perfect for lift pumps or installations requiring 400V.
FAQ – ITC POWER DG7800SET generator
Q1: What does "Full Power" mean?
A: Unlike conventional three-phase generators where the 230V output is limited to 1/3 of the power, Full Power allows you to have 100% of the power on both outputs (single and three-phase).
Q2: Can it be left outside during use?
A: Yes, its cover protects it from splashes, but it is advisable to shelter it to extend its service life.
Q3: Is automatic start-up included?
A: The unit is "ATS compatible" (socket provided), but the ATS box that provides automatic switching must be purchased separately.
Q4: What type of oil should be used for maintenance?
A: Standard 15W40 or 10W40 diesel oil (capacity ~1.65 L).
Q5: Does it come with a battery?
A: Yes, the battery for electric start is included and already connected.
DG-7800SE-T
Data sheet
- Phase
- Monophasé
Triphasé - Standard warranty (years)
- 2 ans
- Weight
- 167 kg
- How it works
- Thermal
- Voltage in Volts
- 230 V
400 V - Frequency
- 50 hz
- Prises
- 1 x 230V 32A / 1 x 400V 16A
- Carburant
- Diesel
- Fuel capacity in liters
- 14 l
- Oil capacity in liters
- 1,65 l
- Autonomy and heure
- 13h at 50% load
- Multifunction display
- Oui
- AVR
- Oui
- Noise level at 7 metres in dB
- 73 dB
- Silencer
- Oui
- Manual start
- Non
- Electric start
- Oui
- Remote control
- Non
- Engine
- D500
- Displacement in cc.
- 498
- Engine power in hp
- 12
- Motor speed
- 3000 rpm
- Oil shortage safety device
- Oui
- Thermal circuit breaker
- Oui
- Alternator
- Copper
- ATS
- Compatible
- Dimensions (L x l x H)
- 92 x 52 x 76 cm
Specific References
- UPC
- 712971136830
- EAN13
- 0712971136830
