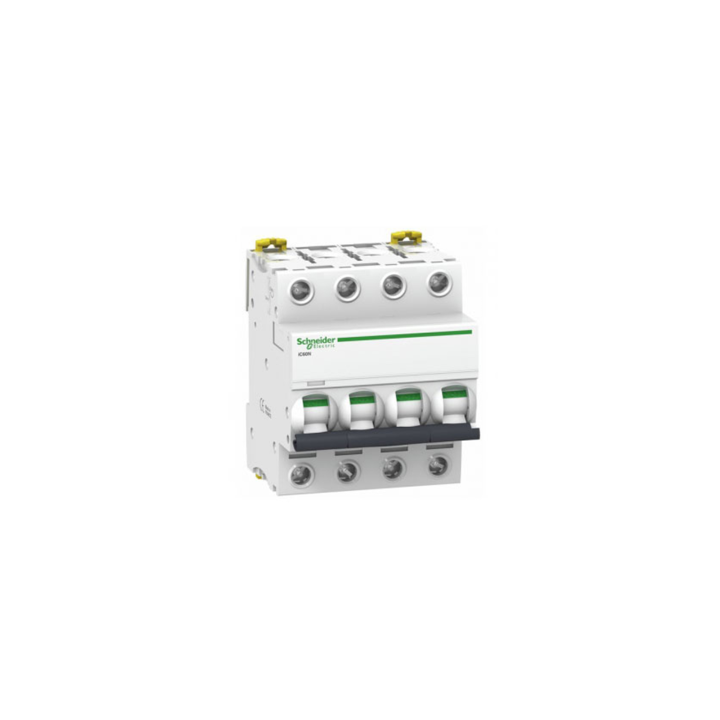

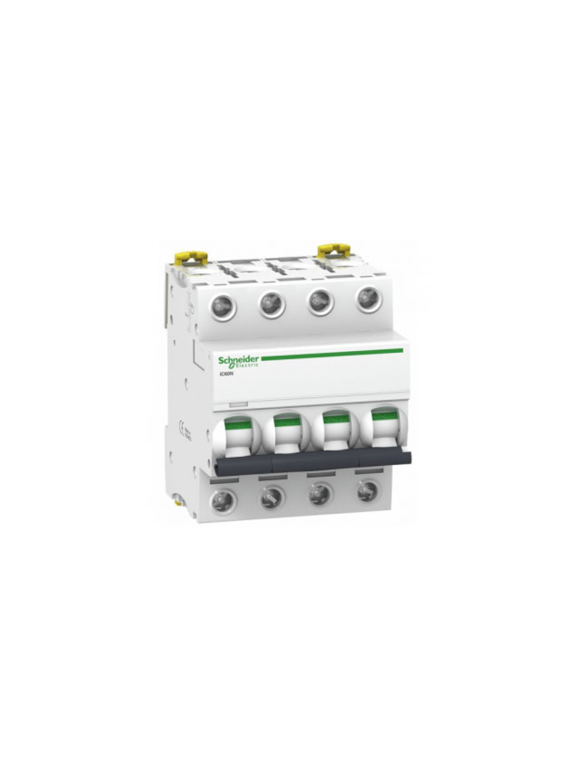

Schneider tetra 25A circuit breaker

Main

Range

Resi9

Product name

Resi9 MCB

Type of product or component

Miniature circuit-breaker

Device

application

Distribution

4P

Pole description

4

Number of protected poles

[In] rated operating current

25 A at 30 °C

C.

Mains type

a.

T

rip technology

Thermal-magnetic

C

Trip curve

capacity

Breaking

.

3000 A Icn at 400 V a.c

50/60 Hz in compliance with EN/IEC 60898-1

Standards

EN/IEC 60898-1

Product certifications

CEBEC

Supplementary

Mains frequency

50/60 Hz

[Ue] rated operating voltage

400 V AC 50/60 Hz

5

Magnetic tripping limit

...10 x In

3

Limiting class

according to EN/IEC 60898-1

[Ui] rated insulation voltage

440 V AC 50/60 Hz

4

[Uimp] rated impulse withstand voltage

kV

switch

Control type

Rocker

Signaling
local	Indication ON/OFF

Installation mode

Snap-on

Mounting bracket

DIN rail

b

Compatibility of distribution block and comb	Bottom:
i-connect

8

9 mm pitch

Height

85 mm

Width

72 mm

Depth

75 mm

Embedding depth

44 mm

0

Product weight

.43 kg

Color

White

life

Mechanical

xml-ph-0031@deepl.inta.

50/60 Hz conforming to EN/IEC 60898-1

Description of optional interlocks

Padlock in OFF position

Connection mode

Tunnel terminals (bottom) - <= 16 mm² - flexible Tunnel type terminals (bottom) - <= 25 mm² - rigid Tunnel type terminals (top) - <= 25 mm² - rigid Tunnel type terminals (top) - <= 16 mm² - flexible

Tightening 2

torque

N.m

Environment

Degree of protection IP

IP20 in accordance with IEC 60529 IP40 (modular housing) in accordance with IEC 60529

2.

Pollution level

in accordance with EN/IEC 60898-

1

Overvoltage category

III

-20

Operating temperature

to 60 °C

-40

Ambient temperature for storage

to 80 °C
