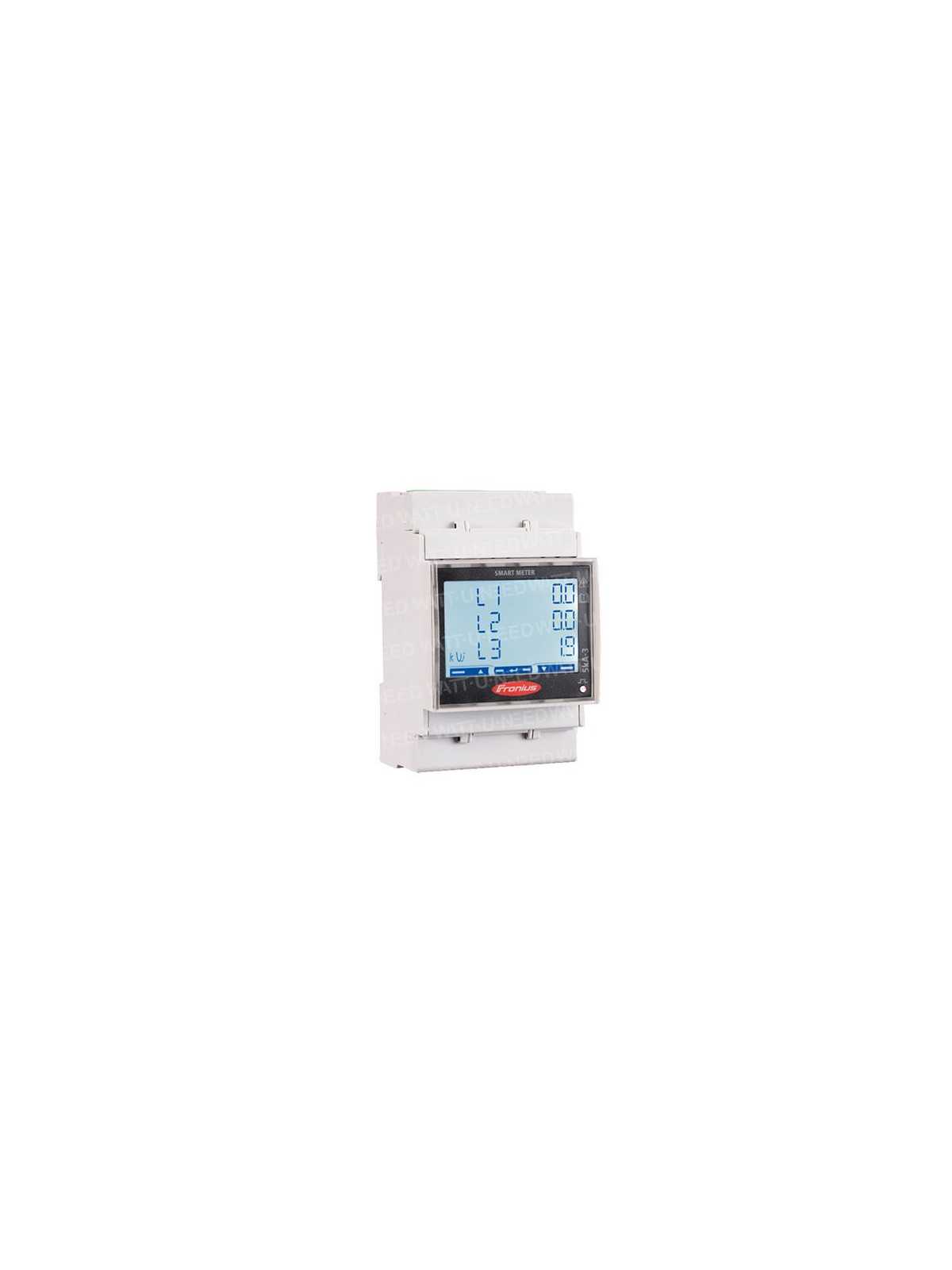

Fronius Smart TS 5KA-3 Smart Energy Counter

€349.43
Tax included
Meter-Fronius-Smart-TS-5KA-3
0712971135369

The Fronius Smart Meter is a two-way meter that optimizes self-consumption, tracing the focus charge curve and controlling different energy flows.

Fronius Smart TS 5KA-3...

€349.43

FRONIUS SMART METER TS 5KA-3



THE TWO-WAY METER FOR CAPTURING THE HOUSEHOLD'S ELECTRICITY CONSUMPTION.



The Fronius Smart Meter is a two-way meter that optimizes self-consumption, tracing the focus charge curve and controlling different energy flows. In case of injection limits, high measurement accuracy and rapid communication via the Modbus RTU interface allow for faster and more accurate dynamic injection regulation than with S0 counters.



Combined with Fronius Solar.web, the Fronius Smart Meter provides a clear representation of electricity consumption. With Fronius storage solutions, the Smart Meter allows you to manage different energy flows simultaneously, optimizing the entire energy management process. The Fronius Smart Meter can be used perfectly with the GEN24 Plus inverter, as well as with all Fronius inverters with a Fronius Datamanager 2.0.


Characteristics



Nominal tension 400 - 480V
Operating voltage range -20% +- 15%
Nominal frequency 50 to 60 Hz
Network frequency range 45 to 65 Hz
Maximum current 3 x 5000A
Section of the power line 1 - 4 mm2
Neutral line section 1 - 4 mm2
Communication line section 0.05 - 1.5 mm2
Electrical consumption < 1W
Start-up current 10 mA
Precision class 1
Precision of active energy Class 1 (EN 62053-21) / Class B (EN 50470-3)
Precision of reactive energy Class 2 (EN 62053-23)
Short-term over-intensity 30A / 500 ms
assembly Inside (DIN rail)
case 3 DIN 43880 modules
Degree of protection IP 51 (front frame), IP 20 (borne)
Room temperature range -25 to 65 degrees Celsius
Dimensions (l x h x P) 91.5 x 53.8 x 63 mm
weight 0.24 kg
Interface with the inverter Modbus RTU (RS485)
display 3 x 8 digital / touch screen
Meter-Fronius-Smart-TS-5KA-3

Data sheet

Width
53,8 mm
Height
91,5 mm
Thickness
63 mm
