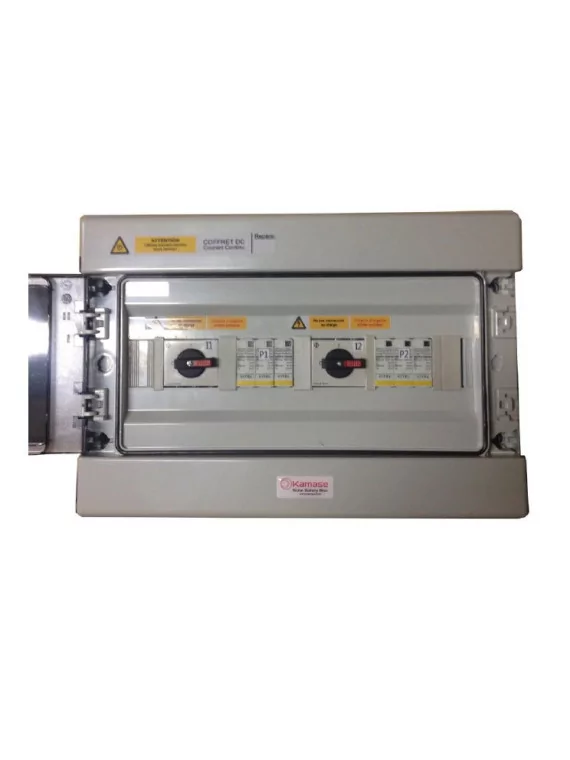

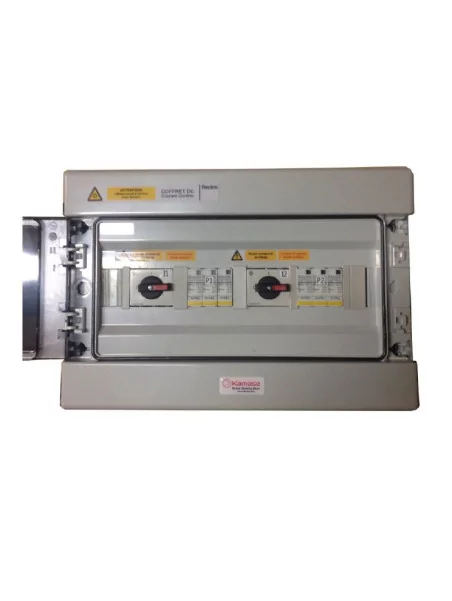

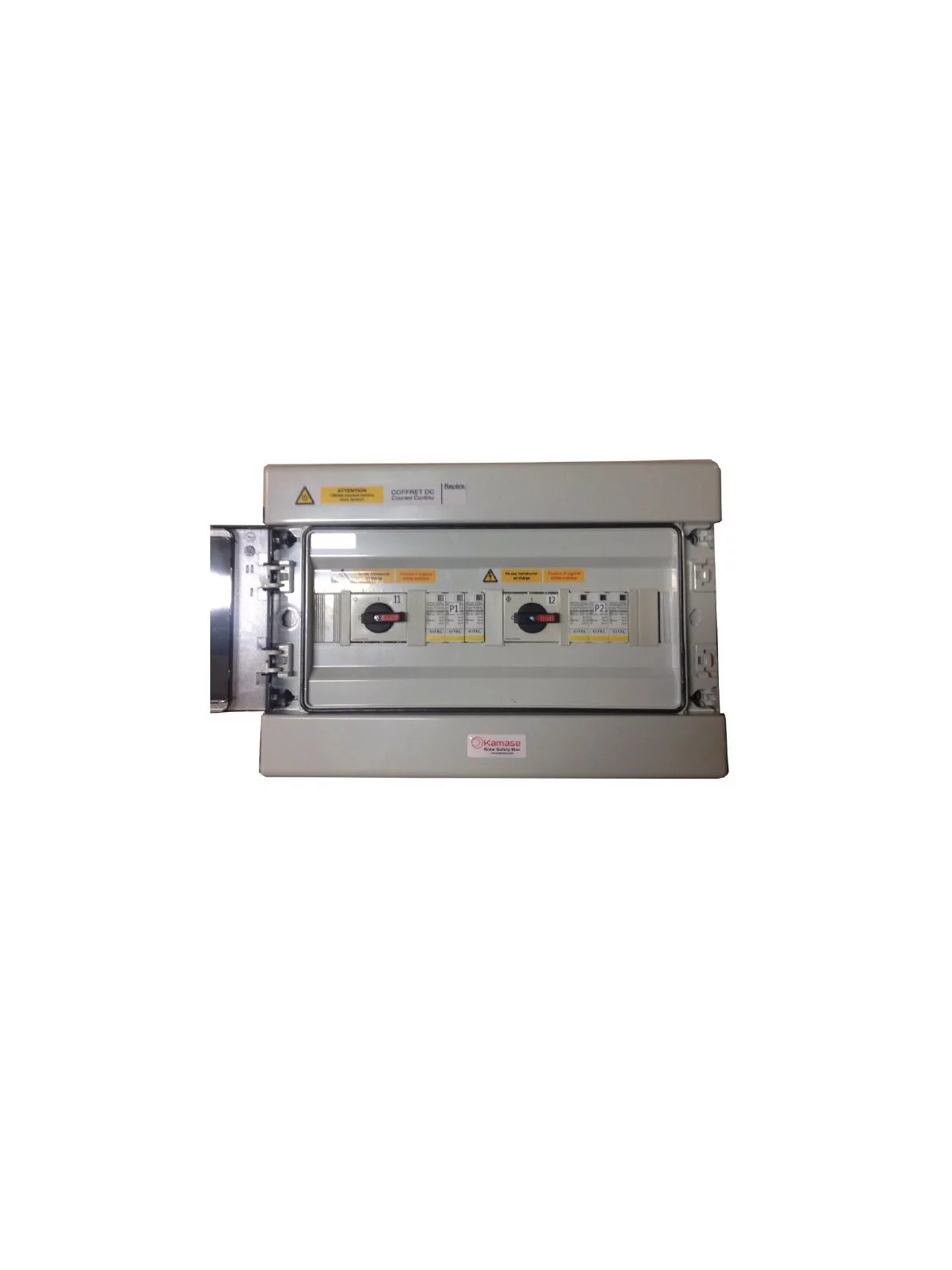

    Double DC Protection Box

    Double DC Cut-out and lightnin protection box

    €568.54
    Tax included
    09937
    0712971131170

    Double Cut-out and protection box specifically designed for residential photovoltaic systems.

    100% secure payments

    Double DC Cut-out and...

    €568.54

    Double DC Cut-out and lightnin protection box



    Double Cut-out and protection box specifically designed for residential photovoltaic systems with 2 inverters :

    • DC box equipped for 2 inverters with two switch disconnectors of the brand Kraus & Naimer. It is quick and convenient to install because it is equipped with Wago spring terminals that facilitate connection to the inverter. Two DC surge arrester protect the system.



    Double DC Cut-out and lightnin protection box



    Components

    Features

    Functions

    2 Switch Disconnectors3-pole 20A-1000V DCSectioning
    2 Surge Arresters

    Type 2 photovoltaic 1000V DC In 15kA Imax 40A

    Protects against surges

    4 pre-wired  MC4 sockets

    Allows the connection of 2 strings (1 string on each switch *)

    Connection strings DC

    Terminal block3 inputs 16mm² / 2 inputs 10 mm²Grounding



    Complies with C15-712-1

    Dimensions:


    18 modules L270xl418xP148mm


    Protection sign:


    IP 65 Outdoor Installation.



    Include


    • Spring terminals 6 to 10mm2 for easy connection.
    • Cable gland assembly.
    • Single-line diagram
    • Labeling according to UTE standards
    • Individual cardboard packaging



    09937
    437 Items

    Specific References

    UPC
    712971131170
    EAN13
    0712971131170
