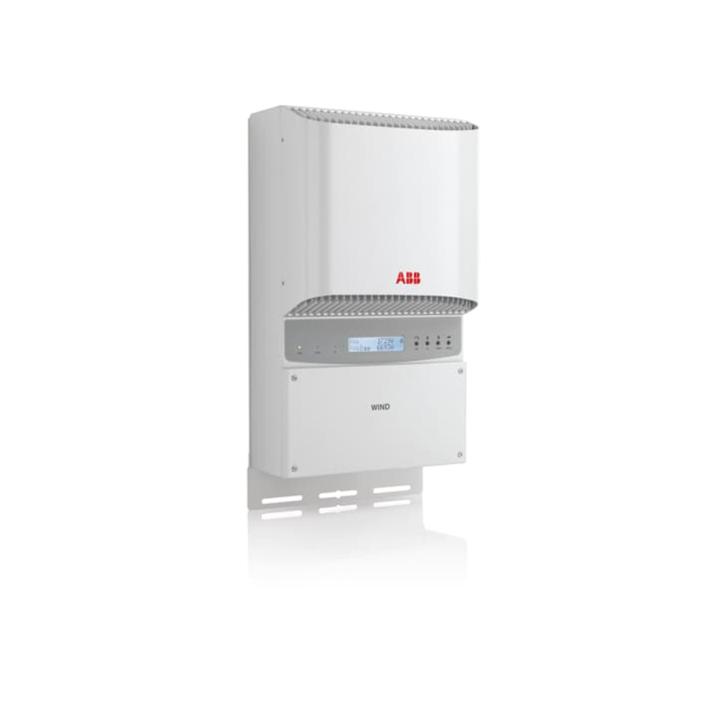

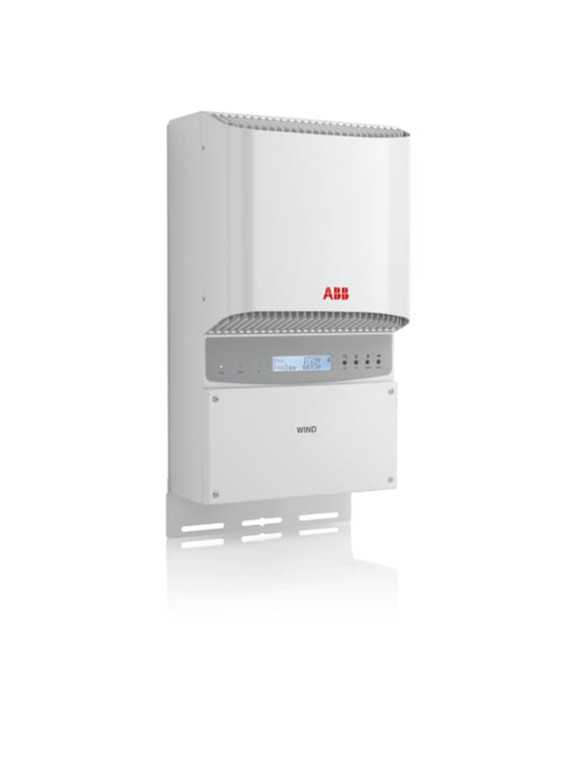

Inverter ABB PVI-4.2-TL-OUTD-S

The PVI-3.0/3.6/4.2-TL-W two-stage transformerless wind inverter offers a unique combination of high efficiency, installer-friendly design and a very wide input voltage range for high energy harvesting.

The fast and precise power curve tracking algorithm enables the power curve of each wind turbine to be adapted to the best possible conditions.

Efficiency up to 96.8%.

The PVI-3.0/3.6/4.2-TL-W offers 96.8% efficiency thanks to transformerless technology. It allows customization of the power curve with high granularity, up to 16 points, for high production efficiency. It is a sealed unit that withstands harsh environmental conditions.

The PVI-3.0/3.6/4.2-TL-W is compatible with the 7200-WIND-INTERFACE interface and the 15/25kW-WIND-INTERFACE interface.

Highlights

• Single-phase output
• Customizable power curve
• Wide input voltage range
• Transformerless technology
• Field-selectable grid standard parameters
• Flexible data monitoring options for visualizing inverter performance
