    EVlink Parking 2 Mural Charging Station for Wall Mounting
    EVlink Parking 2 Mural Charging Station for Wall Mounting
    EVlink Parking 2 Mural Charging Station for Wall Mounting

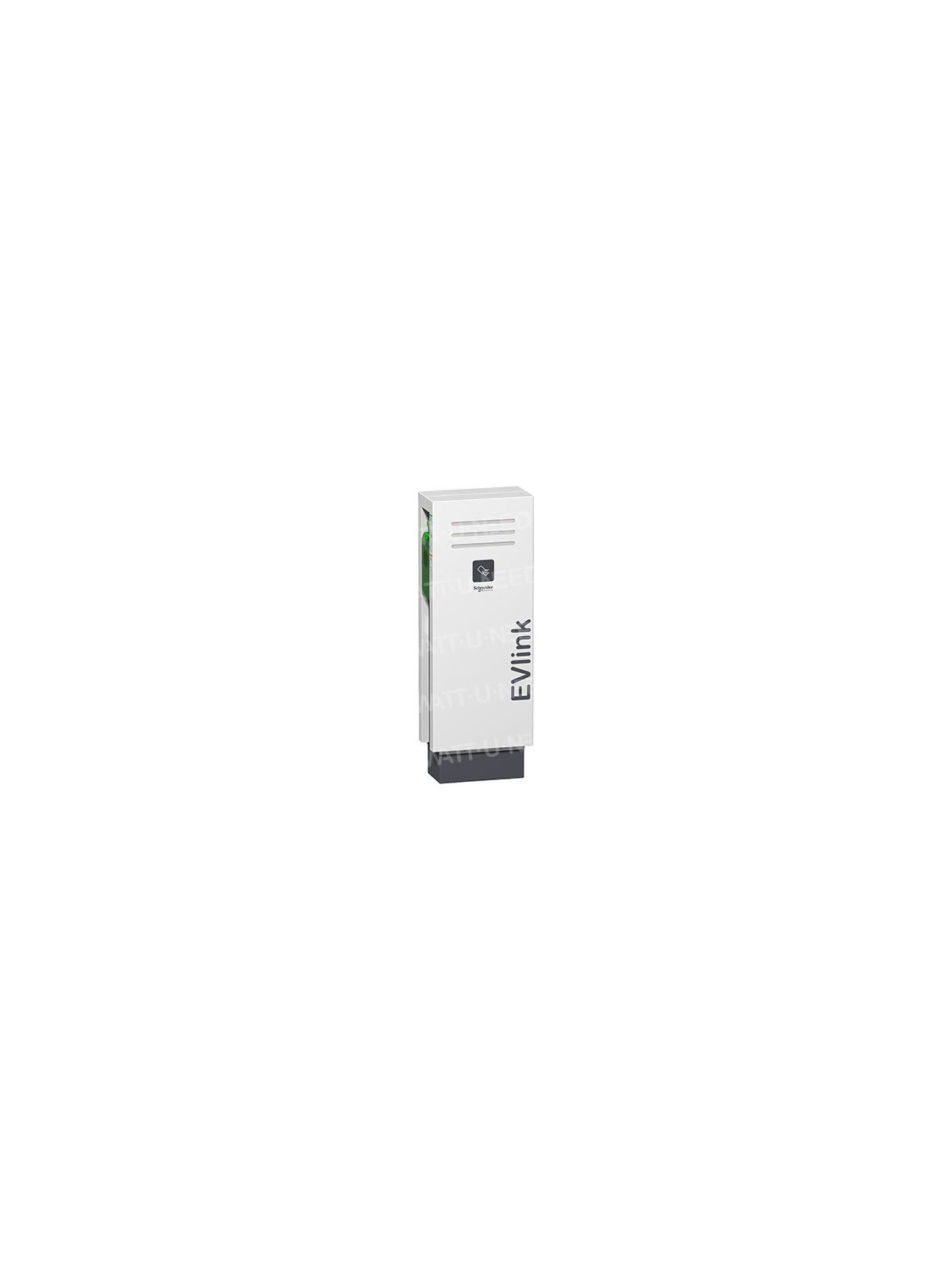

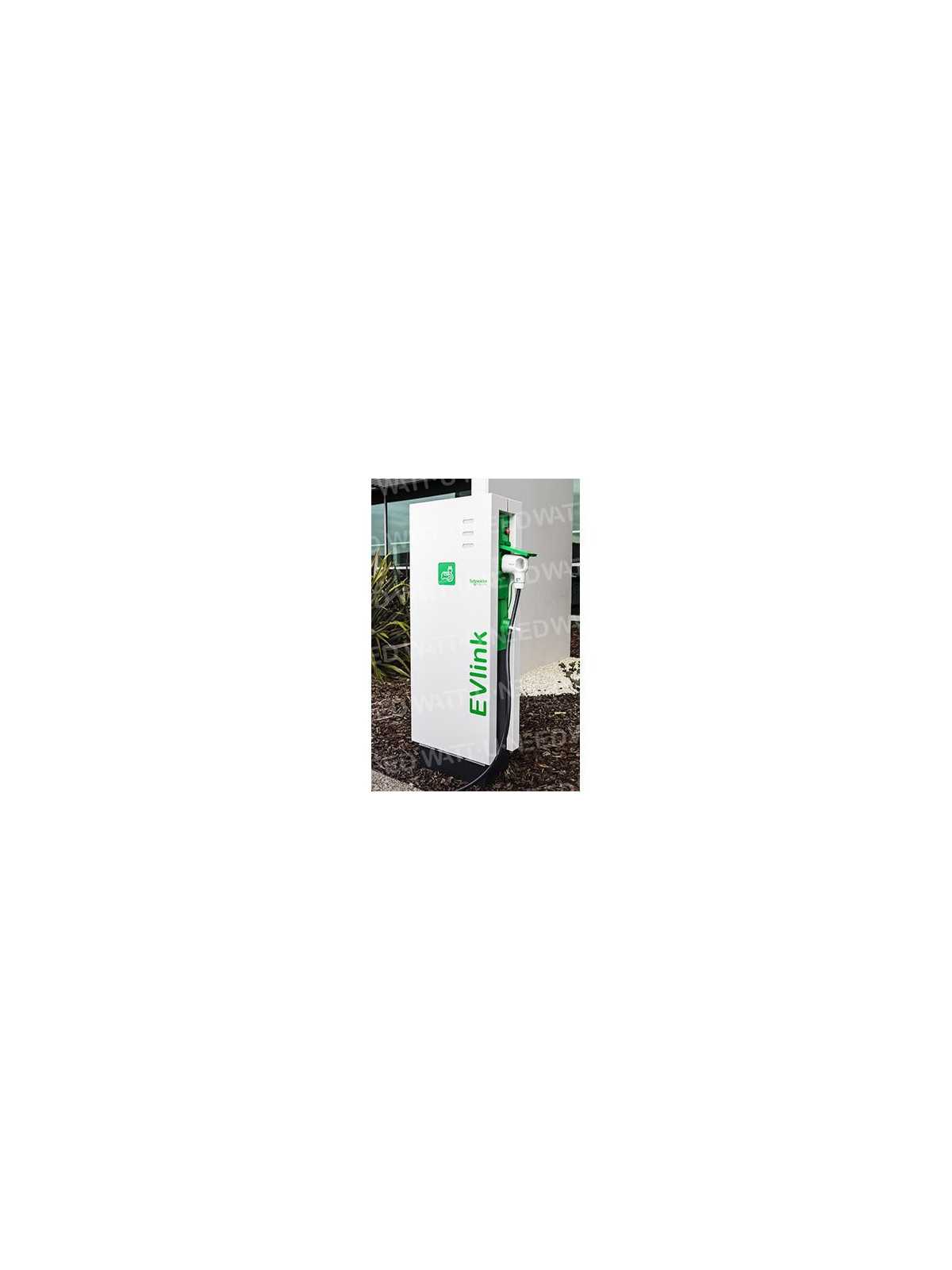

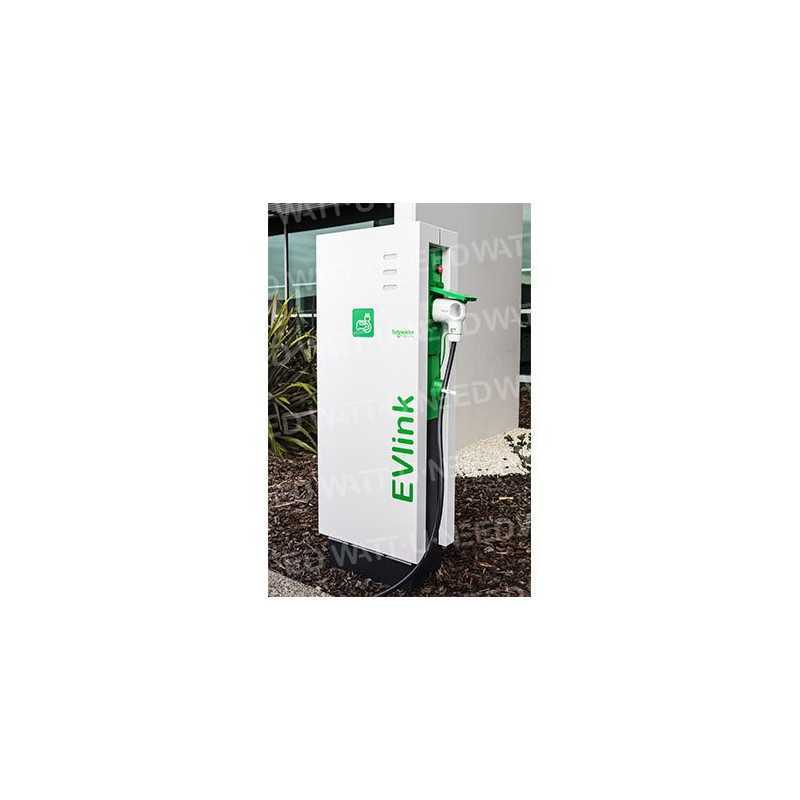

    EVlink Parking 2 Sol Charging Station for ground mounting

    $5,885.2
    EVF2S22P22
    0768563818042



    Choose your model in the options

    Charging station: EVlink Parking 2 Sol 2x22kW T2

    EVlink Parking 2 Sol...

    $5,885.2

    Charging stations for semi-public car parks and street charging



    Ideal for unsecured parking, EVlink Parking offers the energy measurement capabilities and connectivity you need to authenticate users, generate reports, allocate costs to individual users, and perform remote maintenance.
    Everything you need to make EV load easier than ever!

    A complete range to cover the entire market of secure car parks: car parking for fleet of vehicles, car parking for private companies, car parking in shopping malls, car parking in residential environment.
    This offer is dedicated to charge mode 3 (IEC 61851)


    Parking EVlink consists of:


    - Offer with wall attachment
    You have the option to give users free access to the terminal or the opposite to regulate access to the load with RFID control
    You can install an EVSE on a standalone configuration, or you can set up an infrastructure with different coordinated charging terminals. Our energy management and supervision solutions (EVlink management services) have been developed to help you manage a station with multiple terminals and/or multiple stations


    Technical featuresTechnical features



    • Power: 7kW or 22KW
    • Number of outlets: 1 or 2 plugs per EVSE
    • Type of power outlet: Type 2 or Type 3
    • Degree of protection: IP54
    • External mechanical impact resistance: IK10
    • Cable management; cables enter the lower part
    • Color: white caps, green closure, black base
    • Flood-resistant (height relative to soil): 50 cm
    • Certifications: LCIE Certificate, CB Certification, CE Compliance Statement

    Benefits


    Your EVSE for your secure parking!
    You can choose to set up your solution with:

    2 power supplies available
    2 types of power outlets
    Identification or not with RFID control
    Weather-resistant
    Solidity
    Energy management and supervision
    Accessories: cable carrier, cable hood


    Solutions


    All car parks with secure systems!

    Car car parks for fleets of vehicles,
    Car car parks for private companies,
    Car parks for shopping malls,
    Shared car parks in residential areas, etc.




    Characteristics



    ModelEVF2S22P22EVF2S22P22REVF2S22P2FEVF2S22P2FR
    RangeEvlink
    Product nameParking Evlink
    Product or component typeCharging station
    Short device nameEVF2
    Description of the poles3P - N for power circuit
    1P - N for remote control
    How to installOn the ground
    Type of offerStandard
    Nominal power voltage230 V c.a. 50/60 Hz remote control
    380...415 V c.a. 50/60 Hz power circuit
    Earth-linking schemeTn
    Tt
    IT
    Number of takes2
    Type of power outletright: T2 / left silver-plated contacts: T2 / silver-plated contacts
    Maximum power current32A for T232 A for T2
    10 A for TF
    Nominal output power22kW for T222 kW for T2
    2.3 kW for TF
    Complementary
    Type of command2 RED push button, function: stop 2 green light push buttons, function: start/unlock the hatch
    Local signageIn charge: 2 LEDs (green) (flash) on the side
    Available: 2 LEDs (green) on Front
    Booked: 2 LEDs (orange) on Front Front
    Non-operational: 2 LEDs (RED) on Front
    Communication port protocolOCPP 1.6
    Configuration/ArchitectureAutonomous
    Cluster architecture
    How it works and how it worksBreaker status
    Diagnostic Capabilities Delayed Charge
    Load management
    Setting up user privileges
    Detailed billing records
    Detailed billing records
    Diagnostic capabilities
    Load management
    Setting up user privileges
    Breaker status
    Deferred charge
    Diagnostic capabilities
    Breaker status
    Setting up user privileges
    Load management
    Detailed billing records
    Deferred charge
    Web serverIncorporated
    Service EthernetSetting up via web server
    StandardsIEC 61851-22
    IEC 61851-1
    Product certificationsCb
    This
    Ready for ZE
    Pret for EV
    Pret for EV
    This
    Cb
    Ready for ZE
    Height1146mm
    Width413mm
    Depth220mm
    Product weight50 kg
    ColorFront: White (RAL 9003)
    Side: grey (RAL 7016)
    Environment
    Degree of IP protectionIP54 charge disabled compliant with IEC 61851-1
    IP54 on charge compliant with IEC 61851-1
    Degree of IK protectionIK10 IEC-compliant charging station 61851-22
    IK10 IEC-compliant electrical outlet 61851-22
    Operating temperature -30... 50OC compliant with IEC 61851-22
    Room soaking for storage-40... 80 degrees Celsius
    Operating altitude0...2000 m compliant with IEC 61851-22
    Relative humidity0... 95 %
    Environmental features
    Environmental status of the offerGreen Premium product
    Without SVHC REAChYes
    RoHS EU DirectiveCompliant
    RoHS EU Statement
    Mercury-freeYes
    Information on RoHS exemptionsYes
    RoHS China RegulationRoHS Statement for China
    Produced outside the RoHS perimeter for China. Statement on substances for your
    Information.
