    SOC Monitor PowerTech

    €421.82

    SOC Monitor PowerTech

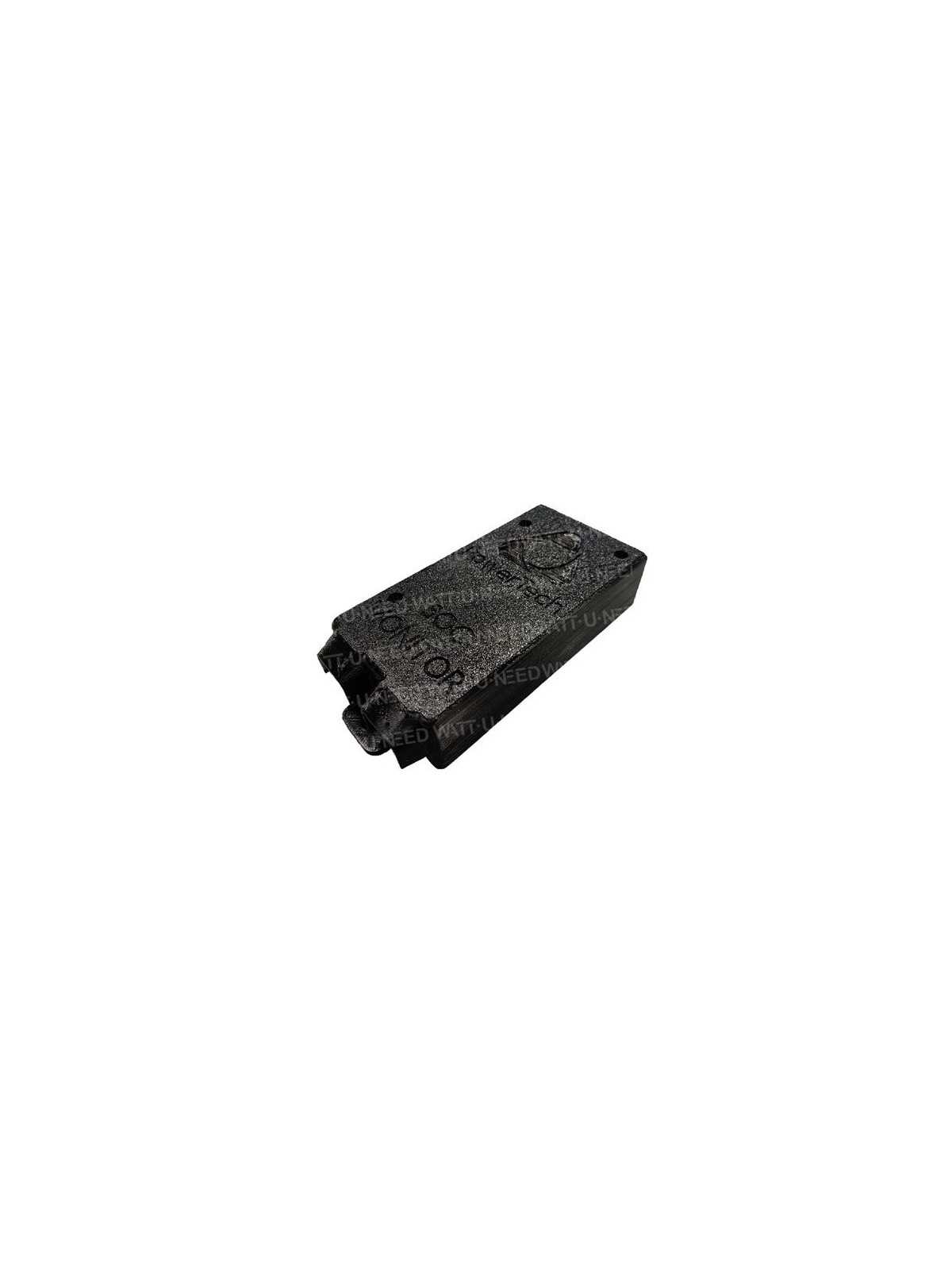

    The SOC Monitor is a monitoring device for lithium batteries. It incorporates a precision shunt (0.2 milliohm) that provides better accuracy than Hall-effect sensors. This device can be used to measure voltage and current with great accuracy and estimate the SOC (State of charge) of a battery with great accuracy. battery with great precision.


    All information (tension, current, SOC) is sent to an external controller via several communication protocols. external controller. Settings such as the rated capacity of the battery can be configured by sending a simple command to the device.



    Features

    Features: SOC Monitor PowerTech

    Measuring the current


    The device incorporates a high-precision shunt resistance that allows you to measure both small currents and larger ones.
    bigger. For greater accuracy, the software calibrates the current on small and large currents.
    Current.
    If the current to be measured is greater than 100A, it is possible to connect an external shunt resistance through the connector.
    through the connector.



    Measuring battery voltage


    The device measures the battery voltage every second. Good precision is achieved by calibrating the two voltage measurements, large and small.



    Measuring temperature


    The monitor can measure an external temperature. In this case, a "thermistance" must be plugged into the "THERMISTOR" connector.





    communication


    Several means of communication are integrated into the SOC Monitor:

    Insulated CAN Bus (2.5kV)
    I2C
    LED display (SOC information only)
    PWM (SOC information only)



    Port series:

    RS232 (switch to position 232/485).
    RS485 (MODBUS switch on position 232/485).
    Bluetooth (switch on the BLE position).
    TTL (switch on TTL position).



    size



    SOC size



    Characteristics



    Battery type
    12V - 24V - 36V - 48V
    consumption5.6mA - 17mA
    Current measurement range
    0 - 100A with internal Shunt
    >100A with external Shunt
    Tension measurement range5.5V - 60V
    Tension resolution20mV
    Power resolution
    10mA (0-10A) and 100mA (10A-100A)
    Time information range
    0 minute - 255 hours 59 minutes
    Message delivery period
    1s: TTL / RS232 /Bluetooth /CAN_ISO
    (The settings can be changed)
    On request: MODBUS
    Time between messages
    10ms: TTL / RS232 / Bluetooth
    1s: CAN_ISO (Parameter can be modified)
    Timer calculates the capacity used
    Every 100 ms
    Power connector
    2 M8 connectors welded to pcB
    Power connector
    1 connector with 2 contacts "ALIM
    Port RS232
    1 "RS232" 3-contact connector.
    Port RS485
    1 "RS485" 3-contact connector.
    Isolated PORT CAN (2.5kV)
    1 connector with 3 "CAN" contacts
    Port TTL
    1 connector with 3 "TTL" contacts
    Port I2C
    1 connector with 2 "I2C" contacts.
    Thermistance entrance
    1 connector with 2 "THERMISTOR" contacts.
    Input external shunt resistance
    1 connector with 2 "SHUNT EXT" contacts.
    bluetooth
    Low-energy V4.2
    dimension56 × 113 mm













    SOC-Powertech

    Data sheet

    Type of electrical equipment
    Porte-fusible DC

    Specific References

    UPC
    768563818790
    EAN13
    0768563818790
    New
