    $2,118.3
    Newmeil-X-2000
    0768563821431

    Wind turbine 2000 W 24V or 48V; on 48V DC network



    • Supplied with its charging regulator
    • Silent and vibration-free
    • Lightweight and compact
    • Perfect for small appliances

    Our products are designed to achieve high quality standards while being affordable for everyone.

    Sorry, there are no more items in stock.

    Wind turbine Newmeil x-2000

    $2,118.3

    X-2000: Power your home, boat or appliances









    Our products are designed to achieve high quality standards while being affordable for everyone.

    This wind turbine was created to provide energy to each facility.

    Thanks to innovative technologies, this model is ideal for housing, boating or any appliance that requires backup power. The X2000 wind turbine is the perfect compromise to start your own electricity production.

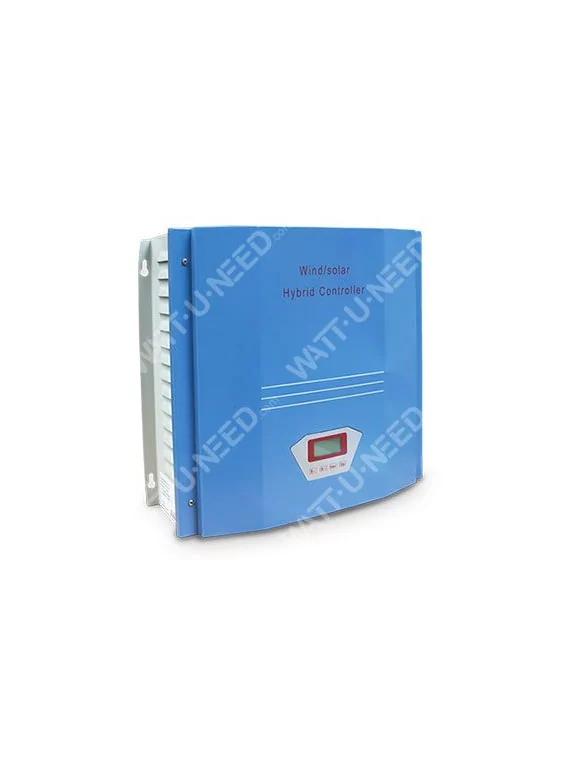

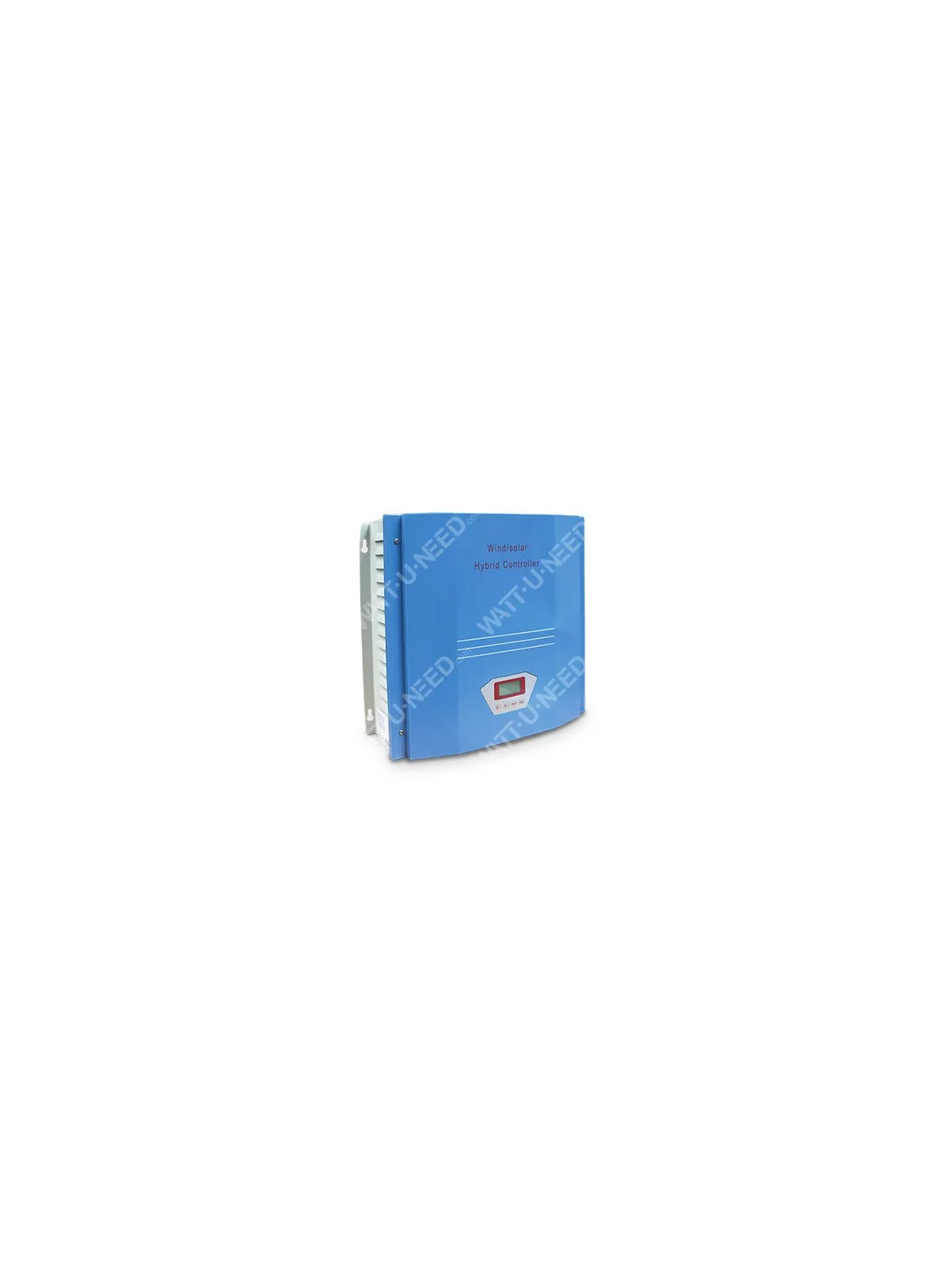

    The Newmeil X-2000 wind turbine comes with its charging regulator.




    Wind turbine Newmeil X-2000



    Characteristics



    • Low noise and vibration
    • Rated power 1.5 kW
    • Light
    • Carbon fiber composite pales
    • Aerodynamic design of the body
    • Anti-rust, anti-corrosion and long-lived
    • Easy to install and maintenance-free
    • 2-year warranty


    Courbe: Puissance de sortie


     Courbe: Production annuelle d'énergie


     Characteristics



    Wind turbine
    Model2000
    Type of wind turbineHorizontal axis, upstream of the wind
    Rotor diameter1900 mm
    Net weight24.5 kg
    Tower Diameter48-60 mm
    Number of blades5
    Blade materialsCarbon-fibre-reinforced plastic
    Blade mass660g/pcs
    Body materialAluminium sunk under pressure
    Construction of the bodyworkInside screw connection
    Product finishThermo powder coating-based clamp
    Connection of the towerbridle fitting or bolt bridle
    Start wind speed1.8m/s
    Reduced wind speed2.5m/s
    Survival wind speed50m/s
    Nominal power1.5 kW (13m/s)
    Nominal rotor speed750 rpm
    Maximum power2000W (20m/s)
    Working temperature range-40C to 60C
    Product life (years)15
    The level of acoustic pressureLAeq 33dB - 5m/s - 5m/s - 5m behind the rotor (air density of 1.225 kg/m3)
    GeneratorThree-phase, neodym-iron-bore-bore-type three-phase power generator
    Braking systemOff-grid 24V or 48V DC; on 48V DC network
    Lace controlElectromagnetic and aerodynamic aerodynamic braking system at higher speed than blade speed
    Management control360 degrees free
    Management controlRear tracing
    Control systemBraking mode
    Recommended systemNetwork control: lead-acid battery with deep discharge safety
    Note: At the start wind speed, it generates electricity, but it takes a higher wind speed to charge the battery or transfer it to the grid.
    Newmeil-X-2000

    Data sheet

    Wind turbine
    With
    Voltage
    48V/96V/108V
    Power
    2000 VA

    Specific References

    New

    Download

    Manual Reg WindNewmeil - FR

    Download (3.37MB)
