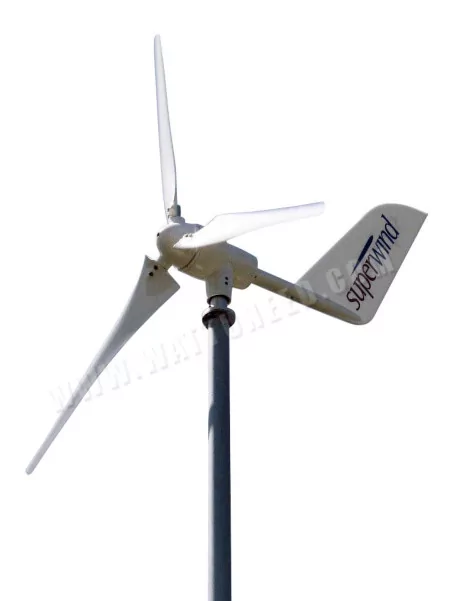

Superwind 1250W power supply 48V wind turbine

Superwind

10 259,58 € tax incl.

The wind turbine Superwind 1250W  48V power network has a high return, low noise level, sustainability in the real world.



Provided with a network for Superwind 1250 ups 230VAC/50 Hz

No maintenance, compact dimensions and maximum security.

More details

More info

Wind turbine 1250W 48V network with inverter made in Germany

Wind turbine 1250W 48V













1250W SUPERWIND wind



Superwind 1250 is an advanced turbine of the most high quality which will produce the energy way reliable for many years. Reliable operation depends on not only the quality of the product, but also toa montage and i anstallation says including a correct wiring. (also available in 24V - 48V with regulator- see the version 24V - see the 48V version);

The Superwind has been designed to achieve a optimal output power
for a wide range of wind speeds, while providing a maximum security in a storm.



 Provided with a network for Superwind 1250 ups 230VAC/50 Hz










Wind turbine 1250W 48VApplication domain



The electric energy produced by the Superwind 1250 can be used to charge batteries and/or power directly from 24 VDC devices. Current devices alternative are powered by an inverter in option. There are a wide range of 24 VDC or 48 VDC high-quality equipment.

Examples: lamps to saving energy, refrigerators, freezers, pumps water, fans, electronics, televisions, radios and navigation, etc.



The Superwind 1250 is also fully compatible with facilities using the solar panels. In many places, wind energy and solar energy complement. A dual system Solar charge / wind equipped Superwind 1250 allows you tooptimize the sources of energy available, while requiring a minimum battery capacity.






Batteries



The most common application of the Superwind is the the battery charge. For adequate protection of the battery, a suitable charge controller is required. The charge controller allows the Superwind to operate automatically and completely unattended. With a suitable charge controller, the batteries are charged in a way optimal and protected against overload and damage, which increases also their life


Technical characteristics



Rated power

1250 W
Rated wind speed11.5 meters per second (22.35 knots)
Reduction of the wind speed 3.5 meters per second (6.8 knots)
The rotor diameter 2.40 m
Number of blades 3
Material of the blade Reinforced glass and carbon fibre plastics
Rotor speed 300 - 600 rpm

Generator

Permanent, magnet three-phase neodymium magnet
Nominal voltage24 VDC / 48 VDC

Weight of the device

45 kg
Thrust of the rotor (operation)190 N
Thrust of the rotor (extreme wind speed)1700 N
1 brake Short circuit in the generator
Brake 2 Disc brake

Dimensions



Dimensions: Wind turbine 1250W 48V


Superwind 1250: Powercurve
