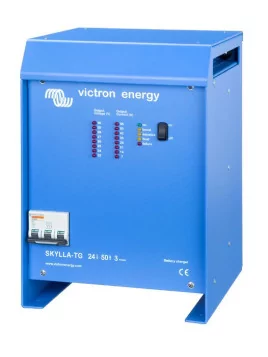

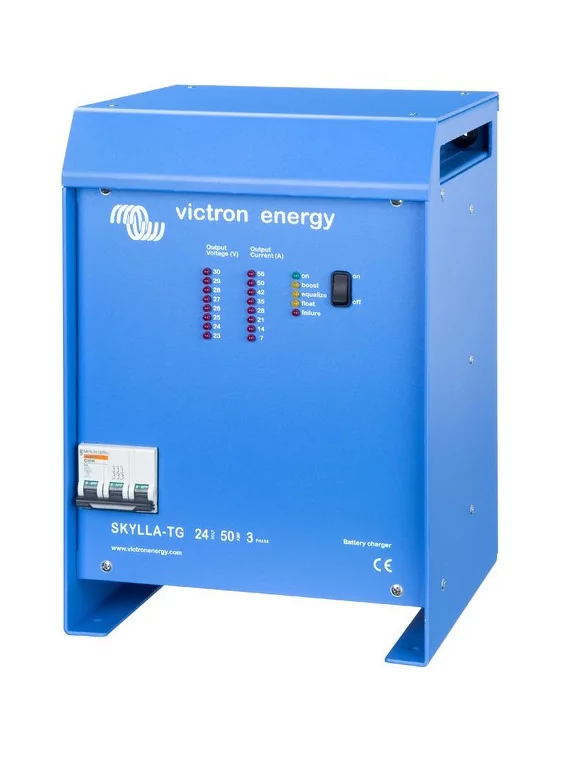

    Battery charger Victron Skylla-TG 24V / 50A

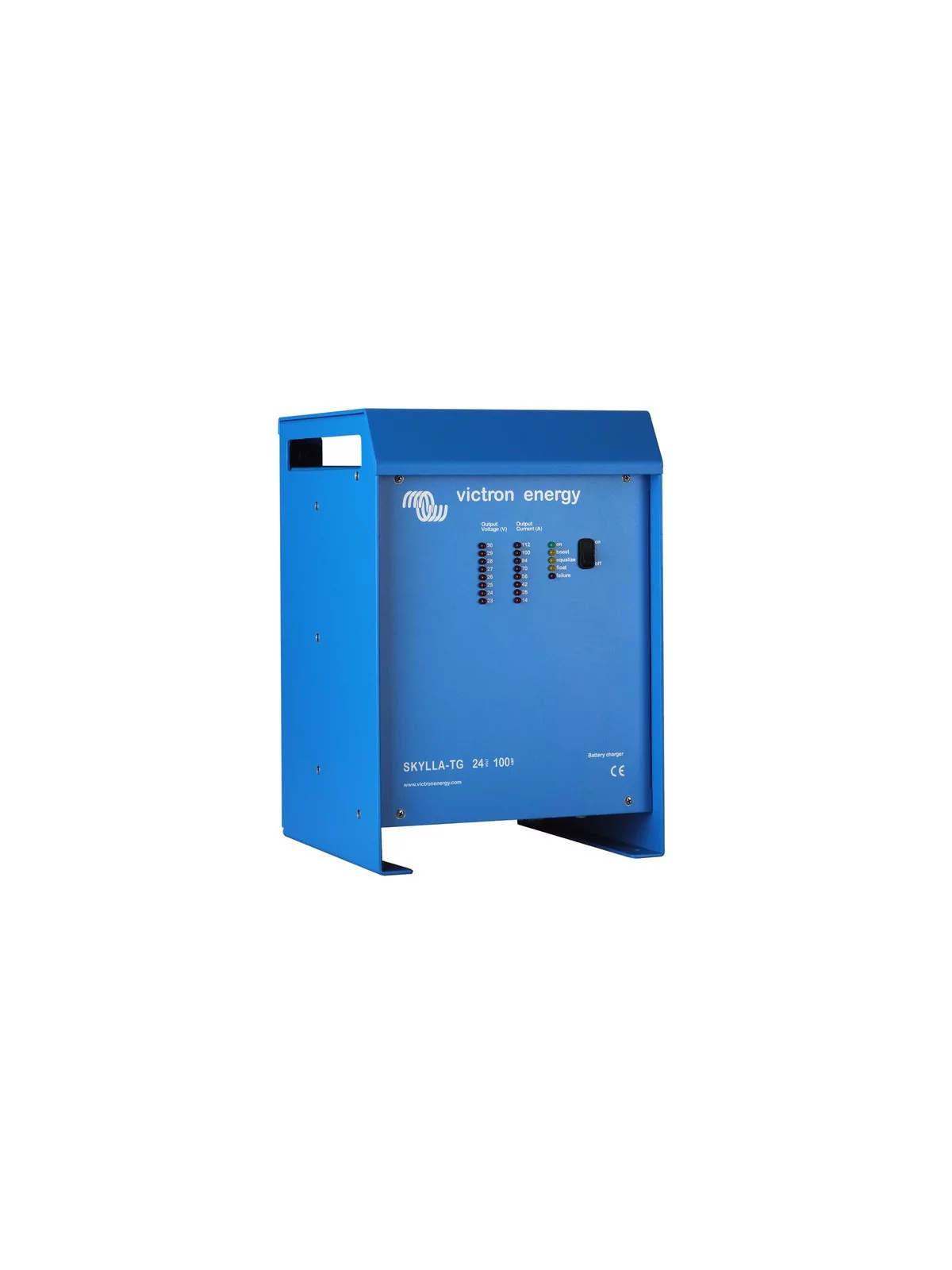

    Battery charger Victron Skylla-TG 24V / 100A

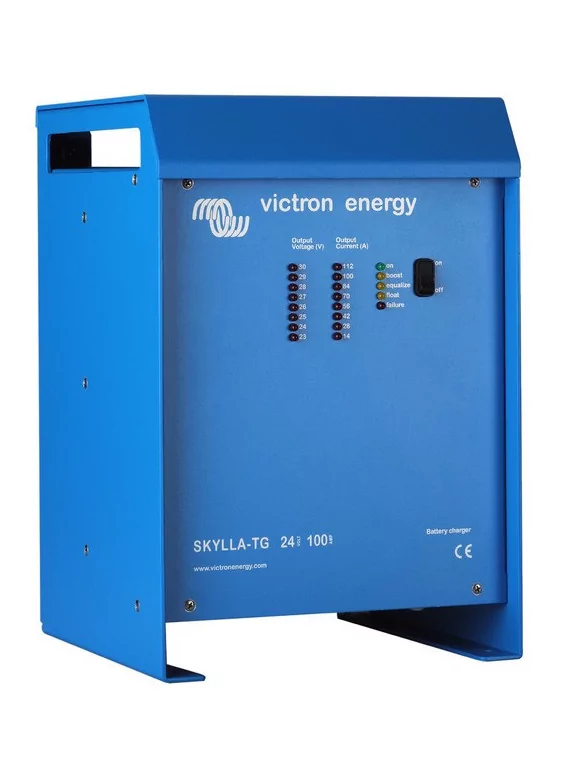

    Battery charger Victron Skylla-TG 24V / 100A

    Battery charger Victron Skylla-TG 24V / 48V

    $791.7
    SDTG2400301
    0712971130661

    Skylla TG chargers are compact and lightweight, thanks to HF technology. Charging voltage is precisely adjustable to suit all types of battery, open or sealed.

    Select the model you want from the options.

    Battery charger Victron Skylla-TG Models: Skylla-TG 24V / 30A

    Battery charger Victron...

    $791.7

    Perfect chargers for all batteries

    Skylla TG chargers are compact and lightweight, thanks to HF technology. Charging voltage is precisely adjustable to suit all types of battery, open or sealed. Maintenance-free sealed batteries require particularly precise charging to ensure a long service life. Any over-voltage will result in excessive gassing, followed by drying-out and premature failure.

    3-stage regulated charging

    The three charging stages of Skylla TG chargers are precisely controlled by a microprocessor. The IUoUo charging curve ensures the fastest, safest charge for all battery types. Absorption time can be set by switch. The "Intelligent Startup" function avoids having to start a full charge cycle on a battery that has already been charged.

    Can be used as a power supply

    Thanks to their perfectly stabilized output voltage, Skylla TG chargers can be used as power supplies, without the need for batteries or capacitor banks.

    Two outputs for charging 2 battery banks (24V model only)

    All TG chargers have 2 isolated outputs. The second output, for maintenance charging of a starter or auxiliary battery, is limited to around 4 amps at a slightly lower voltage.

    For longer battery life: temperature compensation

    Every Skylla TG charger comes with a battery temperature sensor which automatically reduces the charging voltage as the battery temperature rises. This function is essential to avoid overcharging maintenance-free batteries.

    Battery voltage sensor

    To further improve charging quality, a device for direct measurement of battery terminal voltage compensates for voltage losses in the main wiring.


    Features

    Skylla-TG charger 24/30 TG
    24/50 TG
    24/50 TG
    Three-phase
    24/80 TG24/100 TG24/100 TG
    Three-phase
    48/25 TG48/50 TG
    Supply voltage (V AC) 230
    230230
    230230
    Supply voltage range (V AC)185-264320-450185-264185-264320-450185-264185-264
    Supply voltage range (V DC)180-400non180-400180-400no180-400180-400
    Frequency (Hz)45-65
    Power factor
    Load voltage 'absorption' (V DC)28,557
    Charging voltage 'float' (V DC)26,553
    Main charging current (A) 30/505080100
    2550
    Auxiliary charging current (A)
    nono
    Charging characteristic
    (3-stage charging)
    Battery capacity (Ah)150-500250-500400-800500-1000500-1000125-250250-500
    Battery temperature
    Can be used as power supply
    Remote alarmDry contacts for fault reporting 60V / 1A (1x NO and 1x NC)
    Regulated forced ventilation
    Protections
    b,c,d
    Operating temperature
    to +50°C (-40 -
    122°F)
    Humidity (without run-off)Max 95%
    Housing
    Material and coloraluminum (blue RAL 5012)
    Battery
    M8 bolts
    230 V ACScrew terminals 2,5 mm² (AWG 6)
    Degree of
    IP21
    Weight (kg)
    .5 (12.1)13(28)10(22)10(22)23(48)
    ,5(12.1)10(12,1)
    Dimensions (hxlxp in mm)365x250x147
    (14.4x9.9x5.8)

    (20x10.2x10.4)365x250x147
    (14.4x9.9x5.8)
    365x250x257
    (14.4x9.9x10.1)
    SDTG2400301
