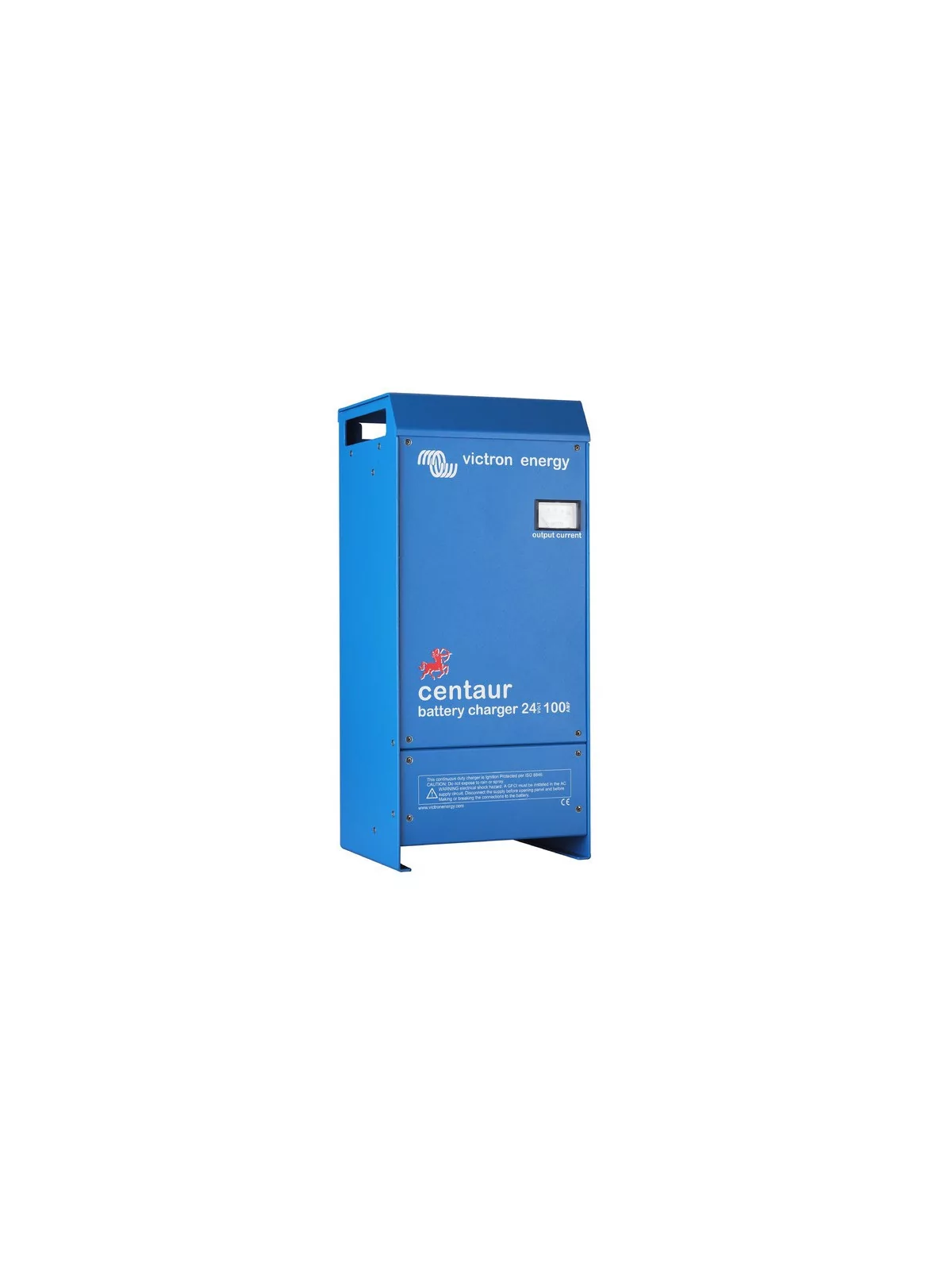

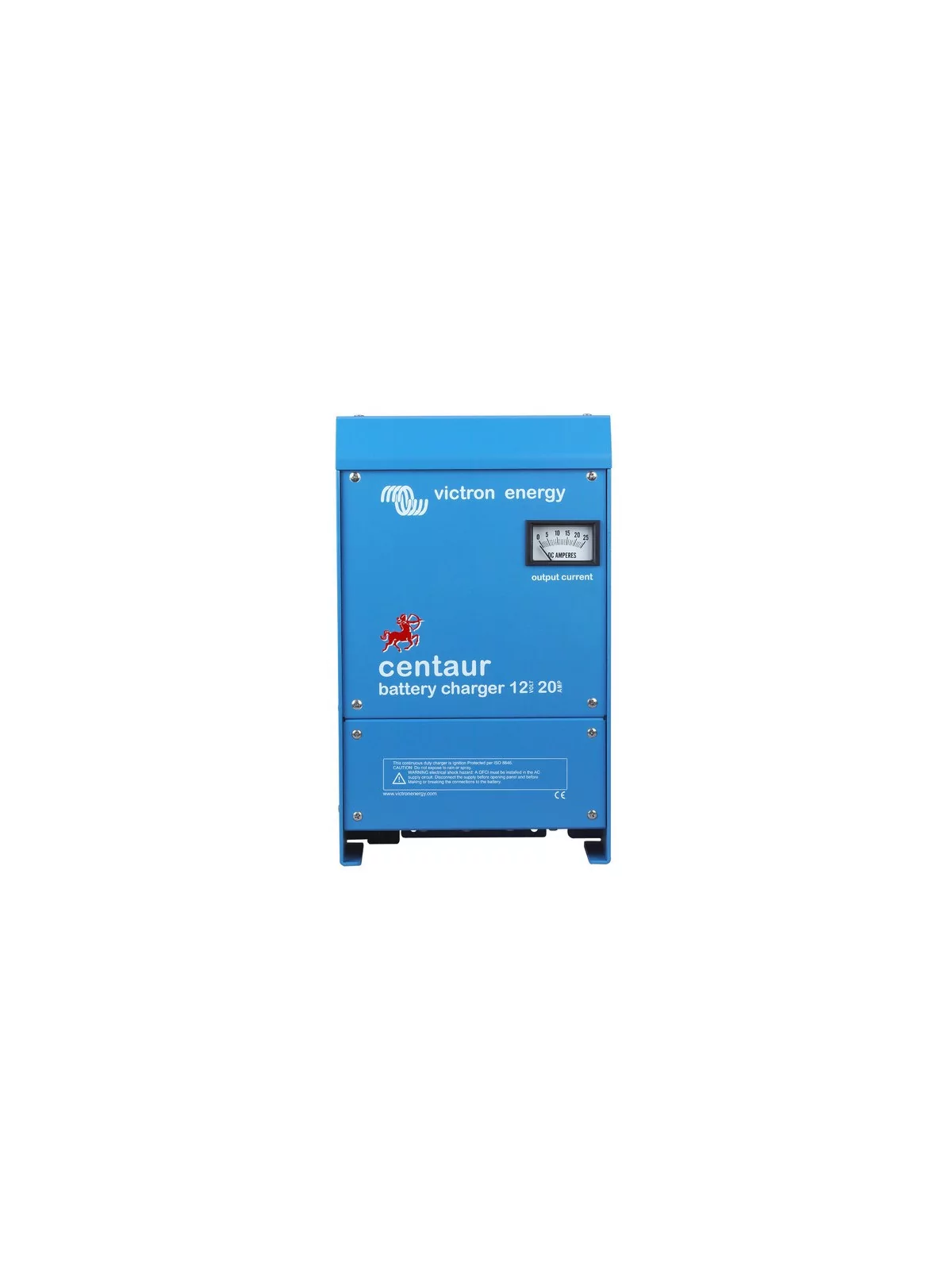

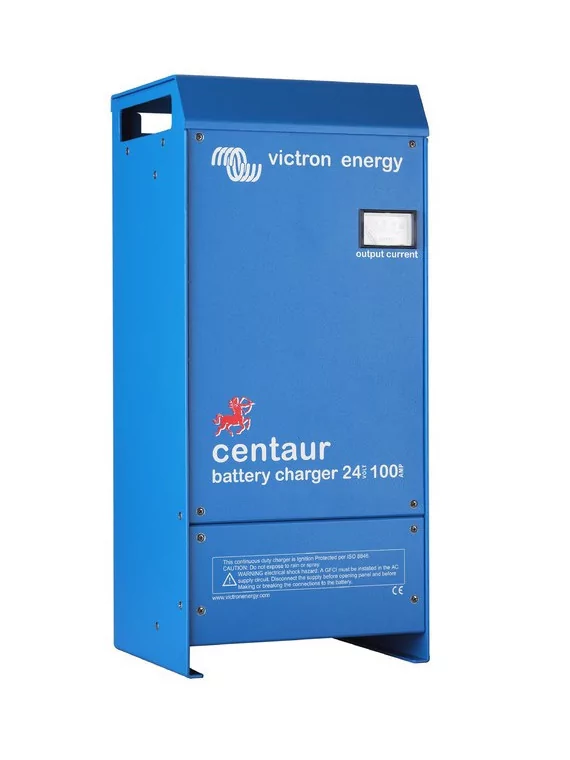

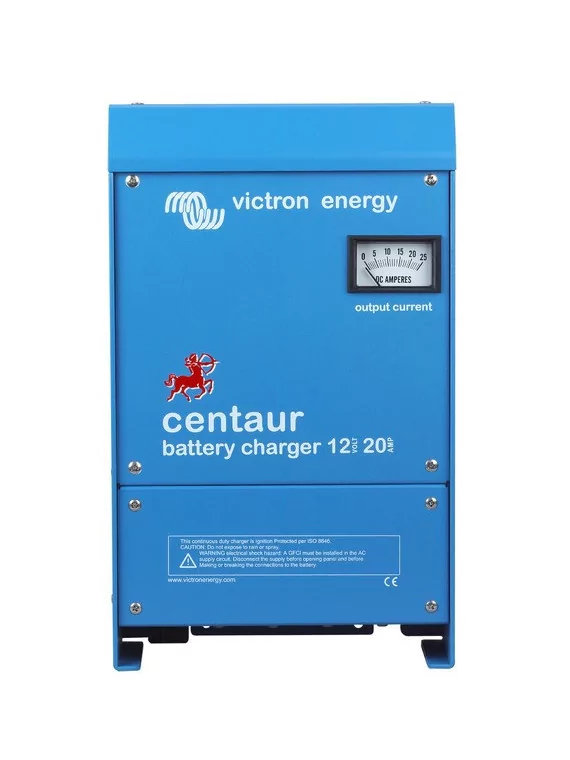

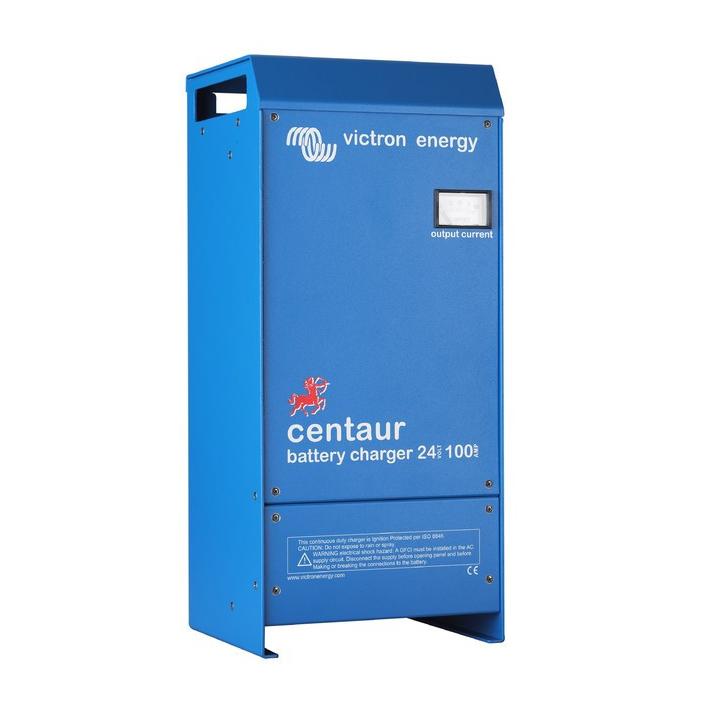

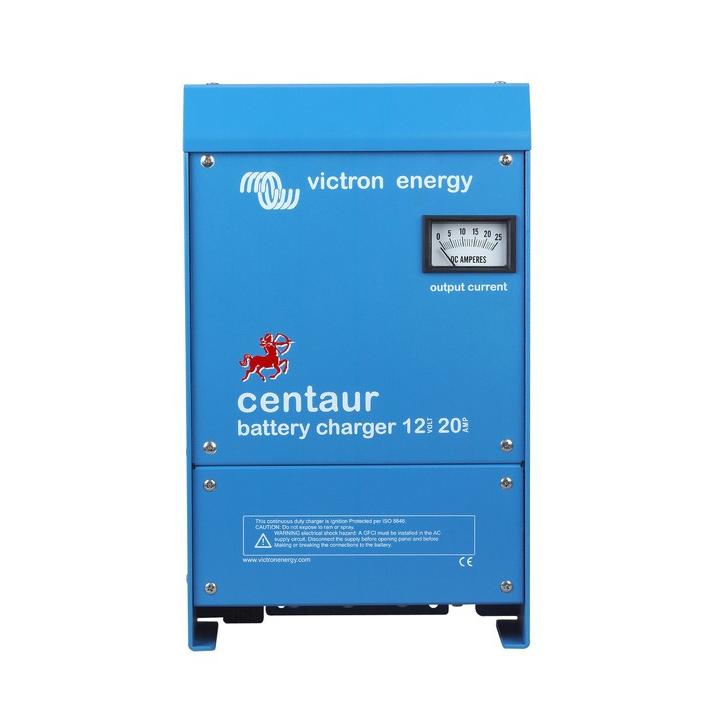

Battery charger Victron Centaur 12V / 24V

Victron energy

435,60 € tax incl.


The Centaur battery chargers are simple robust, economical devices without compromising our high quality standards and allow better performance than current technologies.

The range covers models of 12V and 24V from 16A to 100A.

Select the model you want in the options.

More details

More info

Quality without compromise

Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of anadverse environment: heat, humidity and salt air.Circuit boards are protected with an acrylic coating for maximum corrosion resistance.Temperature sensors ensure that power components will always operate within specified limits, if needed byautomatic reduction of output current under extreme environmental conditions.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)

All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.The chargers also accept a 90-400V DC supply.

Three outputs that each can supply the full output current

Three isolated outputs to simultaneously charge 3 battery banks.

Each output is capable to supply the full rated current.

Three-stage charging, with temperature compensation

The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timerbegins. After the timed period the charger switches to float rate.An internal temperature sensor is used to compensate the charge voltage with– 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.

Technical data

Data sheets and documentation
