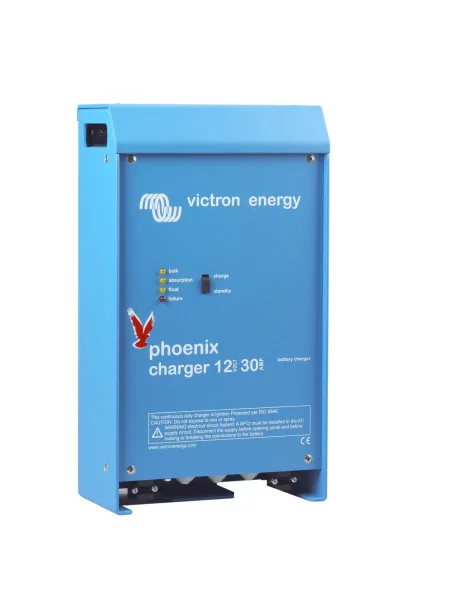

Phoenix Charger - 12/24 Volts

Victron Phoenix 12V - 24V battery charger.

- Adaptive 4-stage charge characteristic: bulk - absorption - float - storage.
- Three outputs : two full rated and one 4A output.
- Universal input 90-265V, 50/60Hz.


Please select your charger :
12V : 30A /50A OR  24V : 16A / 25A

logo victron energy

On request only

More info

More details

585,64 €

Options

Add to cart

By buying this product you can collect up to 78 loyalty points. Your cart will total 78 points that can be converted into a voucher of 23,40 €.


More info

" Phoenix Charger : Adaptative 4 stage charge characteristic : bulk – absorption – float – storage "




Description

Image phoenix Victron

Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Phoenix charger features a microprocessor controlled adaptive battery management system that can be preset to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.

The right amount of charge : Variable absorption time

When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

Preventing damage due to excessive gassing: the BatterySafe mode (see fig. 2 below)

If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached (see the charge curve between 14,4 V and 15,0 V in fig. 2 below).

Less maintenance and aging when the battery is not in use: the Storage mode (see fig. 1 & 2 below)

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

To increase battery life: temperature compensation

Every Phoenix charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.

Battery voltage sense

In order to compensate for voltage loss due to cable resistance, Phoenix chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)

The chargers will accept a 90-400V DC supply.

Computer interface

Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Together with our VEConfigure software, which can be downloaded free of charge from the website www.victronenergy.com and the data link MK1b (see accessories), all parameters of the chargers can be customised.

 Charge curves: up to the gassing voltage (fig.1), and exceeding the gassing voltage (fig.2)

Schéma courbes de charge

Specifications

Specifications Phoenix Charger
