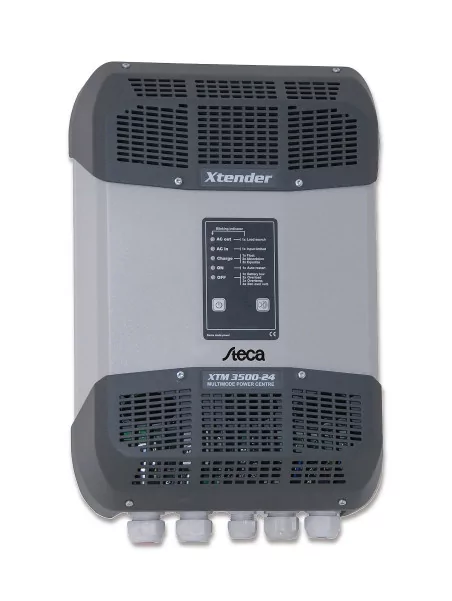

Steca Xtender XTM 1500-12 to 4000-48

Steca Xtender XTM 1500-12 to 4000-48 View full size

The basic functions of the combined inverter of the Steca Xtender series are the inverter, the battery charger, the switching function and the support of external sources of alternating current

Available on order

More details

2 580,93 €

Options

By buying this product you can collect up to 350 loyalty points. Your cart will total 350 points that can be converted into a voucher of 105,00 €.


Shipping fee preview
More info

" Pur sine inverter made in germany "



The basic functions of the combined inverter of the Steca Xtender series are the inverter, the battery charger, the switching function and the support of external sources of alternating current. These functions can be combined and controlled fully automatically, the range offers outstanding user-friendliness and very good exploitation of the energy available.

All the settings of the Steca Xtender XTM can be remote controlled. When a software with new functions is available, it can be loaded into the system, so the Steca Xtender XTM always stays up to date. Several Steca Xtender XTM can be connected in parallel or to form a three-phase system. That means that up to nine Steca Xtender XTM can work together.



Multifunction contacts

These potential-free contacts can be programmed for many different applications. They can react to any event outside or inside of the inverter (grid availability, battery voltage, fault message ...) They can also be programmed on a timer or can be switched on during particular times (at night, at the weekend ...). In this way, they can serve to start up a generator, to switch off less important loads, to signal a fault, to charge batteries depending on the situation, etc.

Smart-boost function

With the smart-boost function, the output of another source of alternating current, such as a power generator or a land connection, can be increased; even when special loads are being used (inductive, asymmetric, with high switch-on current). It is also possible to combine the Steca Xtender XTM with almost all inverters which are already present in order to increase the available output.

Features

  • True sine wave voltage
  • Excellent overload capabilities
  • Optimal battery protection
  • Adjustable integrated battery charger
  • Multistage programmable battery charger with PFC
  • Automatic load detection
  • Standby load detection adjustable over a wide range, starting from a low value
  • Parallel connectable
  • Best reliability
  • Can be used as a back-up system or uninterruptible power supply (UPS)
  • Multifunction contact
  • Adjustable power sharing
  • Reliable and noiseless with any kind of load
  • Support of sources of alternating current (Smart Boost)
  • Automatic support for peak loads (Power Shaving)
  • Ultra-fast transfer relay
  • High efficiency
  • Control by digital signal processor (DSP)



Electronic protection functions

  • Deep discharge protection
  • Battery overvoltage shutdown
  • Overtemperature and overload protection
  • Short circuit protection
  • Reverse polarity protection by internal fuse
  • Acoustic alarm at deep discharge or overheating

Displays

  • 5 LEDs show operating states



Operation

  • Main switch
  • Adjustable load detection

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant


Output voltage230V
Output frequency50Hz
Continuous power1500VA
Max. current on transfer system50A
Total harmonic distortion< 2%
System voltage12V
Max. efficiency93%
Ambient temperature -20 à 55°C
Degree of protectionIP20
Lenght466 mm
Width322 mm
Depth133 mm
Weight15kg





Optionnal

All range Steca Xtender XTM optionnal (above)

1500-12, 2000-12, 2400-24, 3500-24, 2600-48, 4000-48



(Datasheet on download)

Specifications
Voltage12 à 48 V
Power1500 VA à 4000 VA
Monophasé / TriphaséTriphasé
