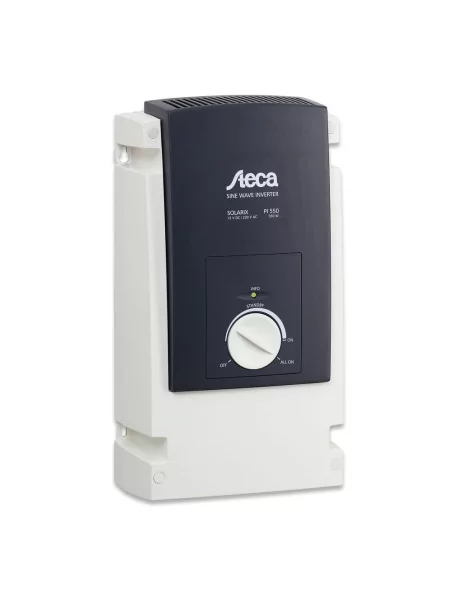

Steca Solarix PI 550 to 1200

Steca Solarix PI 550 to 1200 View full size

Steca solarix PI 550 is provided with a low operating consumption and a stable energy supply.

Available on order

More details

508,00 €

Options

By buying this product you can collect up to 94 loyalty points. Your cart will total 94 points that can be converted into a voucher of 28,20 €.


Shipping fee preview
More info

" low operating consumption pure sine inverter "

The Solarix PI sine wave inverter, has some innovations which are unprecedented in this form. These are, above all, parallel connection*, the novel operating concept which uses a single rotary switch, direct communication in order to calculate the state of charge (SOC) with Steca Tarom and Steca Power Tarom, and the electronic fuse.

Description

Product features

  • True sine wave voltage
  • Can be connected to the Steca Power Tarom with a Steca PAx4 parallel switch box
  • Excellent overload capabilities
  • Optimal battery protection
  • Automatic load detection
  • Parallel connectable*
  • Best reliability
  • Protective insulation according to protection class II
  • Control by digital signal processor (DSP)



Electronic protection functions

  • Deep discharge protection
  • Battery overvoltage shutdown
  • Overtemperature and overload protection
  • Short circuit protection
  • Reverse polarity protection
  • Automatic electronic fuse



Displays

  • Multi-coloured LED shows operating states



Operation

  • Main switch
  • Adjustable load detection



Certificates

  • Compliant with European Standards (CE)
  • Made in Germany
  • Developed in Germany
  • Manufactured according to ISO 9001 and ISO 14001





Inverter type

PI 550

Number of inverters

1 / 0

Characterisation of the operating performance

System voltage

12V

Continuous power

450 VA

Power 30 min.

550 VA

Power 100 sec.

700 VA

Power 5 sec.

1 500 VA

Power asymmetric

350 VA

Max. efficiency

93 %

Own consumption standby / ON

0,5 W / 6 W

DC input side

Battery voltage

10,5 V ... 16 V

Reconnection voltage (LVR)

12,5 V

Deep discharge protection (LVD)

10,5 V

AC output side

Output voltage

230 V AC +/-10 %

Output frequency

50 Hz

Load detection (standby)

réglable : 2 W...50 W

Safety

Protection class

II (double insulated)

Electrical protection

reverse polarity battery, reverse polarity AC, over voltage, over current, over temperature

Operating conditions

Ambient temperature

-20 °C ... +50 °C

Fitting and construction

Cable length battery / AC

1,5 m / 1,5 m

Cable cross-section battery / AC

16 mm2 / 1,5 mm2

Degree of protection

IP 20

Dimensions (X x Y x Z)

212 x 395 x 130 mm

Weight

6,6 kg







Optionnal

All range Steca Solarix PI optionnal (above)

550, 550-L60, 1100, 1100-L60, 600, 600-L60, 1200, 1200-L60



(Datasheet on download)



Specifications
Voltage12V
Power450 VA
Inverter power- de 1000VA
Data sheets and documentation
