3-panel self-consumption-reinjection without storage

Wattuneed

1 699,84 € tax incl.

Add to cart

3-panel self-consumption-free storage kit

This complete kit includes basic :

  • 3 Longi 300Wc panels
  • 2 Hoymiles 500W micro-inverters
  • Flexible solar cable
  • AC connectors for micro-inverter

Optional:

  • Assembly system.


All our kits are changeable, thanks to this system no error is possible and we check each kit before it is sent. Test our configurator now!

More details

Équipements
Descriptions équipements
Customize

Choice of panels

167.6
Sélectionné

Solar panel JNL Solar monocrystallin 320 Wc full black

157.95
Sélectionné

Solar Panel Q.Cells DUO-G9 330Wc Full Black

175.45
Sélectionné

Solar panel Q.Cells DUO-G9 335Wc Full Black

188.95
Sélectionné

Solar panel JNL Solar monocrystallin 375 Wc

209.95
Sélectionné

Solar panel Q.Cells DUO ML-G9 375Wc monocrystallin

194.68
Sélectionné

TrinaSolar Vertex 385Wc Full Black Solar Panel

204.26
Sélectionné

Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

211.3
Sélectionné

TrinaSolar Vertex S 390Wc Full Black Solar Panel

214.01
Sélectionné

TrinaSolar Vertex S 395Wc Monocrystallin Solar Panel

228.28
Sélectionné

Hyundai 395 Wc Ultra Black Solar Panel

245.62
Sélectionné

Solar panel Hyundai 400 Wc

See product
Solar panel JNL Solar monocrystallin 320 Wc full black

config

167,60 €

QTT

See product
Solar Panel Q.Cells DUO-G9 330Wc Full Black

config

157,95 €

QTT

See product
Solar panel Q.Cells DUO-G9 335Wc Full Black

config

175,45 €

QTT

See product
Solar panel JNL Solar monocrystallin 375 Wc

config

188,95 €

QTT

See product
Solar panel Q.Cells DUO ML-G9 375Wc monocrystallin

config

209,95 €

QTT

See product
TrinaSolar Vertex 385Wc Full Black Solar Panel

config

194,68 €

QTT

See product
Solar panel Q.Cells DUO- ML-G9 390Wc monocrystallin

config

204,26 €

QTT

See product
TrinaSolar Vertex S 390Wc Full Black Solar Panel

config

211,30 €

QTT

See product
TrinaSolar Vertex S 395Wc Monocrystallin Solar Panel

config

214,01 €

QTT

See product
Hyundai 395 Wc Ultra Black Solar Panel

config

228,28 €

QTT

See product
Solar panel Hyundai 400 Wc

config

245,62 €

QTT

A ups for the two panels

136.08
Sélectionné

Micro inverter Enphase iQ7, IQ7 and IQ7x

See product
Micro inverter Enphase iQ7, IQ7 and IQ7x

config

136,08 €

QTT

Choice of mounting system

55
Sélectionné

Tile roof attachment kit

49.1
Sélectionné

Slate roof attachment kit

127
Sélectionné

Fixing kit on ground structure

37.28
Sélectionné

Tin roof attachment kit

68.38
Sélectionné

Système de montage pour toitures plates FlatFix

42.84
Sélectionné

Mounting system for tray roofing

See product

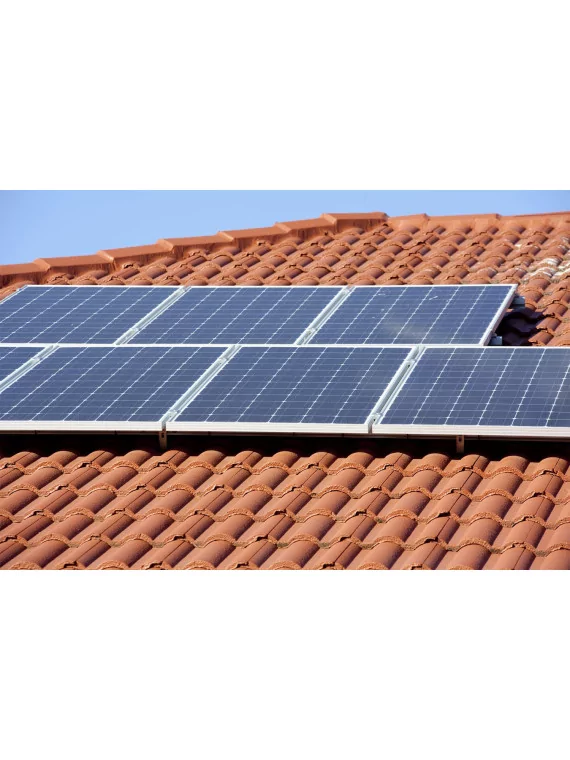

Tile roof attachment kit

config

55,00 €

QTT

See product
Slate roof attachment kit

config

49,10 €

QTT

See product
Fixing kit on ground structure

config

127,00 €

QTT

See product

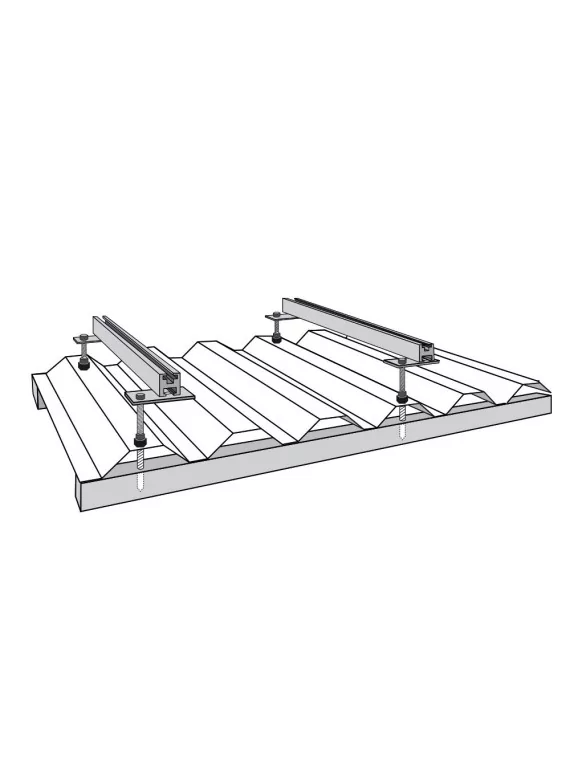

Tin roof attachment kit

config

37,28 €

QTT

See product
Système de montage pour toitures plates FlatFix

config

68,38 €

QTT

See product
Mounting system for tray roofing

config

42,84 €

QTT

Enphases cables

19.72
Sélectionné

Cable Enphase IQ monophase Portrait/Landscape

See product
Cable Enphase IQ monophase Portrait/Landscape

config

19,72 €

QTT

Protections and accessories AC

See product
Schneider single-phase 25A circuit breaker

config

16,00 €

QTT

See product
Schneider mono 16A circuit breaker

config

8,60 €

QTT

See product
Schneider mono 2A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 4A circuit breaker

config

14,50 €

QTT

See product
Schneider mono 6A circuit breaker

config

14,70 €

QTT

See product
Schneider mono 20A circuit breaker

config

8,60 €

QTT

See product
Schneider mono 40A circuit breaker

config

16,70 €

QTT

See product
Modular change-over switch 2x 25A

config

41,90 €

QTT

See product
Differential switch type A 2P 63A 30ma

config

85,39 €

QTT

See product
Differential switch type A 4P 40A 30ma

config

68,50 €

QTT

See product
Differential switch type A 4P 63A 30ma

config

109,30 €

QTT

See product
Differential switch type A 2P 63A 300ma

config

69,50 €

QTT

See product
Differential switch type A 4P 40A 300ma

config

82,00 €

QTT

See product
Differential switch type A 2P 63A 300ma

config

119,80 €

QTT

See product
Modular change-over switch 4x 40A and 63A

config

141,00 €

QTT

See product
AC Parafoudre Box

config

359,37 €

QTT

See product
3kWc Single Phase lightning protection

config

232,42 €

QTT

See product
Three-phase electrical box

config

673,92 €

QTT

See product
AC ZJBENY box set with 25A 230V socket

config

140,00 €

QTT

See product
ZJBENY AC 25A 230V Lightning Box

config

125,25 €

QTT

Storage management

See product
Pylontech 48V parallel hub

config

453,80 €

QTT

See product
Lithium Pylontech Battery - 50 - 2.4 kWh
Out of stock Replenishment : 25/10/2021

config

1 052,18 €

QTT

See product
Lithium Battery Pylontech + 100 - 4.8 kWh

config

2 104,30 €

QTT

See product
Battery Lithium Pylontech + 150 - 7.2 kWh

config

3 156,50 €

QTT

See product
Battery Lithium Pylontech + 200 - 9.6 kWh

config

4 208,70 €

QTT

See product
Battery Lithium Pylontech + 250 - 12 kWh

config

5 260,90 €

QTT

See product
Battery Lithium Pylontech + 300 - 14.4 kWh

config

6 313,00 €

QTT

See product
Battery Lithium Pylontech + 350 - 16.8 kWh

config

7 365,20 €

QTT

See product
Battery Lithium Pylontech + 400 - 19.2 kWh

config

8 417,40 €

QTT

See product
Parallel connection box for Pylontech battery

config

205,70 €

QTT

See product
19'' 32U Rack Cabinet for pylontech with supporting angle

config

1 150,00 €

QTT

See product
Cabinet for 4 Pylontech batteries

config

800,62 €

QTT

Enphase Accessories

See product
Enphase Envoy-S Communication Gateway single phases

config

500,61 €

QTT

See product
End cap for Enphase Engage

config

20,41 €

QTT

See product
Enphase CT's Current Transformer

config

30,83 €

QTT

See product
Enphase relay Q (multiphase)

config

234,89 €

QTT

See product
Enphase relay Q (multiphase)

config

92,53 €

QTT

More info

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to suit the kit to your needs. You can also see the details of the selected products directly below the price.



The basic composition of the kit contains 3 300Wc JNL Solar solar panels, 3 IQ7 Micro-Inverters, the connector to connect the inverter to your electrical array, the panel assembly system is available as an option. (The assembly system as well as the wiring and protections are changeable to meet your needs).



SOLAR PANELS:

In its basic version, this Photovoltaic system will bring you an average of 3.6 Kwh per sunny day. Productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.
We invite you to consult our solar production simulator to determine exactly what your solar production will be.

20-year warranty at 80% of rated power.



MICRO-INVERTER:

The Enphase Energy micro-inverter system increases energy production and reliability while making it as easy as possible to design, install and manage photovoltaic systems.



CABLE AND CONNECTORS:

All cables and connection are pre-wired in our workshops. Our kits are very easily mounted by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.



assembly:

The installation of this kit is very simple. Our instructions are clear and allow easy editing without any special knowledge. We answer all your questions before, during and after installing your system.



guarantee:

All products have an individual warranty.
Panels guaranteed 20 years at 80% of rated power.




JNL Solar 300 Wc Monocristallin Full black solar panel



JNL Solar 300 Wc Monocristallin Full black solar panel



JNL Solar is dedicated to the development, operation, maintenance of solar power plants, the manufacture of research and development rings and the manufacture of solar modules and solar cells.
It has equipped a state-of-the-art professional automatic production line and has state-of-the-art technology and craftsmanship.
JNL Solar has participated in national and international energy investment plans, such as the United States, Germany, France, Spain, Japan, India, South Africa, South Korea, Canada, etc. and all power plants are successful on the grid and production wells.









Characteristics



Peak Power (Pmax)300
Module efficiency18,33%
Max. Power Tension Vmp (V)33,54
Max. Power Current Amplifier (A)8,95
Empty tension Voc (V)39,53
Current short-circuit Isc (A)9,6
Power tolerance-0, 10W
Maximum system voltage (V)DC 1000V
Number of bypass diodes3
Grilled fuse current15A
STC: Irradiance 1000W/m2, Cell temperature 25oC, Air mass AM1.5 Measurement tolerance: -3%
Potentially induced degradation (PID) free, IEC61215, IEC61730, increased snow load up to 5400Pa.
Dimensions [mm]1650x992x35
Weight (kg)18,5
Type of solar cells156.75mm x 156.75mm (5BB)
Junction boxIP67
Mechanical loading5400Pa
frameBlack anodized aluminium
Cables4mm2, 1000mm
connectorMC4 or compatible
glass3.2mm
Operating temperature-40C - 85C
Nominal temperature of the measuring cell47 degrees Fahrenheit



 MICRO-inverter IQ7

MICRO-inverter IQ7



Micro-inverters revolutionize solar technology high-yield Enphase IQ 7™ and Enphase IQ 7-™ are adorned for Smarts Grids.

An integral part of the Enphase system IQ, IQ 7 and IQ 7 fit seamlessly with the Envoy-S™ and Enphase Enlighten™ monitoring and analysis software. Get the best performance from each of your panels and detailed tracking.

The IQ 7 micro-inverters and IQ 7 -- exceed the reliability and robustness standards set by previous generations of micro-inverters and undergo more than one million hours of test time in charge, allowing Enphase to offer an outstanding guarantee.







 Characteristics



ENTRY DATA

(DC) IQ7-60-2-INT

Recommended Module Power (STC)1

235 W - 350 W

compatibility

60-cells only

Dc max input voltage

48 V

MPP voltage range

27 V - 37 V

Operating voltage range

16 V - 48 V

Start tension min/max

22 V / 48 V

DC current max short-circuit

15 A

DC power surge class port

Ii

DC port return under a single fault

0 A

Configuration of the PV generator

AC side protection requires a maximum of 20A per bypass circuit



EXIT DATA (AC)



Micro-inverter IQ 7

Peak output power

250 VA

Maximum output power

240 VA

Tension/Nominal Voltage Range2

230 V / 184-276 V

Maximum output current

1.04 A

Nominal frequency

50 Hz

Frequency range

45 - 55 Hz

Maximum number of units per branch of 20 A3

16 (N-N)

Power protection class

Iii

Current return from the CA port

0 A

Fixed power factor

1.0

Power factor (adjustable)

0.7 inductive at 0.7 capacitive



yield



'230V'

Yield in 50530 (EU)

96.5 %








Send-S Metered Enphase™



Send-S Metered Enphase™The Enphase Envoy-S Metered communication gateway™ transmits photovoltaic production and energy consumption data to Enlighten™, Enphase's monitoring and analysis software to fully maintain and manage an Enphase system remotely.

Using production and consumption measurement options, the Envoy-S is a smart platform for complete energy management and partners with Enphase's AC™ battery.



intelligence

  • Offers web-based control and monitoring
  • Two-way communications for a remote upgrade



simplicity

  • Simple system configuration with installer Toolkit mobile app
  • Flexible network connection: Wi-Fi, Ethernet or cellular



reliability

  • Designed for indoor or outdoor installation in a case
  • 5-year warranty





Q Relay Enphase (Multiphase)

Q Relay Enphase (Multiphase)



In the Enphase IQ facility, the multiphase Q relay works like a device surveillance and disconnection network.
Relay Q Isolates physically micro-trees network IQ series when anomalies are detected or in accordance with network regulations, and it automatically reconnects when valid network conditions are restored.
Relay Q Tetrapolar isolates all live and neutral drivers and works with the bridge Send-S.







Characteristics



PENCIFICATIONS Q-RELAY-3P-INT

Tetrapolar decoupling protection (50Hz) with continuous component injection detection

Surge category (EN 61010-1)Iii
CAT IIIGRID terminal is rated for measurement category III.
Pollution level (EN 61010-1)2
AC voltage operating range85 to 265 Veff
Nominal input voltage (Vnom)230 /240 Veff
Nominal frequency50 Hz
Time to acquire frequency and voltage values in normal operation100 ms (5 line cycles - 50Hz)
Number of voltage entries protectedUp to 3
Number of IQ 7 micro-inverters per phaseUp to 19 micro-inverters Enphase IQ 7 Microinverters or 16 micro-inverters Enphase IQ 7
Number of Q Relays per systemLimited to 20 active Q relays per system

Electrical output type

 Normally open tetrapolar relay (L1, L2, L3 and N)

Exit power6 kVA per phase
Electrical output type230 / 240 Veff, 25A
Empty power consumption18 VA
LedsFour red/green LEDs: three for surge and surge triggers, one for frequency triggers (min f/max f) and continuous component injection (DC)
assembly35 mm rail DIN rail (standard)
width107 mm
Surge - L1 N outputCombination (1kV 2)
Operating temperature range-40 to 50 degrees Celsius
IP Protection IndexIP 20 (To be used in a protected environment)
humidity0 to 95 without condensation
complianceIEC 61010, 61010-1

EMCI Compliance

IEC 61326, BS IN 50065-1 - 2-2, BS IN 61326-1-2, BS IN 61000-3-11-12

guarantee5 years old

Specifications

Output Kit voltage230V
Battery storageWithout storage
Type of needSelf-consumption
Wind TurbinWithout

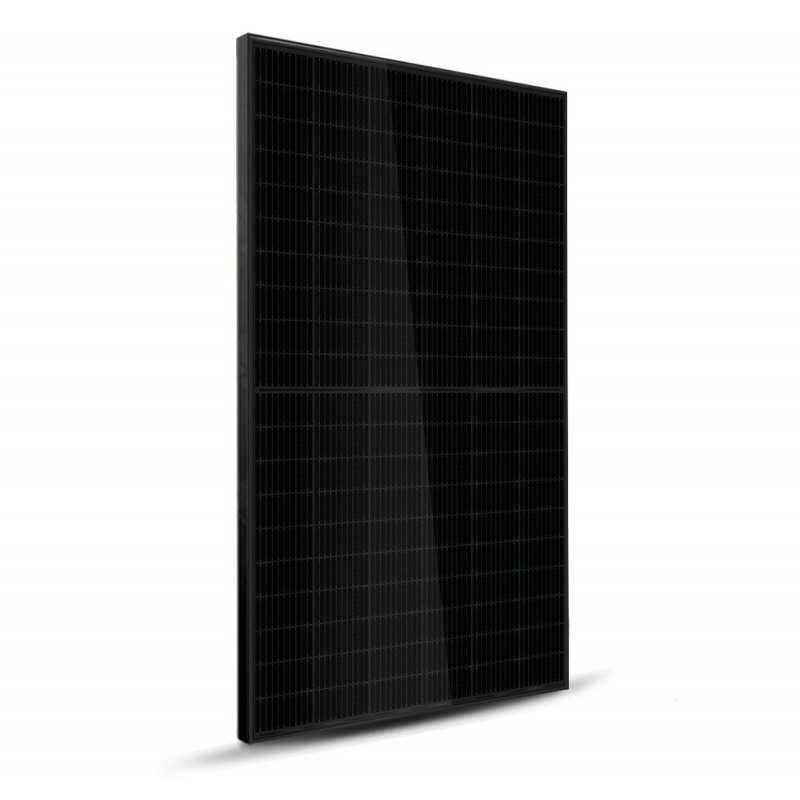

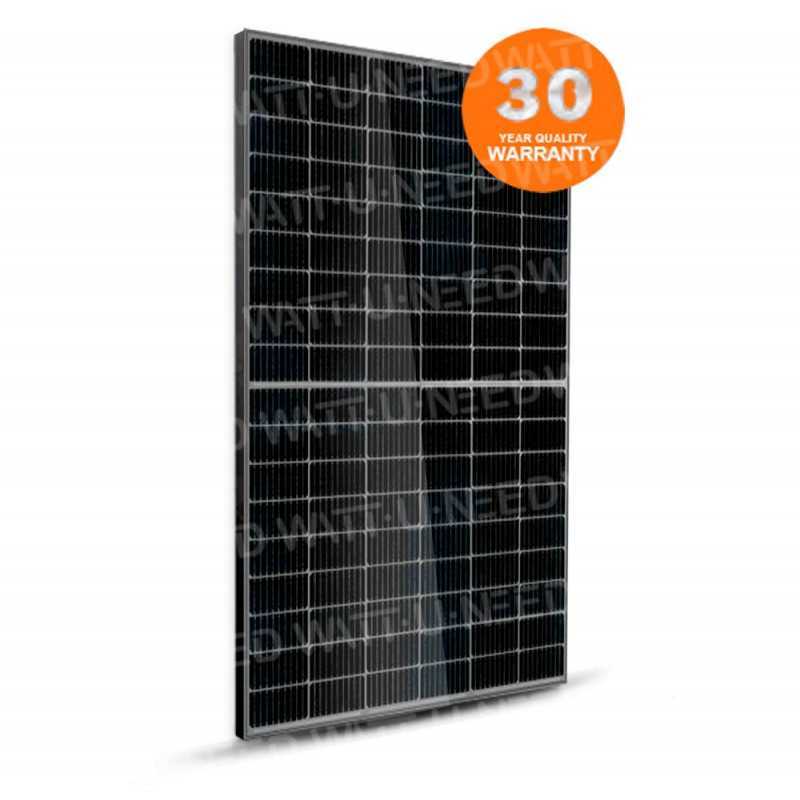

Number of panels3 panels
Inverter power1000VA
Grid reinjectionWith
