    Opti-C self-consumption management kit - LITHIUM

    €1,958.56
    614-5-li
    0712971127784
    100% secure payments

    This kit includes

    • 1XInverter Sofar Solar ME 3000 SP 3 kVA
    • 1XPylontech Lithium Battery US3000C +74 - 3.6 kWh
    • 1XPylontech battery connection cable

    Select products from the sections below
    Choix de l'onduleur
    info
    WKS OptiC 3000 inverter

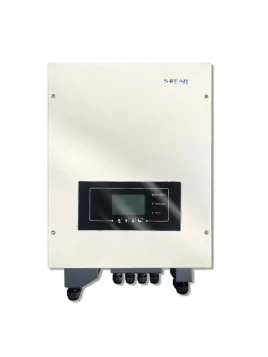

    Inverter Sofar Solar ME 3000 SP 3 kVA
    Price per unit
    €777.78  (Tax incl.)
    Choix des batteries
    info
    Pylontech Lithium Battery US3000C +75 - 3.6 kWh
    Pylontech Lithium Battery US3000C +74 - 3.6 kWh
    Price per unit
    €1,159.59  (Tax incl.)
    Câblage et connectique
    info
    Pylontech battery connection cable
    Pylontech battery connection cable
    Price per unit
    €21.20  (Tax incl.)

    Opti-C self-consumption...

    €1,958.56

    Simply increase your self-consumption!



    Store your solar production



    Your browser doesn't support this video.


    Flexible solution



    • Provides a comprehensive solution for energy consumers to optimize the use of the solar energy generated.

    • Increases the rate of self-consumption (from 20% to 70%).

    • The user-adjustable battery charge current is suitable for different types of batteries.


    Day and night operation of the Opti-C inverter with and without grid


    Consume your solar production when you need it



    There is an asymmetry between our electricity needs and the production of our solar system.
    As can be seen in the graph below, the WKS opti C allows, via batteries, the storage of unused production during the day (on yellow lined).
    So you enjoy the energy produced throughout the day in the morning and evening (red highlighted line)



    Consume your solar production when you need it


    Simple and Reliable



    • Energy exchanges via the power grid, no coupling with the photovoltaic inundoer, mature technology, simple and reliable.

    • Can be integrated into all renewable grid-related systems, including solar, wind, fuel cell, etc.


    A clear and complete mobile app (Wi-Fi)

     A clear and complete mobile app (Wi-Fi)


    Compatible with 100% network inverters



    Brand: Compatible with 100% network inverters

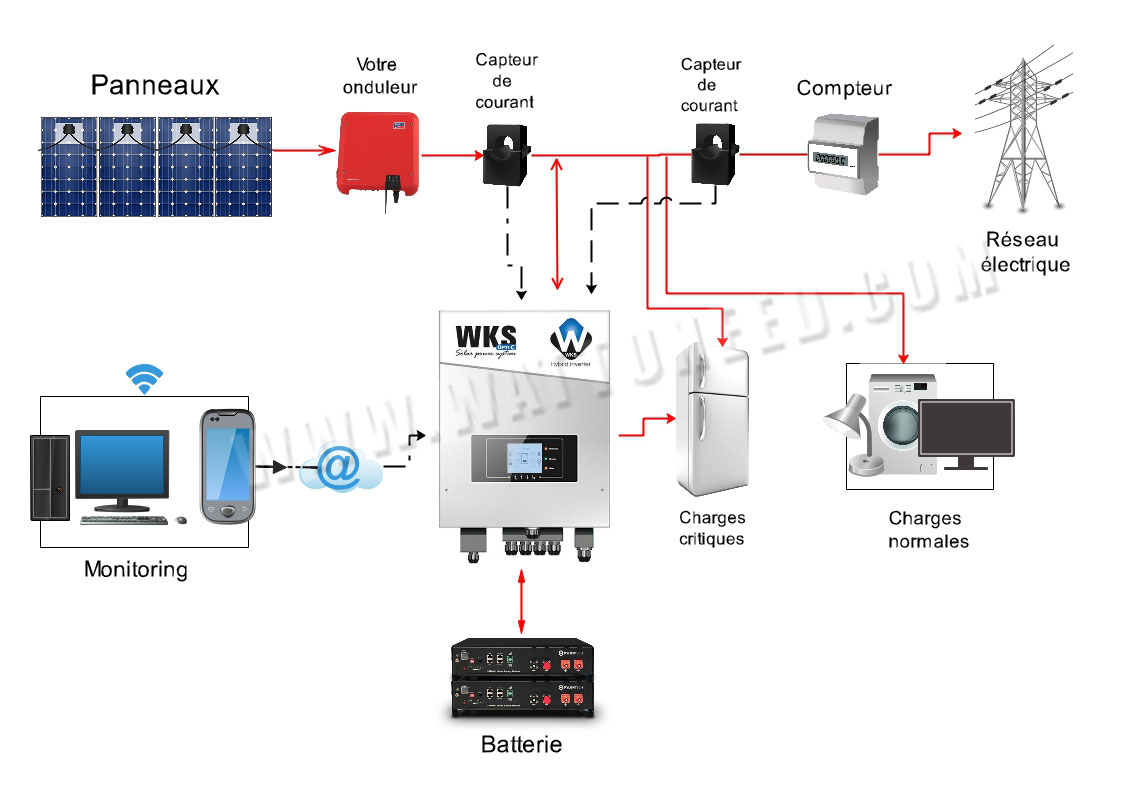

    Easy installation



    • No changes to your electrical panel are required.

    • Use a double-core CT scanner, no need to disconnect the electrical grid.

     Scheme: Easy installation


    Technical data



    Battery settings



    Battery type

    Lead, Lithium-ion

    Tension numinal of the battery

    48th

    Battery voltage range

    42-58V

    Recommended battery capacity

    200Ah (100 - 500 Ah optional)

    Recommended storage capacity

    9.6kWh

    Maximum charge current

    60 A

    Charge current range

    0-60A (programmable)

    Curve de charge

    3 floors Adaptive with maintenance

    Maximum discharge

    60 A

    Electronic protection

    OCP OTP OVP

    protection of circuits

    fuse (100 A)

    Discharge time (Time)

    Po - lkVA9.6 a.m.

    Po - 3kVA3.2 h

    Discharge depth

    Lithium : 0 - 80% adjustable DOD

    Lead-acid: 0 - 50% adjustable DOD

    AC settings



    Power maxi Power

    3KVA

    Entry/exit tension

    230 V

    Max.Input/Current Output

    13 A

    AC input voltage range

    180V-270V

    Network frequency range

    44 - 55Hz / 54 - 66Hz

    Thd

    3%

    Power factor

    l (adjustable -0.8)

    Connection phase

    only

    Maximum output over-intensity protection

    13 A

    System settings



    Maximum Charge efficacy

    94.1%

    Maximum discharge efficacy

    94.3%

    Sleep let's sleep

    SW

    technology

    Isolated Transformer hfrequency

    Degree of Protection

    IP65

    Protective measures

    Anti-islanding, RCMU

    Certification

    CEI 62116, CEI 61727, IEC 61683, CEI 60068 (1, 2, 14.30), AS4777 IEC62109-1/2,VDE 0126-1-1, G83/2, Cl0/11, RD1699, UTEC15-712-1, EN50438,VDE-AR-N4105

    communication

    WiFi, RS485, CAN2.0

    environment



    Temperature range

    -25°c...60 c

    Relative humidity range allowed

    ... 100%, no condensation

    Protective class

    Class I

    Max Altitude.

    2000m

    Connecting current sensors

    External

    General data



    noise

    25dB

    weight

    16kg

    Cooling type

    natural

    Dimensions L x H x p

    532 - 360 - 173 mm

    posting

    Liquid crystal display

    Warranty

    5 years

    Emergency power supply



    EPS rated power

    3000VA

    Total distortion harmony

    3

    614-5-li
    493 Items

    Data sheet

    Inverter power
    3000VA
    Kit output voltage
    230V
    Type of need
    Off-grid
    Prosumer
    Self-consumption
    Uninterruptible power supply
    Battery storage
    With storage
    Wind turbine
    Without
    Voltage
    230V
    Mains re-injection
    off-grid
