SolarEdge 9.2 kWh domestic battery

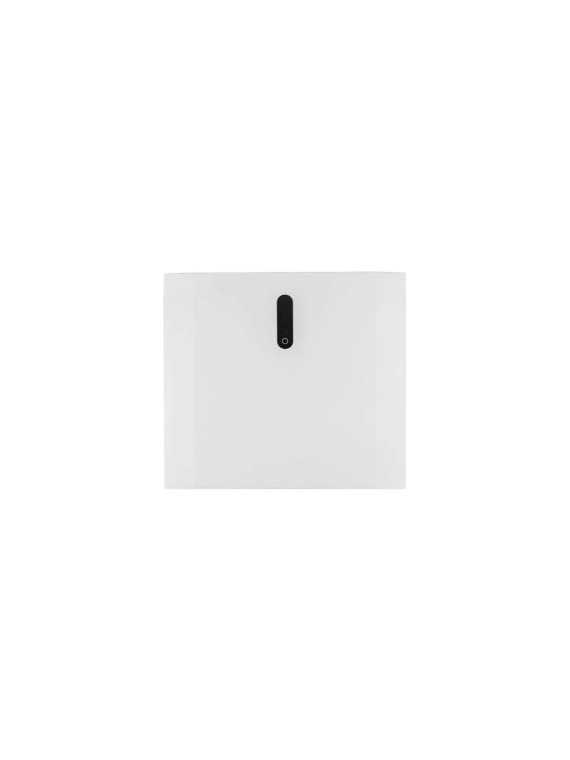

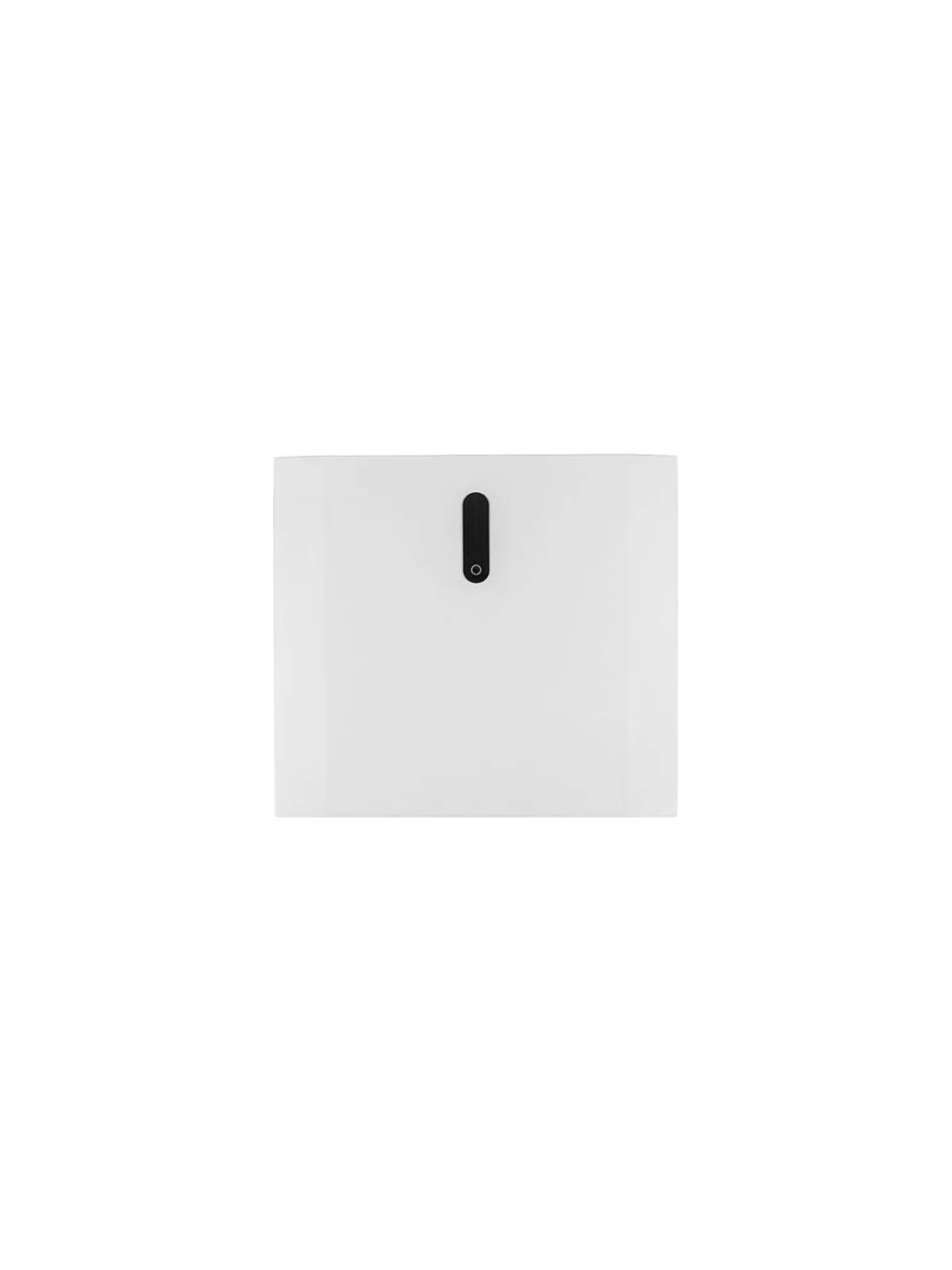

DOMESTIC BATTERY 4.6 kWh MODULE

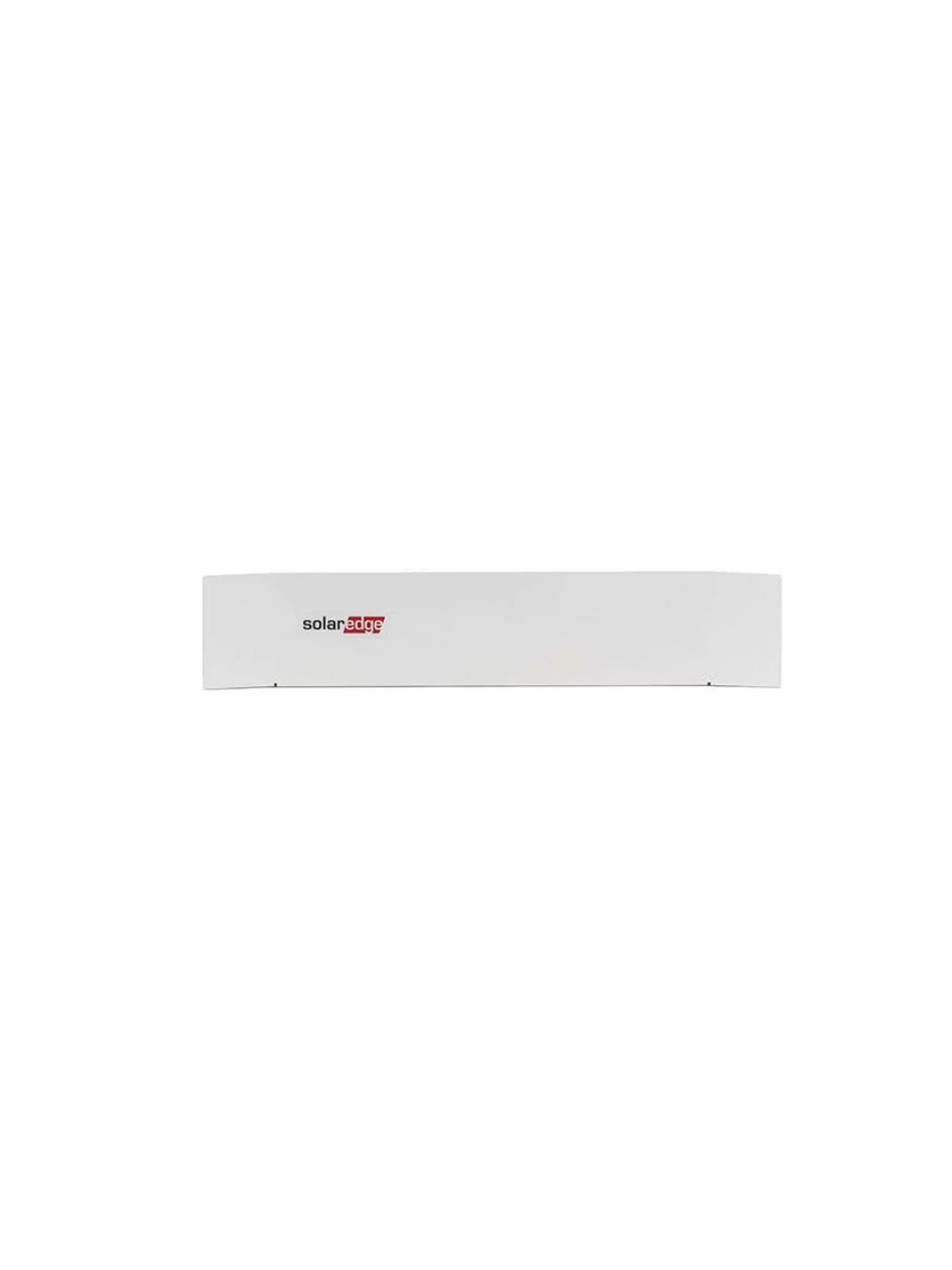

TOP COVER KIT DOMESTIC BATTERY

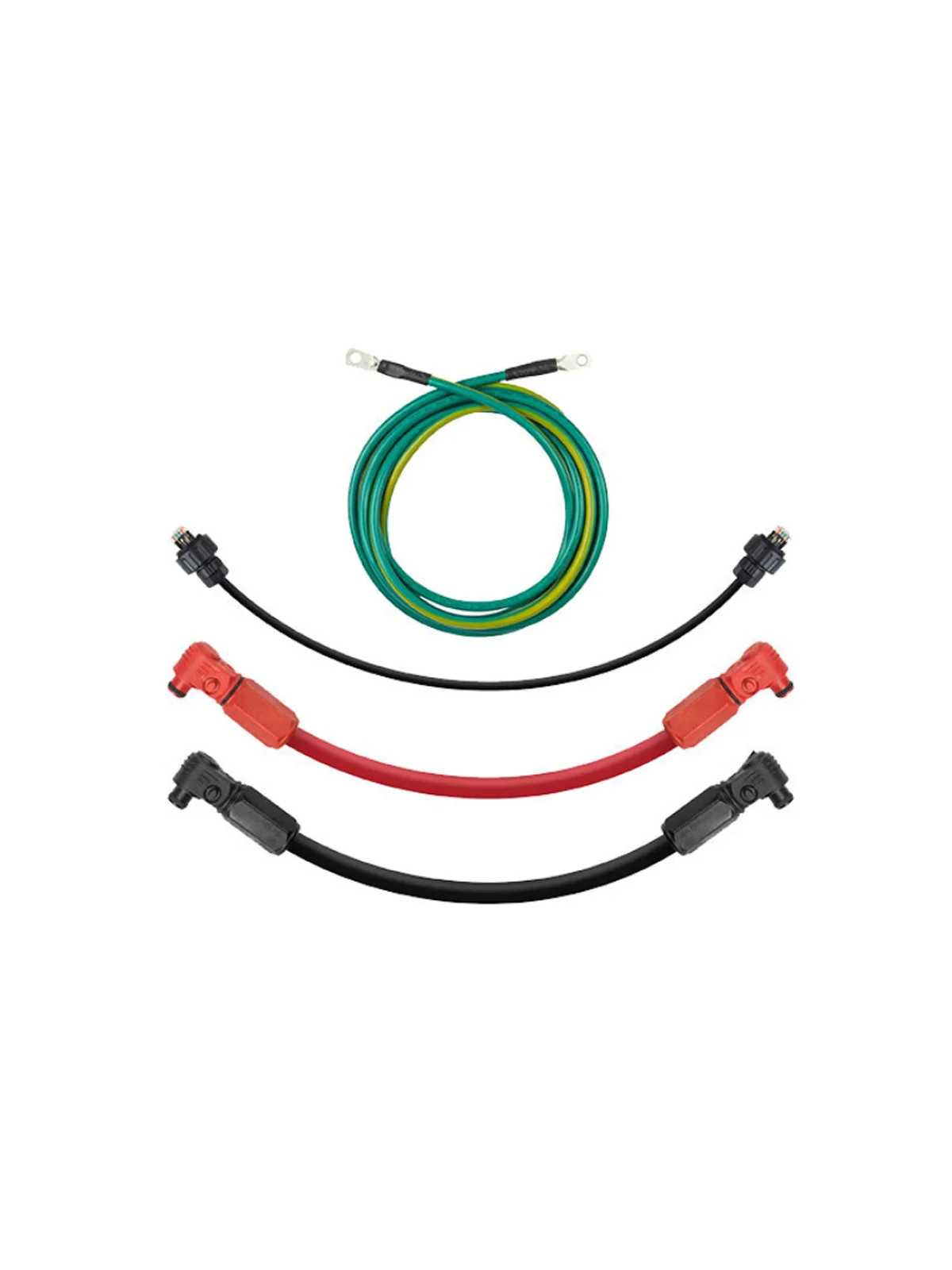

DOMESTIC BATTERY-DOMESTIC BATTERY CABLE SET
DOMESTIC BATTERY 4.6 kWh MODULE
TOP COVER KIT DOMESTIC BATTERY
DOMESTIC BATTERY-DOMESTIC BATTERY CABLE SET

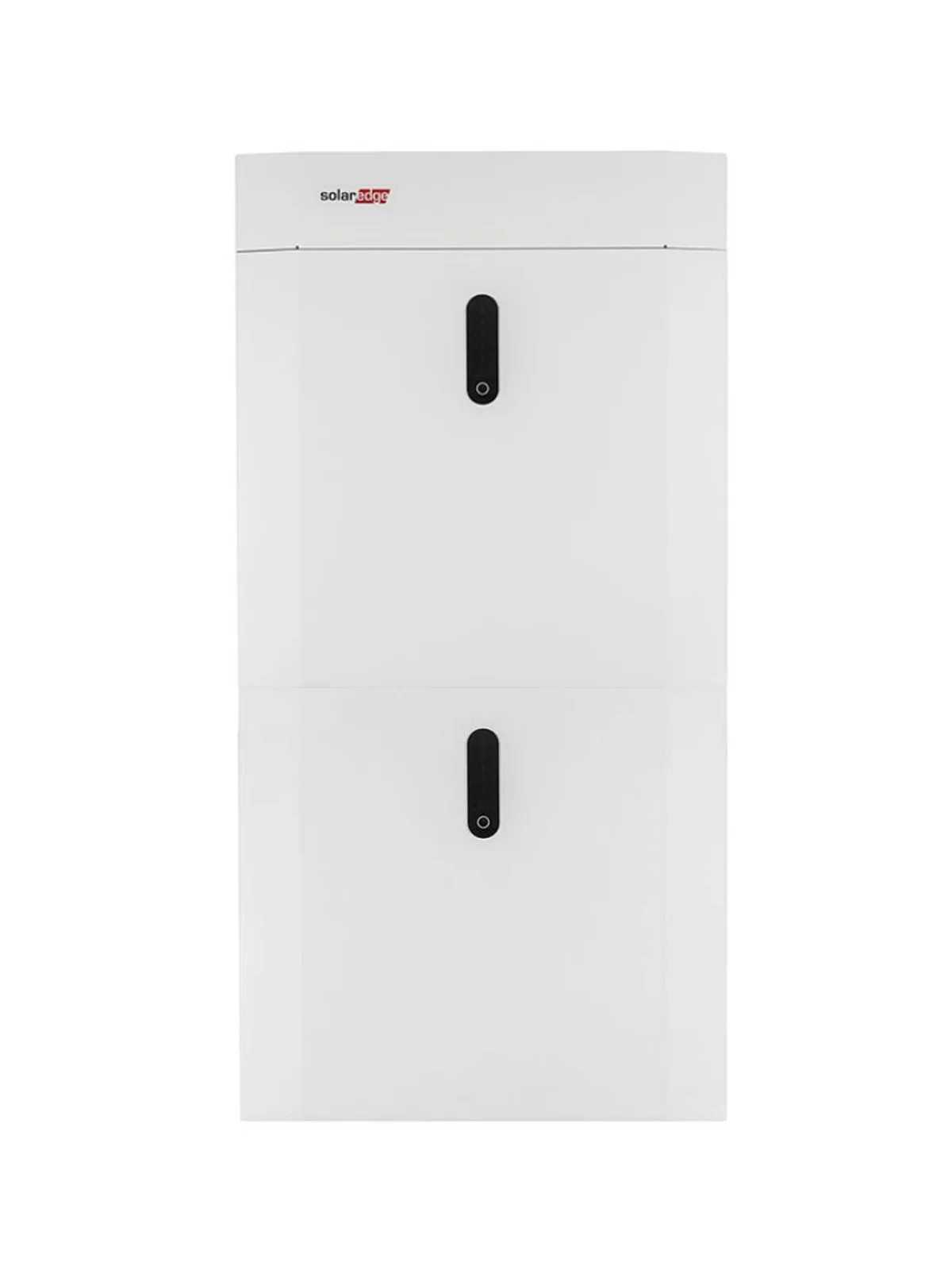

SolarEdge LV 9.2 kWh battery - Solar energy storage for your home

$5,426.4
BAT-05K48
0768563821769

The LV 9.2 Home Battery is a 9.2 kWh energy storage system specially designed for users of the SolarEdge Home ecosystem. This model is a DC-coupled battery, compatible with SolarEdge Home Hub and Wave three-phase inverters. It enables solar energy to be stored for optimized use in grid or standby mode.

Sorry, there are no more items in stock.

SolarEdge LV 9.2 kWh...

$5,426.4

Store your solar energy and become self-sufficient



The LV 9.2 Home Battery is a 9.2 kWh energy storage system specially designed to optimize solar energy storage with the SolarEdge Home ecosystem. This DC-coupled battery model is compatible with SolarEdge Home Hub and Wave three-phase inverters, enabling efficient storage of excess energy, even in the event of grid failure for backup* configurations.




Batterie domestique Solaredge 4.6 kWh



Key features



  • Storage capacity: 9.2 kWh
  • Compatibility: Designed for Europe, optimized for SolarEdge Home Hub and Wave inverters
  • Scalable installation: Up to 5 battery modules can be connected in two towers (up to 3 modules per tower)
  • Centralized management:
  • Monitoring of energy production and consumption via a single SolarEdge application
  • Energy efficiency: Up to 94.5% round-trip efficiency, maximized by DC coupling technology






Vue de l'intérieur de la batterie Solaredge

A complete solar storage solution



The SolarEdge Home LV 9.2 Batterystores excess solar energy thanks to the DC oversizing of SolarEdge inverters, up to 200%. This battery is designed to use this energy without conversion loss, directly stored for prolonged, optimized use.

Designed to work with SolarEdge Hub three-phase inverters, the LV 9.2 is a complete solution, from rooftop to grid, integrating Smart modules with power optimizers, intelligent devices and a backup interface.




Optimization and management via SolarEdge ONE



This battery is optimized by SolarEdge ONE, benefiting from advanced battery management modes to maximize efficiency. The SolarEdge ecosystem enables centralized monitoring of solar energy, storage, EV charging and connected devices.




Fast, flexible installation



  • Plug & Play installation: Fast, simple installation with automatic configuration via the SetApp smartphone app
  • Flexible installation options: Wall-mounted or ground-mounted, indoor or outdoor
  • Easy ordering: A single point of contact for products, warranties, after-sales service and training, ensuring smooth logistics




application MysolarEdge

Simplified maintenance with mySolarEdge



With the mySolarEdge mobile app, owners can easily monitor and manage battery performance:

  • Real-time data and complete visualization of battery performance
  • Automatic alerts with customized troubleshooting recommendations
  • Free lifetime supervision, accessible on computer and smartphone




Technical specifications



  • Round-trip efficiency:
  • Up to 94.5% thanks to DC coupling
  • Warranty period: 10 years
  • Stackable modules: Up to 5 modules per inverter for increased capacity
  • Battery modes: 4 battery modes optimized by SolarEdge ONE



*Backup configurations are subject to local regulations and may require the SolarEdge Backup interface and a connection to the Hub SolarEdge Home three-phase inverter.

BAT-05K48

Data sheet

Width
540 mm
Height
1000 mm
Nominal capacity
4600 Wh
Communication interfaces
RS485 between battery packs, CAN bus to inverter
Standard warranty (years)
10
Battery Type
Li-Ion - LFP
Battery Voltage Range
44.8 - 56.5 Vdc
Weight
109.4 kg
Noise
inférieur 25 dBA
Depth
240 mm
Continuous output power (charge/discharge) - for a single battery pack
2825/4096 W
Continuous output power (charge/discharge) - for multiple battery packs
5000/5000 W
Peak cycle efficiency
More than 95.4
Battery packs per inverter
Jusqu’à 5 connectés en parallèle

Specific References

New

Download

Fiche tech SolarEdge LV4.6

Download (182.1KB)

Installation Solaredge LV

Download (955.43KB)

Solaredge LV Battery Man

Download (3.66MB)
