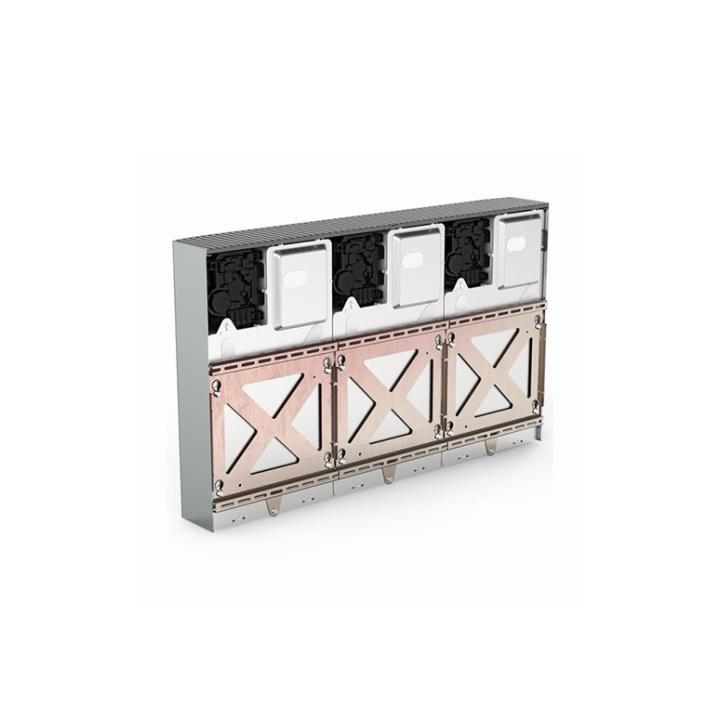

Enphase IQ 10T 10.5kWh AC lithium battery (cover kit not included)

Enphase IQ 10T 10.5kWh AC lithium battery (cover kit not included)

€9,268.60
Tax included
B03-T01-INT00-1-2

Enphase Encharge 10T: Optimize Your Energy Independence

The Enphase Encharge 10T storage system is designed to maximize the use of generated solar energy. Comprising three Encharge 3T storage units and twelve integrated microinverters, it offers a capacity of 10.5 kWh, making it ideal for households looking to reduce their reliance on the grid. Its simple installation and smart management make it a practical and efficient solution.

Why choose the Enphase Encharge 10T?

  • Efficiency: Store 10.5 kWh to ensure your home is powered autonomously.
  • Durability: Reliable technology with a 10-year warranty and passive cooling for extended lifespan.
  • Ease: Quick installation and compatibility with existing Enphase systems.
  • Intelligence: Optimized energy management, remote monitoring via mobile app, and regular software updates.

Benefits of Self-Consumption:

  • Lower your bills: Use the energy you generate.
  • Energy independence: Reduce the impact of power outages.
  • Reduced ecological impact: Lower your carbon footprint.

    Ready to move towards energy independence? Contact us for a personalized evaluation of your solar project.

    This product consists only of the battery.

    For a complete system, please add the Enphase IQ 10T battery cover kit.

    3 item(s) left in Stock!

    Enphase Encharge 10T solar storage system: The future of energy

    The Enphase Encharge 10T™ all-in-one AC-coupled storage system is reliable, intelligent, simple and safe. It consists of three Encharge 3T™ base storage units, has a total usable energy capacity of 10.5 kWh and twelve integrated microinverters rated at 3.84 kW.
    Installers can quickly design the right system size to meet the needs of new and retrofit customers.

    This product consists only of the battery.

    For a complete system, please add the Enphase IQ 10T battery cover kit.



    Reliable


    - IQ series microinverters with proven reliability
    - Ten-year limited warranty
    - Three independent Encharge storage base units
    - Twelve on-board IQ8X-BAT microinverters
    - Passive cooling (no moving parts/fans)



    Intelligent


    - Remote software and firmware updates
    - Mobile application-based monitoring and control
    - Support for self-consumption
    - Utility time-of-use (TOU) optimization



    Simple


    - Fully integrated AC battery system
    - Quick and easy plug-and-play installation
    - Interconnection with standard household AC wiring



    Safe


    - Safety-tested cells
    - Lithium iron phosphate (LFP) chemistry for safety and longevity




    icone bebat

    Important notice for our customers in Belgium: An environmental contribution of € 342.98 excluding VAT will be applied to the purchase of each Enphase IQ-Battery 10T lithium battery.

    More information at the bottom of the page.




    Features

    ENCHARGE-10T-1P-INT
    Encharge 10T™ battery storage system with integrated Enphase IQ series microinverters and battery management unit (BMU). Includes:
    - Three Encharge 3T™ base units (B03-T01-INT00-1-2)
    - An Encharge 10T™ cover kit with lid, wall mounting bracket, and interconnection cable for wiring between batteries (B10T-C-1290-O)
    OUTPUT (AC)
    Nominal Output Power (Continuous) 3.84 kVA
    Nominal Voltage / Range
    230/207—264 VAC
    Nominal Frequency / Range 50/47—52Hz
    Nominal Output Current 16.7 A
    Power Factor (Adjustable)
    0.85 leading ... 0.85 lagging
    Maximum Units per 20A Breaker Circuit
    1 unit (single-phase)
    Interconnection Single-phase
    Maximum AC Short-Circuit Fault Current (over 3 cycles) 69.6 Arms
    Round-trip Efficiency1 89%
    THE BATTERY
    Total Capacity 10.5 kWh
    Usable Capacity 10.5 kWh
    Round-trip Efficiency 96%
    Nominal DC Voltage 67.2 V
    Maximum DC Voltage 75.6 V
    Operating Ambient Temperature Range
    -15º C to 55º C (5º F to 131º F) without condensation
    Optimal Operating Temperature Range
    0º C to 30º C (32º F to 86º F)
    Chemistry
    Lithium Iron Phosphate (LFP)
    MECHANICAL DATA
    Dimensions (LxHxD)
    1283 x 775 x 188 mm (50.5 x 30.5 x 7.4 inches)
    Weight
    Three individual base units of 40.5 kg (89.3 lb) plus a lid and mounting bracket of 22.1 kg (48.7 lb); total 143.6 kg (316.5 lb)
    Enclosure Outdoor – IP55
    IQ8X-BAT Microinverter Enclosure IP67
    Cooling
    Natural convection – No fans
    Altitude
    Up to 2500 meters (8200 feet)
    Mounting Wall mount
    FEATURES AND COMPLIANCE
    Compatibility
    Compatible with grid-connected PV systems. Compatible with Enphase M215/M250 and IQ Series microinverters and Enphase Envoy-S.
    Communication Wireless 2.4 GHz
    Service Features
    Self-consumption, TOU, Demand Charge, NEM Integrity
    Monitoring
    Enlighten Manager and MyEnlighten monitoring options; API integration
    Compliance
    UN 38.3, EN 62040.1, VDE AR-N 4105:2018
    EMI: CE, EFT, ESD, Surge, dips and interruptions, CRF Cell Module:
    IEC 62619:2017, UN 38.3, UL1973, UL9540A Inverters: EN 62109-1, EN
    62109-2, EN 62909-1:2017, EN 50549 -1:2019
    LIMITED WARRANTY
    Limited Warranty2
    > 70% capacity, up to 10 years or 4000 cycles


    Installation with Enphase systems

    Schéma installation en Enphase



    - 1 Enphase IQ Battery

    - 2 Enphase M-series or Enphase IQ-series microinverter/inverter Inverter

    - 3 Enphase communication kit and signal amplifier

    - 4 IQ Gateway Metered - network communication device

    - 5 Enphase App

    - 6 IQ Relay - network system relay controller




    icone bebat

    Important notice for our customers in Belgium:


    As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Enphase IQ-Battery 10T battery is subject to a mandatory environmental contribution. An amount of €342.98 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here

    Here is the reference list and the corresponding fee!


    When purchasing lithium batteries, please add the following product Environmental contribution Bebat Enphase IQ-Battery 10T corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.



    B03-T01-INT00-1-2

    Data sheet

    Technology
    Lithium
    Width
    1283 mm
    Height
    775 mm
    Rated output power
    3.84 kVA
    Rated output current
    16,7 A
    Power factor
    0.85 (capacitive) 0.85 (inductive)
    Rated voltage
    230/184-253 V AC
    Nominal frequency
    50/47-52Hz
    Depth
    188 mm
    Interconnection
    Single-phase
    Total capacity
    10.5 kWh
    Useful capacity
    10.5 kWh
    Round-trip efficiency
    96%
    Rated DC voltage
    67,2 V
    Tension continue maximale
    75,6V
