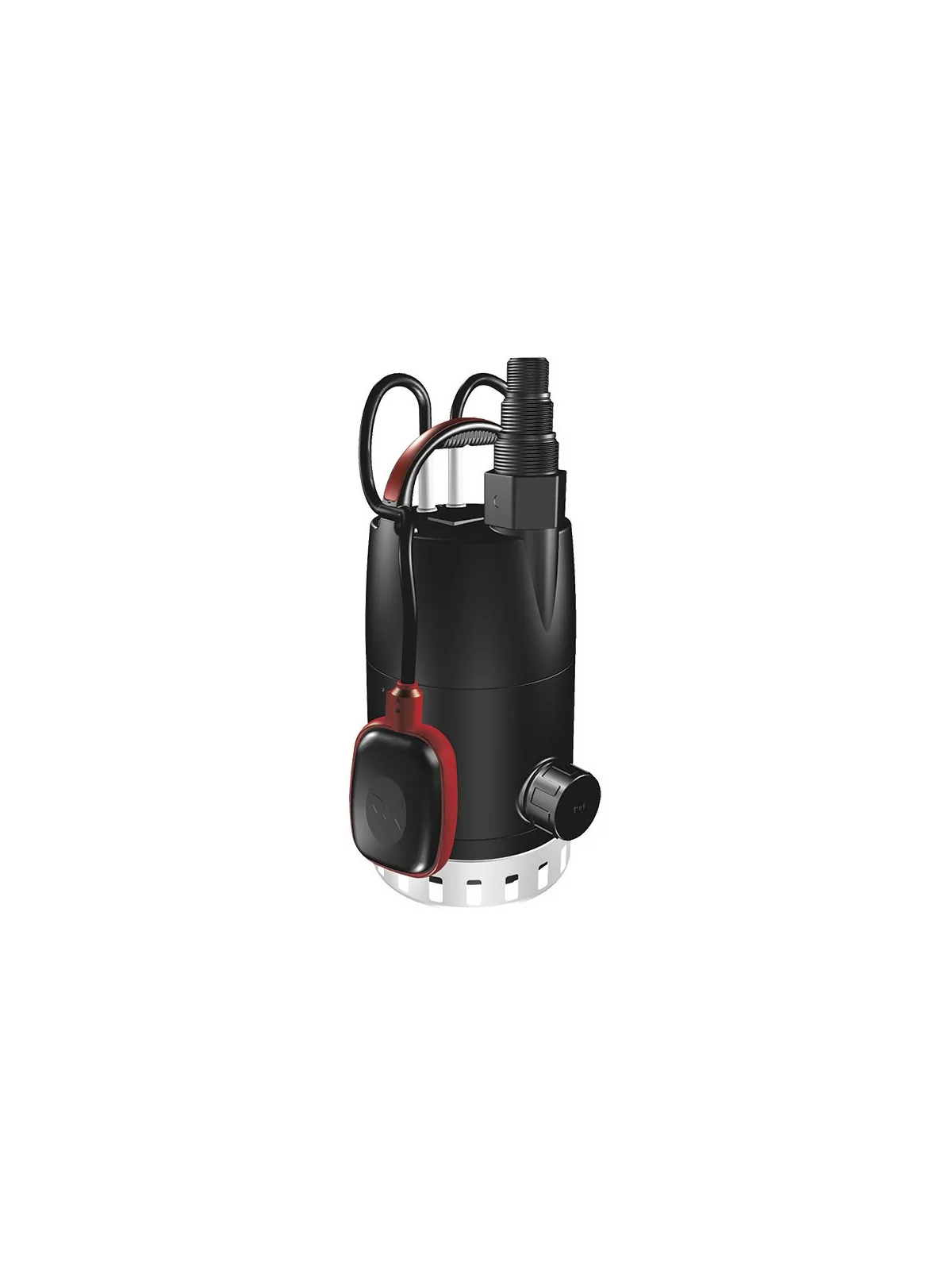

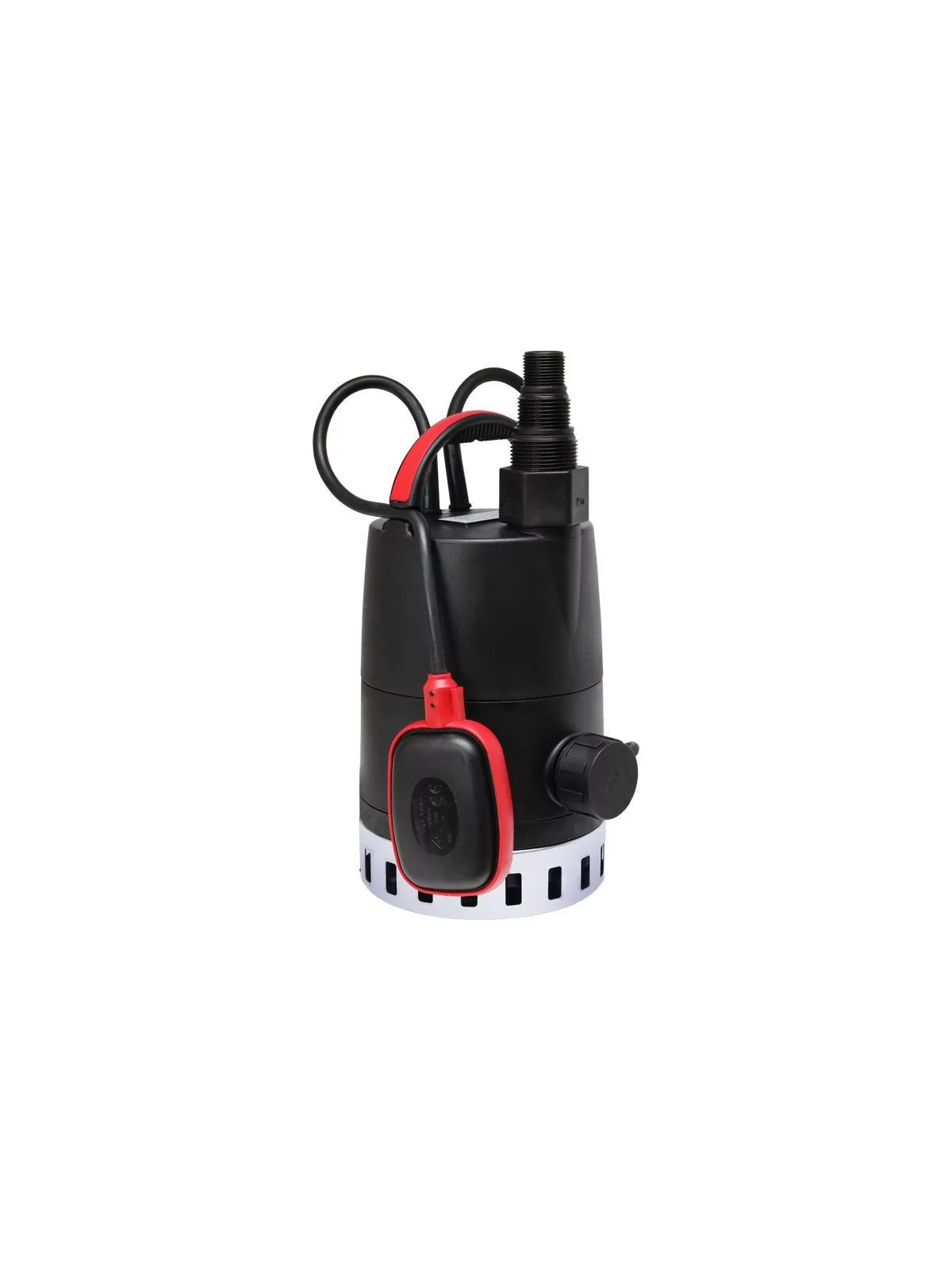

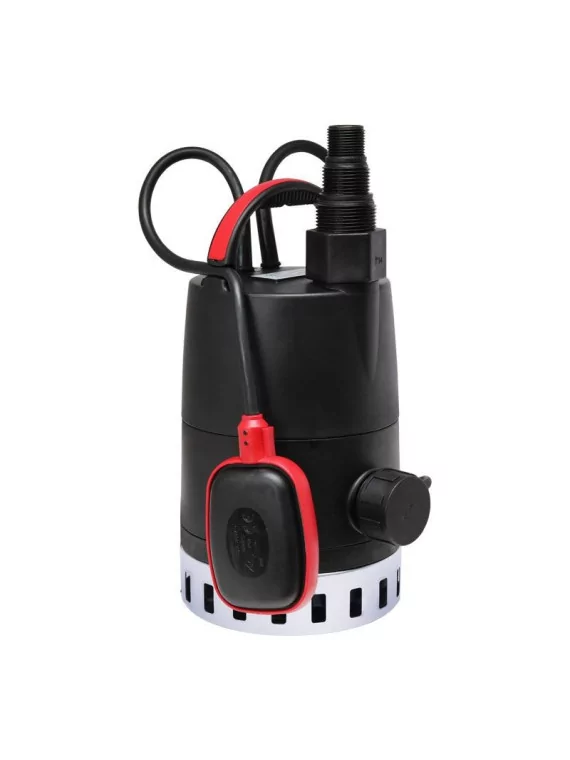

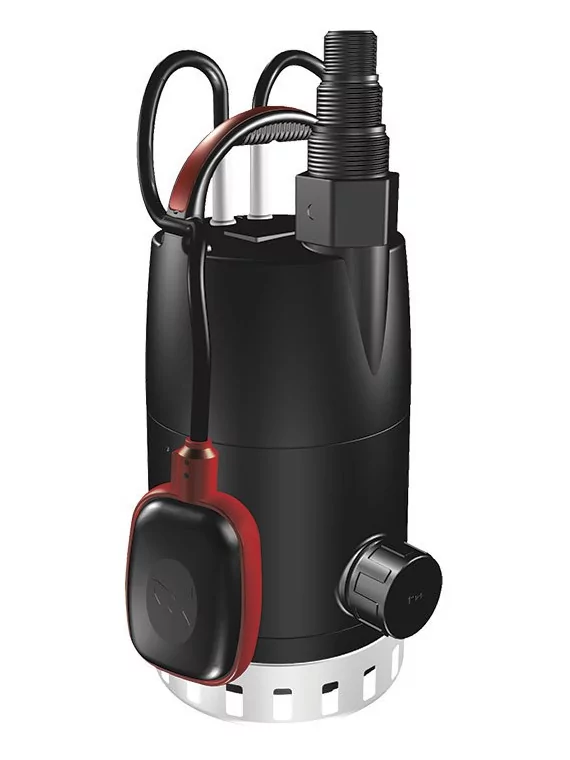

Grundfos pump Unilift CC
€279.17
Tax included
10030
0712971135994
UNILIFT CC are submersible pumps designed for the pumping of clear, non-aggressive water and slightly loaded (gray) wastewater.
-petit logo.png){kind=logo}
100% secure payments
Customers who bought this product also bought:
UNILIFT CC are submersible pumps designed for the pumping of clear, non-aggressive water and slightly loaded (gray) wastewater. The Unilift CC can ensure a low suction up to 3 mm and can be used both in fixed and mobile pumping installations.
The Unilift CC is a single-stage submersible drainage pump, designed for the pumping of drain water and grey wastewater. The Unilift CC has now the dual outlet option which makes installation more flexible and replacement even easier than before. Connect vertically or horizontally – as you like. The Unilift CC can pump down to a water level of 3 mm above the floor when removing the strainer. The Unilift CC is suitable for permanent as well as temporary installation. It is fitted with a non-return valve in the outlet in order to prevent backflow from the piping system. An adaptor ensures good connections to ¾ ”, 1” or 1 ¼ ” outlets.
The strainer is made of stainless steel, while the main pump parts, e.g. the sleeve and pump housing, are made of moulded composite materials.
| CC 5 A1 guide bar | CC 7 A1 guide bar | CC 9 A1 guide bar | CC 5 | CC 7 | CC 9 | CC 5 A1 | CC 7 A1 | CC 9 A1 | |
| Liquid temperature | +4 °C => +40 °C 70 ° C for 2 min, in intervals of at least 30 min | ||||||||
| Protection class | IP 68 | ||||||||
| Insulation class | F | ||||||||
| Wheel Type | Semi-open | ||||||||
| Backups | 2 discharge backups to choose from: from the top, to the side | ||||||||
| Cable with Schuko plug | |||||||||
| Câble (m) | 10 | ||||||||
| Float switch | Yes, with float switch | Yes, with float switch | Yes, with float switch | No | No | No | Yes | Yes | Yes |
| Output | G 1¼ | ||||||||
| Power (W) | 240 | 380 | 780 | 240 | 380 | 780 | 240 | 380 | 780 |
| nom (A) | 1,10 | 1,70 | 3,70 | 1,10 | 1,70 | 3,70 | 1,10 | 1,70 | 3,70 |
| Maximum cross section | ∅10 | ||||||||
| Pumping at ground level up to 3 mm. | |||||||||
| Material | Composite | ||||||||
Applications
The pumps are designed for pumping rainwater or grey wastewater from:
- Washing machines, bath tubs, showers, sinks, etc.
- Cellars or buildings prone to flooding
- Draining wells
- Collecting wells for surface water with inlets from roof gutters, tunnels, etc.
- Swimming pools, ponds or fountains
The Unilift CC pumps are suitable for the following liquids:
Clean, non-aggressive water
Slightly dirty (grey) wastewater
EN 1.4401 version available for slightly aggressive liquids
Features and benefits
- Horizontal or vertical outlet for easy installation or replacement
- Suitable for low suction levels down to 3mm
- Light-weight
- EN 1.4401 version available for slightly aggressive liquids
- Stainless steel strainer
- Composite materials
Example
With a CC pump 7, for a lifting height of 4m, the drawn length would be 28m with a flow rate of 5m³/h.
The heights and lengths given in this diagram are given for information only. The liability of Wattuneed and Grundfos can not be incurred.
