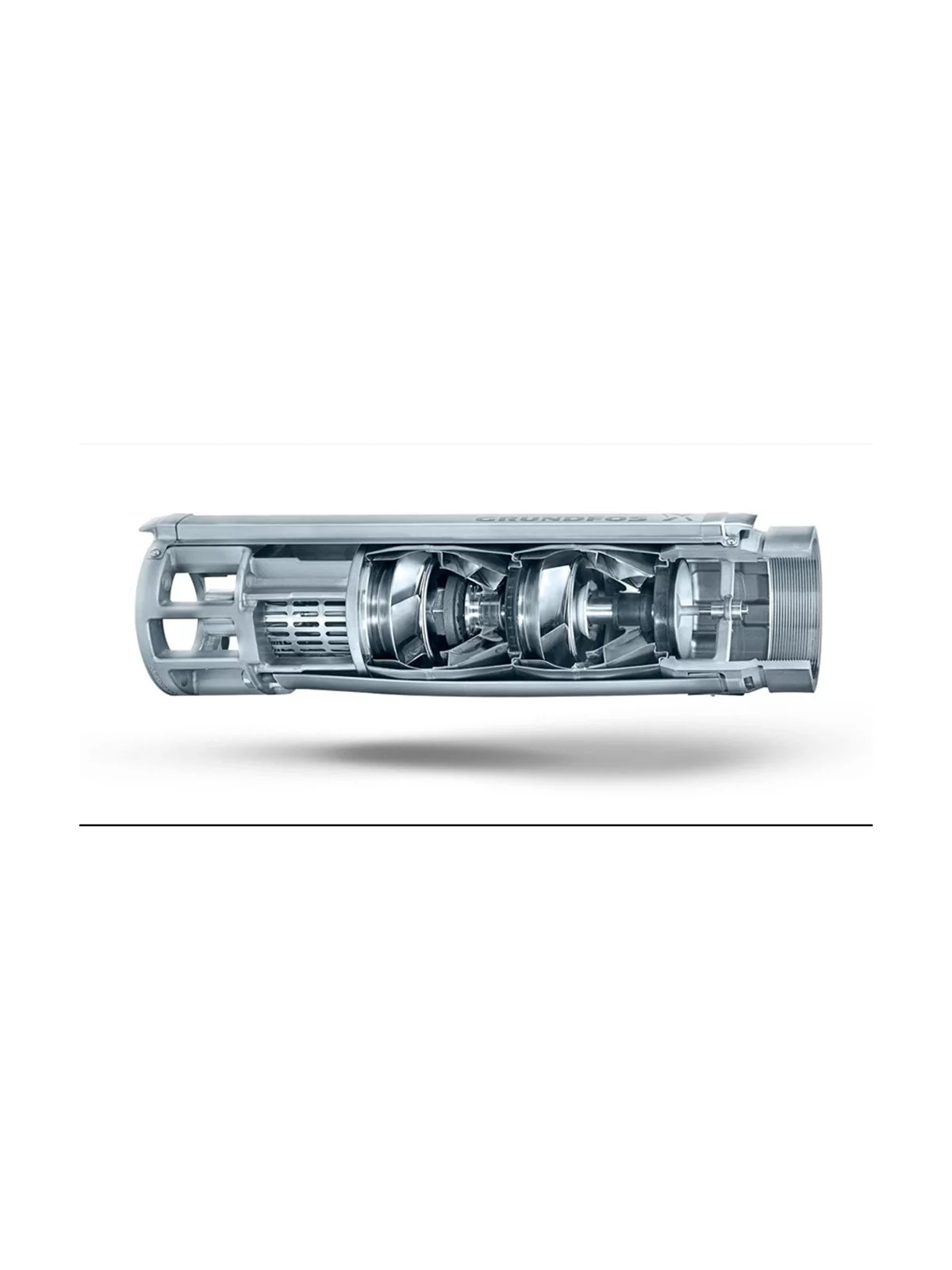

Immersed pump Grundfos SP 17

Grundfos

1 600,83 € tax incl.

Options

Them Grundfos SP submersible pumps are renowned for their high performance and reliability across the range.

SP 17 pumps are recommended for a performance of 70% to 75% at a height between 5 m and 475 m for a flow between 12 m³/h and 18 m³/h.

Logo Grundfos

More details

More info

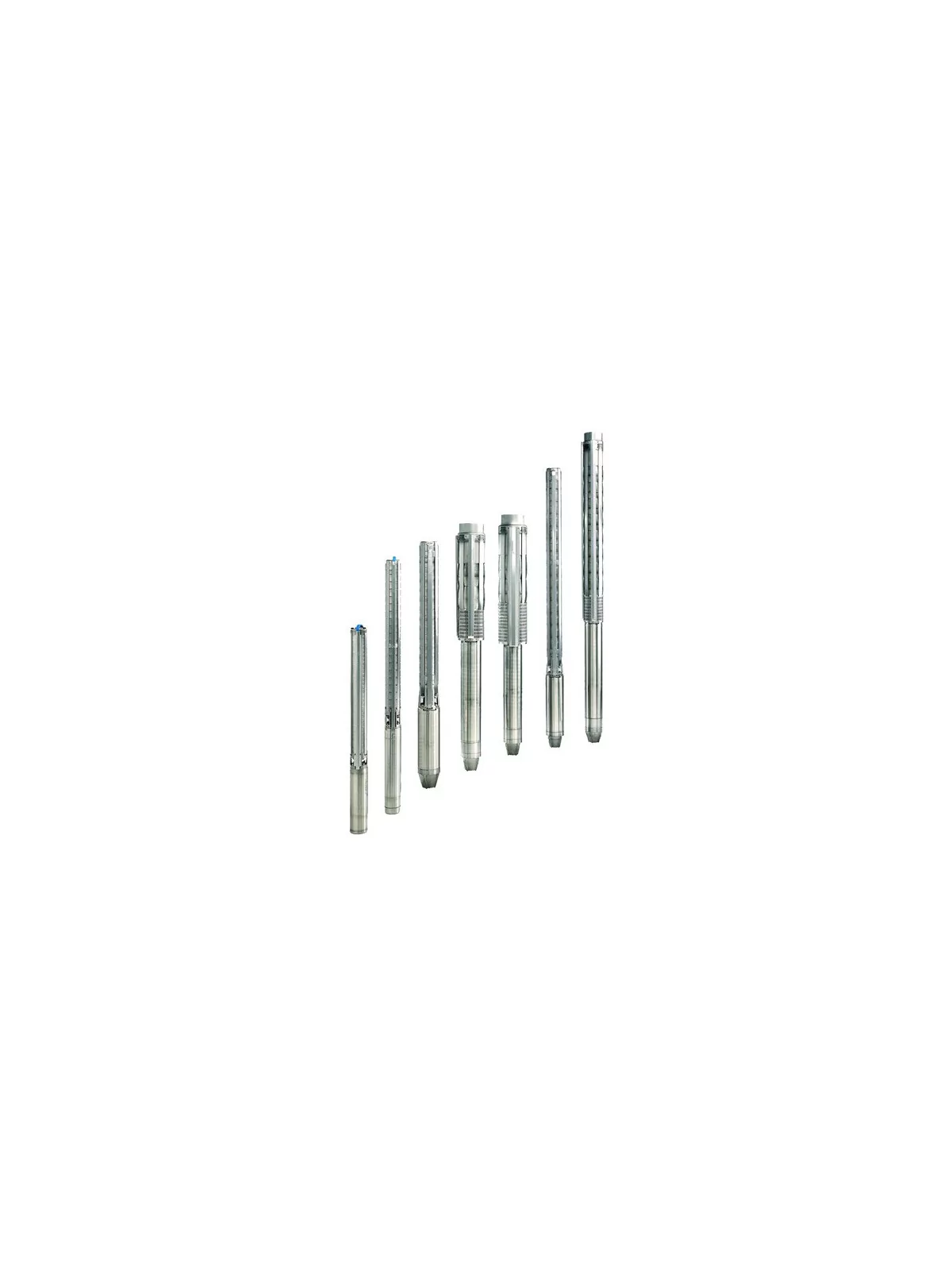

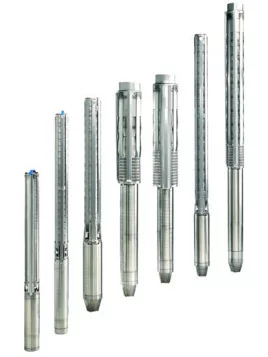

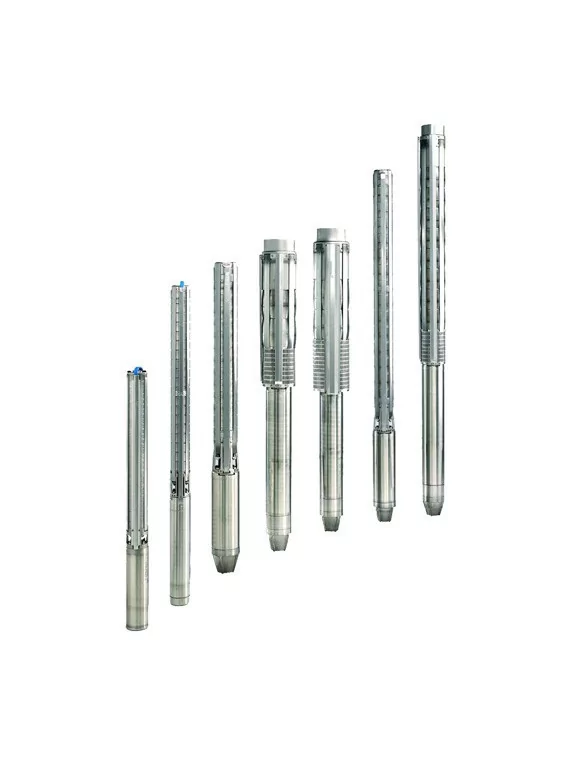

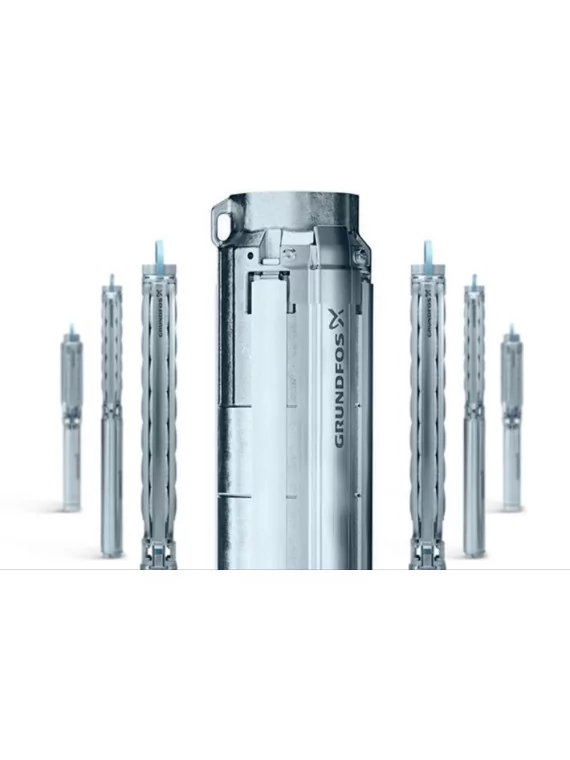

Grundfos SP





Reliable and resistant, a pump for multiple applications





Them Grundfos SP submersible pumps are renowned for their high performance and reliability across the range. Manufactured entirely in stainless steel, corrosion-resistant, the SP pumps are ideal for a multitude of applications.

SP Grundfos pumps represent what it does best in hydraulics. Designed to provide optimal performance during periods of high demand, the SP pumps offer low long-term costs and a high operating reliability regardless of the application.

The range SP Grundfos is characterized by a high-performanceone high level of resistance to the sand and abrasivesone protection against the breakdown of the engine and a easy maintenance. A comprehensive system of monitoring and control is available for a constant optimization of the pumping system.











The SP pumps are suitable for the following applications:

  • Groundwater of the network of water supply

  • Irrigation in horticulture and agriculture

  • Water table drawdown

  • Overpressure

  • Industrial applications











Features and benefits

  • Hydraulics at the forefront of technology, for high performance and low operating costs

  • Interior and exterior 100% stainless steel

  • Resistance to the sand

  • Resistance to corrosive water

  • Protection against the breakdown of the engine

  • Protection against dry running

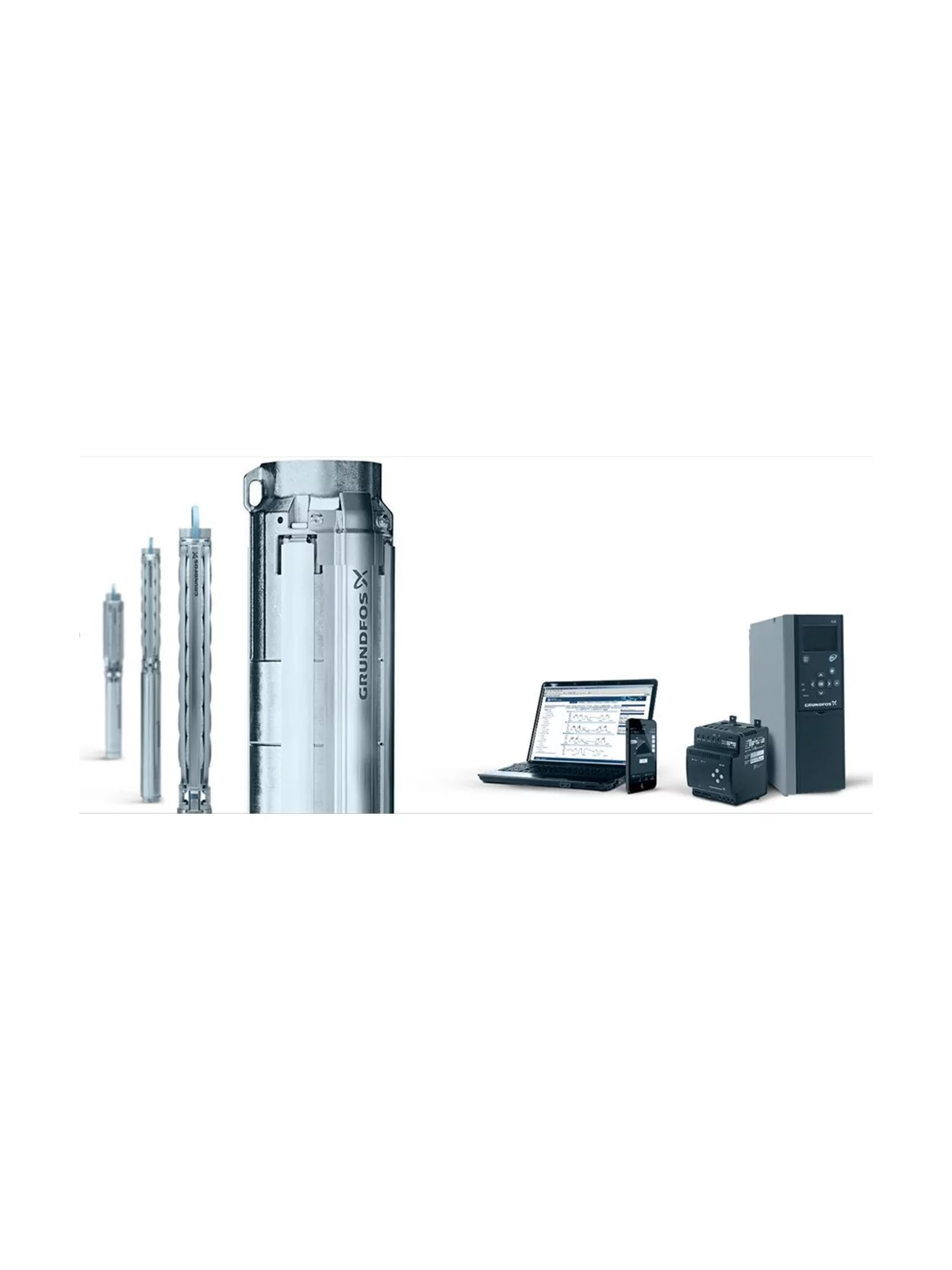

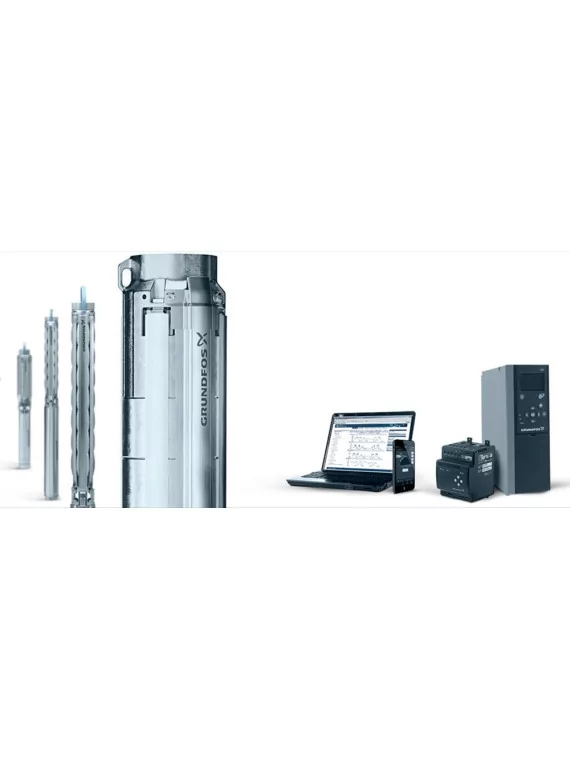

  • Monitoring, protection and communication via the MP 204 protection unit and the R100 remote controller















In brief

  • High-performance

  • Corrosion resistance

  • Full range of pumps and motors





Pump SP 17ASP 17-1SP 17-2SP 17-3SP 17-4SP 17-5SP 17-6SP 17-7SP 17-8SP 17-9SP 17-10SP 17-11SP 17-12SP 17-13SP 17-14SP 17-15SP 17-16
Temperature liquid+ 40 ° C max
Index of protectionIP 68
MEI≥ 0.7
MaterialsStainless Steel AISI 304
Floors17
Voltage3 x 230V or 3 x 400V
Diameter pump6 "
Motor diameter4 "6 "
ConnectionRP 2 ½
Power (kW)0.551.12.22.23445.55.55.57.57.57.59.29.29.2
In (A) 3x230V46.2101014.617.617.624.224.224.232323239.539.539.5
In (A) 3 x 400V2.23.45.55.57.99.69.613131317.617.617.621.821.821.8
Cable (m)1.7



Pump SP 17ASP 17-17SP 17-18SP 17-19SP 17-20SP 17-21SP 17-22SP 17-23SP 17-24SP 17-25SP 17-26SP 17-27SP 17-28SP 17-29SP 17-30SP 17-31SP 17-32
Temperature liquid+ 40 ° C max
Index of protectionIP 68
MEI≥ 0.7
MaterialsStainless Steel AISI 304
Floors17
Voltage3 x 230V or 3 x 400V
Diameter pump6 "
Motor diameter6 "
ConnectionRP 2 ½
Power (kW)9.21111111313131315151518.518.518.518.518.5
In (A) 3x230V39.545454554.554.554.554.562626276.576.576.576.576.5
In (A) 3 x 400V21.824.824.824.8303030303434344234343434
Cable (m)1.7 5




Pump SP 17ASP 17-33SP 17-34SP 17-35SP 17-36SP 17-37SP 17-38SP 17-39SP 17-40SP 17-43SP 17-45SP 17-48
Temperature liquid+ 40 ° C max
Index of protectionIP 68
MEI≥ 0.7
MaterialsStainless Steel AISI 304
Floors17
Voltage3 x 230V or 3 x 400V
Diameter pump6 "
Motor diameter6 "
ConnectionRP 2 ½R3
Power (kW)18.522222222222222262626
In (A) 3x230V76.587.587.587.587.587.587.587.5104104104
In (A) 3 x 400V3448484848484848575757
Cable (m)5















Height and flow adviceHeight (m)Height min (m)Flow min. height recommendedMax for height min. recommended flowPerformance
SP 17-110512 m³/h18 m³/h70-75%
SP 17-21713
SP 17-32723
SP 17-43730
SP 17-54737
SP 17-66045
SP 17-76752
SP 17-88060
SP 17-99067
SP 17-109773
SP 17-1111083
SP 17-1212090
SP 17-1312795
SP 17-14140105
SP 17-15147115
SP 17-16157120
SP 17-17167127
SP 17-18170135
SP 17-19180140
SP 17-20195150
SP 17-21210160
SP 17-22220165
SP 17-23230170
SP 17-24235180
SP 17-25250190
SP 17-26260195
SP 17-27270200
SP 17-28280215
SP 17-29290220
SP 17-30300230
SP 17-31310235
SP 17-32320240
SP 17-33325250
SP 17-34340260
SP 17-35350265
SP 17-36360270
SP 17-37370275
SP 17-38375280
SP 17-39380290
SP 17-40390300
SP 17-43430330
SP 17-45445340
SP 17-48475360
