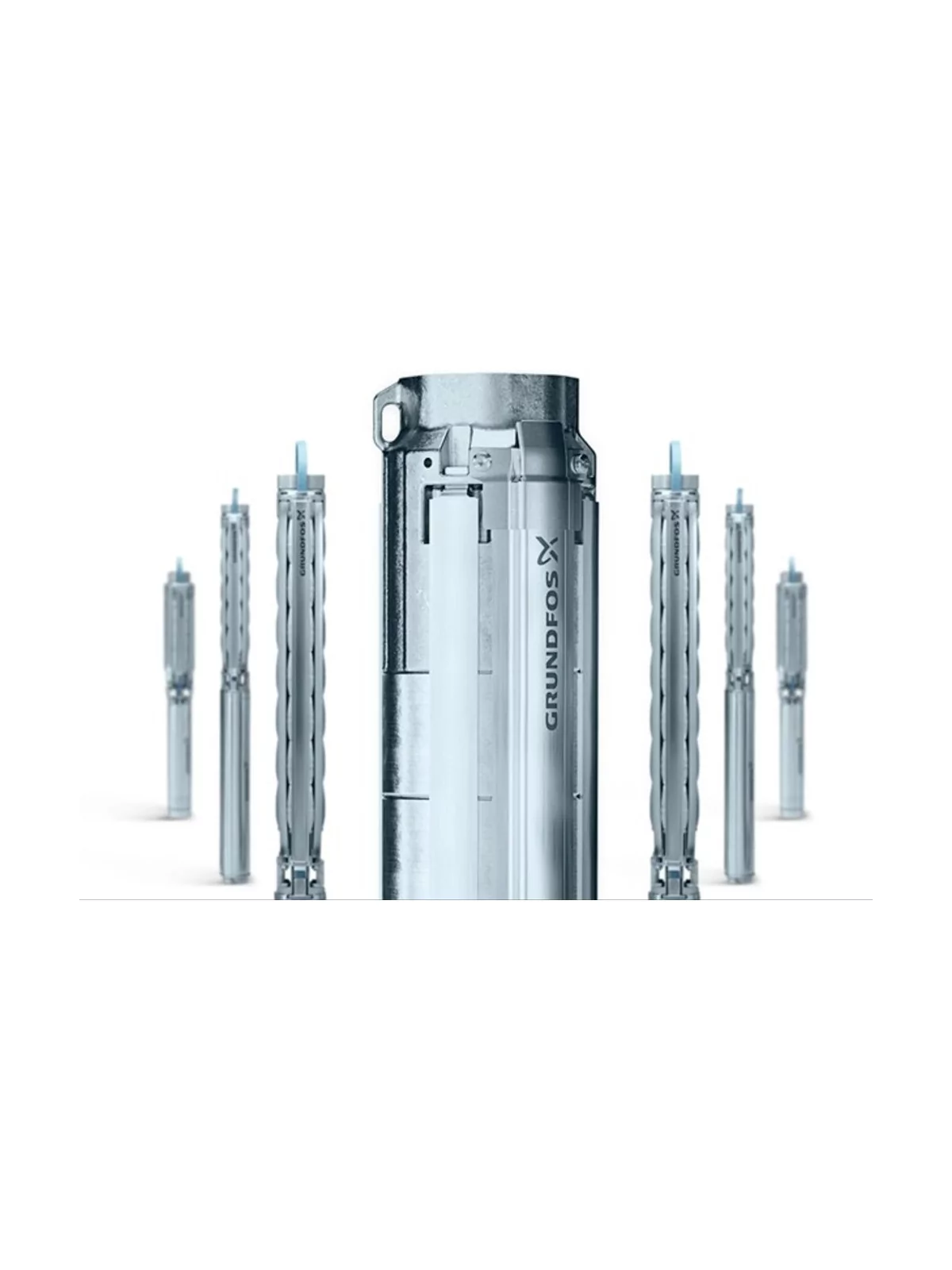

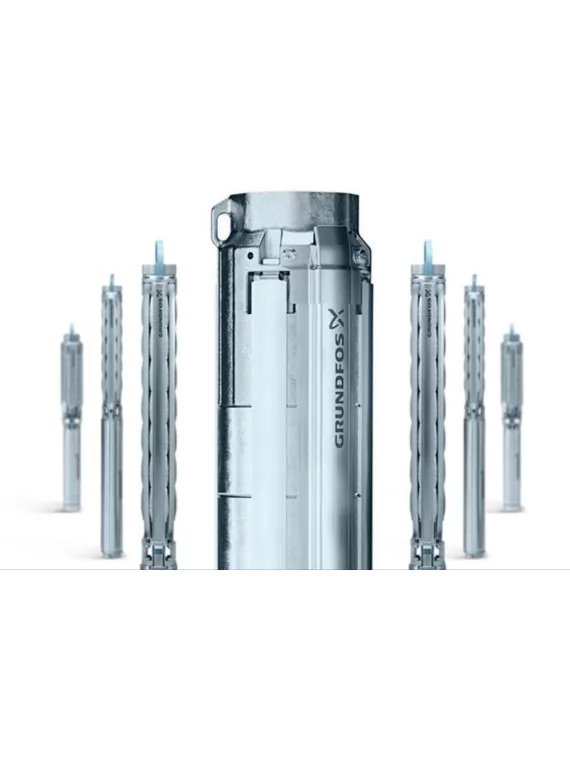

    Immersed pump Grundfos SP 11
    Immersed pump Grundfos SP 11
    Immersed pump Grundfos SP 11
    Immersed pump Grundfos SP 11
    Immersed pump Grundfos SP 11
    Immersed pump Grundfos SP 11
    Immersed pump Grundfos SP 11
    Immersed pump Grundfos SP 11
    Immersed pump Grundfos SP 11

    Immersed pump Grundfos SP 11

    $1,229.4
    10018
    0712971135871

    Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range.

    The SP 11 pumps are recommended for a 70% efficiency at a height between 10m and 130m for a flow rate between 10m³/h and 14m³/h.

    Logo Grundfos

    Pump model SP: 3x 230V SP 11-3

    Immersed pump Grundfos SP 11

    $1,229.4

    Grundfos SP

    " Reliable and robust, a pump for multiple applications "



    Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SP pumps are ideal for a wide variety of applications.

    Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.

    The Grundfos SP range offers high efficiency, high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.


    The pumps are suitable for



    • Groundwater supply to waterworks

    • Irrigation in horticulture and agriculture

    • Groundwater lowering

    • Pressure boosting

    • Industrial applications.

    Features and benefits



    • State-of-the-art hydraulics provide high efficiency and low operating costs

    • 100 % stainless steel inside and outside

    • Sand resistant

    • Resistant to aggressive water

    • Motor burnout protection

    • Dry-running protection

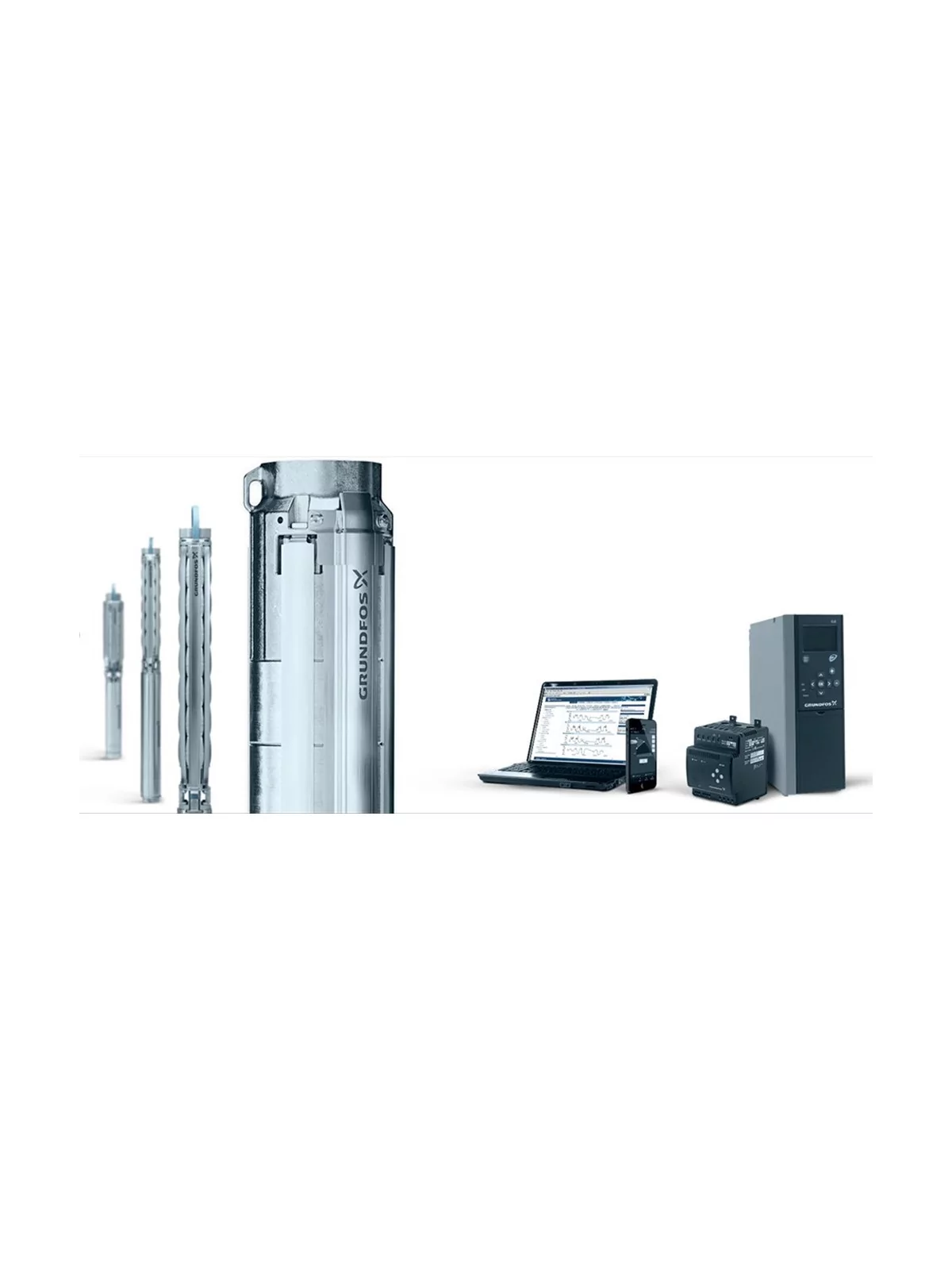

    • Monitoring, protection and communication via the MP 204 protection unit and the R100 remote control.

    In short



    • High efficiency

    • Corrosion-resistant

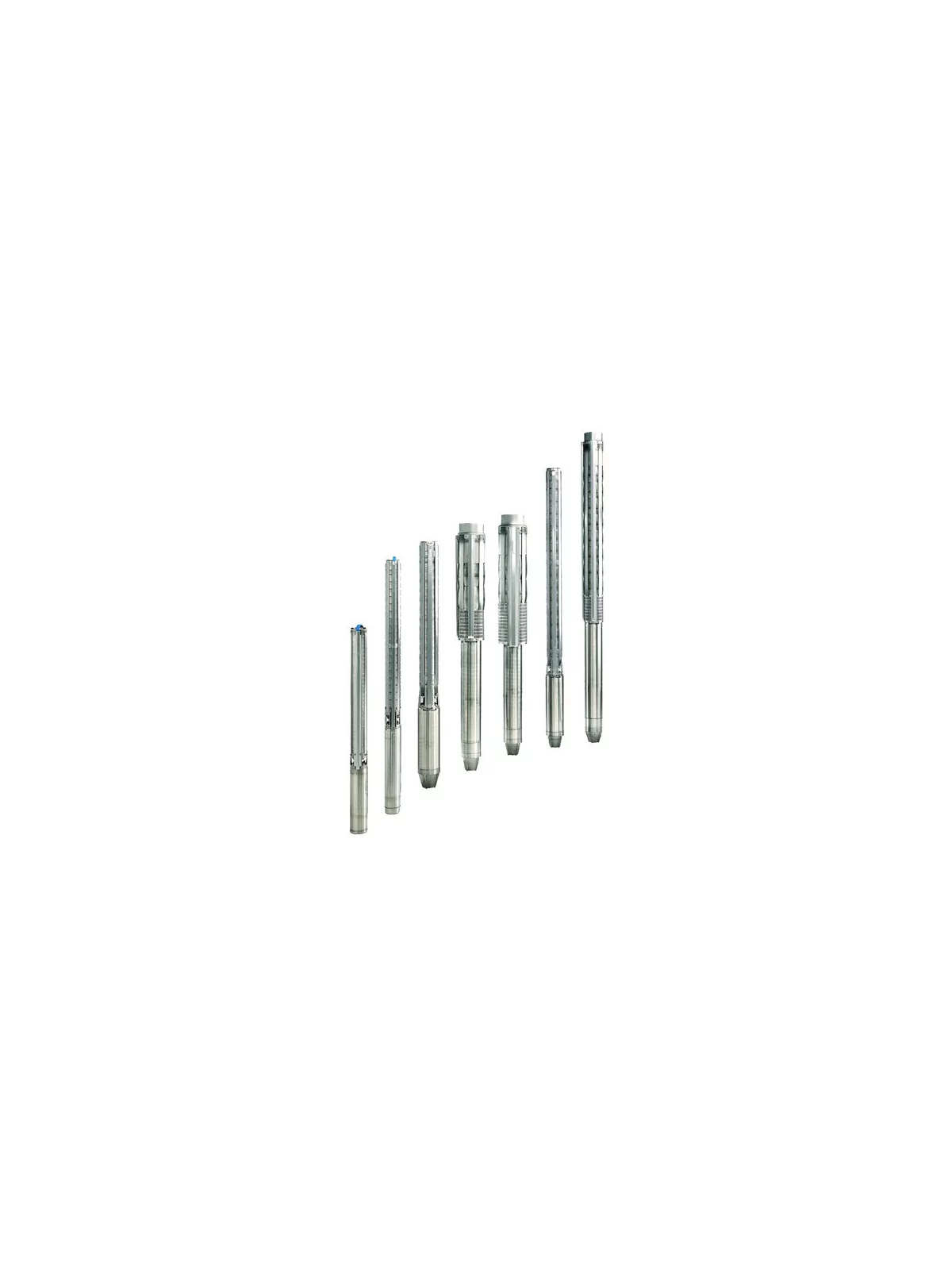

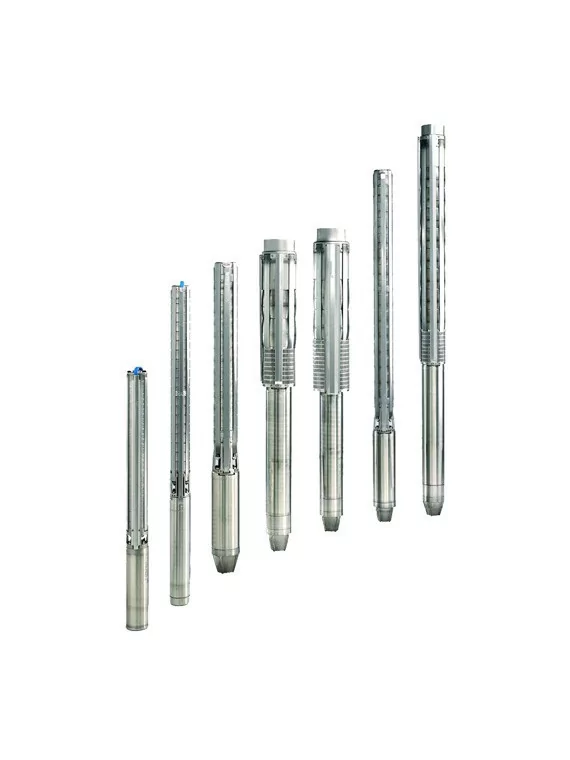

    • Complete range of pumps and motors SP System


    Pump SP 11SP 11-3SP 11-5SP 11-7SP 11-11SP 11-15SP 11-20SP 11-24SP 11-27
    Liquid temperature+40 °C max
    Protection classIP 68
    MEI≥ 0,55
    MaterialStainless steel AISI 304
    Stages11
    Voltage3x 230V or 3x 400V
    Pump diameter4"
    ConnectionRp 2
    Power (kW)0,751,11,52,2345,55,5
    In (A) 3x 400V2,33,44,25,57,99,61313
    Cable (m)1,72,5

    Recommended Height and FlowSP 11-3SP 11-5SP 11-7SP 11-11SP 11-15SP 11-20SP 11-24SP 11-27
    Height max (m)152533755395117133
    Height min (m)1017233770758595
    Min flow (at the max. height recommended)10 m³/h
    Max flow (at recommended height min)14 m³/h
    Yield70%
