    Professional quality for high current measurements without contact.

    Ac+DC current measurement up to 100 A.

    Amperometric clamp extremely compact for a reliable measurement of AC or DC.

    Only use of one hand thanks to the ergonomic box.

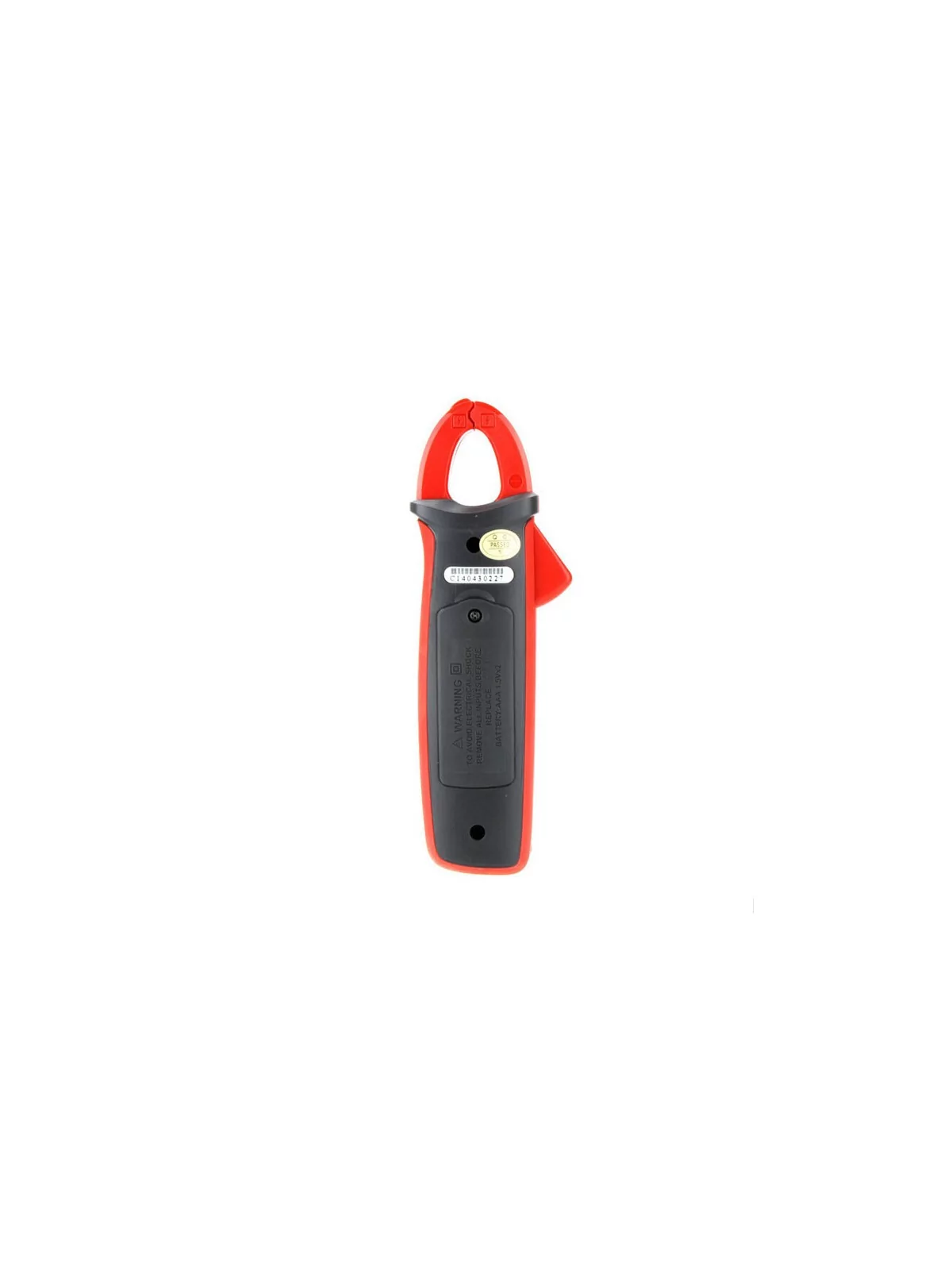

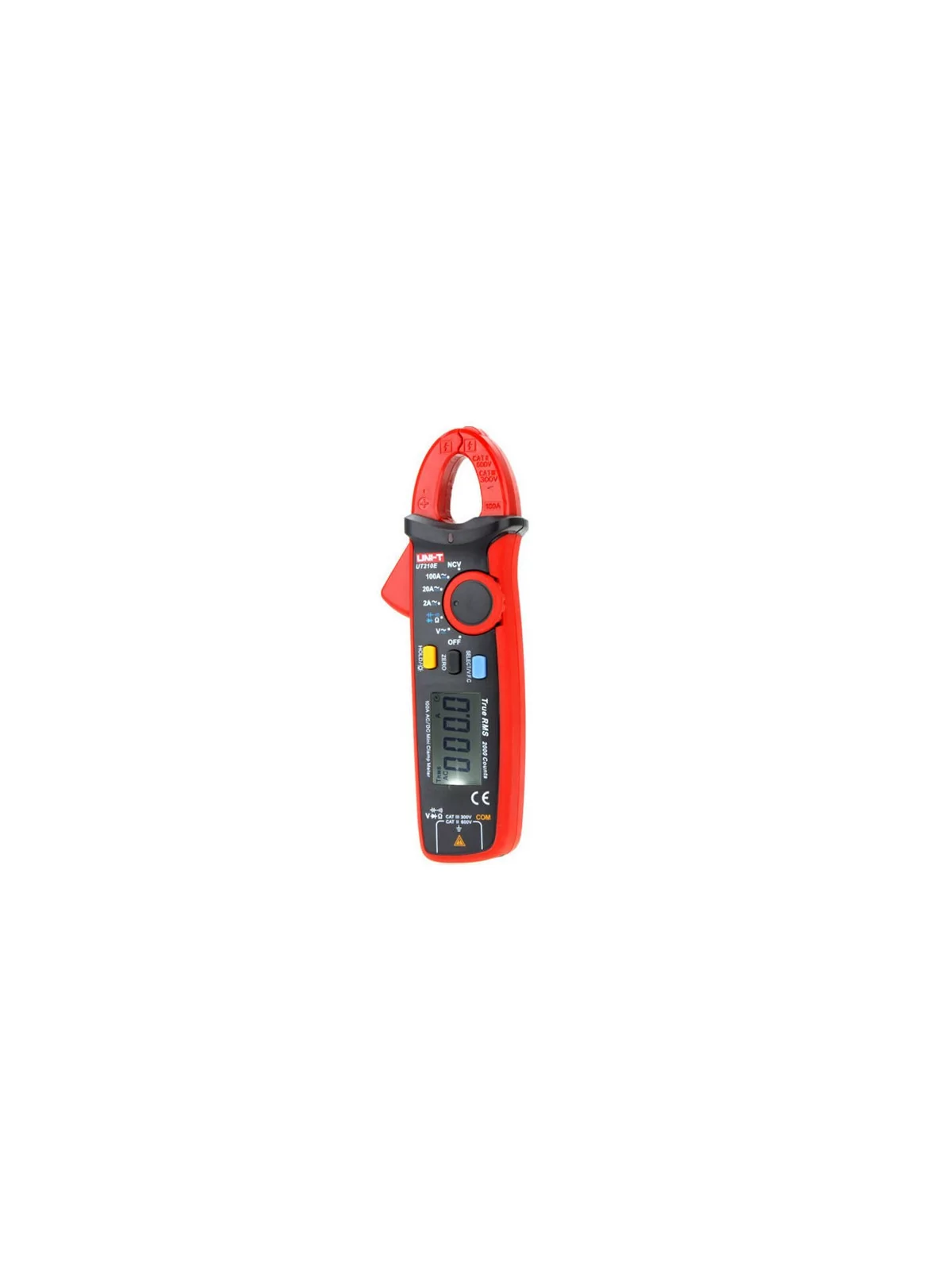

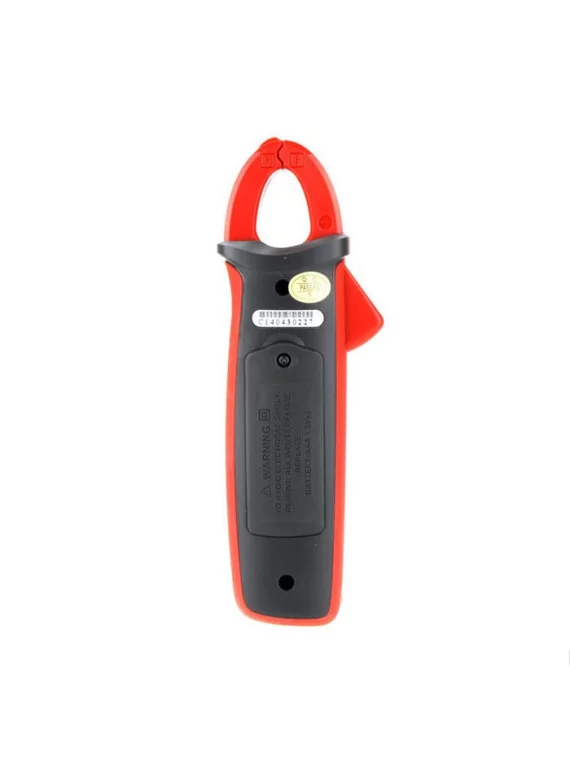

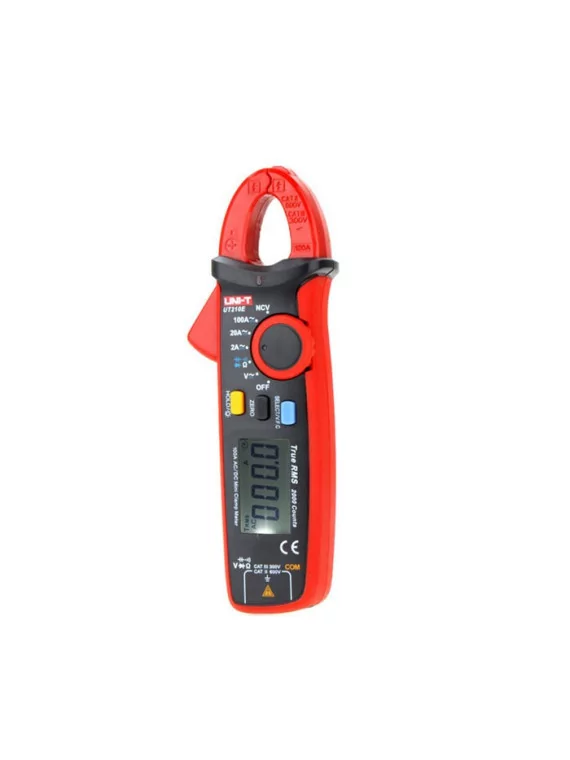

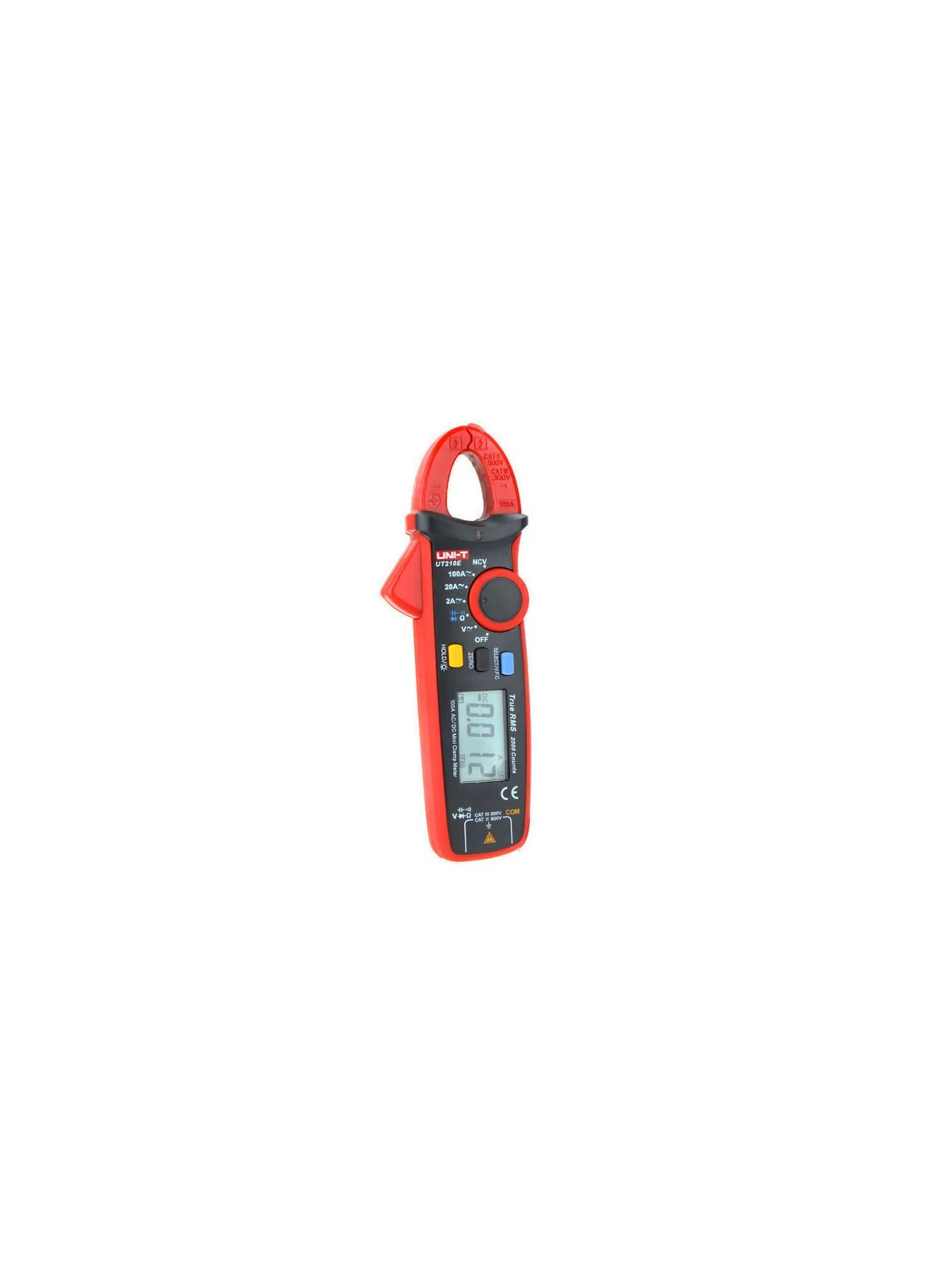

    DC amperometric clamp

    $66.9

    " Compact amperometric clamp for a reliable measurement of AC or DC "



    Description



    amperometric Clam

    DC current clamp supplied in a protective hard case.

    Compact and ergonomic, the clamp is ideal for accurate and reliable measurement of AC and DC current .



    Functionalities

    - Maintenance of the measure (hold)

    - Auto power off

    - Only use of one hand thanks to the ergonomic box

    - Measured voltage, frequency, resistance and intensity

    - Diode test

    - Audible continuity test

    - Measurement range (AC-DC): 2A/20A/100A

    - Measurement range (voltage AC-DC): 200mV/2V/20V200V/600V

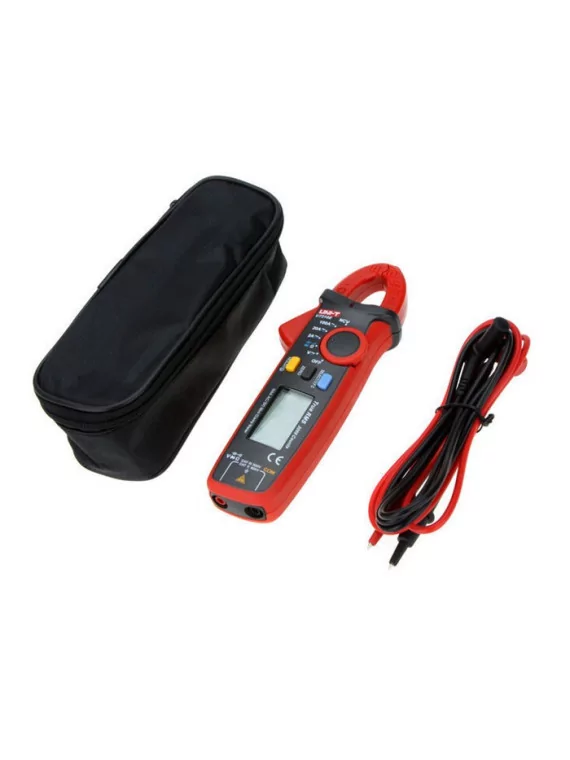

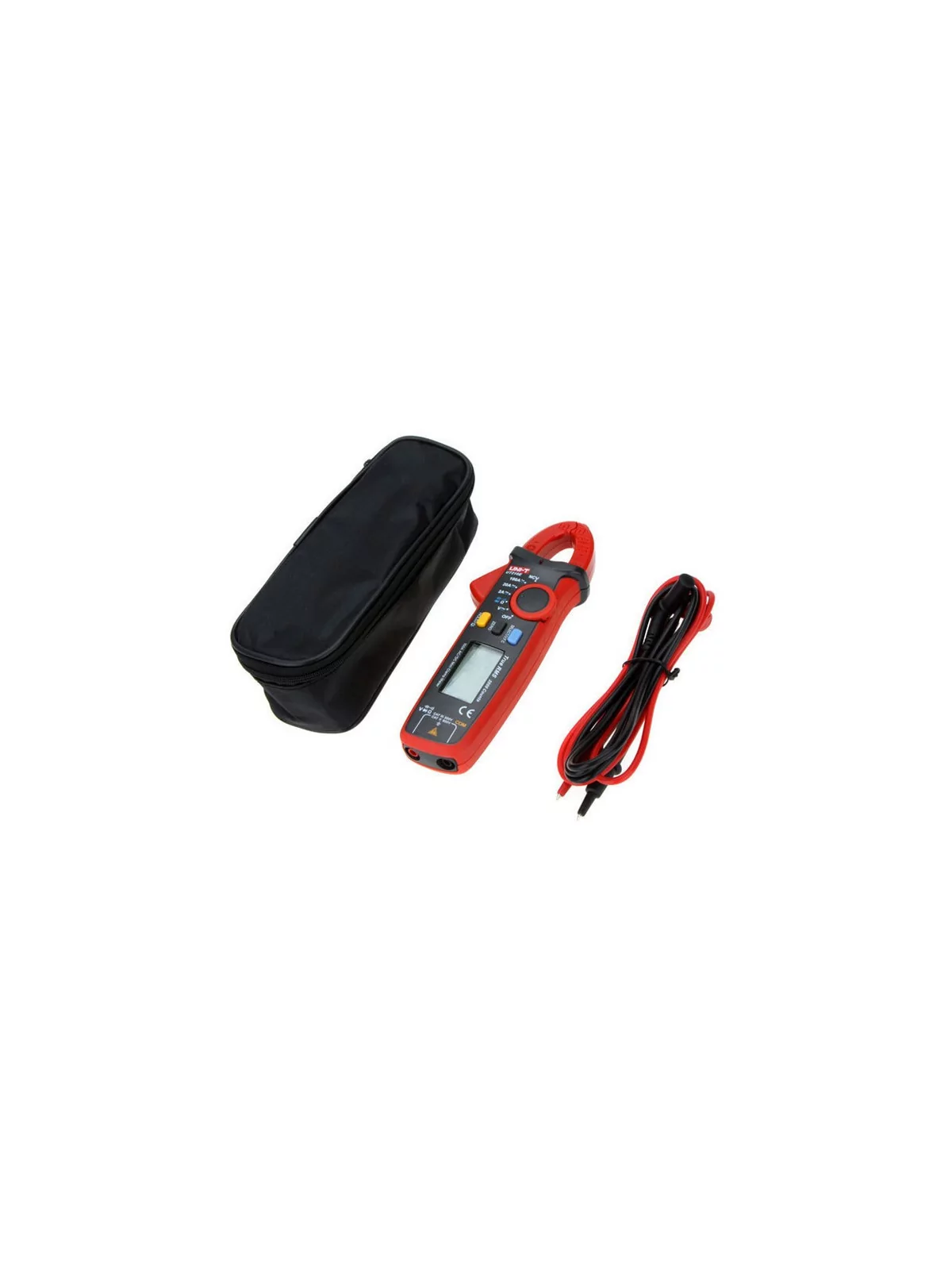

    Delivery content

    - Amperometric clamp

    - Case

    - Security cordon

    - Manual



    Characteristic



    Specifications

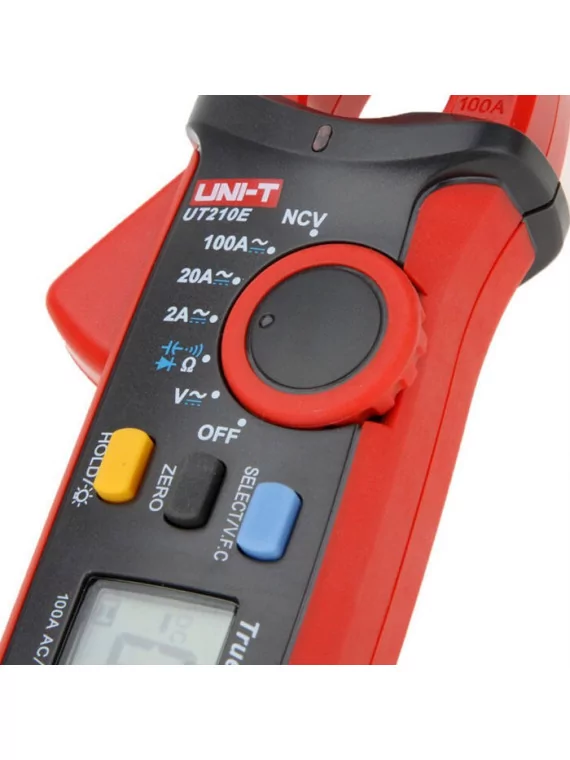

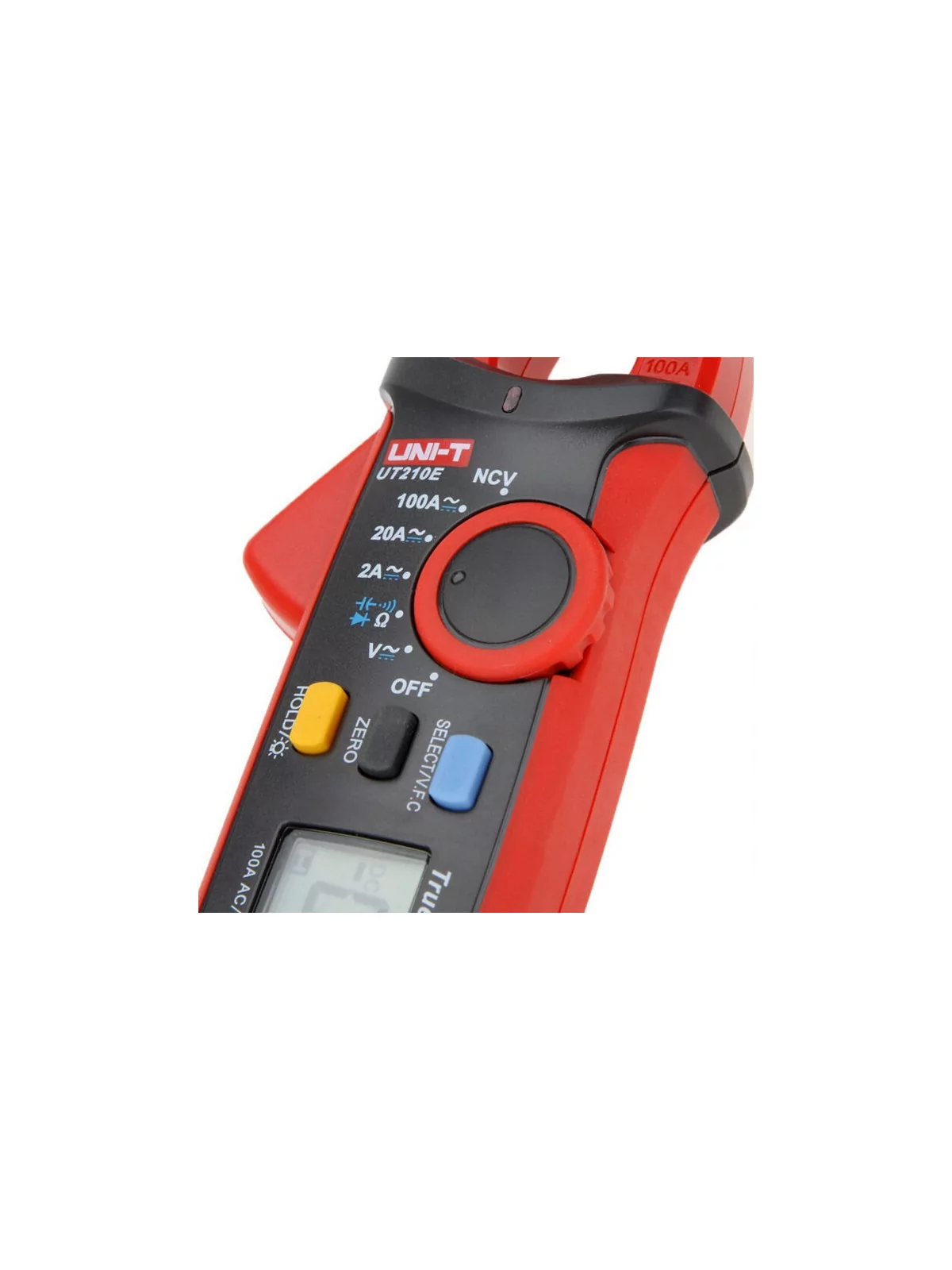

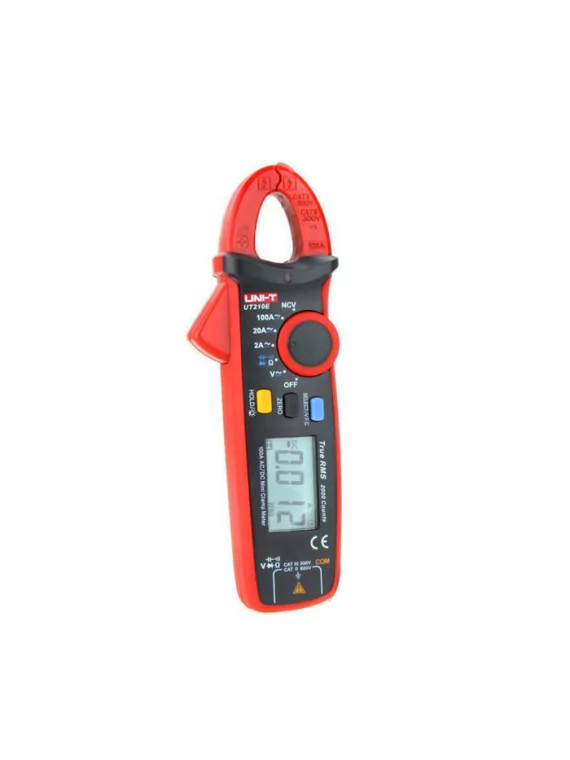

    ModelUT210E
    AC Current (A)2A/20A/100A
    DC Current (A)2A/20A/100A
    AC Voltage (V)2V/20V200V/600V
    DC Voltage (V)200mV/2V/20V200V/600V
    Resistance (Ω)200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ
    Capacitance (F)2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF
    Features
    Display Count2000
    Auto RangeYes

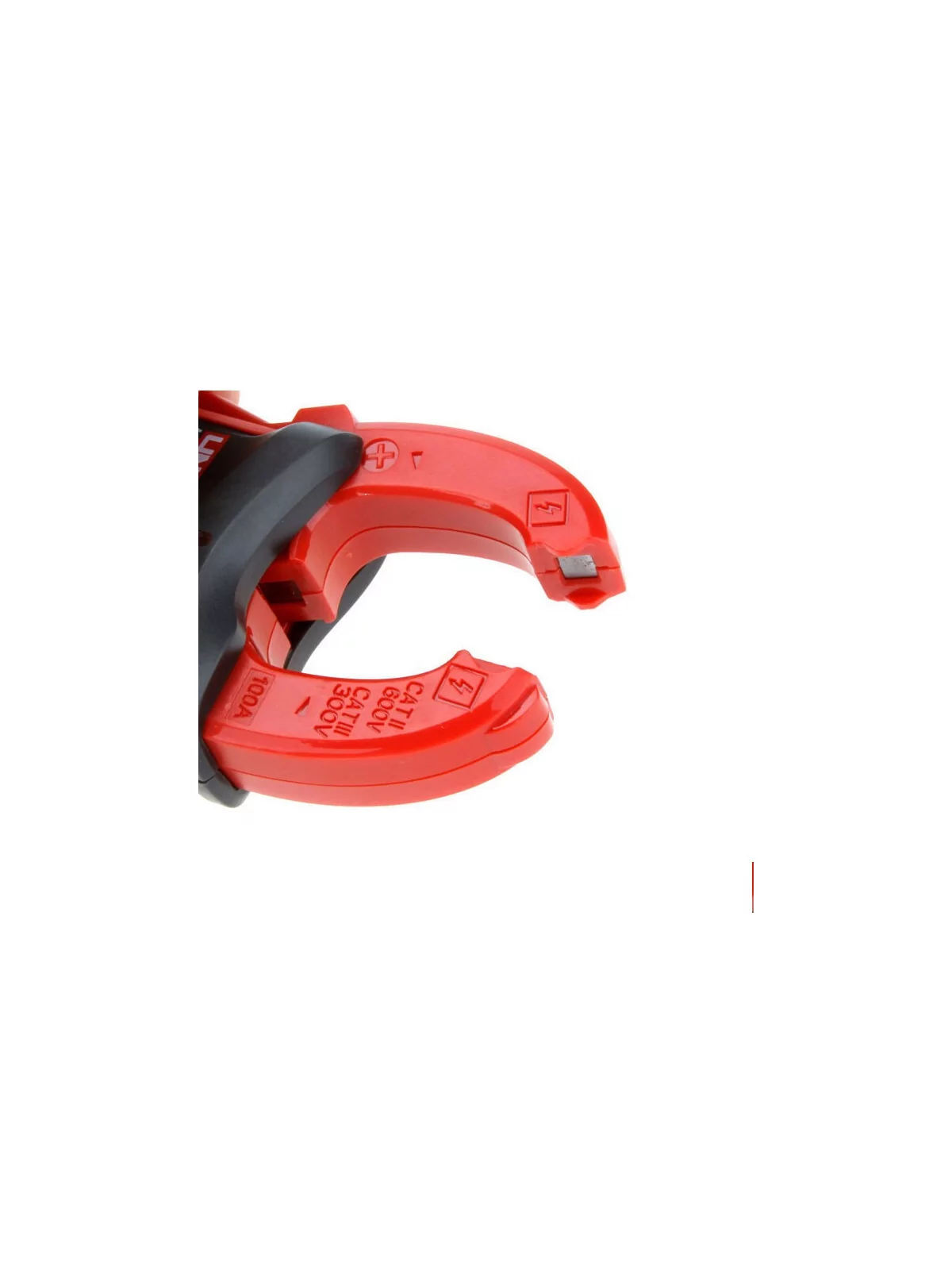

    Jaw Capacity17mm
    True RMSYes
    DiodeAround 3.0V
    V.F.C.Yes
    NCVYes
    Data Holdyes
    Zero ModeYes
    LCD BacklightYes
    Auto Power OffAround 15 Minutes
    Continuity BuzzerYes
    Low Battery Indication≤2.5V
    Input ProtectionYes
    Input Impedance for DCV≥10MΩ
    General Characteristic

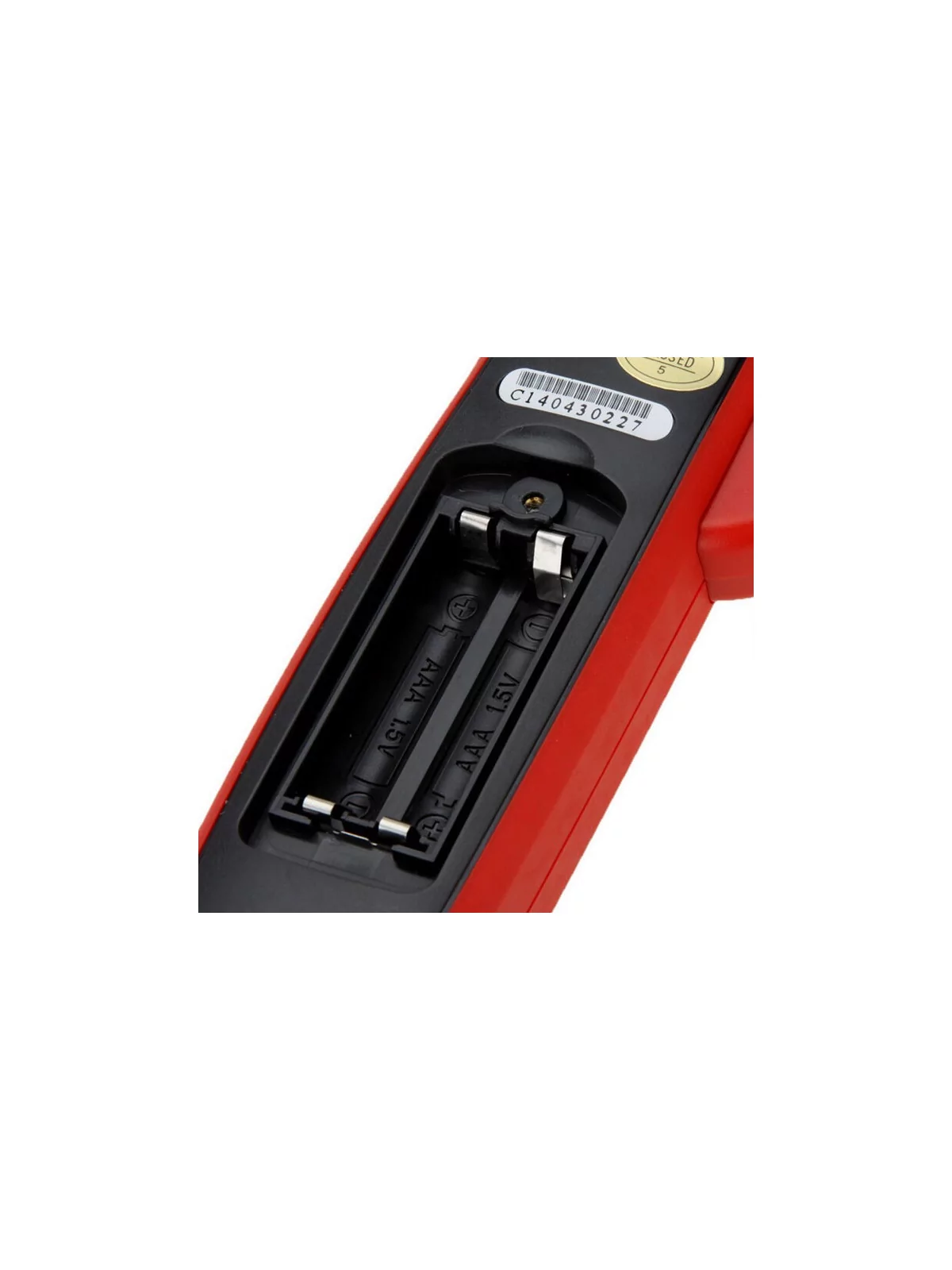

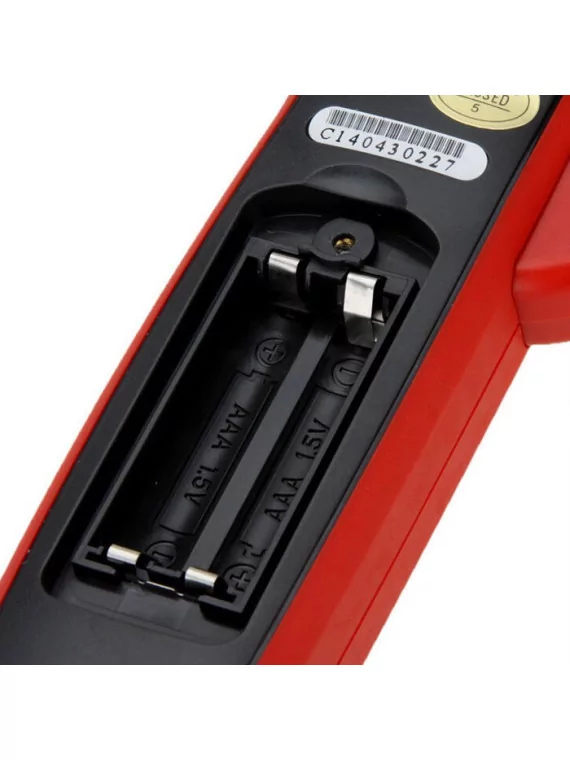

    PowerAAA 1.5V × 2
    LCD Size39.3mm × 26.5 mm
    Product ColorRed and Grey
    Product Net Weight 170g
    Product Size175mm × 60mm × 33.5mm
