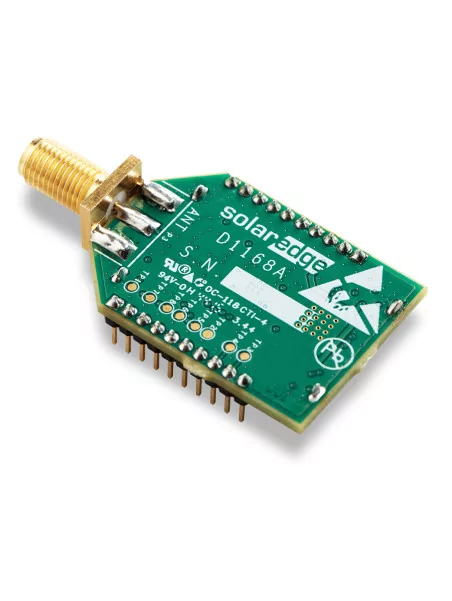

SolarEdge Wireless Communication Device Control ZigBee Module View full size

SolarEdge Wireless Communication Device Control ZigBee Module

SolarEdge

123,52 € tax incl.

This small device allows intelligent consumption management. It acts as a network manager for home automation. It is to be put on the SolarEdge inverter. The external antenna of the ZigBee allows a greater range for the inverter.

Logo SolarEdge

More details

More info

" Wireless Device Control Solution "

  • ZigBee module to support Device Control functionality
  • Functions as Device Control network manager
  • Installed within the inverter enclosure for outdoor resilience
  • Antenna external to inverter for wider range

Scheme Zigbee

SE1000-ZB06-MOD
FUNCTIONAL
Number of devices in a Device Control networkUp to 10
Communications with monitoring portalSingle inverter installation - Ethernet / GSM*; Multiple inverter installation - RS485 and Ethernet / ZigBee / Wi-Fi / GSM*
RF PERFORMANCE
Transmit powerdBm11,8
Receiver sensitivitydBm-102
Antenna gaindBi5
Operating frequency rangeGHz2,4 – 2,5
Outdoor (LOS) rangem400
Indoor range*m50
Antenna, mounting bracket and RF cableIncluded
Dimensions (H x W x D)mm22,0 x 32,9 x 4,1
Protection ratingIP65 (IP20 / indoor rated when installed inside Control and Communication Gateway)
STANDARD COMPLIANCE
SafetyIEC60950, UL60950
EMC approvalsETSI (Europe), ACMA (Australia), Telec (Japan)

* Not to be used with SolarEdge data plan
** Approximate values, may differ depending on specific installation conditions

Specifications

Nombre de MPPT1 MPPT
