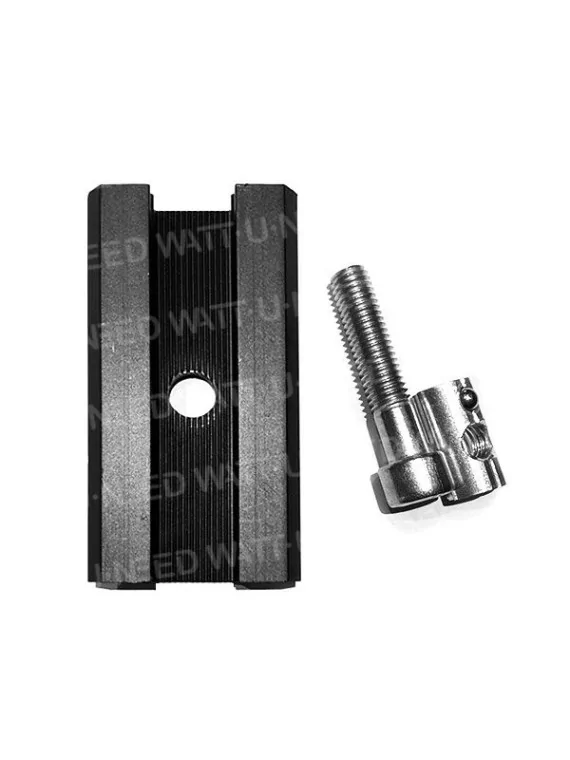

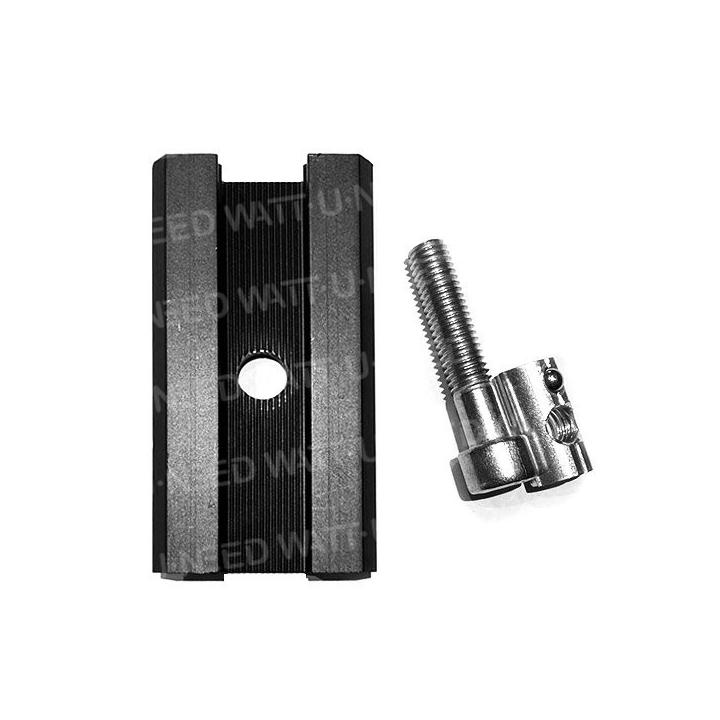

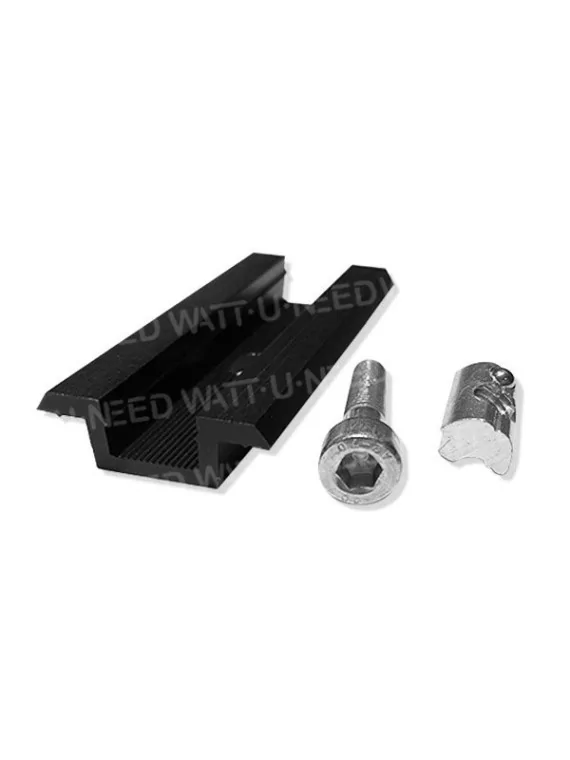

Clamp, 28 to 50 mm, for mounting solar panels on aluminium rails

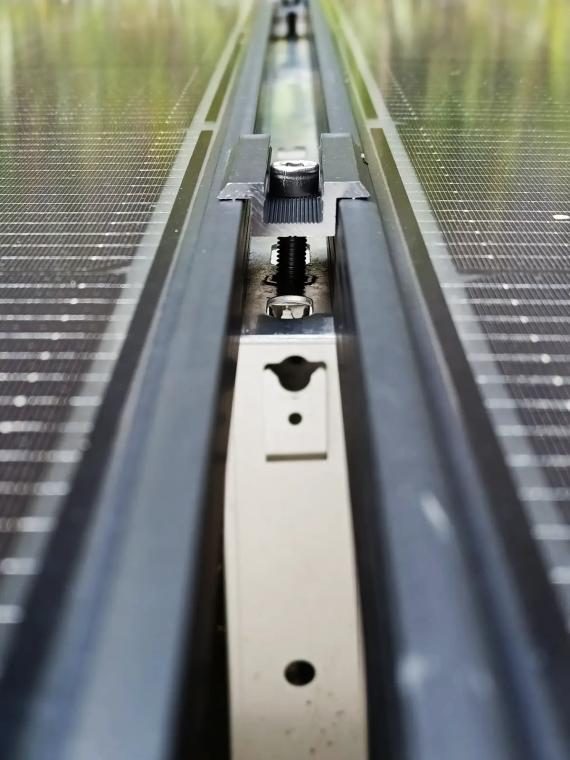

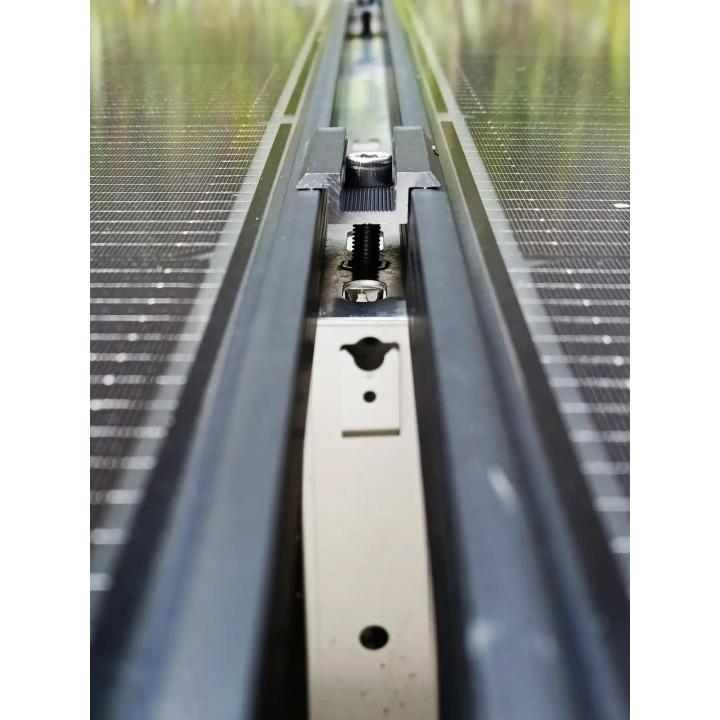

This product is a mid-span clamp used to secure the inside of a row of photovoltaic panels to an aluminium rail, holding two adjacent module frames in place. This clamp stabilises the PV array on the rail, secures the connection between panels and ensures consistent alignment across the entire row.

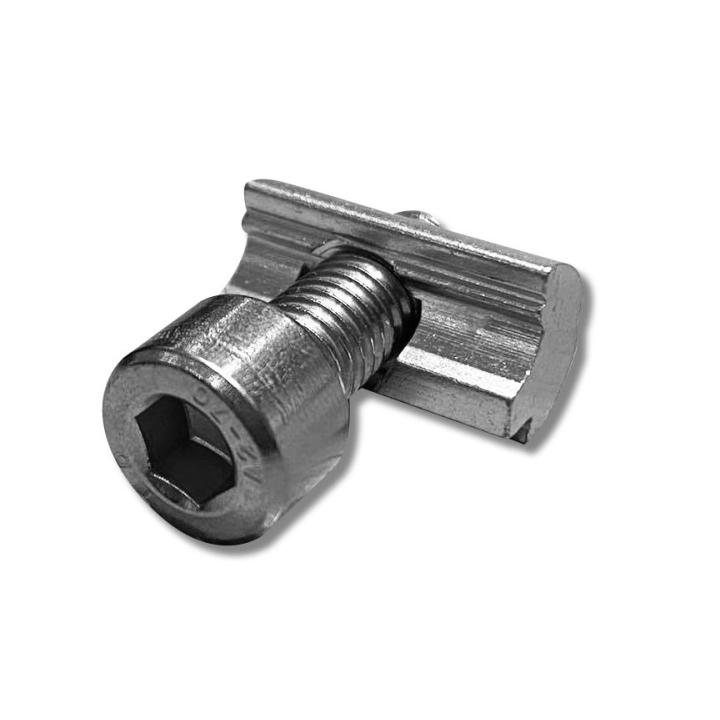

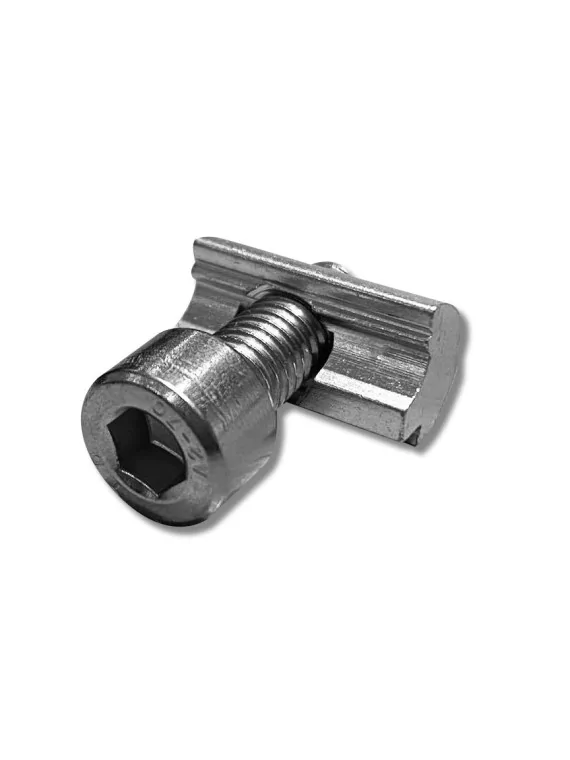

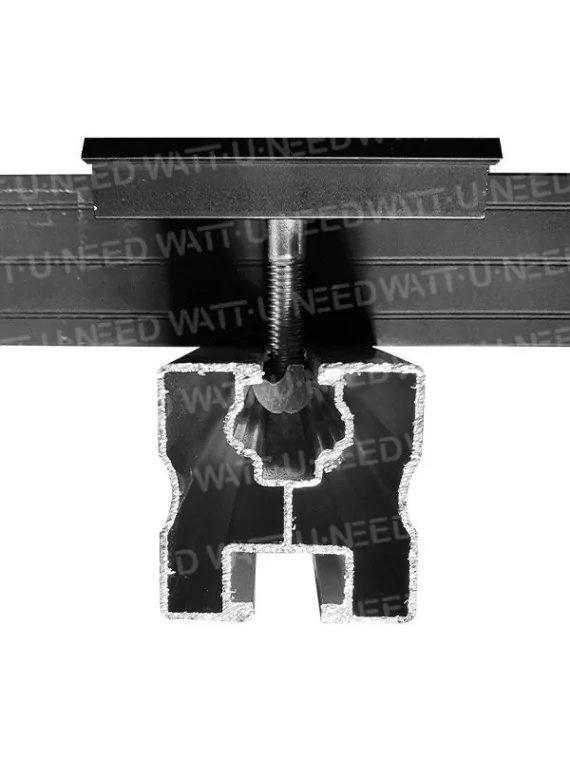

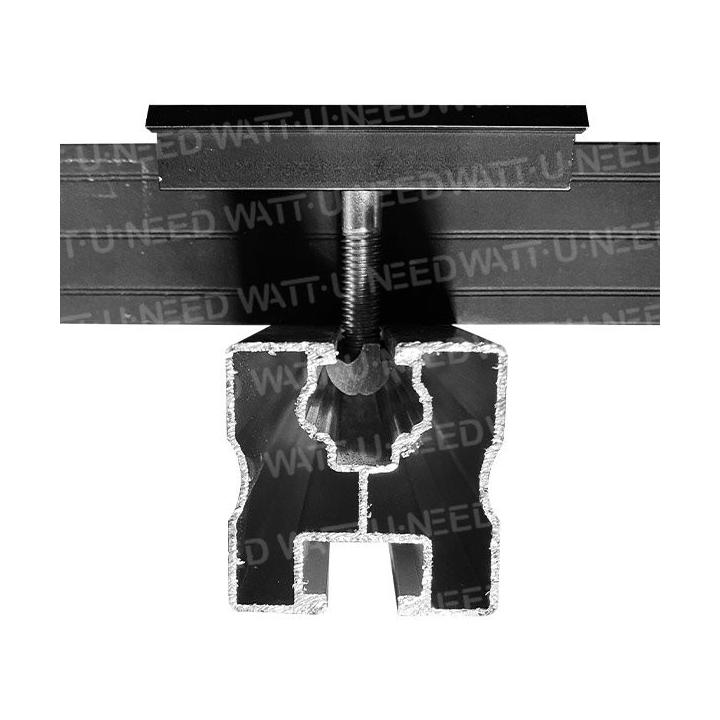

This device is fixed to the aluminium rail with a bolt and nut ( supplied), facilitating quick and standardised installation.
The height of the clamp is selected according to the thickness of the solar panel frame, with a range of 28 to 50 mm depending on the option selected before ordering. The middle clamp does not cover the entire height of the panel: only the length of the screw changes depending on the thickness of the frame.

Site note: the clamp model may vary depending on available stock, while retaining the same fixing function and advertised frame compatibility.

• Function: internal fastening, clamping between two panels on a rail

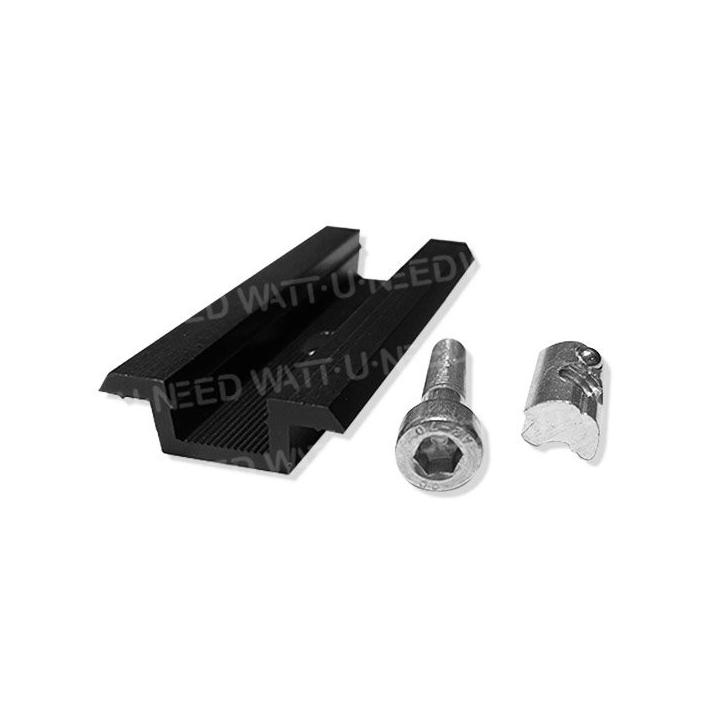

• Assembly: aluminium rail, bolt and nut supplied
• Frame compatibility: height adjusted via screw length according to thickness
• Height range: 28 to 50 mm (option to be selected before ordering)

EAN: 0712971125094
