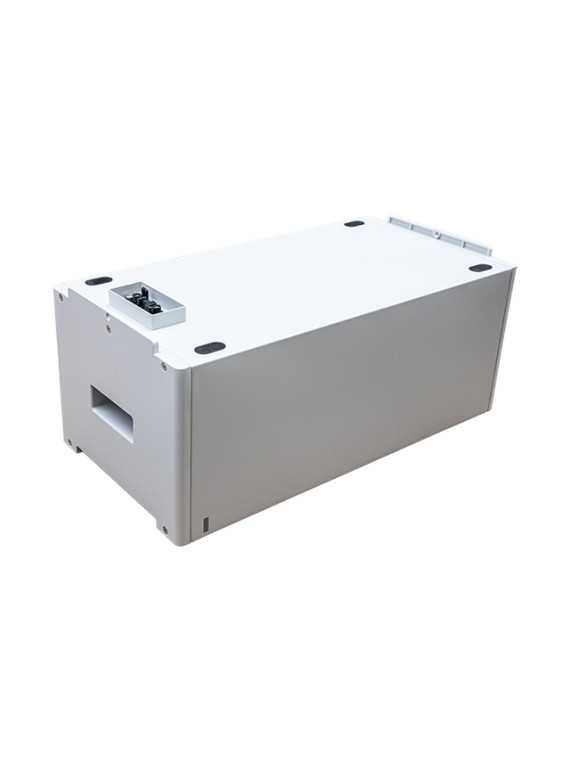

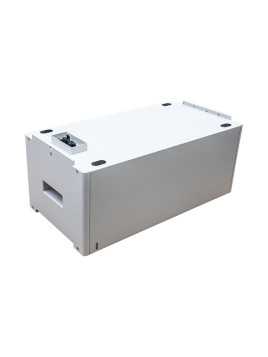

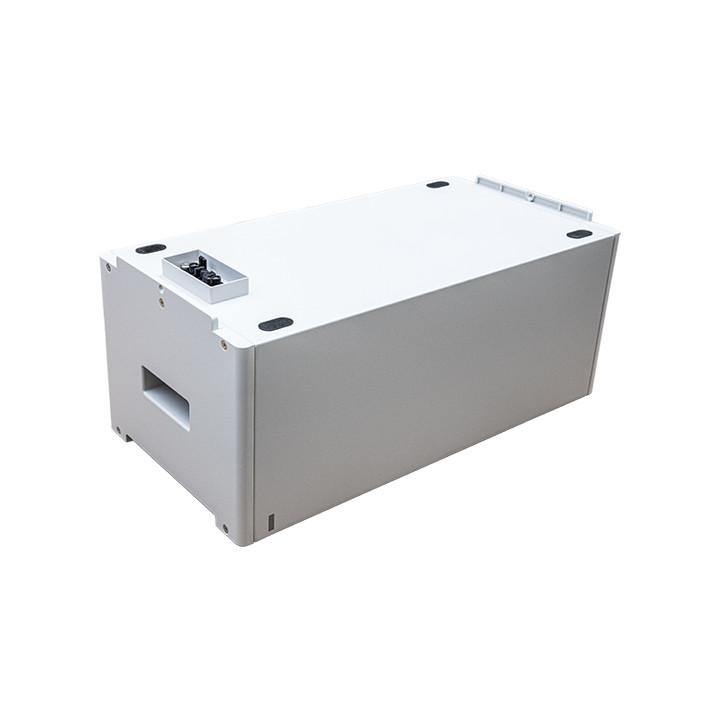

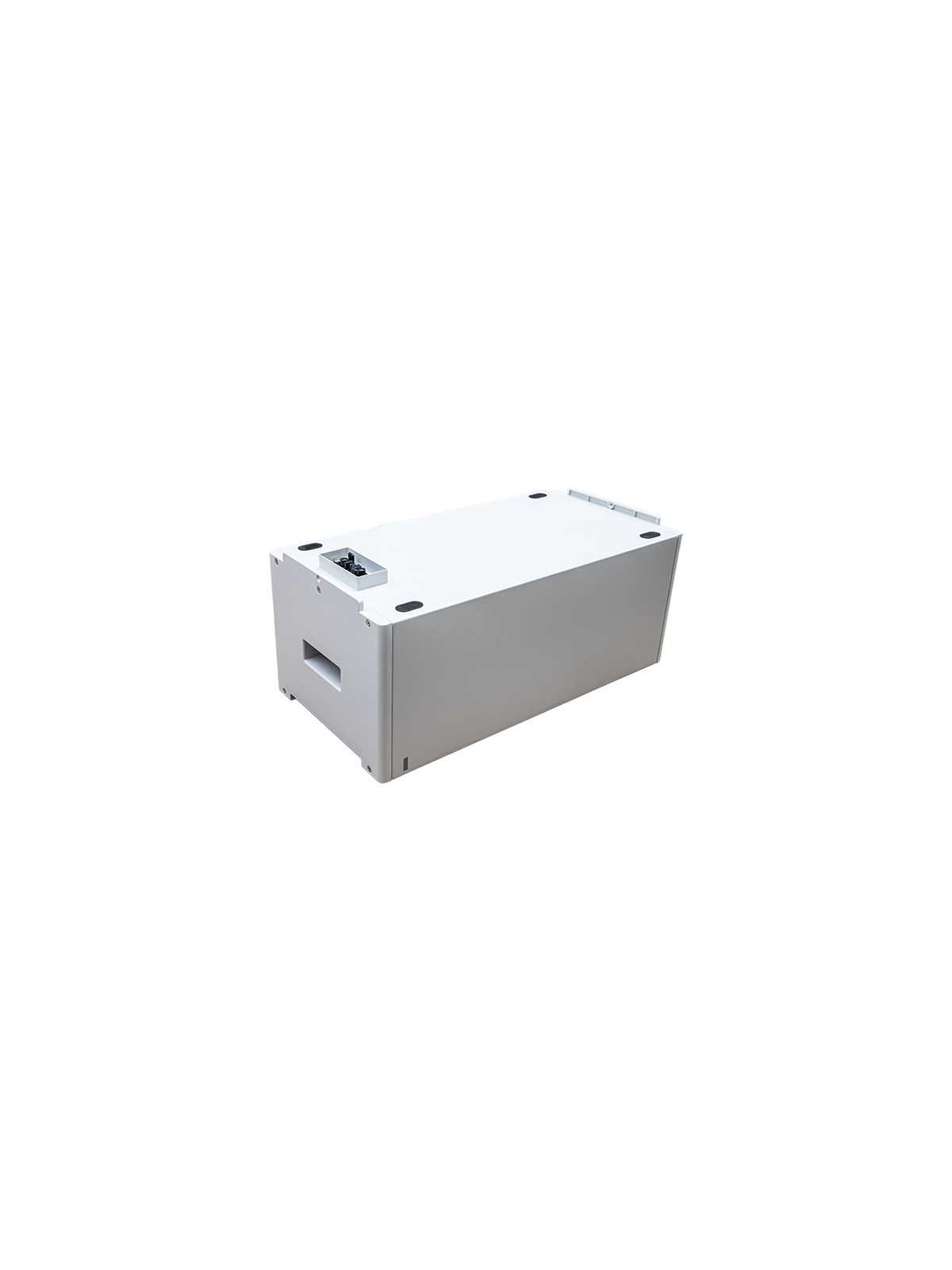

BYD PREMIUM HVS 2.56 kHw lithium battery

BYD PREMIUM HVS 2.56 kHw lithium battery

€1,633.78
Tax included
BYD-HVS-2,56
0768563820427

BYD Premium HVS 2.56 kWh: High Voltage and Modular Solar Energy Storage

The BYD Premium HVS 2.56 kWh battery is a highly efficient and scalable solar energy storage solution. With its lithium iron phosphate (LFP) technology, known for its safety and longevity, it efficiently stores the energy produced by your solar panels. Its modular design and high voltage offer maximum flexibility to adapt your system to your specific needs.

Why choose the BYD Premium HVS 2.56 kWh battery?

  • Modularity: Adjust storage capacity from 5.1 to 38.4 kWh based on your needs.
  • Performance: High voltage for maximum efficiency and high output current.
  • Reliability: Proven LFP technology, long lifespan, manufacturer warranty.
  • Safety: Cobalt-free battery, robust design, and rigorous certifications.
  • Flexibility: Compatible with many inverters, easy and quick installation.

The benefits of self-consumption:

  • Reduce your electricity bill: Use the energy you produce.
  • Become autonomous: Mitigate the impacts of power outages.
  • Protect the environment: Reduce your carbon footprint.

Key features:

  • Modular capacity: 5.1 to 38.4 kWh
  • Voltage: 102.4V
  • Technology: Lithium iron phosphate (LFP)
  • Maximum output current: 25A

Ready to optimize your solar installation? Contact us for a personalized study and a free quote.

BYD PREMIUM HVS 2.56 kHw...

€1,633.78

BYD HVS 2.56 kWh battery: Modular, high-performance solar storage



Standby and off-grid functionality thanks to high power output


- Maximum efficiency thanks to true high-voltage series connection
- Patented modular design requires no internal wiring for maximum flexibility and ease of use
- Cobalt-free lithium-iron-phosphate (LFP) battery: maximum safety, longevity and power supply
- Compatible with many single-phase and three-phase high-voltage battery inverters
- Two different models to enable


BATTERY-BOX PREMIUM HVS

A Battery-Box Premium HVS consists of 2 to 5 HVS battery modules connected in series to achieve a useful capacity of 5.1 to 12.8 kWh.
In addition, direct parallel connection of up to 3 identical HVS Premium Battery-Boxes provides a maximum capacity of 38.4 kWh. Upgradeable by adding HVS modules or parallel HVS batteries at a later date.





icone bebat

Important notice for our customers in Belgium: An environmental contribution of € 90.82 excluding VAT will be applied to the purchase of each BYD PREMIUM HVS lithium battery.

More information at the bottom of the page.


Important notice for our customers in Belgium:

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the acquisition of a BYD PREMIUM HVS is subject to a mandatory environmental contribution. An amount of €90.82 excluding VAT will be charged for each module purchased, as a direct contribution to Bebat, the organization in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For further information, click here

Here's the reference list and the corresponding fee!


FLEXIBLE, EFFICIENT, SIMPLE

Utilisation des batteries


Combinations

Model HVS 5.1 HVS 7.7 HVS 10.2 HVS 12.8
Battery module HVS (2.56 kWh, 102.4 V, 38 kg)
Number of modules 2 3 4 5
Usable energy 5.12 kWh 7.68 kWh 10.24 kWh 12.8 kWh
Maximum output current 25A
Peak output current 50A, 3s
Rated voltage 204.8 V 307.2 V 409.6 V 512 V
Operating voltage 160~240 V 240~360V 320~480 V 400~600 V
Dimensions (H / W / D) 762 x 585 x 298 mm 995 x 585 x 298 mm 1228 x 585 x 298 mm
1461 x 585 x 298 mm
Weight 91 kg 129 kg 167 kg 205 kg
Operating temperature -10 °C to +50 °C
Battery cell technology Lithium iron phosphate (cobalt-free)
Communication CAN / RS485
Protection level IP55
Round-trip efficiency ≥ 96%
Certification VDE2510-50 / IEC62619 / CEC / CE / UN38.3
Applications ON Grid / ON Grid + Backup / OFF Grid
Guarantee 10 years



icone bebat

Important notice for our customers in Belgium:


As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a BYD PREMIUM HVS battery is subject to a mandatory environmental contribution. An amount of €90.82 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here

Here is the reference list and the corresponding fee!


When purchasing lithium batteries, please add the following product BYD PREMIUM HVS environmental fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

BYD-HVS-2,56

Data sheet

Power
2,56 kWh
Width
29,8 cm
Height
58,5 cm
Rated Battery Voltage
102,4
Weight
38,7 kg
Model
HVS 2.5
Battery module
HVS (2.56 kWh, 102.4 V, 38 kg)
Number of modules
1
Maximum output current
25A

Specific References

Download

FicheT BYD HVS/HVM -FR

Download (134.11KB)
