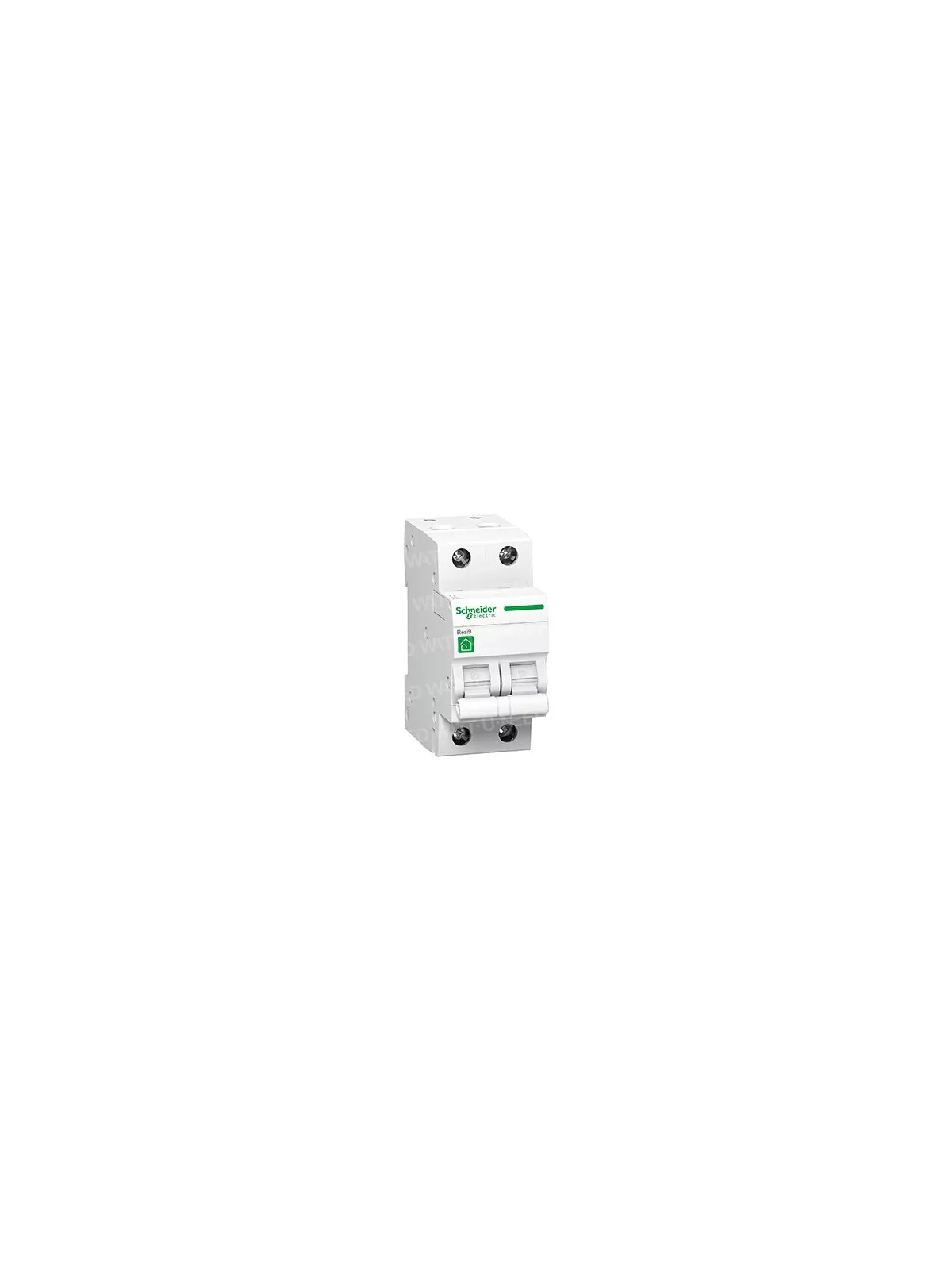

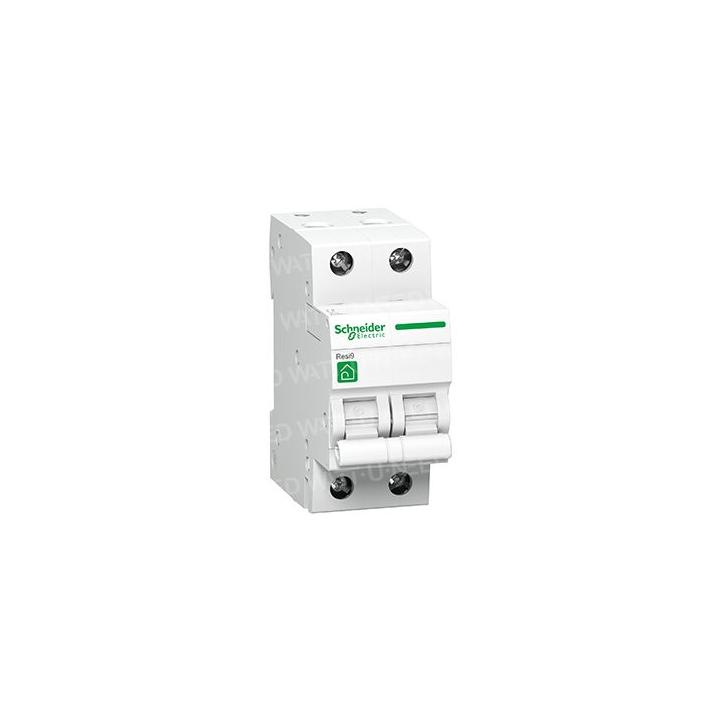

Schneider mono 40A circuit breaker
€15.54
R9F64240
0712971137578
• Schneider 40A Circuit Breaker
• RESI9
• 2 pole
• 400V
In view of the current situation concerning the reordering of products and the uncertain deadlines communicated by our suppliers, we cannot guarantee to supply you with a Schneider brand circuit breaker.
However, as an alternative, we can provide you with a Hager circuit breaker with the same characteristics.
100% secure payments
Customers who bought this product also bought:
Schneider mono 40A circuit breaker
Features
| Main | |
| range | Resi9 |
| Product name | Resi9 MCB |
| Product or component type | Miniature circuit breaker |
| Application of the device | distribution |
| Description of the poles | 2P |
| Number of poles protected | 2 |
| [In] assigned current job | 40 A to 30 degrees Celsius |
| Type of network | Ac. |
| Trigger technology | Thermal-magnetic |
| Trigger curve | c |
| Cutting power | 3000 A Icn to 230 V c.a. 50/60 Hz compliant with EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Product certifications | CEBEC |
| Complementary | |
| Frequency of network | 50/60 Hz |
| [Ue] assigned job tension | 230 V AC 50/60 Hz |
| Magnetic trigger limit | 5...10 x In |
| Limitation class | 3 according to EN/IEC 60898-1 |
| [Ui] assigned isolated tension | 440 V AC 50/60 Hz |
| [Uimp] assigned tension of holding to shocks | 4 kV |
| Type of command | Rocking key |
| Local signage | IndicationACTIVE/DEACTIVE |
| How to install | In clips |
| Mounting support | Rail DIN |
| Distribution block and comb compatibility | Bottom: bi-connect |
| No 9 mm | 4 |
| height | 85 mm |
| width | 36 mm |
| depth | 75 mm |
| Product weight | 0.217 kg |
| colour | White |
| Mechanical lifespan | 20,000 cycle |
| Electric lifespan | 10000 cycle c.a. 50/60 Hz compliant with EN/IEC 60898-1 |
| Description of optional locks | Cadenas on OFF position |
| Connection mode | Tunnel-type terminals (bottom) - < 16 mm2 - flexible Tunnel-type terminals (bottom) - < 25 mm2 - rigid Tunnel-type terminals (top) - < 25 mm2 - rigid Tunnel-type terminals (top) - < 16 mm2 - flexible |
| Tightening torque | 2 N.m |
| environment | |
| Degree of IP protection | IP20 compliant with IEC 60529 IP40 (modular box) compliant with IEC 60529 |
| Pollution level | 2 EN/IEC 60898-1 |
| Surge category | Iii |
| Operating temperature | -20 to 60 degrees Celsius |
| Room temperature for storage | -40 to 80 degrees Celsius |
R9F64240
999945 Items
Data sheet
- Type de matériel électrique
- Disjoncteur
Specific References
- UPC
- 712971137578
- EAN13
- 0712971137578
