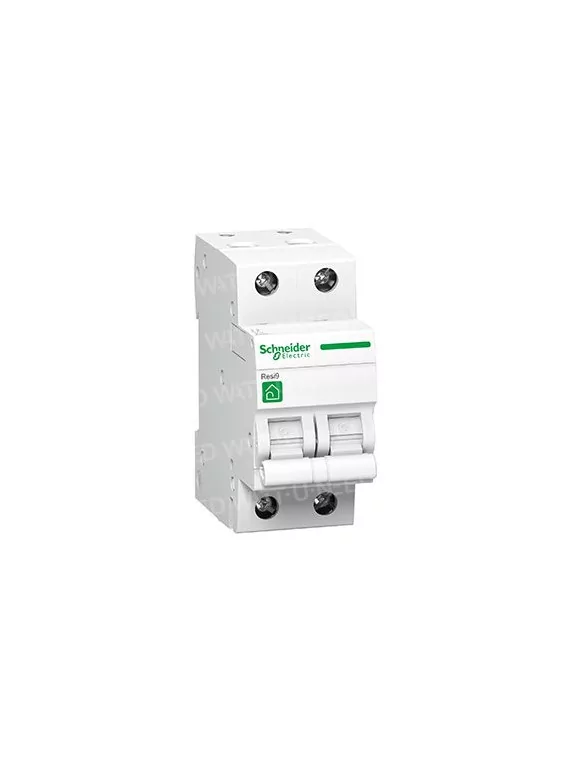

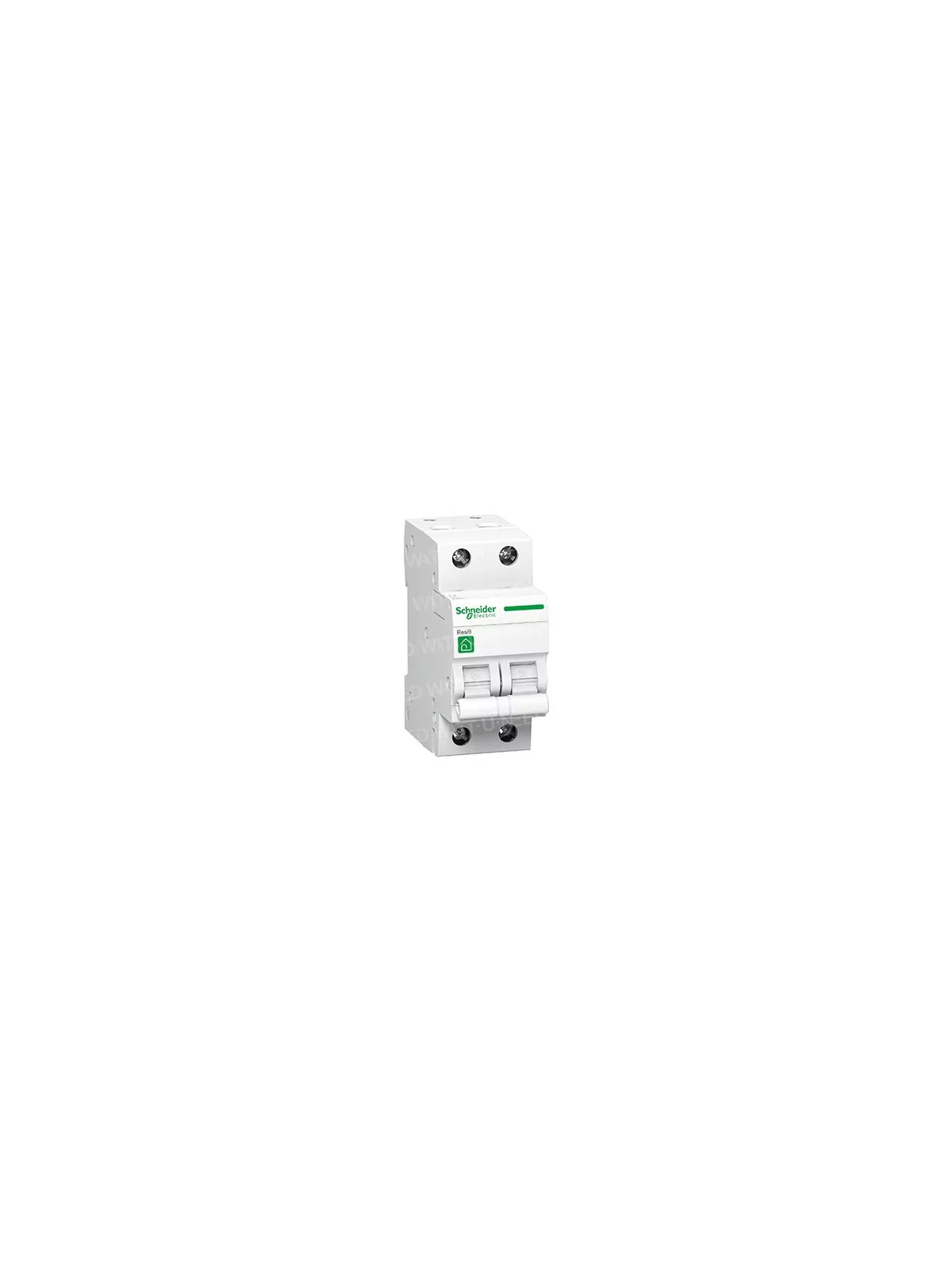

Schneider mono 6A circuit breaker View full size

Schneider mono 6A circuit breaker

Schneider Electric

14,70 € tax incl.

Schneider 6A Breaker

RESI9

2 pole

400V

More details

More info

Schneider mono 6A circuit breaker



Features

Main
rangeResi9
Product nameResi9 MCB
Product or component typeMiniature circuit breaker
Application of the devicedistribution
Description of the poles2P
Number of poles protected2
[In] assigned current job6 A to 30 degrees Celsius
Type of networkAc.
Trigger technologyThermal-magnetic
Trigger curvec
Cutting power3000 A Icn to 230 V c.a. 50/60 Hz compliant with EN/IEC 60898-1
StandardsEN/IEC 60898-1
Product certificationsCEBEC
Complementary
Frequency of network50/60 Hz
[Ue] assigned job tension230 V AC 50/60 Hz
Magnetic trigger limit5...10 x In
Limitation class3 according to EN/IEC 60898-1
[Ui] assigned isolated tension440 V AC 50/60 Hz
[Uimp] assigned tension of holding to shocks4 kV
Type of commandRocking key
Local signageIndicationACTIVE/DEACTIVE
How to installIn clips
Mounting supportRail DIN
Distribution block and comb compatibilityBottom: bi-connect
No 9 mm4
height85 mm
width36 mm
depth75 mm
Product weight0.217 kg
colourWhite
Mechanical lifespan20,000 cycle
Electric lifespan10000 cycle c.a. 50/60 Hz compliant with EN/IEC 60898-1
Description of optional locksCadenas on OFF position
Connection modeTunnel-type terminals (bottom) - < 16 mm2 - flexible
Tunnel-type terminals (bottom) - < 25 mm2 - rigid
Tunnel-type terminals (top) - < 25 mm2 - rigid
Tunnel-type terminals (top) - < 16 mm2 - flexible
Tightening torque2 N.m
environment
Degree of IP protectionIP20 compliant with IEC 60529
IP40 (modular box) compliant with IEC 60529
Pollution level2 EN/IEC 60898-1
Surge categoryIii
Operating temperature-20 to 60 degrees Celsius
Room temperature for storage-40 to 80 degrees Celsius

Data sheets and documentation

Specifications

Type de matériel électriqueDisjoncteur
