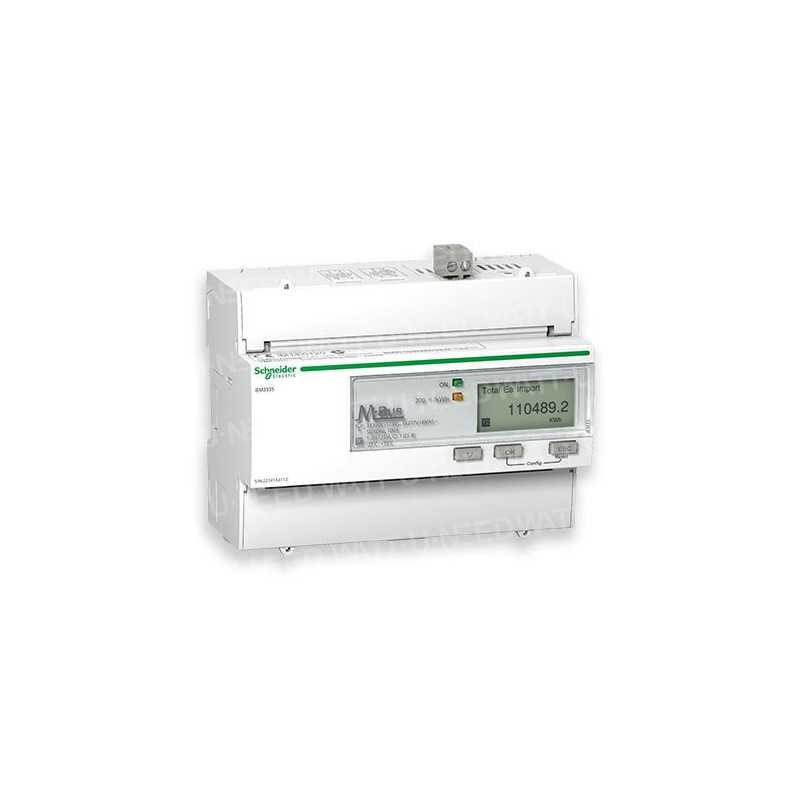

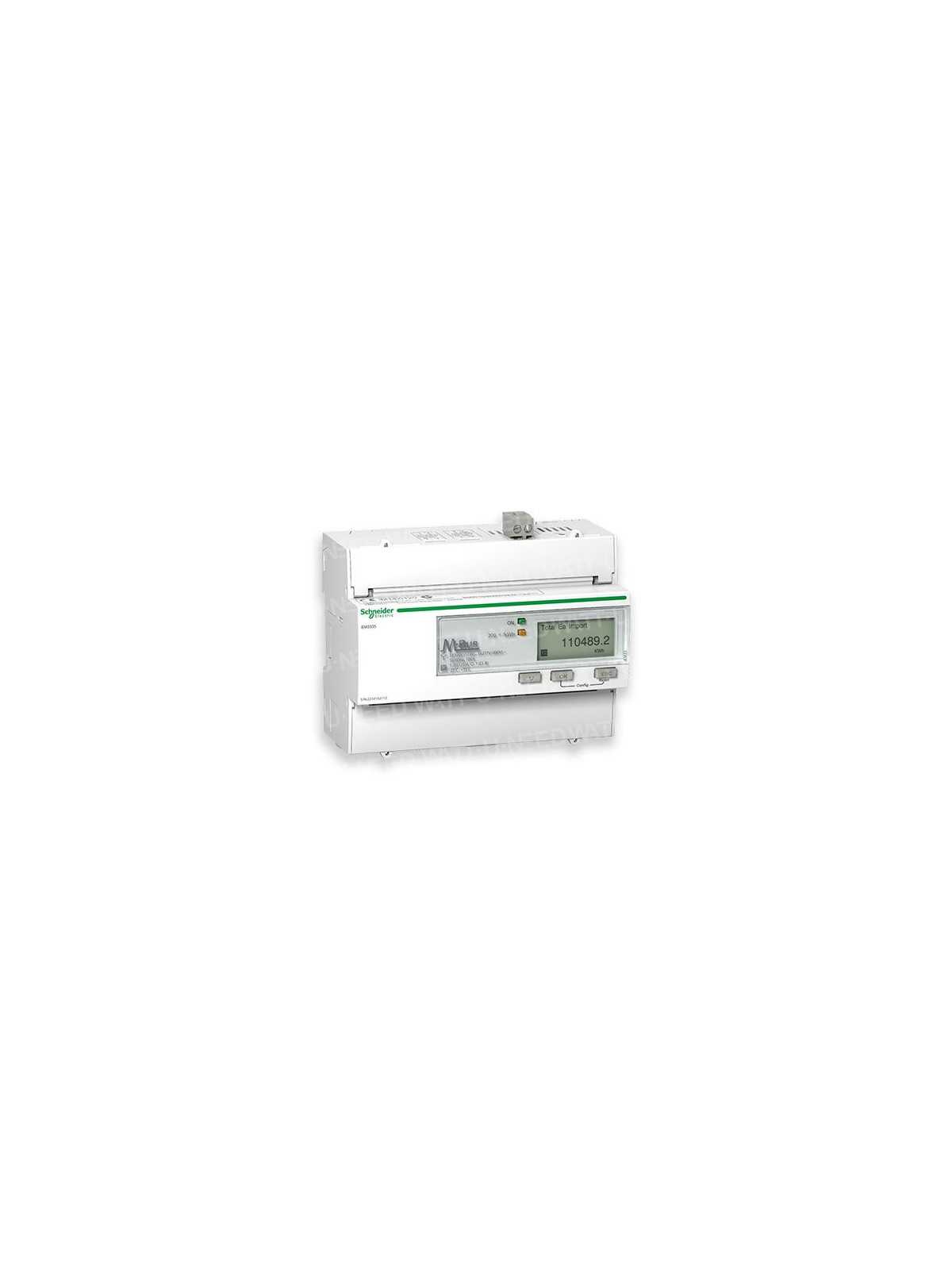

KWH Acti9 series energy counter iEM3000 125A View full size

KWH Acti9 series energy counter iEM3000 125A

Schneider Electric

516,79 € tax incl.

Acti9 iEM3000 series three-phase energy meters offer a competitive range of DIN rail-mounted meters, ideal for billing and cost allocation applications.

More details

More info

Acti9 series counter iEM3000 125A



Acti9 iEM3000 series three-phase energy meters offer a competitive range of DIN rail-mounted meters, ideal for billing and cost allocation applications. Combined with a communication system, such as Com'X or SmartLink, the iEM3000 series facilitates the integration of electrical distribution measures into customer facility management systems.



Innovative design makes counting smart and simple

  • Easy to install for boarders.
  • Easy to put into service for contractors and installers.
  • Easy to use for the end user.



Applications

Cost management

  • Checking billing.
  • Recharging, including WAGES (Water, Air, Gas, Electricity - Steam).
  • Cost allocation, including WAGES.

Network management

  • Basic electrical parameters, such as current, voltage and power.
  • On-board overload alarm to avoid circuit overload and triggering.
  • Easy integration with automated systems by input/exit interface.



Market segments

  • Construction and industry.
  • Data centers and networks.
  • Infrastructure (airports, road tunnels, telecommunications).



Characteristics

  • Self-contained power meters.
  • Precision Class 1 for Full Measuring Circuit (Measurement Device - TI)
  • Compliant with IEC 61557-12, IEC 62053-21/22, IEC 62053-23, EN50470-3.
  • Communication Modbus, LON, M-Bus or BACnet integrated (some models)
  • Graphic screen for easy viewing.
  • Easy-to-wire iEM31xx and iEM33xx (no TC) series.
  • Anti-sabotage security features ensure the integrity of your data.
  • LVCT support (iEM3455 and iEM3465).
  • Support Rogowski (iEM3555 and iEM3565).
  • MID Certified (some models)

Specifications

Width126 mm
Height103,2 mm
Thickness69,3 mm
