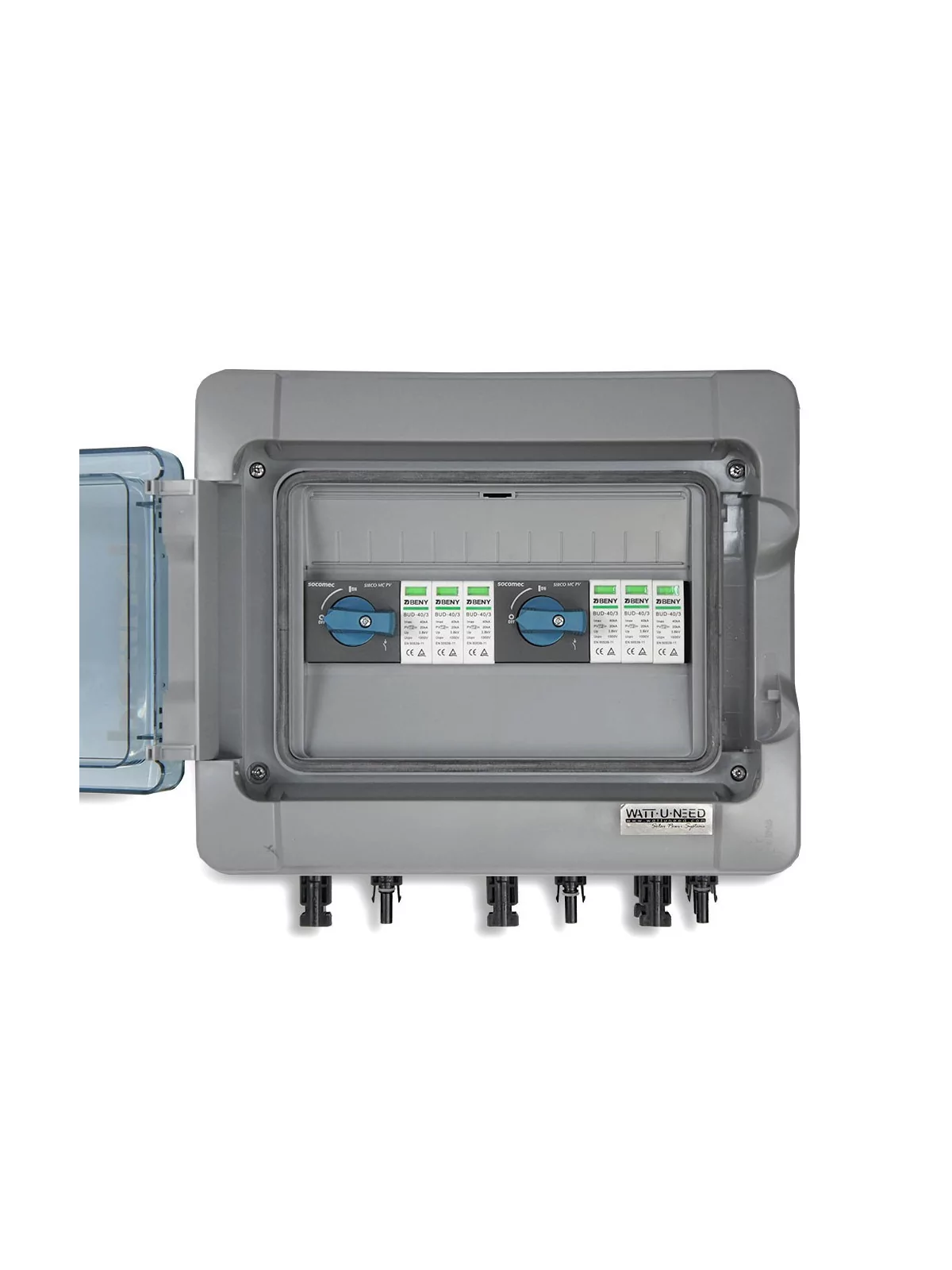

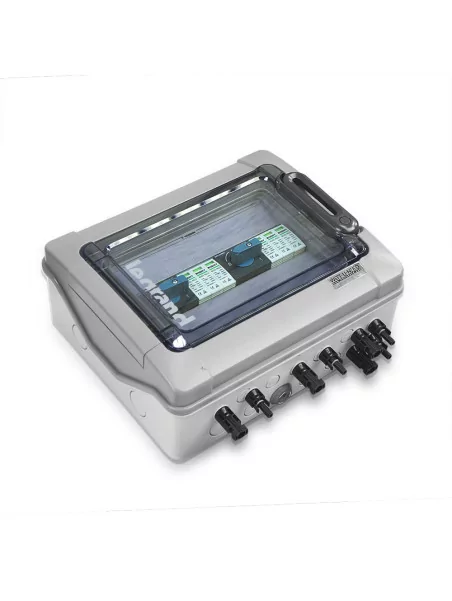

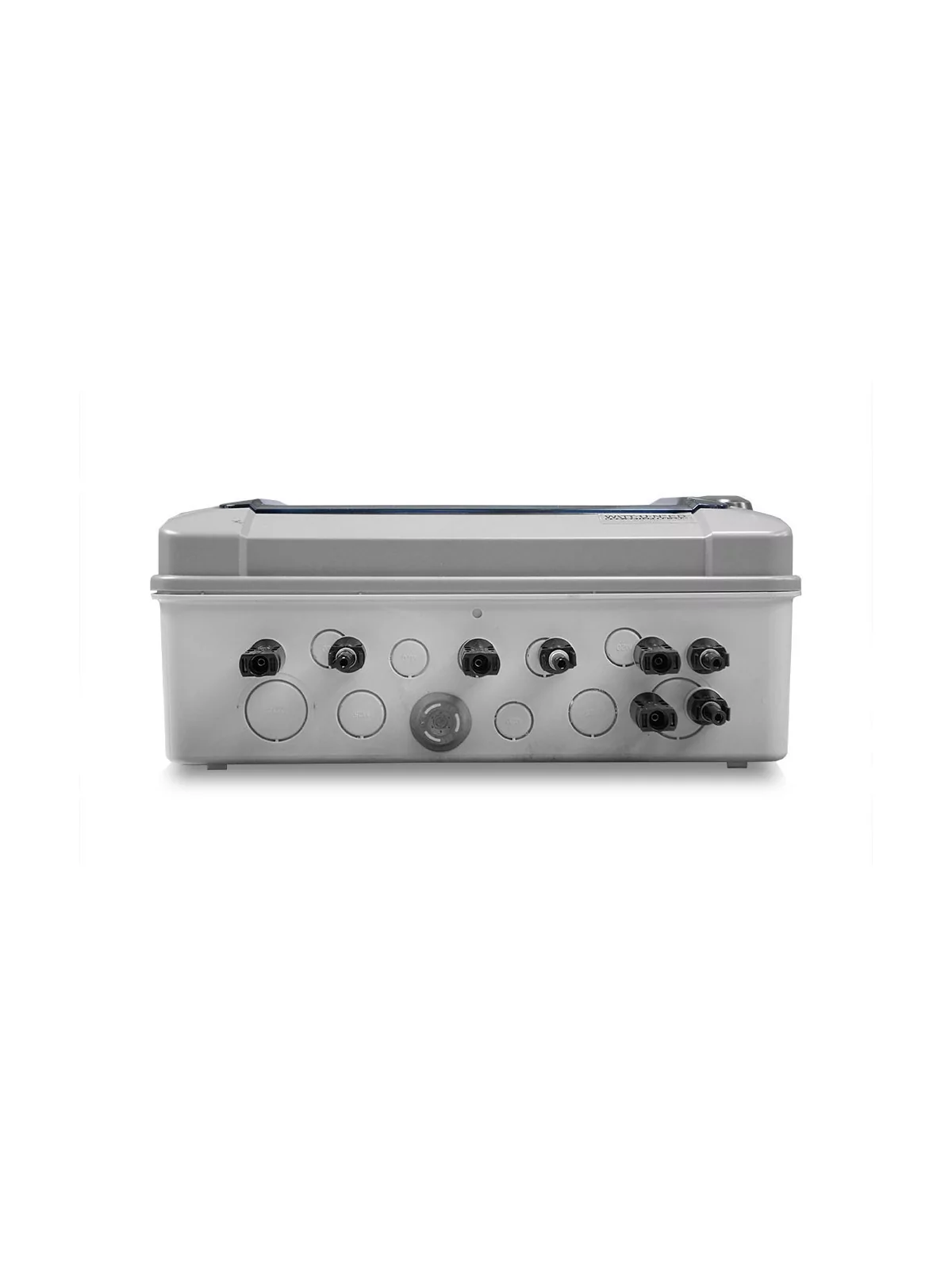

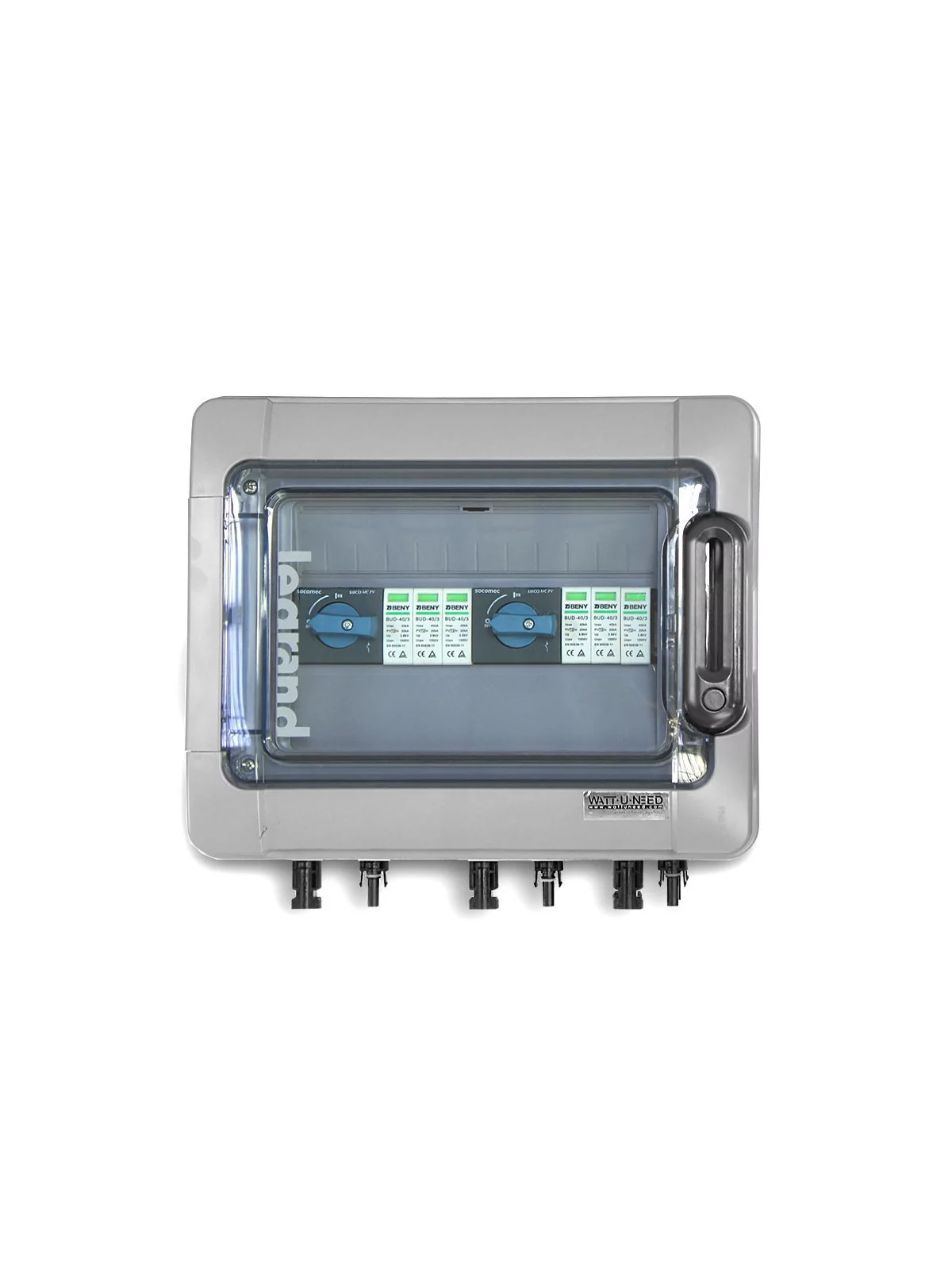

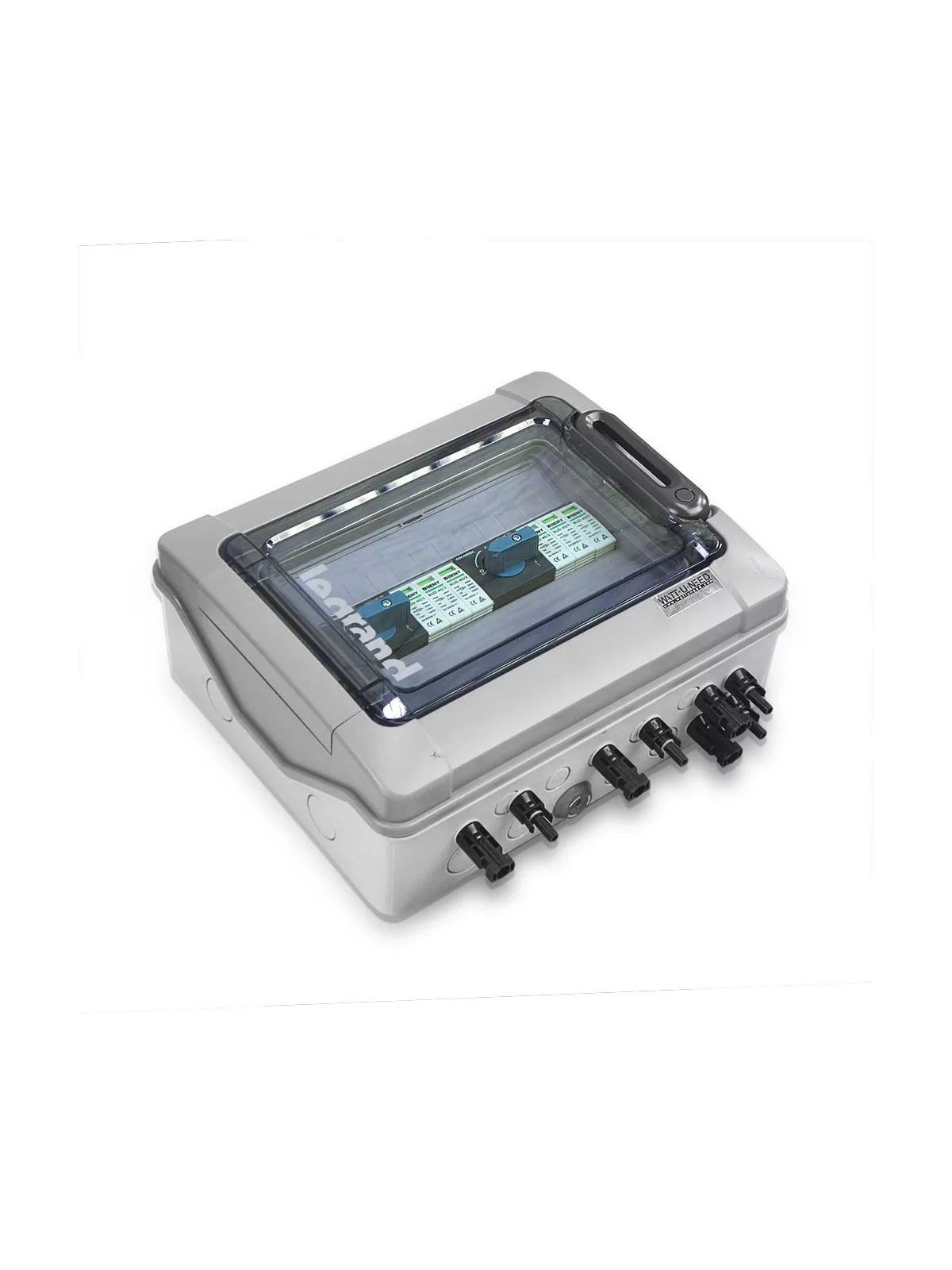

    Lightning protection box with 2 input

    €485.13
    Tax included
    0830
    0712971129634

    This lightning protection box is designed to protect equipment in a domestic photovoltaic installation against lightning and power surges.

    Conforms to  NF EN 61 643-11(-12)

    100% secure payments

    Lightning protection box...

    €485.13

     " Lightning protection box with 2 input "







    Lightning protection box with 2 input

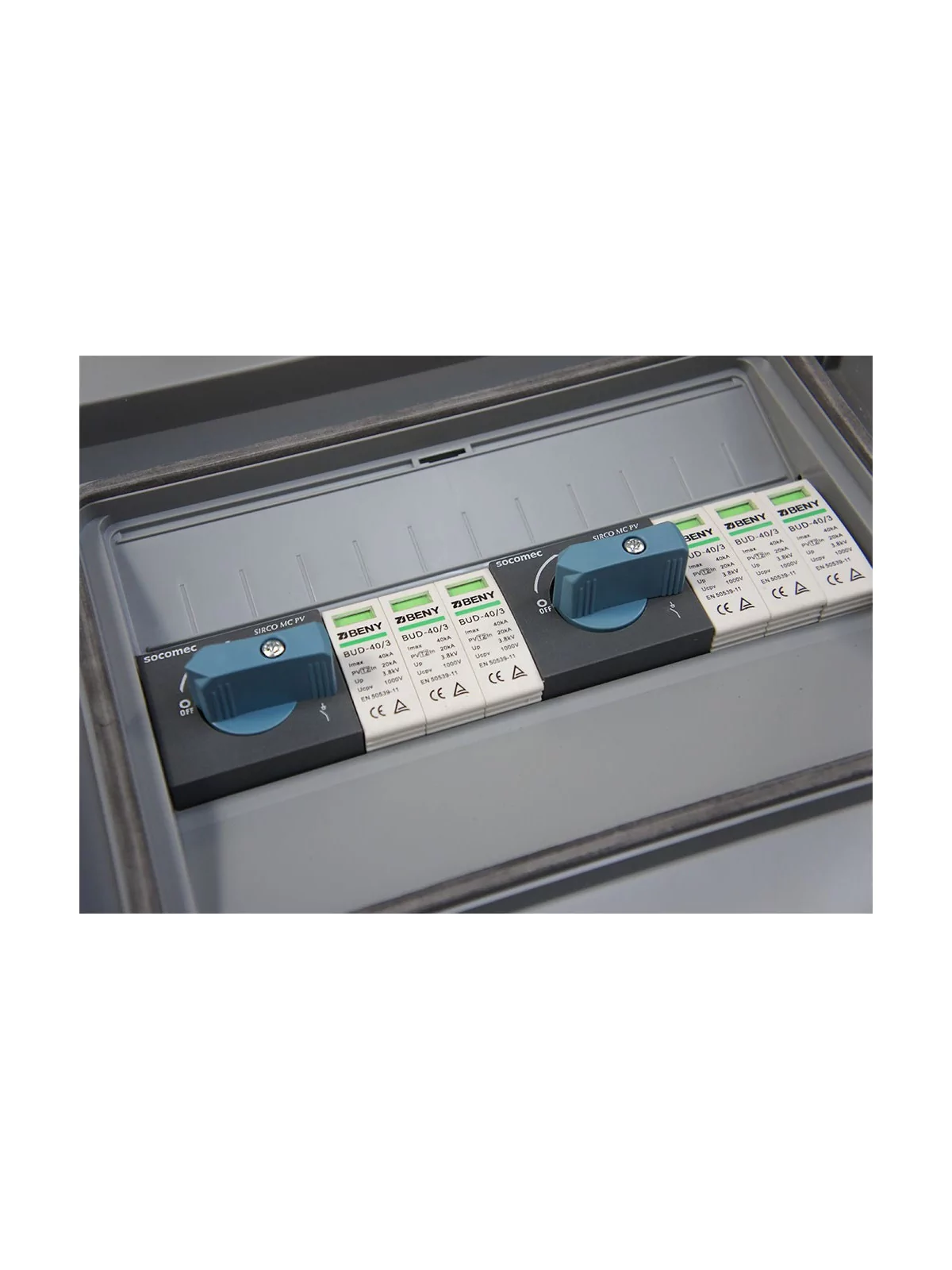

    The box ensure the parallel of 2 sets of panels and protect the inverter against lightning ( inverter with 2 MPPT < 3kWc per entry).



    Maximum operational voltage : 600 Vdc

    Nominal operating voltage : 500 Vdc

    Max total current : 25 Adc

    Operating temperature : -40°C + 70°C

    Degree of protection : IP65

    Dimensions (mm) = 282 x 340 x 141 mm













    0830
    498 Items

    Data sheet

    Type of electrical equipment
    Coffret
    Parafoudre

    Specific References

    UPC
    712971129634
    EAN13
    0712971129634
